Active 800 Watt 15" PA Speaker System with Built-in Media Player, Bluetooth* Receiver and Integrated Mixer
-
High-Power 800-Watt 2-way PA sound reinforcement speaker system for live and playback applications
-
Ultra-compact and lightweight system delivers excellent sound even at extreme sound pressure levels
-
Built-in media player with display, SD card slot, USB port and Bluetooth* receiver
-
2-channel mixer with individual Mic/Line inputs, Volume controls and Clip LEDs
-
Dedicated 2-band EQ plus integrated sound processor for ultimate system control and speaker protection
-
Extremely powerful 15'' long-excursion driver provides incredibly deep bass and acoustic power
-
State-of-the-art 1" compression driver for exceptional high-frequency reproduction
-
Ultra-wide dispersion, large-format exponential horn
-
Additional Line output allows linking of additional speaker systems
-
Convenient, built-in wheels make it amazingly easy to transport
-
Ergonomically shaped handles for easy carrying and setup
-
High-quality components and exceptionally rugged construction ensure long life

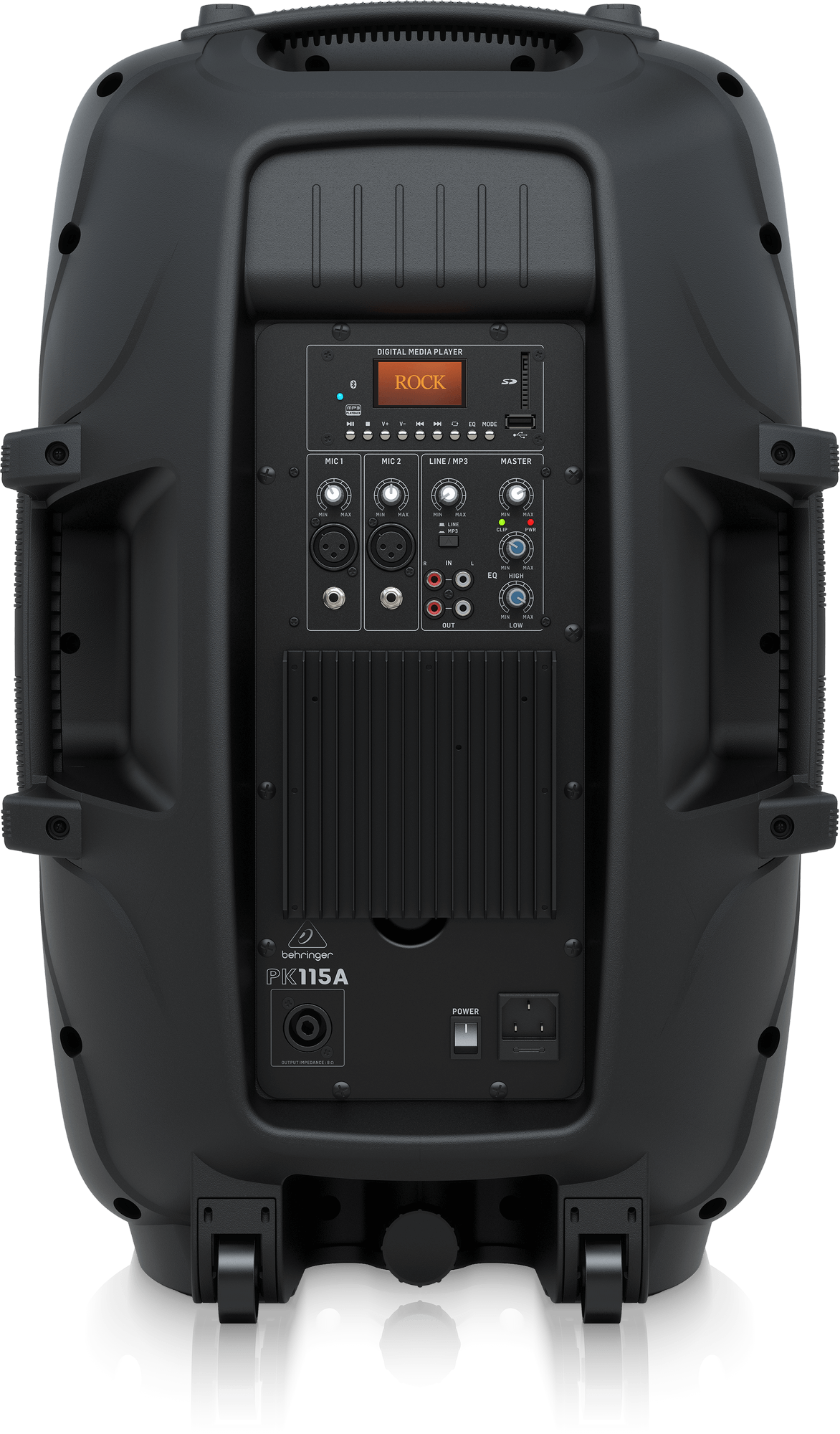

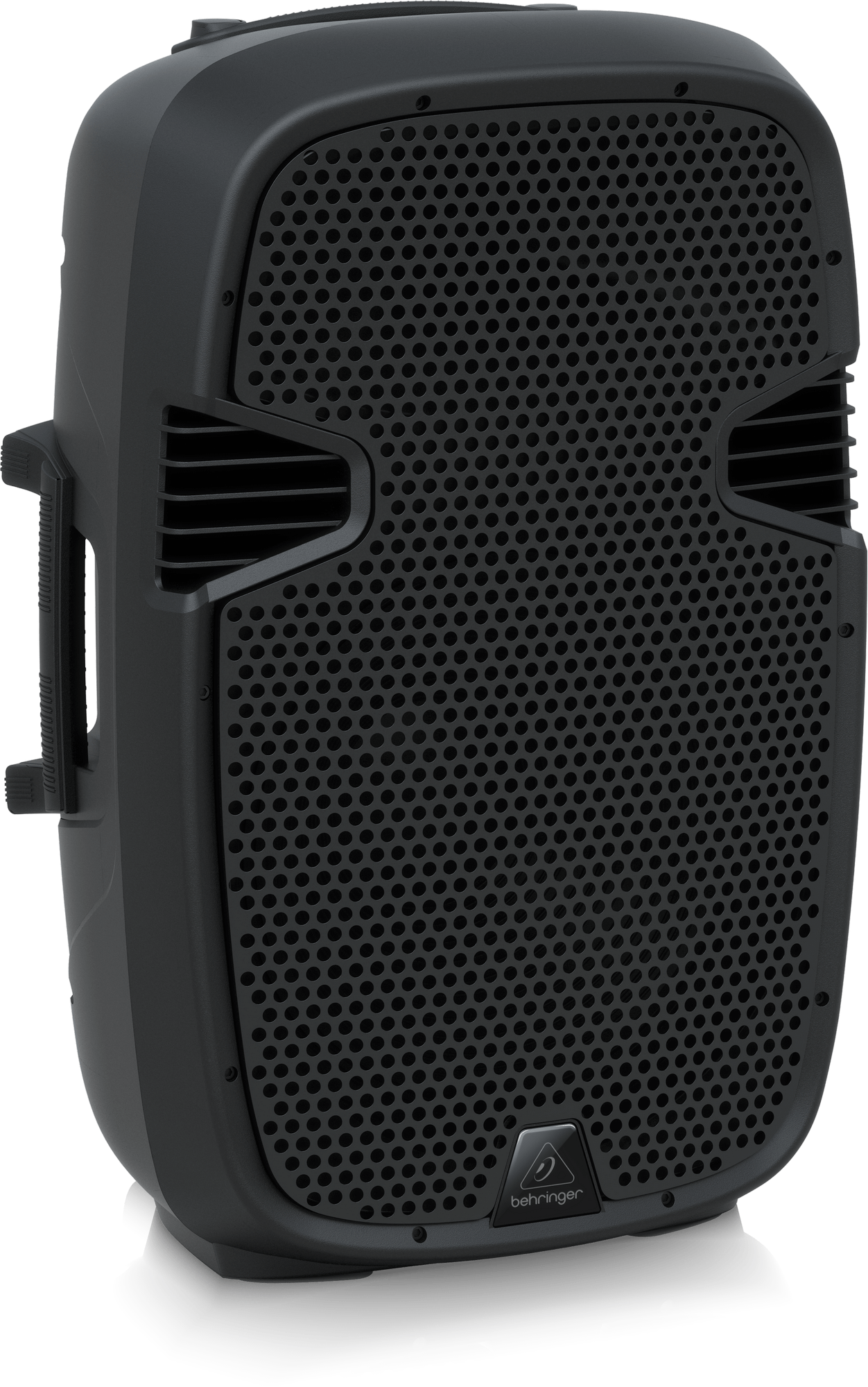

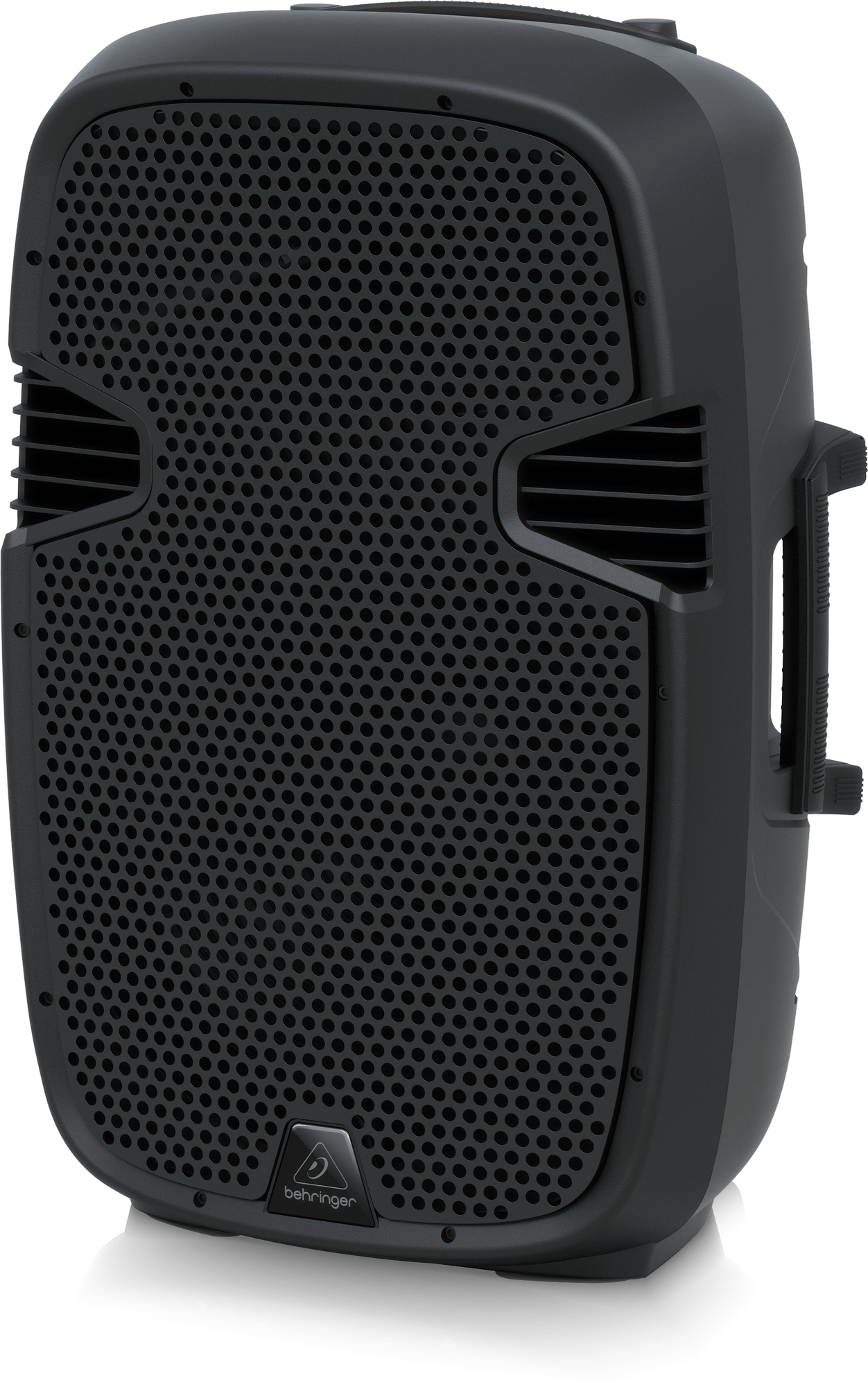

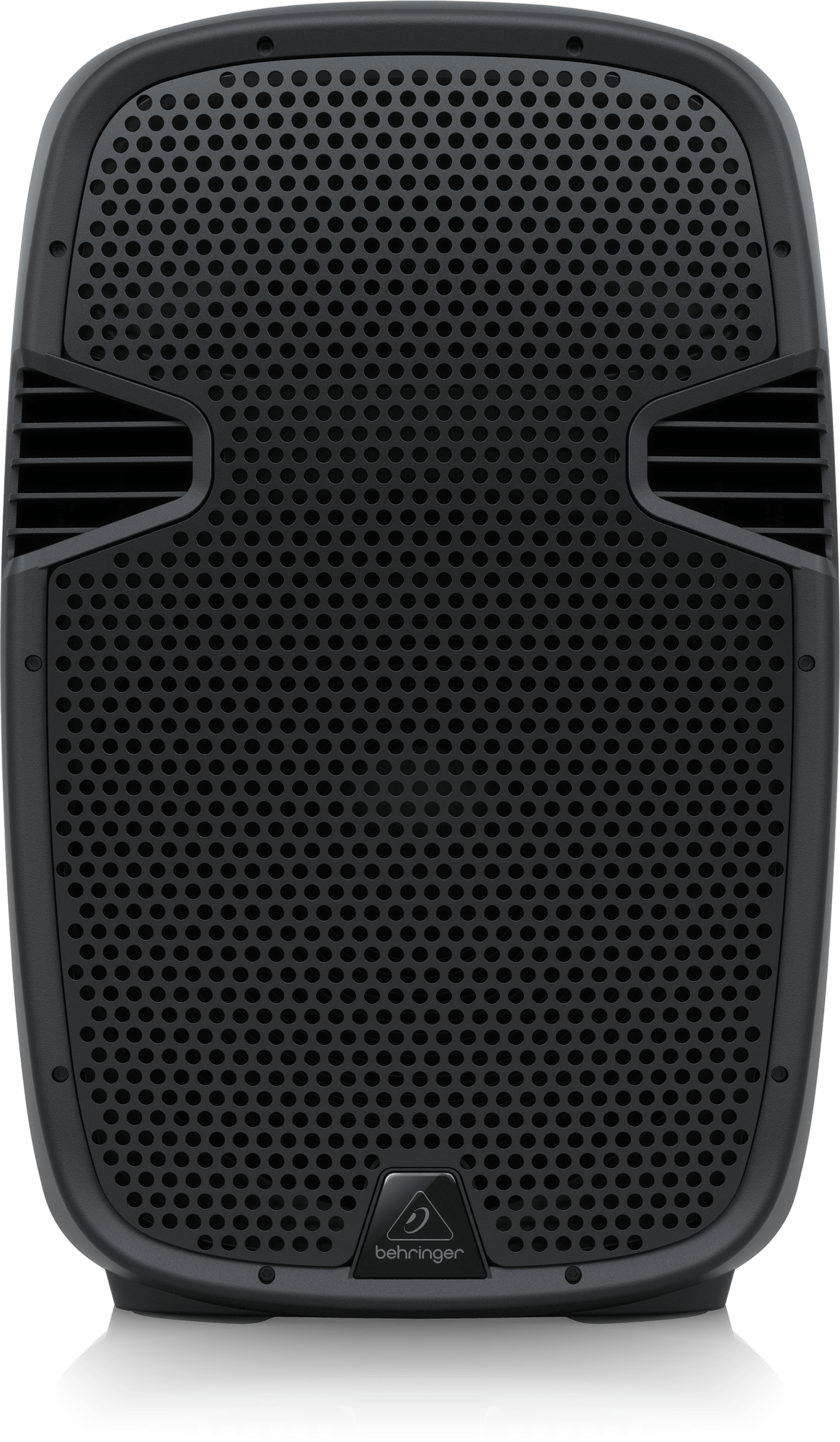

PK115A
The PK115A is a super compact, exceptional 2-way, 800-Watt powered PA sound-reinforcement loudspeaker with built-in media player and Bluetooth* that is ideal for live sound, portable PA, Karaoke, monitor wedge and House of Worship applications.
This amazingly self-contained PA solution that merges state-of-the-art, 800-Watt Class-AB power amp technology with an integrated 3-channel mixer and 2 standalone microphone channels, built-in Bluetooth, a high-performance MP3 player with USB stick/SD/MMC card and built-in wheels for effortless transport. A convenient Power Line output allows you to connect multiple PK115 passive speakers. Sound reinforcement has never been so easy!
Bluetooth Ready
We know your music lives on your phone, computer or tablet, so we've made it easy to access and play through the PK115A. With a simple swipe of your finger, you can instantly stream all your favorite music from any Bluetooth-equipped device, such as your computer, smart phone or tablet. Streaming music via Bluetooth Technology opens a tremendous amount of available content, such as a virtually limitless array of online radio-channels, multimedia providers and much more. Imagine that you have the whole PA at your fingertips; control the party from the dance floor, or the background music comfortably from your chair. Simple, easy and amazing.
Built-in Mixer
The amazing PK115A features a built-in 3-channel mixers with the same ultra-low noise, high-headroom mic preamps that have made our mixers legendary. Also included is 2-band equalizer, plus Bluetooth for streaming audio directly from your device, and 2 standalone Mic inputs and a Line input accept virtually any level signal you’re likely to run across. Variable Input gain controls (with Clip LED) will have you dialing in the perfect level every time. The simple and intuitive user interface consists of a dedicated Level control per channel, a Master volume and separate controls for Treble and Bass.
Specification
Amplifier
| Max output power |
800 W* |
| Type |
Class-AB |
Loudspeaker System Data
| Woofer |
15" (386 mm) LF driver |
| Tweeter |
1" (25.5 mm) HF compression driver |
| Frequency response |
20 Hz to 20 kHz (-10 dB) |
| Sound pressure level (SPL) |
Max. 95 dB |
Audio Connections
| MP3 Playback |
USB / SD / TF |
| File system |
FAT 16, FAT 32 |
| Format |
MP3 / WMA / WAV / FLAC / APE |
| Bit rates |
32 – 800 kbps |
| Sample rates |
44.1 kHz |
| Input |
1 x XLR / 1/4" TRS combo jack |
| Input impedance |
22 kΩ balanced |
| Line in |
1 x 1/8" (3.5 mm) TRS, stereo |
| Input impedance |
8.3 kΩ |
| Aux in |
2 x RCA |
| Input impedance |
8.3 kΩ |
| Aux out |
2 x RCA |
| Output impedance |
100 kΩ, unbalanced |
| SD card slot | |
| Card memory |
Up to 32 GB supported |
Bluetooth**
| Frequency range |
2402 MHz ~ 2480 MHz |
| Channel number |
79 |
| Version |
Bluetooth spec 4.2 compliant |
| Compatibility |
Supports A2DP 1.2 profile |
| Max. communication range |
15 m (without interference) |
| Max output power |
10 dBm |
Equalizer
| High |
±12 dB @ 10 kHz, shelving |
| Low |
±12 dB @ 100 Hz, shelving |
Power Supply, Voltage (Fuses)
| USA / Canada |
120 V~, 60 Hz (F 5 A L 250 V) |
| UK / Australia / Europe |
220-240 V~, 50/60 Hz (F 2.5 A L 250 V) |
| Korea / China |
220-240 V~, 50 Hz (F 2.5 A L 250 V) |
| Japan |
100 V~, 50/60 Hz (F 5 A L 250 V) |
| Power consumption |
220 W |
| Mains connection |
Standard IEC receptacle |
Dimension / Weight
| Dimensions (H x W x D) |
400 x 485 x 740 mm (11.6 x 13.97 x 12.5") |
| Weight |
17.7 kg (39 lbs |
