Classic Analog Drum Machine
Analog Drum Machine with 8 Drum Sounds, 64 Step Sequencer and Distortion Effects
Product Features
-
Amazing Drum Machine with true analog circuitry for classic sound performance
-
Authentic reproduction of original circuitry with matched transistors
-
8 original drum sounds with mix parameters and global accent capability
-
Highly acclaimed and authentic clap sound from the DR-110 drum machine
-
6 independent analog outputs for external processing or recording your rhythms as multi-track audio
-
Easy-to-use 16-step drum sequencer with real-time switching between 32 separate patterns
-
Patterns can be chained into full songs with up to 250 bars
-
Distortion circuitry modeled after the RAT* adds insane spice and edge to your sounds
-
16 authentic-style step buttons with LED indicators for easy pattern creation
-
11 controls and 26 switches to give you direct and real-time access to all important parameters
-
MIDI and USB implementation for synchronization and connection to external devices
-
Sync options include USB, MIDI, Clock and Internal for maximum versatility

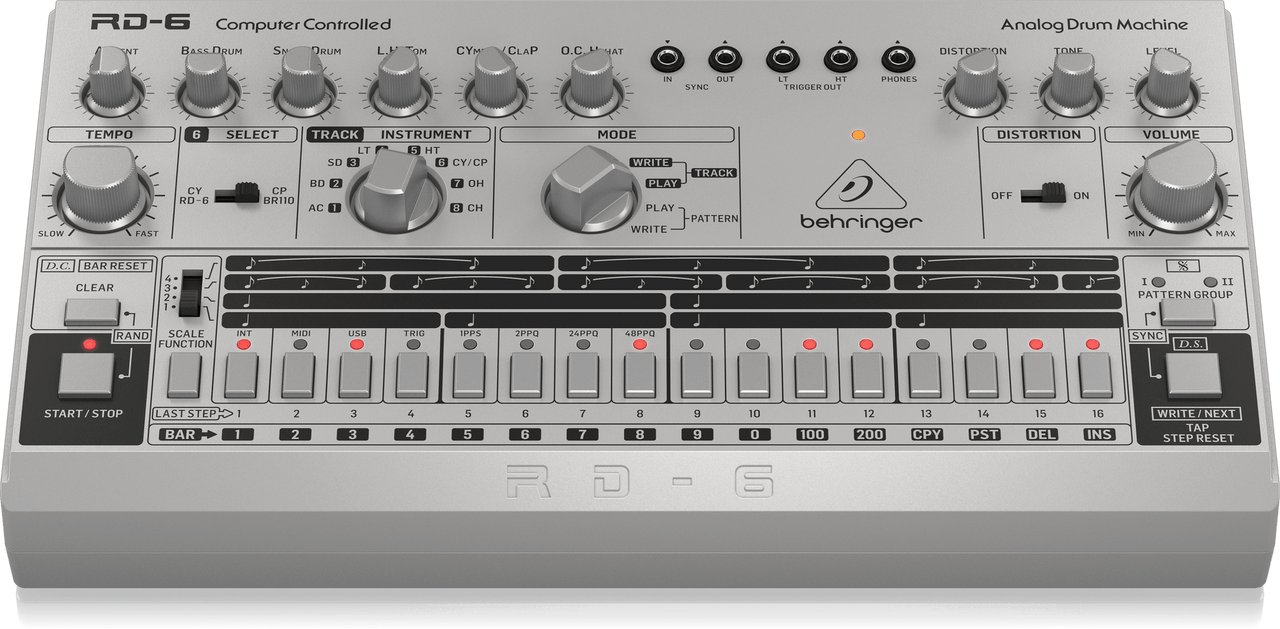

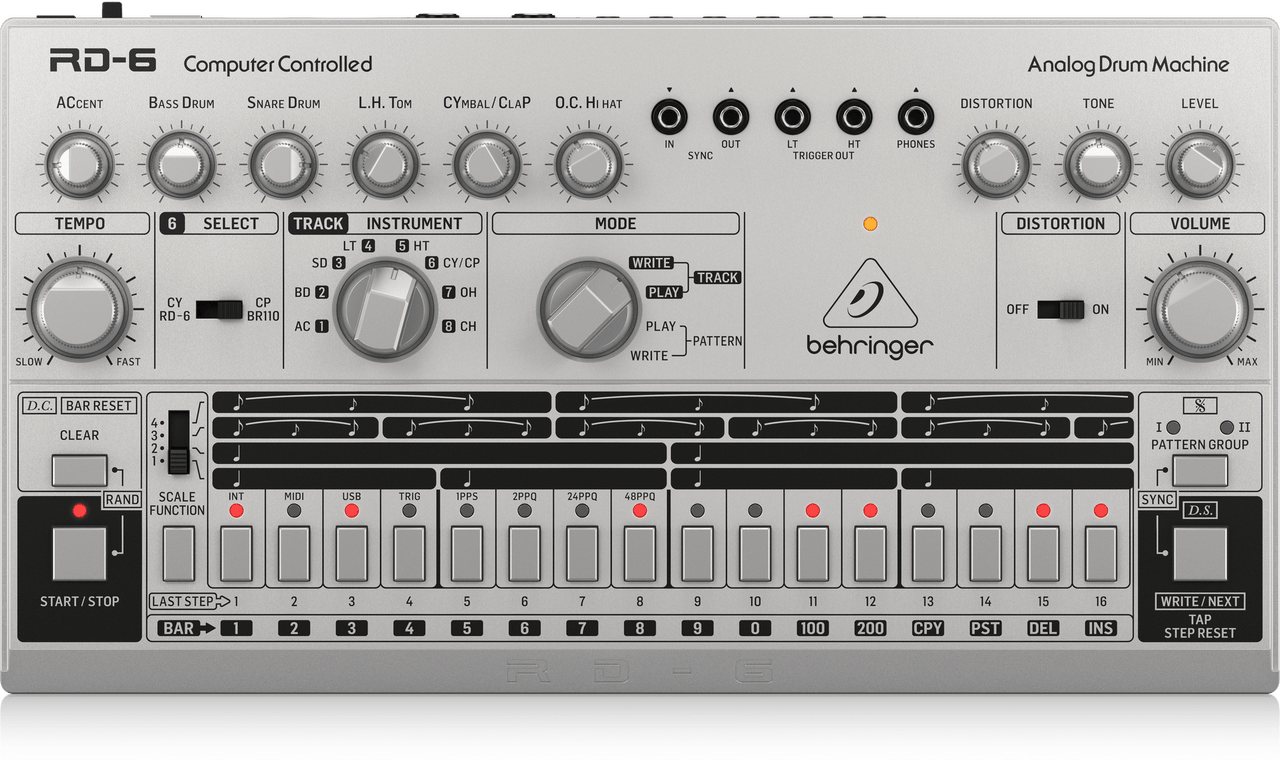

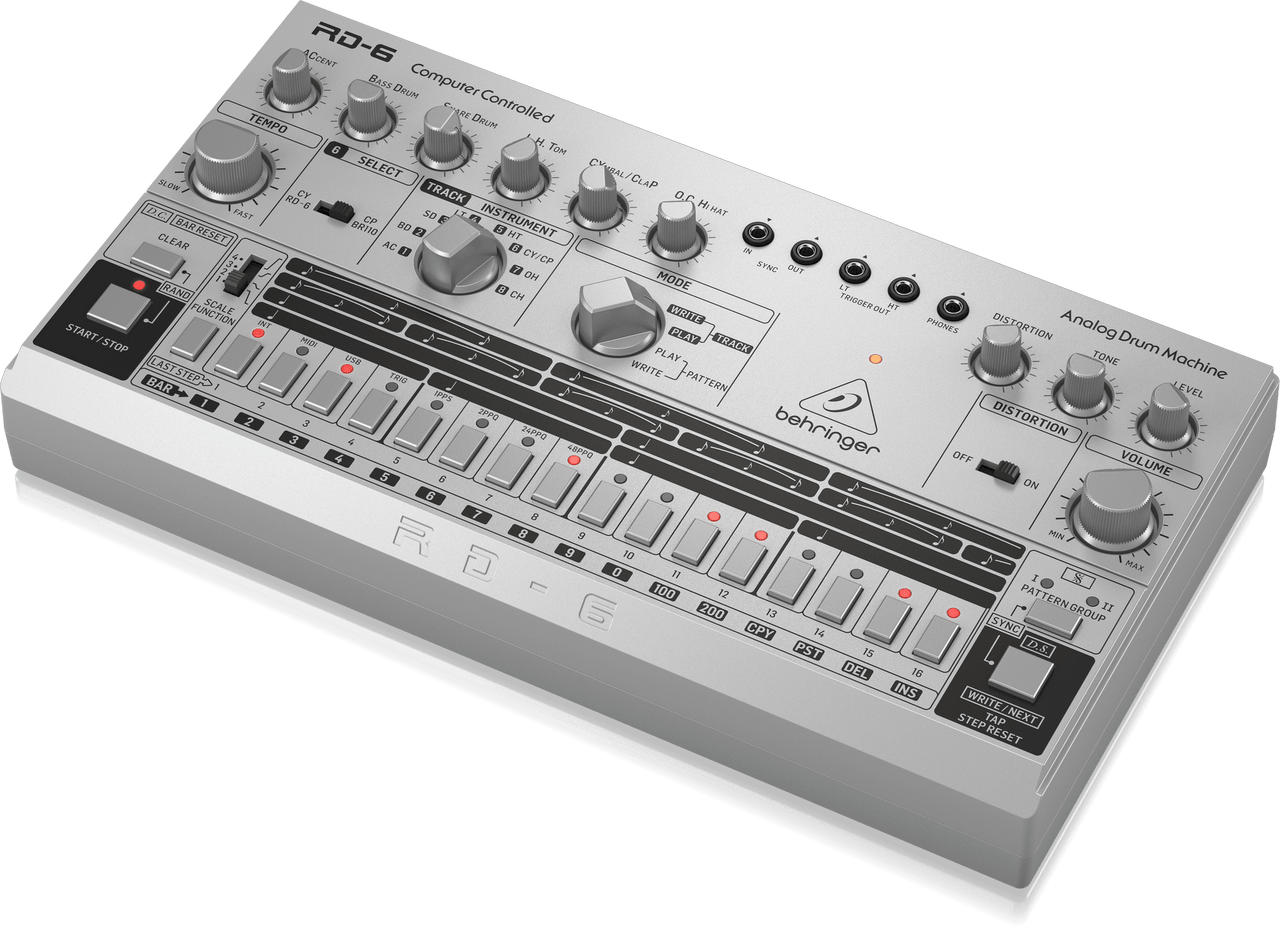

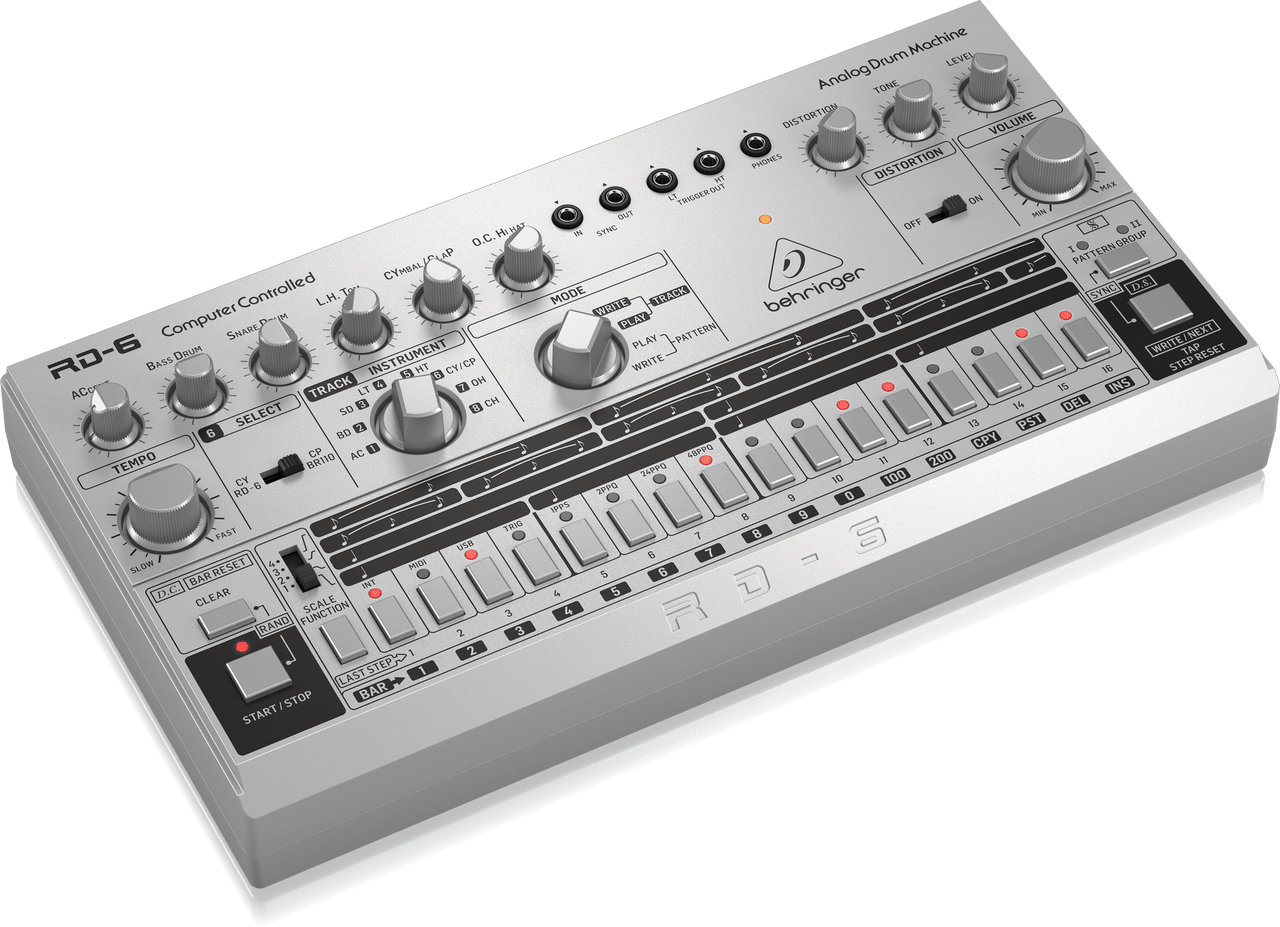

RD-6-SR
The RHYTHM DESIGNER RD-6-SR provides all the tools you need to become a master beat-maker, including: 8 drum sound and a 16-step sequencer – for a quick and easy-to-use drum machine that’ll shake the house! Whether you’re new to drum programming or a seasoned pro looking to enhance your setup, the RD-6-SR has everything you need to step up to the big leagues.
Masterpiece Rejuvenated
Great care has been taken in designing the RD-6-SR to achieve new possibilities in beat creation by reviving a timeless design from one of the most classic drum machines of yesteryear. By taking a fresh and modern approach on a classic drum machine, the RD-6-SR gives you the power to harness the phenomenal sound of the venerable TR-606 and tap into some new features as well. Punchy bass drums through sizzling hi-hats and even the authentic and renowned BR-110 clap sound can be manipulated to take your rhythm performance to the next level. This is an analog beat-making monster!
Complete Control
Built to enhance the way you perform, the RD-6-SR boasts a 16-step drum sequencer which allows for real-time switching between 32 separate patterns. Start building song structures on-the-fly and even edit them to your liking. Mix any of the 8 drum sounds by adjusting their dedicated level knobs. The RD-6-SR also comes with a distortion based on the venerable DS-1. Add spice and a bit of edge to your tone by flipping the Distortion switch on and adjusting the amount and tone of the distortion. Each pattern you create can also be chained into a whole song up to 256 bars which adds up to eight and a half minutes of beats perfect for those spicy jams where you just can’t stop.
Specification
Voices
| Number of sounds |
8 |
| Type |
Analog |
| Number of simultaneous voices |
8 |
| Voice controls | |
| Accent |
Level |
| Bass drum |
Level |
| Snare drum |
Level |
| Low tom, hi tom |
Level |
| Cymbal, clap |
Level |
| Open hat, closed hat |
Level |

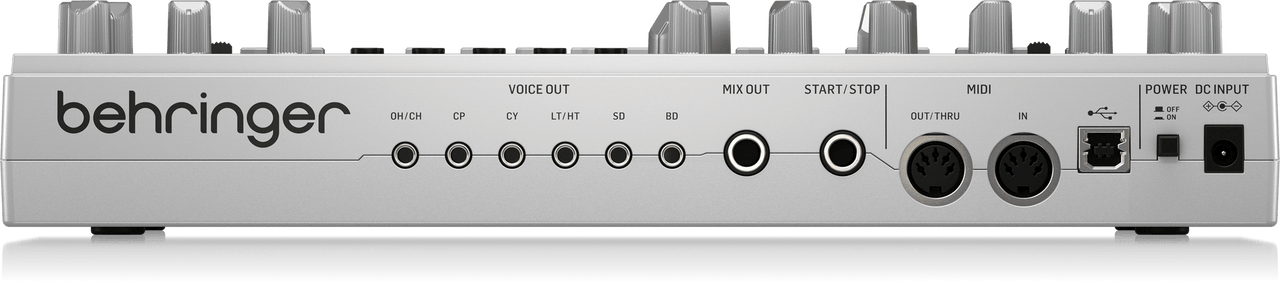

Connectivity
| Power input |
DC input connector |
| Power switch |
Push button on/of |
| USB (MIDI) |
USB 2.0, type B |
| MIDI In, Out / Thru |
2 x 5-pin DIN |
| Start / stop |
1 x 1/4" TS |
| Mix out |
1 x 1/4" TS, unbalanced, 1 kΩ impedance |
| Voice out |
6 x 1/8" TS, unbalanced, 100 Ω impedance |
| Sync in / out |
2 x 1/8" TRS (Tip is clock and Ring is the start message) more than: 2.5 V |
| Trigger outs |
LT and HT 2 x +15 V, 1PPS/24PPQ/48PPQ 50% pulse length, 2PPQ narrow pulse length. |
| Phones |
1 x 1/8" TRS, stereo, 15 Ω impedance |
USB
| USB |
Class compliant USB 2.0, type B |
| Supported operating systems |
Windows 7 or higher Mac OS X 10.6.8 or higher |
Pattern / Storage
| Capacity |
2 x 16 patterns |
| Steps |
16 steps |
Power Requirements
| External power adapter |
9 V DC, 670 mA |
| Power consumption |
2 W max |
| Indicator |
Power LED |
Environmental
| Operating temperature range |
5°C – 40°C (41°F – 104°F) |
Physical
| Dimensions (H x W x D) |
56 x 305 x 165 mm (2.2 x 12 x 6.5") |
| Weight |
0.9 kg (2.0 lbs) |
| Shipping Weight |
1.6 kg (3.5 lbs) |
