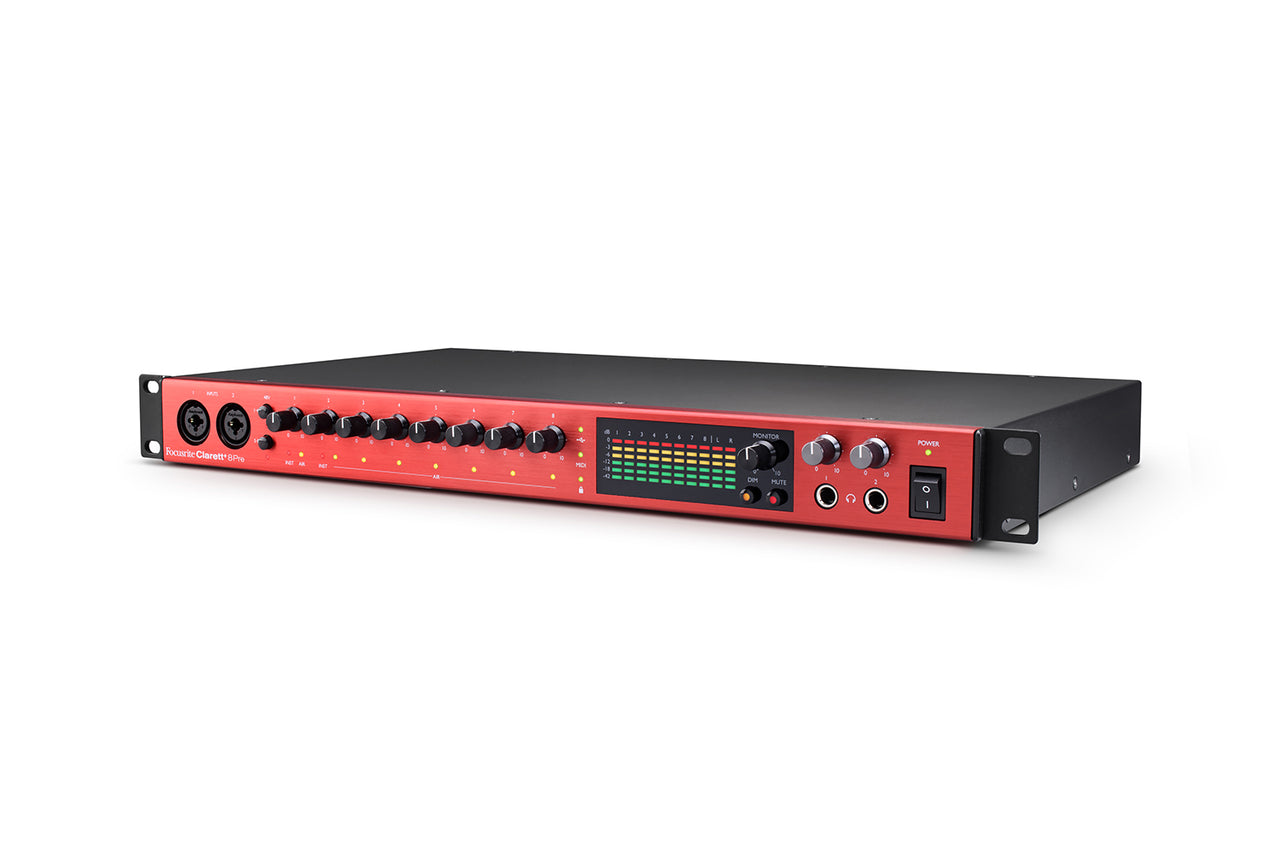

18 In/20 Out Rackmount USB-C Audio Interface with 8 ISA-Modelled Mic Preamps
Powerful studio-grade 18-in / 20-out audio interface for the established producer
Clarett+ 8Pre is a high-performance and immensely capable studio centrepiece for PC and Mac, which inspires producers, engineers and artists to create their best work.
Bring clarity and presence
to your recordings

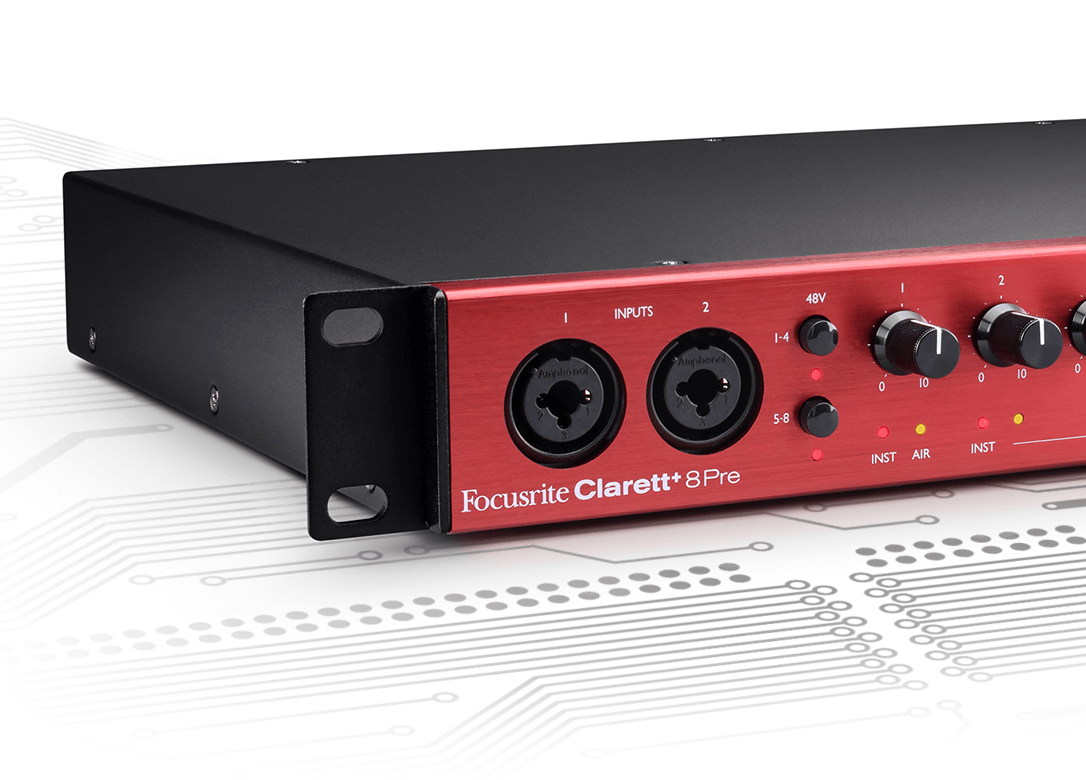

New and improved A-D and D-A converters
Independent A-D and D-A converters bring recording artists closer than ever to their music, with extremely wide dynamic range, low noise and low distortion. Greatly improved D-A dynamic range brings every detail into focus, so engineers and producers can embrace no-compromise audio quality in abundance. Incredibly low A-D converter distortion lets you capture signals with more clarity, for greater transparency and sonic accuracy. Two powerful and transparent headphone outputs inspire artists to hear every nuance of their sound on any type of headphones, customise their foldback mix, and perform their best.
Anything, Anywhere

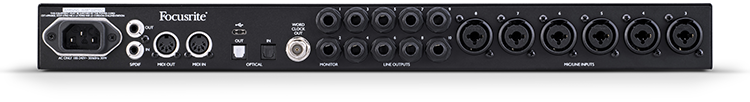

Whether you’re multi-tracking a drum kit or connecting to synths and outboard equipment, Clarett+ 8Pre lets you constantly develop your musical ideas while always maintaining analogue purity and extreme audio clarity. Expand via ADAT to add eight inputs and outputs using Clarett OctoPre, and connect to MIDI and S/PDIF equipment to maximise your creative potential.
Specifications in detail
To check supported operating systems please click here.
Mic Inputs
Frequency Response 20-20kHz: ± < 0.03dB
Frequency Response 20-35kHz: ± < 0.15dB
Dynamic Range (min gain): 118dB
THD+N (-1dBFS, +20dB gain): -110dB
Noise EIN: -129dBu
Max input level: 18dBu
Gain range: +57dB
Line Inputs (Variable)
Frequency Response 20-20kHz: ± < 0.05dB
Frequency Response 20-35kHz: ± < 0.15dB
Dynamic Range (min gain): 118dB
THD+N (-1dBFS, min gain): -100dB
Max input level: 26dBu
Gain range: +57dB
Instrument Inputs
Frequency Response 20-20kHz: ± < 0.04dB
Frequency Response 20-35kHz: ± < 0.15dB
Dynamic Range: 116dB
THD+N (-1dBFS, min gain): -96.5dB
Max input level: 15dBu
Gain range: +57dB
Line & Monitor Outputs
Frequency Response 20-20kHz: ± < 0.02dB
Frequency Response 20-35kHz: ± < 0.02dB
Dynamic Range: 124dB
Max Output level: 18dBu
THD+N: -106dB
Headphone Outputs
Frequency Response 20-20kHz: <0.06dB
Frequency Response 20-35kHz: <0.07dB
Dynamic Range: 118dB
THD+N: -104dB
Max Output level: 16dBu
Weight and Dimensions
W x H x D 482.5 mm x 43.9 mm x 291 mm
19” x 1.73” x 11.46”
Weight 4.08 kg (9.0 lb)
