M-Audio AIR192X4SPRO

AIR 192|4 Vocal Studio Pro
AED 963
AED 963
Tax included. Shipping calculated at checkout.
Notify Me

Free shipping on orders over 500 AED

Money back guarantee within 7 Days
AED 963
AED 963
Tax included. Shipping calculated at checkout.

AIR 192|4 Vocal Studio Pro

Key Features

  • 24-bit/192kHz resolution for professional recording and monitoring
  • Hi-Speed USB circuitry gives you the fastest connection, with a class-leading round trip latency of only 2.59ms*
  • Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
  • VU LED meters for dialing in the perfect level

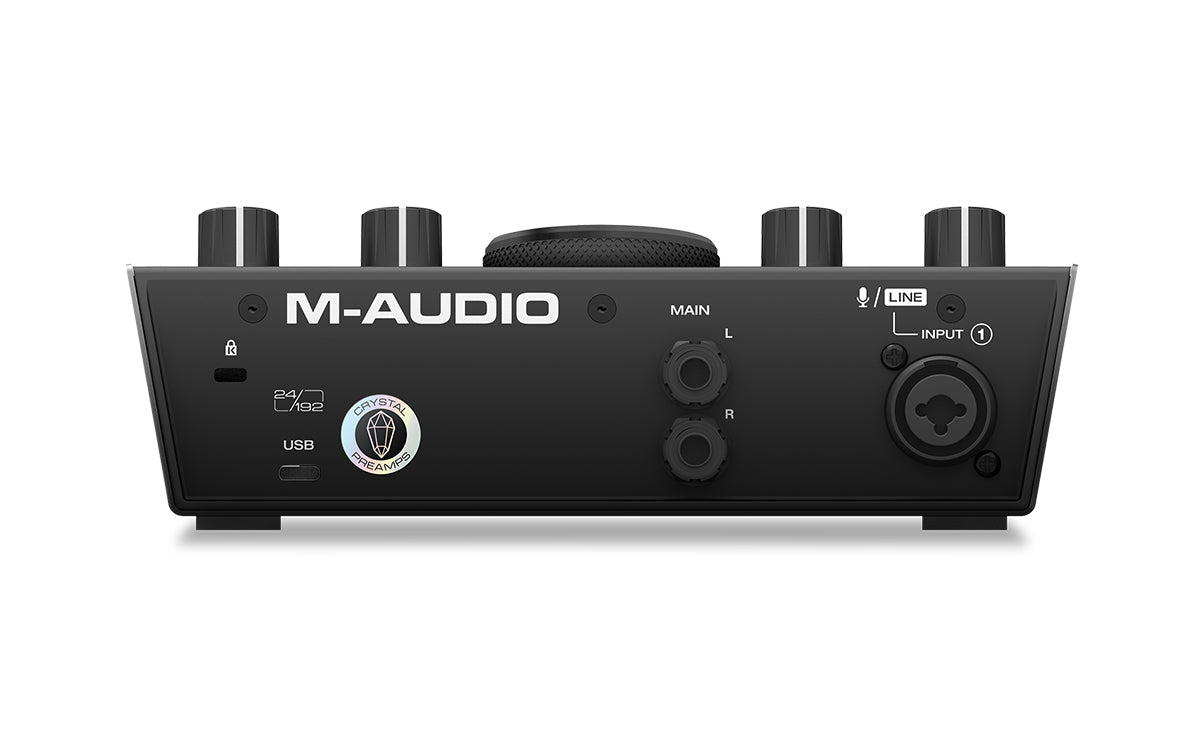

  • (1) XLR+¼” TRS combo input with dedicated signal circuit and (1) ¼” instrument input with dedicated signal circuit for the most accurate sound available
  • Stereo ¼” outs; ¼” headphone out with independent level control
  • Rugged metal chassis; large central control for easy volume adjustment
  • USB/Direct knob for balancing between the input signal and the computer signal
  • NOVA Black condenser microphone
  • HDH40 monitoring headphones
    • *Round trip latency is dependent on buffer settings, and computer hardware

Downloads

What’s In The Box

  • AIR 192|4
  • USB-C-to-USB-C Cable
  • USB-C-to-USB-A Cable
  • NOVA Black Microphone
  • Microphone Carrying Pouch
  • XLR Microphone Cable
  • Microphone Shock Mount
  • Microphone Windscreen
  • HDH40 Headphones
  • Software Download Cards
  • User Guide
  • Safety and Warranty Manual

Specifications

All specifications are measured at 20 kHz bandwidth. Specifications are subject to change without notice.


Minimum System Requirements

macOS: 10.8 Class Compliant

PC: Windows 7, Windows Driver

Standard USB 2.0 or USB-C Port

NOVA Black Microphone
Type Back Electret condenser microphone
Element 18 mm pure aluminum diaphragm capsule
Polar Pattern Cardioid
Frequency Response 20 Hz – 20 kHz
Sensitivity -38 dB (0 dB = 1 V/Pa @ 1 kHz)
Rated Impedance 200Ω
Maximum SPL 136 dB
Phantom Power Required +48 V
S/N Ratio 77 dB
Current Consumption 3 mA


HDH40 Headphones
Acoustic Design Dynamic, Closed
Driver 40 mm, neodymium
Frequency Response 15 Hz – 22 kHz
Sensitivity 95 dB ±3 dB
Rated Impedance 32Ω
Earpad Leatherette
Cable Length 9.8 ft. / 3 m


Mic Input 1 (balanced XLR)
Frequency Response 20 Hz – 20 kHz (+0.1 dB)
Dynamic Range 104 dB (A-weighted)
Signal-to-Noise Ratio 104 dB (+1.0 dBu, A-weighted)
THD+N 0.003%
Preamp EIN -128 dBu (max gain, 150 Ω source, A-weighted)
Max Input Level +1.5 dBu
Gain Range 55 dB


Line Input 1 (balanced 1/4" [6.35 mm] TRS)
Frequency Response 20 Hz – 20 kHz (+0.05 dB)
Signal-to-Noise Ratio 101 dB (1 kHz, +4 dBu, A-weighted)
THD+N 0.003%
Max Input Level 16 dBu
Gain Range 55 dB


Inst Input 2 (unbalanced 1/4" [6.35 mm] TS)
Frequency Response 20 Hz – 20 kHz (+0.05 dB)
Dynamic Range 100 dB (A-weighted)
Signal-to-Noise Ratio 102 dB (+ 4 dBu, A-weighted)
THD+N 0.004%
Max Input Level 6 dBu
Input Impedance 1 MΩ
Gain Range 24 dB


Main Outputs, L and R (impedance-balanced 1/4" [6.35 mm] TRS)
Frequency Response 20 Hz – 20 kHz (+0.06 dB)
Dynamic Range / Signal-to-Noise Ratio 102 dB (A-weighted)
THD+N 0.005%
Max Output Level +7 dBu (1 kHz, -1 dBFS)


Headphone Output (impedance-balanced 1/4” [6.35 mm] TRS)
THD+N 0.005%
Output Impedance 10 Ω


General
Power USB-bus-powered
Dimensions (width x depth x height) 8.0” x 6.0” x 2.76” (20.42 cm x 15.24 cm x 7.0 cm)
Weight 2.0 lbs. 0.9 kg
