2-CHANNEL AUDIO INTERFACES
Product Highlights
- XLR mic input with 48V phantom power
- DI input with gain control
- Outputs: stereo RCA out for connecting to hi-fi speakers
- VU Meter for accurately adjusting levels
- Direct Monitoring: zero-latency, high-power output
- Big volume knob for easily adjusting output level
- Input/host mix allows the option to hear playback while recording USB 2.0 powered for maximum portability
- Premium audio quality at 24-bit/192kHz
- Drivers for Mac/PC (ASIO/Core Audio/DirectSound/WASAPI)
CAPTURE, CREATE, FINISH

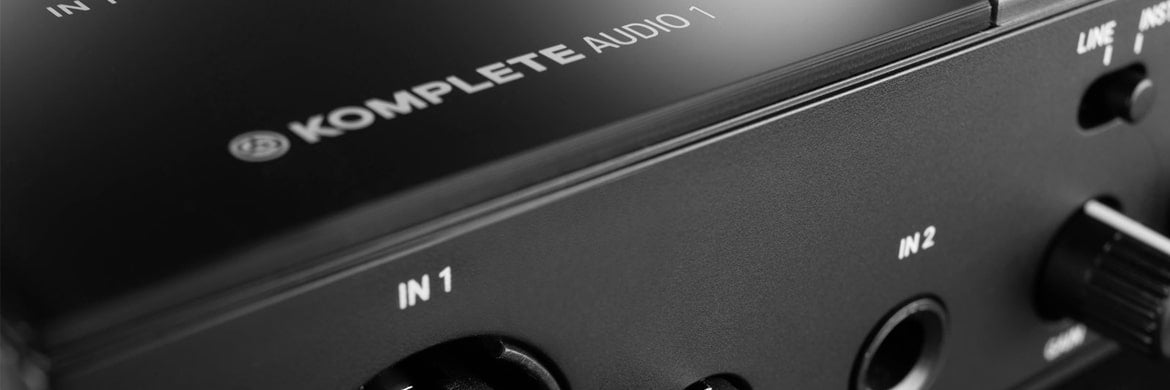

KOMPLETE AUDIO 1 is simple, great-sounding audio interfaces with all the software you need to put ideas into action. From recording songs, to mixing down and playing out – they help you go from a spark of inspiration, to finished results you can be proud of. Choose between two – same sound, same software, different connections – and start creating outside of the box.FOR THE SONGWRITERS
Easily record vocals, guitar, or any other instruments straight into your DAW in high quality. With Ableton Live 10 Lite, synths, and effects included, you’ve got everything you need to create songs.
FOR YOUR STORY
Whether it’s a beatmaking vlog or a podcast you’re creating, these interfaces give you everything you need. Record speech in high quality, then give it a pro touch of mastering with the included plugins.
FOR THE PERFORMERS
Take your music to the bar, club, or anywhere else. Bag-friendly sized – it’s a simple way to incorporate a laptop into your performance. Make quick, on-stage level adjustments using the big volume dial.
FOR THE PRODUCERS
Break out of the box – bring synths, effects, and other gear into your productions. Flip samples from stereo sources. And polish your productions with studio-grade instruments and effects included.
RECORDING MADE SIMPLE
Perfect for recording mono sounds like vocals and guitar at the same time. It gives you two different inputs – XLR for vocals, and jack for guitars or other line-in sounds. Plus, stereo RCA outputs let you connect directly to hi-fi speakers and play everything out loud.SYSTEM REQUIREMENTS
- macOS 10.12, 10.13, 10.14 or 10.15 (latest update), i5, 4 GB RAM
- Windows 10 (latest Service Pack), Intel Core i5 or equivalent CPU, 2GB RAM
- USB 2.0 or higher (cable included)
- Graphics Card which Supports Open GL 2.1 or higher
- 3 GB free disk space for MASCHINE Essentials, plus 1 GB free disk space for all other software
COMPATIBILITY
- Compatible with Mac and PC (ASIO/Core Audio/DirectSound/WASAPI)
SIZE AND WEIGHT
- Dimensions: 140 x 117.5 x 52 mm
- Weight: 360 g
AUDIO CONVERTERS | |
A/D Channels | 2 |
D/A Channels | 2 |
SAMPLE RATES | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
BIT RESOLUTION | 24 Bit |
Output | |
Maximum output level | +12 dBu |
Frequency response | 20 Hz - 20 kHz +/- 0.1 dB |
Headphone | |
Maximum output level | +4.2 dBu (48 mW @ 33 Ohm) |
Frequency response | 20 Hz - 20 kHz +/- 0.1 dB |
Instrument input | |
Maximum input level | +10 dBu |
Frequency response | 20 Hz - 20 kHz +/- 0.03 dB |
Line input | |
Maximum input level | +20 dBu |
Frequency response | 20 Hz - 20 kHz +/- 0.02 dB |
Microphone | |
Maximum input level | +7 dBu |
Frequency response | 20 Hz - 20 kHz +/- 0.02 dB |
