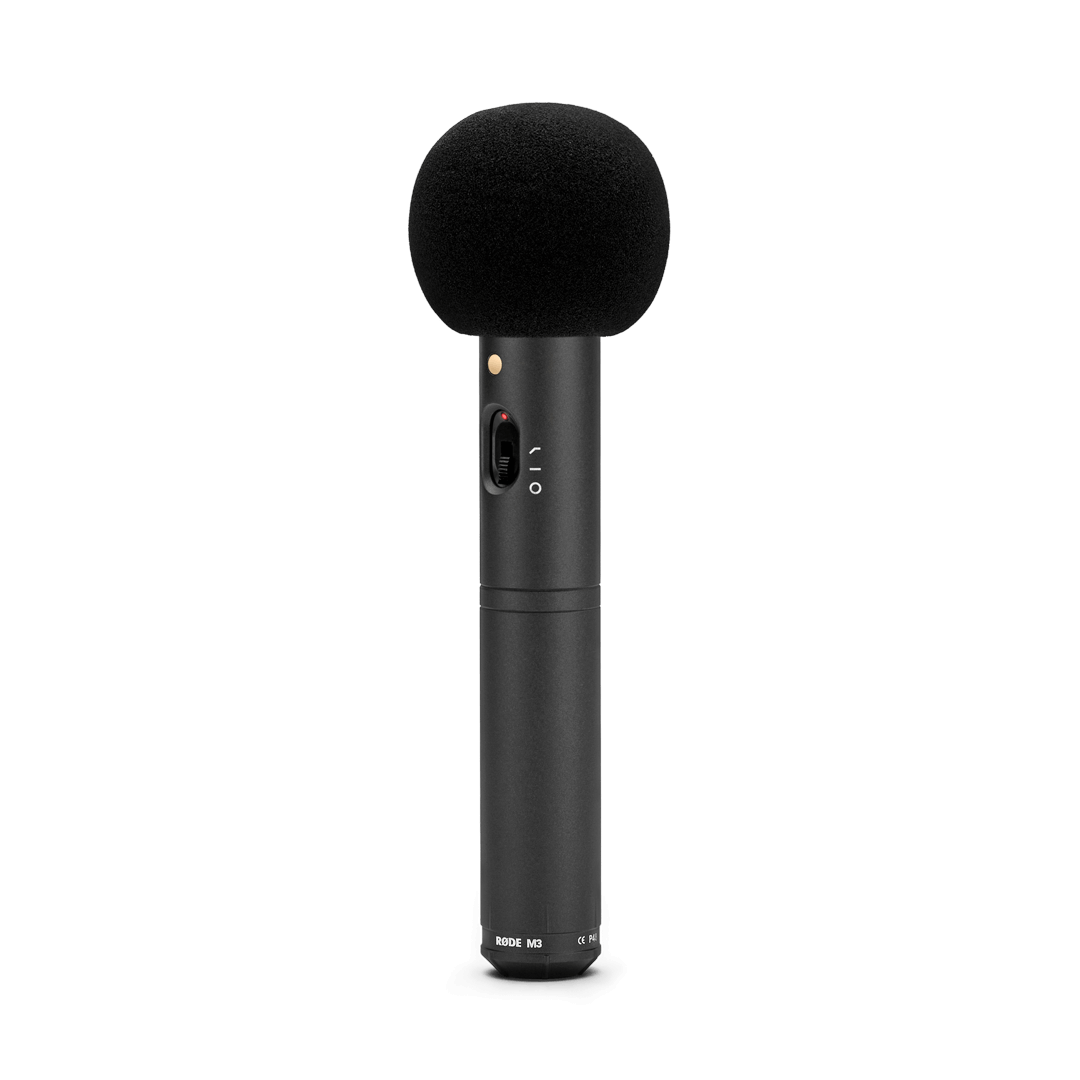

The M3 highly versatile end-address condenser microphone is designed to excel in a wide variety of recording situations in the studio, on stage or on location. Featuring an internally shock-mounted 1/2-inch condenser capsule, the M3 can either be powered by P48 phantom power or an internal 9V battery. It offers the versatility of a selectable pad (-10dB, -20dB) and high-pass filter (80Hz), making it ideal for recording everything from electric guitar to vocals to drums.
Key Features:
Specifications
Acoustic & Electrical Specifications
Acoustic Principle
Pressure gradient
Active Electronics
JFET impedance converter with bipolar output buffer
Capsule
0.50"
Address Type
End
Frequency Range
40Hz - 20kHz (selectable high-pass filter @ 80Hz)
Output Impedance
200Ω
Maximum SPL
142dB SPL
Maximum Output Level
9.2mV (@ 1kHz, 1% THD into 1KΩ load)
Sensitivity
-40.0dB re 1 Volt/Pascal (6.30mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-Weighted)
21dBA
Output Connection
XLR
Power Requirements
9V battery, P24 or P48
Mechanical Specifications
Dimensions (mm)
Height: 225
Width: 33
Depth: 33
Weight (g)
390
Box Contains
1 x M3
1 x RM1

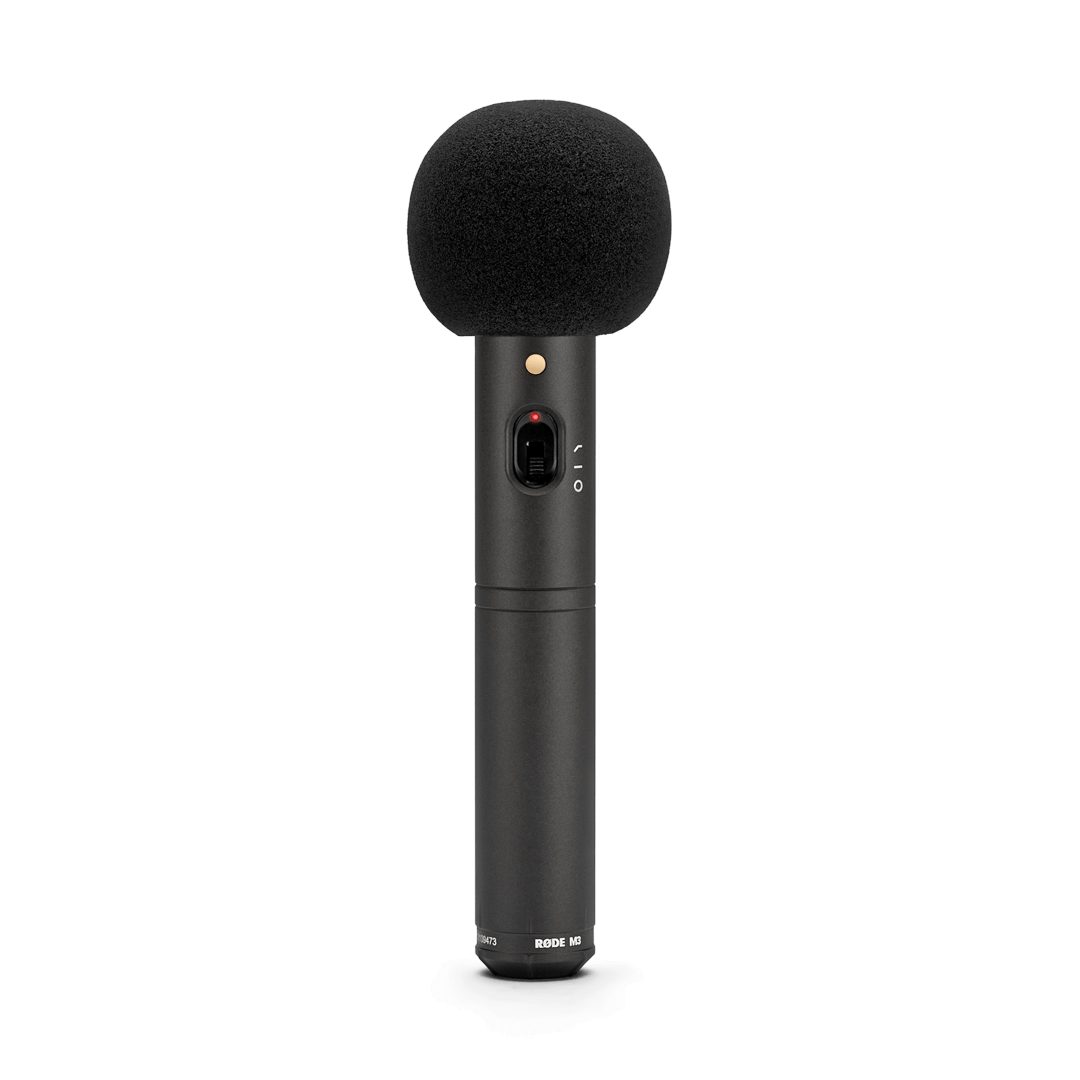

1 x Windshield M3
1 x ZP1
