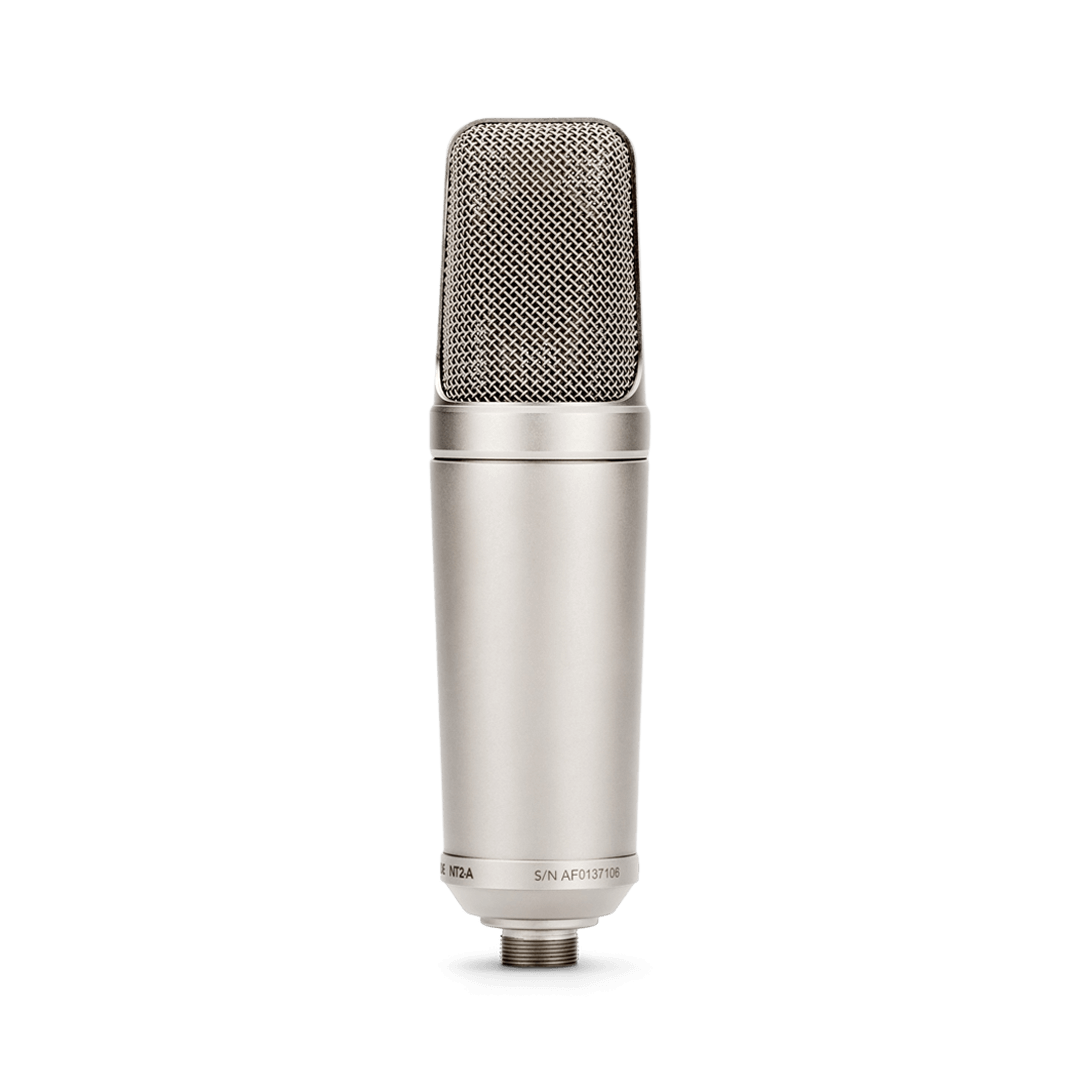

The NT2-A is a highly versatile large-diaphragm studio condenser microphone designed to offer pristine audio quality and flexibility in equal measure. Featuring a three-position pad (0dB, -5dB, -10dB), high-pass filter (flat, 40Hz, 80Hz), and polar pattern control (cardioid, omnidirectional, figure-8), it can easily adapt to any recording situation in the studio.
The NT2-A features a dual 1-inch gold-sputtered cardioid condenser capsule with internal shock mounting and offers ultra-low self-noise and a full frequency response, evoking the silky smooth character of the legendary microphones of the '50s and '60s.
Key Features:
Specifications
Acoustic & Electrical Specifications
Acoustic Principle
Pressure Gradient
Active Electronics
JFET impedance converter with bipolar output buffer
Capsule
1.00"
Polar Pattern
Cardioid, Figure 8, Omnidirectional
Address Type
Side
Frequency Range
20Hz - 20kHz
Output Impedance
200Ω
Maximum SPL
147dB SPL
Maximum Output Level
16.0mV (@ 1kHz, 1% THD into 1KΩ load)
Sensitivity
-36.0dB re 1 Volt/Pascal (16.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Equivalent Noise Level (A-Weighted)
7dBA
Power Requirements
P24 and P48
Output Connection
XLR
Mechanical Specifications
Weight (g)
860
Dimensions (mm)
209 (H) x 55 (W) x 55 (D)
Box Contains
1 x NT2-A
1 x SM6
