Portable Compact HD Switcher
The V-1HD makes it easy to connect and switch video cameras, smartphones, computers, tablets, Blu-ray players, and other HDMI video sources with a simple push of a button or slide of the T-Fader.
- 4 HDMI inputs
- Supports up to Full HD 1080p
- Easy-to-use interface
- Full 12-channel audio mixer included
- Easy to operate with hardware controls
- Two HDMI outputs
- Picture-in-picture and split functions
- Two EFFECTS knobs deliver genuine visual performance
- Remote control via USB or MIDI connection
- Software control using V-1HD RCS Application for Mac, PC, and iPad
The V-1HD makes it easy to connect and switch video cameras, smart phones, computers, tablets, Blu-ray players and other HDMI video sources with a simple push of a button or slide of the T-Fader. It supports professional compositing effects such as picture-in-picture and keying allowing for graphic insets, titling or even green screen ideal for news broad cast or corporate training productions.
Main Features
Support for video cameras, action cameras, smart phones, tablet computers and other HDMI devices
4 HDMI inputs
Supports up to Full HD 1080p
Easy to Use Interface
Picture-in-picture and split functions
Two EFFECTS knobs deliver genuine visual performance
Full 12 Channel Audio Mixer Included
Easy to Operate with Hardware Controls
Two HDMI Outputs
Remote Control via USB or MIDI Connection
Software Control using V-1HD RCS Application for Mac, PC and iPad V 1HD 4 Channel HD Video Mixer Fix Format from Roland Video is 100% original.
VIDEO
Video Processing
4:2:2(Y/Pb/Pr), 8-bit

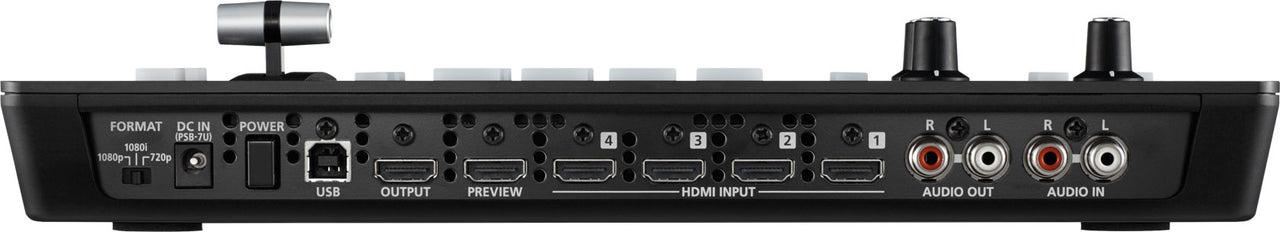

Input Connectors
HDMI INPUT 1-4: Type A(19pins)x 4 *HDCP Supported
Output Connectors
HDMI OUTPUT: Type A(19pins) / HDMI PREVIEW: Type A(19pins) *HDCP Supported
Input Formats
HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
HDMI: 1080/59.94i,1080/50i,1080/59.94p,
1080/50p(FORMAT switch = 1080i or 1080p)
*The input interlaced video signal is converted to progressive video signal by internal processing.
*The video signal frame rate is selected by SETUP parameters (59.94 or 50).
Output Formats
HDMI: 720/59.94p,720/50p(FORMAT switch = 720p)
HDMI: 1080/59.94i,1080/50i(FORMAT switch = 1080i)
HDMI: 1080/59.94p,1080/50p(FORMAT switch = 1080p)
*The video signal frame rate is selected by SETUP parameters (59.94 or 50).
Video Effects
Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types),
TRANSFORMER(11 types)
EFFECTS: NEGATIVE, EMBOSS, COLORIZE, COLORPASS, POSTERIZE, SILHOUETTE,
MONOCOLOR, FINDEDGE, FLIP, WH-LUMIKEY@, BK-LUMIKEY@,
GR-CHROMAKEY@, BL-CHROMAKEY@, PinP(1/4)@, PinP(1/3)@, PinP(1/2)@,
SPLIT(H-STRETCH)@. SPLIT(H-CENTER)@, SPLIT(V-STRETCH)@,
SPLIT(V-CENTER)@
*@ marked Effects are effected common to A-BUS and B-BUS.
AUDIO
Audio Processing
Sampling rate: 24bit/48kHz
Input Connectors
Digital: HDMI INPUT 1–4 (19 pins) x 4

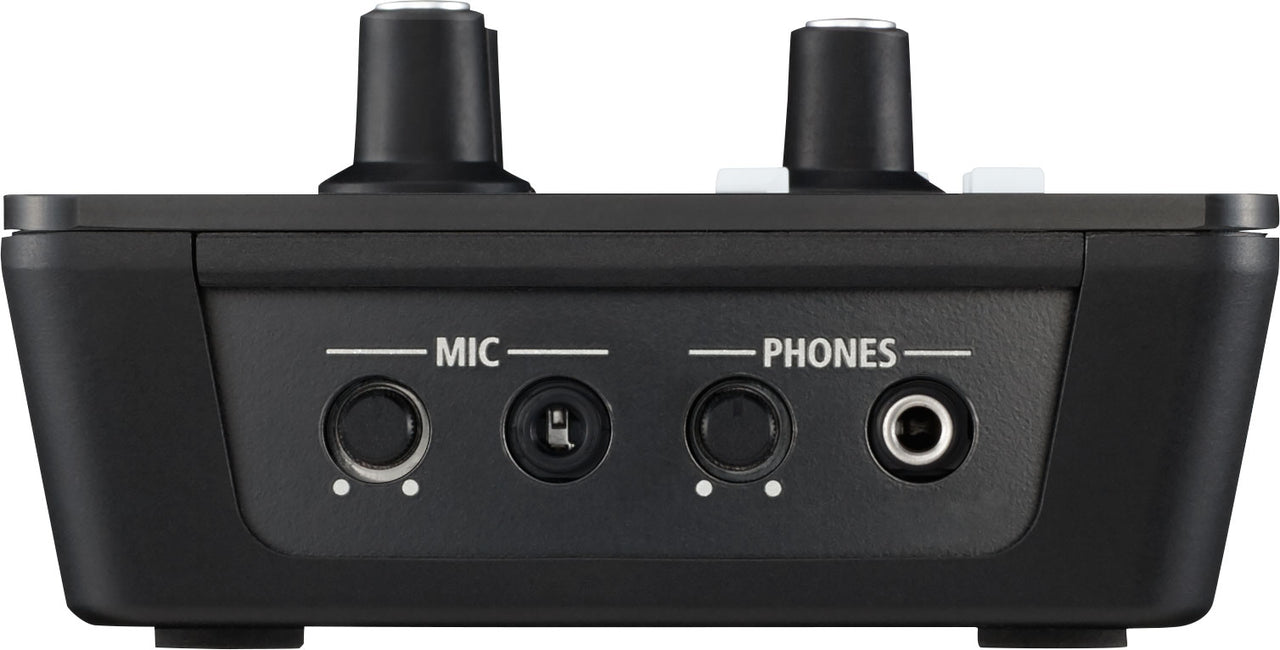

Analog: AUDIO IN (RCA pin type), MIC (Stereo mini type, plug-in power supported)
Output Connectors
Digital: HDMI OUTPUT (HDMI Type A 19 pins), HDMI PREVIEW (HDMI Type A 19 pins)
Analog: AUDIO OUT (RCA pin type), PHONES (Stereo mini type)
Input Level
AUDIO IN: -10 dBu (Maximum : +8 dBu), MIC: -41 – -13dBu (Maximum : -1 dBu)
Input Impedance
AUDIO IN: 15 k ohms, MIC:10 k ohms
Output Level
AUDIO OUT: -10 dBu (Maximum : +8 dBu), PHONES: 72mW + 72mW (32 ohms)
Output Impedance
AUDIO OUT: 1k ohms, PHONES: 10 ohms
Audio Effects
EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
OTHERS
Other Connectors

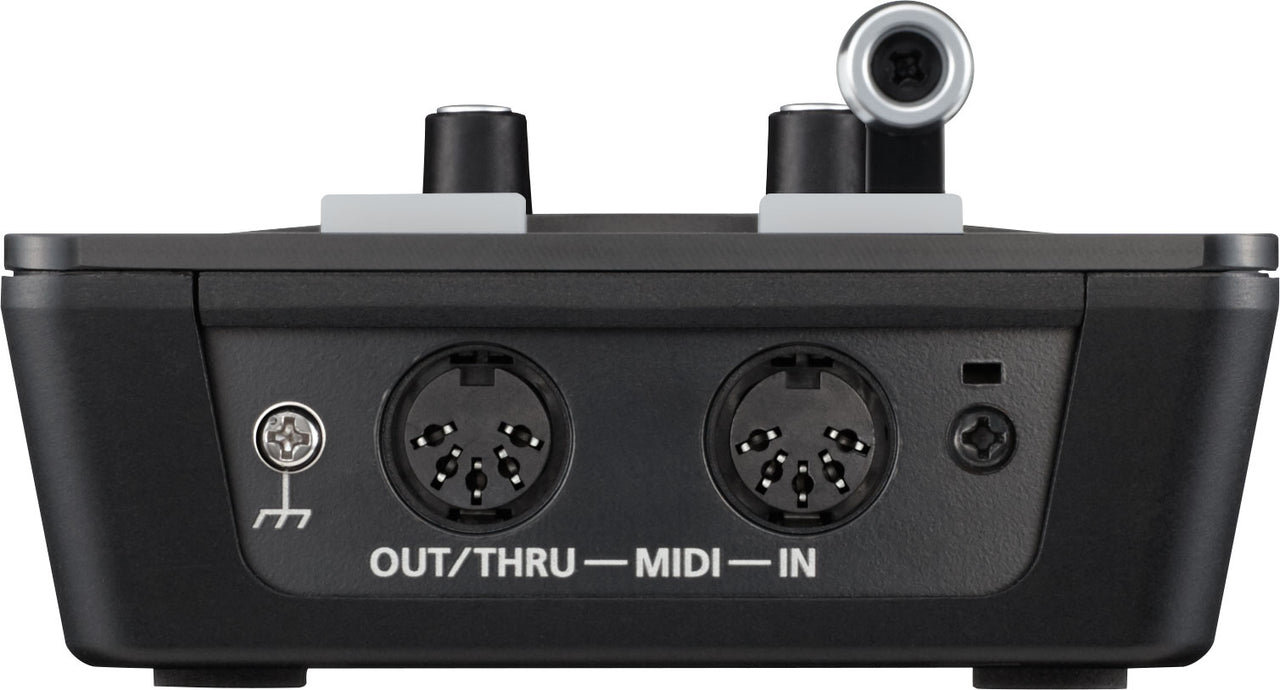

USB: B Type (for remote control from PC), MIDI: IN, OUT/THRU
Other Functions
MEMORY (8 types), FREEZE (input video captured),
BPM SYNC (auto transition synchronized to tempo), OUTPUT FADE (WHITE/BLACK/AUDIO)
Power Supply
AC adaptor
Current Draw
1.5A
Power Consumption
18W
Dimensions
313 (W) x 102 (D) x 59 (H) mm / 12-1/3 (W) x 4 (D) x 2-1/3 (H) inches
Weight
1.2 kg (excluding AC adaptor) 2 lbs 10-2/5 oz
Accessories
Owner’s Manual, AC Adaptor, Power Cord, Cord Hook
All specifications and appearances are subject to change.
