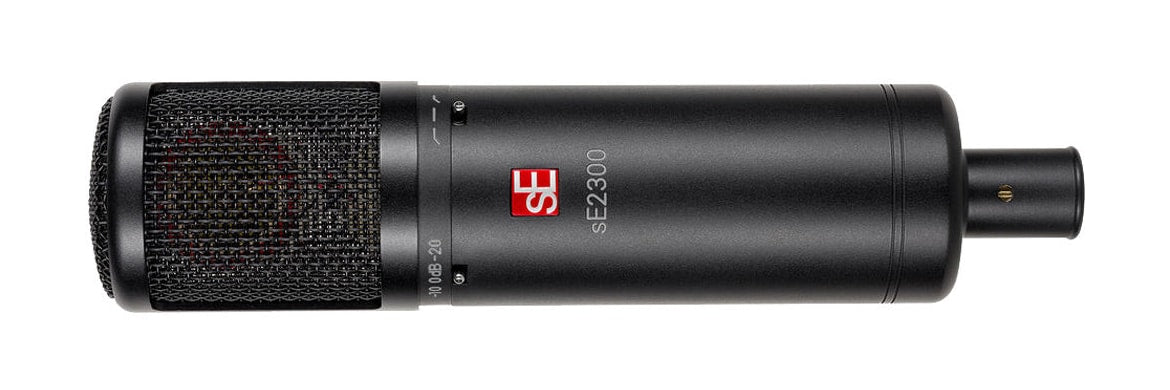

Large-diaphragm Condenser Microphone

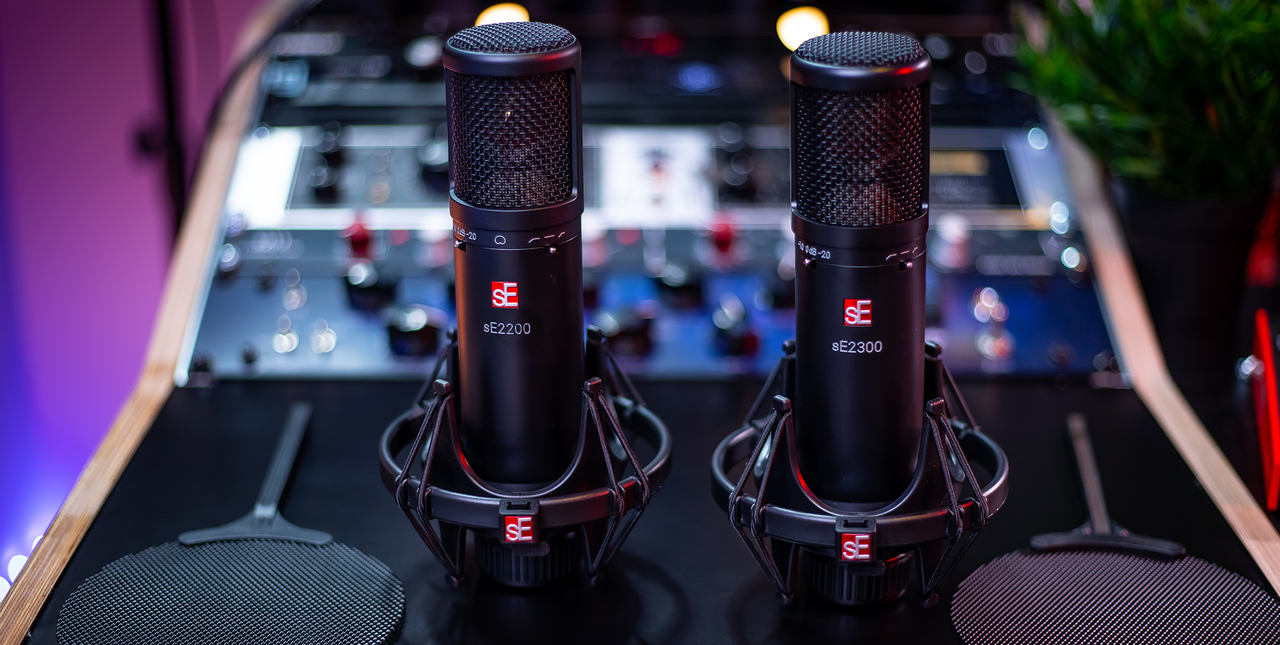

The sE2300 is the latest multi-pattern version of the award-winning 2200 condenser microphone that put sE Electronics on the map many years ago with its smooth, polished sound for vocals, voiceovers, and numerous instrumental applications. The cardioid version grew famous through use with world-class vocal artists like Amy Winehouse, and this multi-pattern version only increases its versatility, enhancing its usefulness for any instrument and reviving the spirit of the world’s most classic studio microphones.
Recommended Use
Recording studio, home studio, Vocals, Acoustic, Guitar, Electric Guitar Cab,
Orchestral + Strings, Piano, Woodwinds, Brass
Highlights
Hand-crafted 1” true condenser capsule individually tuned in our own factory
State-of-the-art components and a shorter, optimized signal path
Traditional Class-A electronic design with consistent low-noise performance
Custom-built output transformer and massively shielded all-metal housing
80 /160 Hz bass-cut filters and -10 / -20 dB pads
Cardioid, omnidirectional and bi-cardioid selectable polar patterns
Specs
Components - Capsule Hand-crafted 1" True Condenser
Power - Electrical impedance 40 Ohms
Recommended load impedance >1k Ohms
Connectivity 3-pin male XLR connector
Powering 48V Phantom Power (P48 according to IEC 61938)
Sound - Polar patterns Cardioid, Omni-directional, Figure-8
Frequency range 20 Hz - 20 kHz
Sensitivity 25 mV / Pa (-32 dBV)
Max SPL 125 / 135 / 145 dB (0 / 10 / 20 dB pad) (0.5% THD @ 1kHz)
Equivalent noise level 9 dB
Dynamic range 117 / 127 / 137 dB (0 / 10 / 20 dB attentuation pad)
Signal to noise ratio 85 dB
Low-cut filter 80 / 160 Hz, 6 dB / Oct, switchable
Attenuation pad 10 / 20 dB, switchable
Current consumption 4.8 mA
Dimensions
Mic Diameter 51 mm (2.01 in.)
Mic length 215 mm (8.46 in.)
Mic weight 215 mm (8.46 in.)
What's in the box
sE2300 Studio Condenser Microphone
Isolation Pack (shockmount, pop filter)
Thread adapter
sE Logo sticker
