Small-diaphragm Cardioid Condenser Mic
Product Highlights
- A versatile high-performance mic for stage and studio
- Handcrafted gold-sputtered small-diaphragm capsule
- Accurate, nearly frequency-independent cardioid polar pattern
- 80Hz and 160Hz highpass filters
- 10dB and 20dB Pads
- Gold-plated XLR connector
Fit for any challenges in the studio or on stage, the sE8 is a brand new high-performance handcrafted small-diaphragm condenser, fresh from the labs at sE.
Its new hand-made capsule implements a sophisticated backplate design that provides a perfectly balanced sound, so it's never harsh or aggressive - perfect for sources like high-hats and drum overheads.
It's also one of the quietest small-capsule mics on the planet - and with the highest dynamic range and SPL handling in its class, along with attenuation pads and low-cut filters for superb flexibility, the sE8 is ready for any sounds you’re making, whether in the studio environment or demanding on-stage applications.
HANDCRAFTED TRUE CONDENSER CAPSULE
- Gold-sputtered diaphragms ensure maximum reliability
- Every capsule is handcrafted and individually tuned in our very own factory
- Ultra-precision electrode design optimized for superb linearity and natural sonics
- Ultra-thin 3 micron gold-sputtered diaphragm for superior transients
- Newly-developed backplate design provides smooth, natural sound & truly consistent off-axis response
- Sophisticated acoustic design with precision components
- Avoids coloration in demanding applications
THE QUIETEST PENCIL MIC IN ITS CLASS
- sophisticated electronic design provides extremely low noise without the use of integrated circuits
- transformerless design for excellent transparency and clarity
- proven Class-A circuitry ensures a high dynamic range without distortion and brilliant transient response

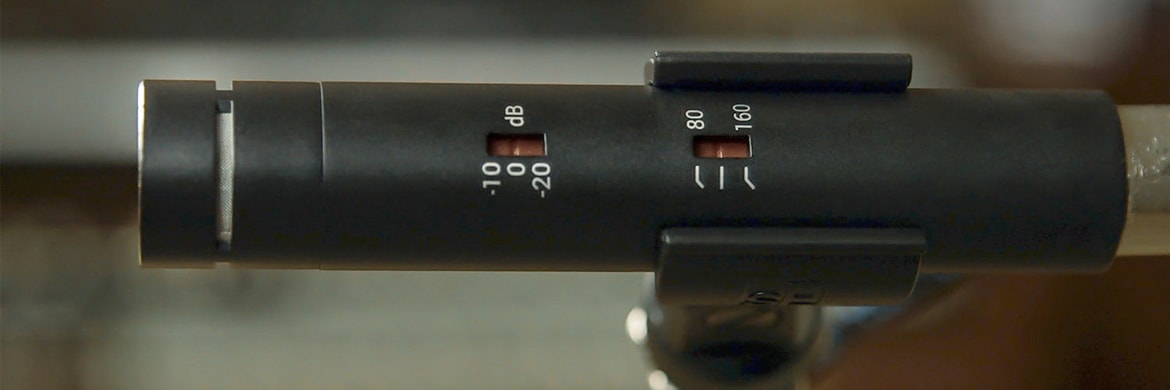

TWO SWITCHABLE PRE-ATTENUATION PADS
The -10 dB and -20 dB pad switches provide extended dynamic range, enabling a wide range of applications and close-mic techniques for brass instruments, snare drums, and more.
TWO SWITCHABLE LOW-CUT FILTERS
Selectable at either 80Hz or 160Hz, these two filters help eliminate low-frequency rumble or footfall noise, as well as help compensate for excessive bass (proximity effect) with close-mic techniques.
ALL-METAL HOUSING WITH GOLD-PLATED XLR CONNECTOR, PREMIUM FINISH & ACCESSORIES
Unlike the cheaply constructed bodies of some small-capsule microphones, the sE8's all-metal chassis provides efficient rejection of any electrical interference and noise - and the high-quality finish and gold-plated XLR connector ensures a great look and a loss-free, reliable signal connection for years to come.
The sE8 also comes standard with a newly-designed mic clip that will securely attach it to any mic stand.
Dimensions & Weight
- Diameter: 23mm (0.91 in)
- Length: 120mm (4.72 in)
- Weight: 141 g (4.97 oz.)
Sound Field | Mono |
Transducer | Condenser |
Tube | No |
Polar Pattern | Cardioid |
Frequency Range | 20 Hz to 20 kHz |
Signal to Noise Ratio | Cardioid: 81 dB |
Equivalent Noise Level | Cardioid: 13 dB A-Weighted |
Maximum SPL | Cardioid: 159 dB SPL Peak |
Pad | -10 dB -20 dB |
Impedance | Cardioid: 110 Ohms |
Load Impedance | 1 kOhms |
Sensitivity | Cardioid: 25 mV/Pa |
Low-Cut Filter | 6 dB/Octave @ 80 Hz 6 dB/Octave @ 160 Hz |
Output Connectors | 1 x 3-Pin XLR |
Operating Current Consumption | 2.7 mA |
Operating Voltage | 48 V |
