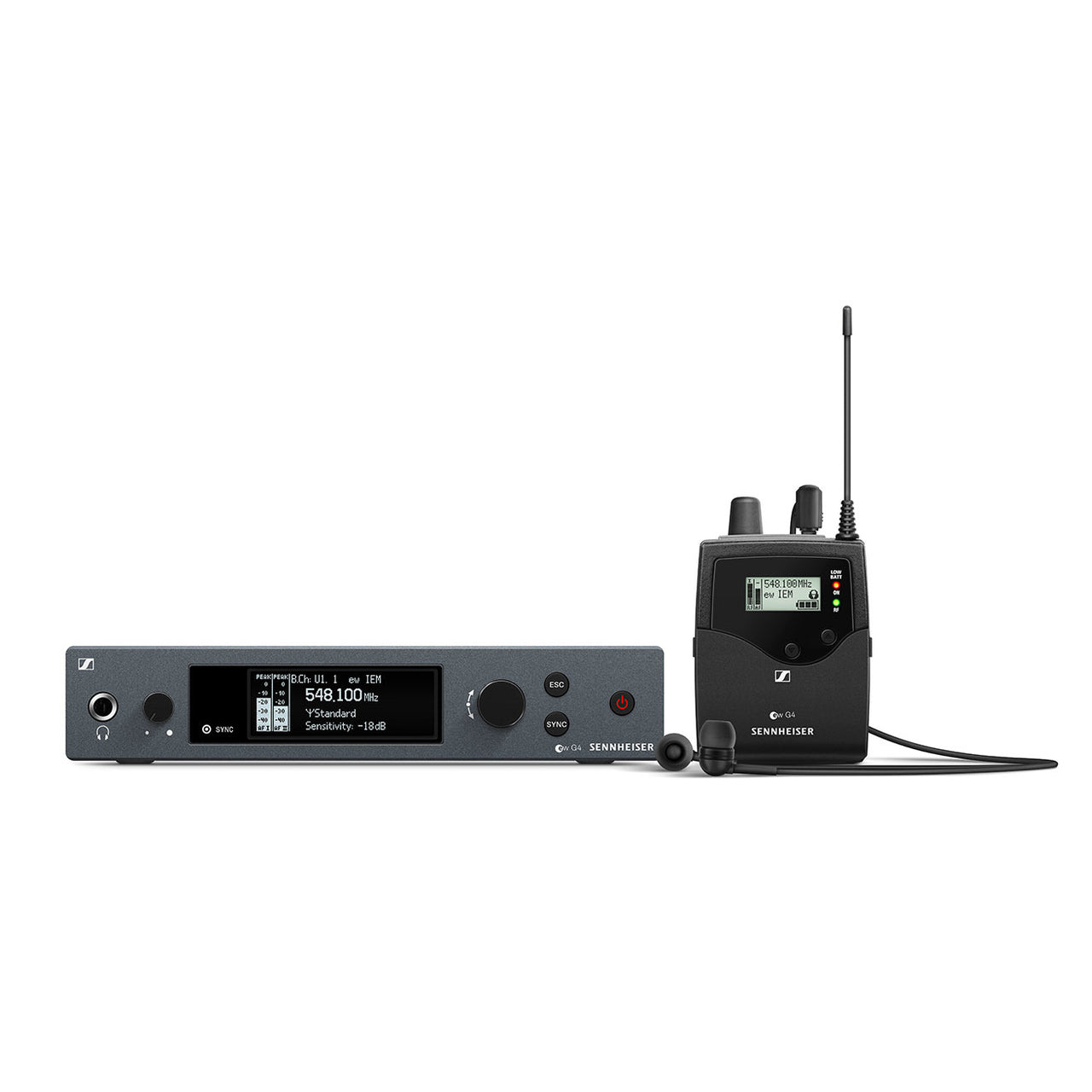

WIRELESS IN-EAR MONITOR SET
Hear anywhere on stage and make your gig an extraordinary experience – not just for your audience, but also for you. Engineered for pro live sound.
Full control over your performance – everywhere, every day. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you!
-
Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
-
Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage
-

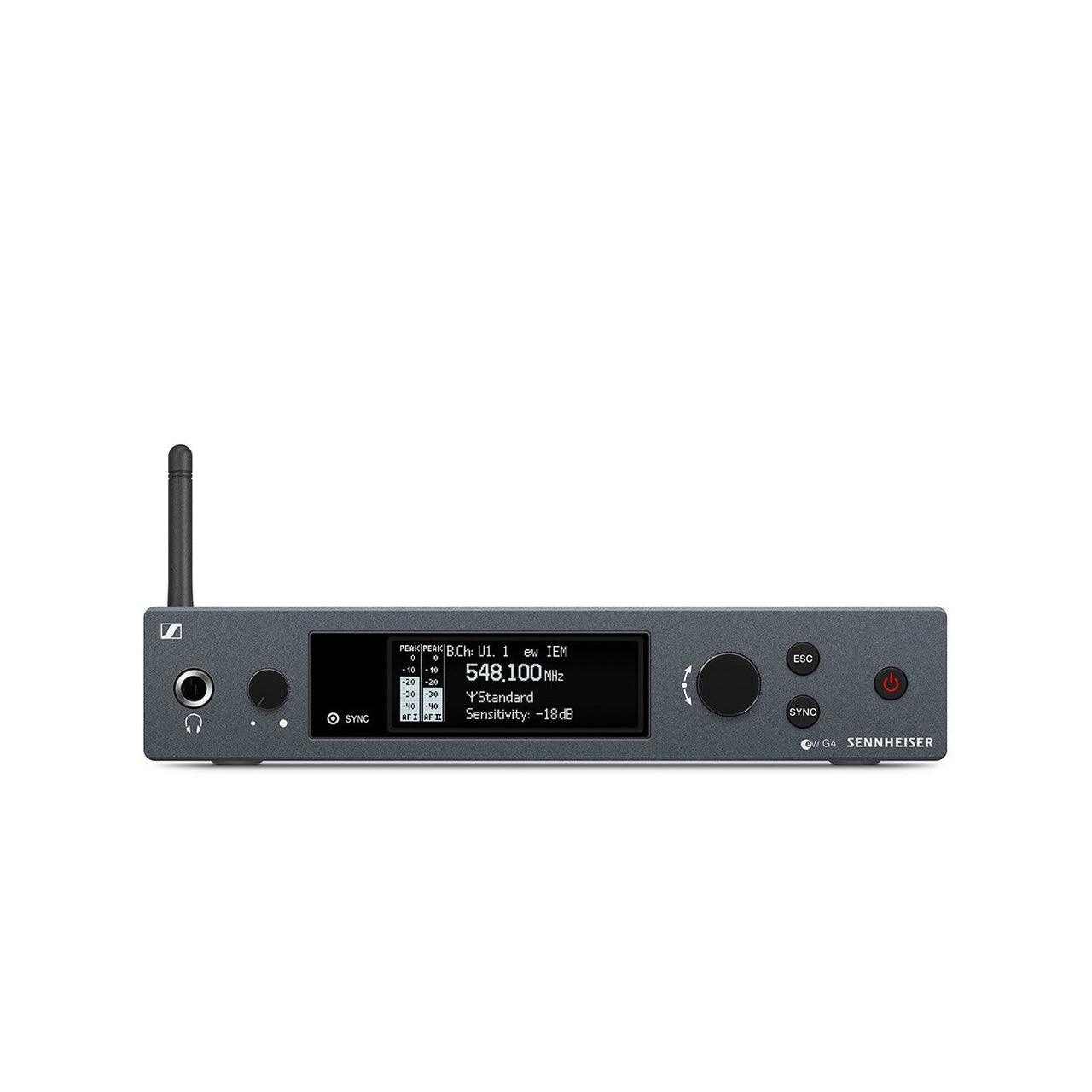

Half-rack stereo transmitter in a full-metal housing with OLED display for full control
-
Easy and flexible wireless synchronization between transmitter and receiver via infrared
-
Compatible with Sennheiser WSM control software for flexible frequency allocation
-
Up to 16 compatible channels
-
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
-
Transmission Range: up to 100 meters / 300 feet
-
High RF output power (up to 50 mW) depending on country regulations

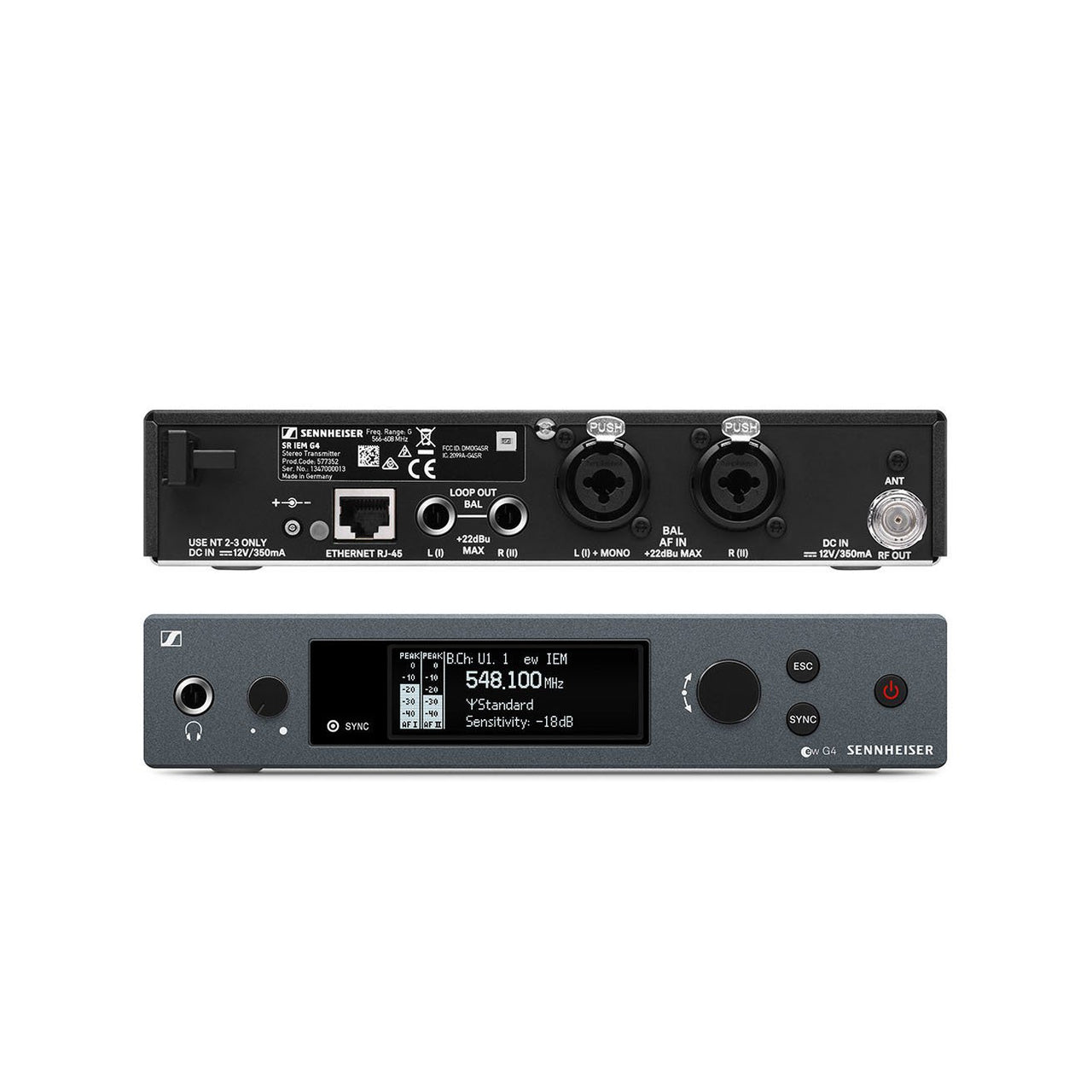

SR IEM G4
-
- Frequency range B: 626 - 668 MHz
-
- Dimensions Approx. 202 x 212 x 43 mm
-
- Compander Sennheiser HDX
-
- THD, total harmonic distortion <0.9 %
-
- Weight Approx. 980 g
-
- Audio input 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
-
- Audio output ¼" (6.3 mm) stereo jack socket, balanced
-
- Signal-to-noise ratio >90 dB
-
- RF output power
-
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
-
- Switching bandwidth up to 42 MHz
-
- Peak deviation ±48 kHz
-
- Nominal deviation ±24 kHz
-
- Modulation Wideband FM stereo (MPX pilot tone)
-
- Power supply 12 V DC
-
- Current consumption max. 350 mA
-
- Max. Input voltage +22 dBu
-
- Transmission frequency
-
Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
-
- AF frequency response 25 Hz to 15 kHz
-
- Temperature Range -10 °C to +55 °C
-
- Frequency stability ±10 ppm
-
- Antenna Output BNC socket, 50 Ω
EK IEM G4
-
- Dimensions Approx. 82 x 64 x 24 mm
-
- Compander Sennheiser HDX
-
- THD, total harmonic distortion ≤ 0.9 %
-
- Weight (incl. batteries) approx. 125 g
-
- Signal-to-noise ratio approx. 90 dBA
-
- Switching bandwidth up to 42 MHz
-
- Peak deviation ±48 kHz
-
- Nominal deviation ±24 kHz
-
- Operating time approx. 4 to 6 hours (depending on volume level)
-
- Modulation Wideband FM
-
- Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
-
- Current consumption
-
at nominal voltage: approx. 140 mA
with transmitter switched off: ≤ 25 µA
-
- Adjacent channel rejection Typically ≥ 65 dB
-
- Audio-Output-Power 2 x 100 mW at 32 Ω
-
- Intermodulation attenuation Typically ≥ 70 dB
-
- Limiter –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
-
- Powering 3 V battery / 2.4 V rechargeable battery
-
- Receiving frequency
-
Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
-
- RF sensitivity < 4 μV, typ. 1.6 μV for 52 dBA rms S/N
-
- Squelch 5 to 25 dBµV, adjustable in steps of 2 dB
-
- Bass Boost +8 dB at 8 kHz
-
- Temperature Range -10 °C to +55 °C
-
- Receiver Principle Adaptive diversity
-
- Blocking ≥ 80 dB
What's in the Box
- SR IEM G4 stereo transmitter
- EK IEM G4 stereo receiver

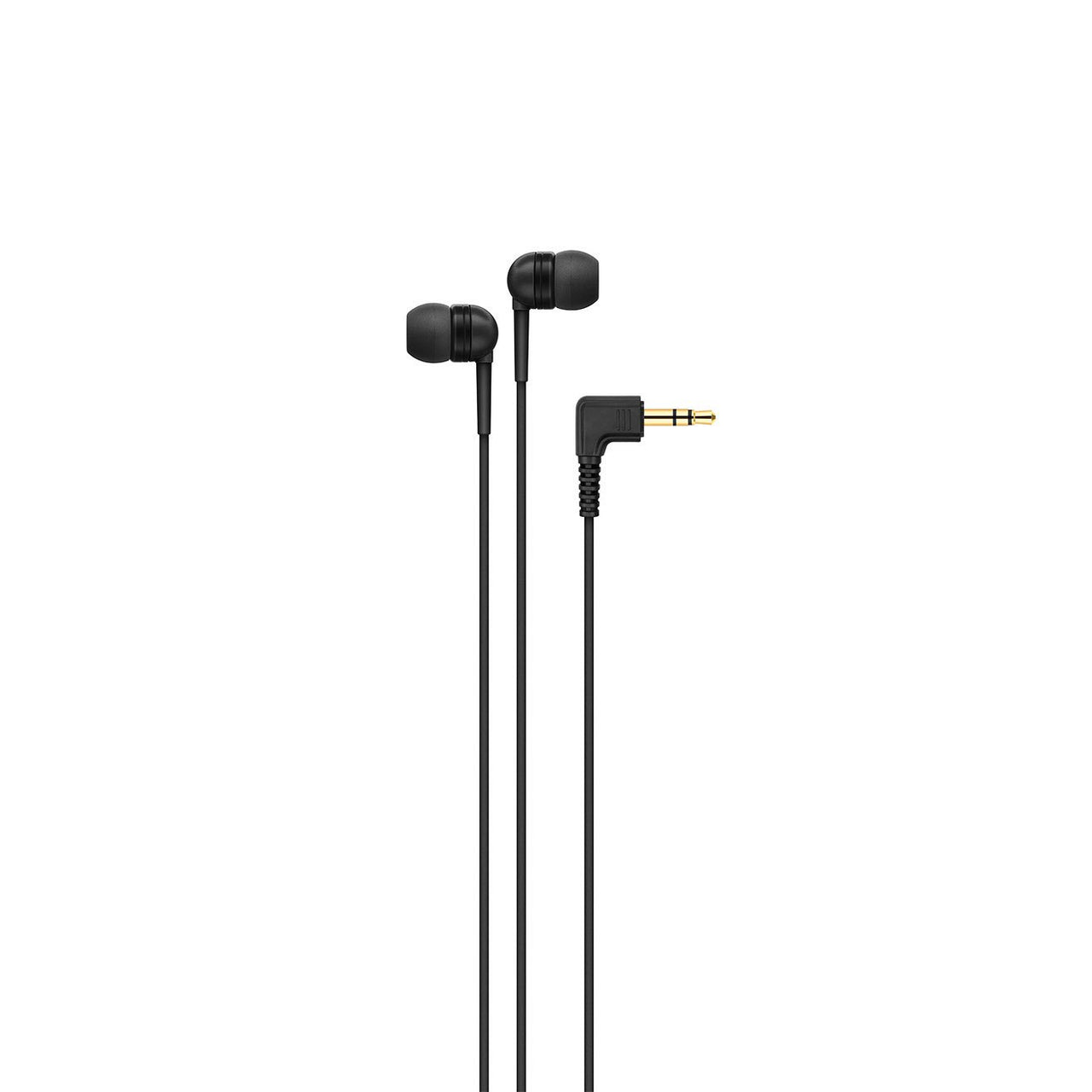

- IE 4 earphones
- 2 AA batteries
- rod antenna
- GA 3 rackmount set
- quick guide
- safety guide
- manufacturer declaration sheet
- power supply
