Lapel Set
Easy to use wireless system for public speakers and presenters with up to 10 compatible channels. Excellent for a powerful and inspiring presentation.
Inspire your audience. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone.
-
Compact bodypack transmitter, unobstrusive clip-on microphone
-
Antenna-switching diversity reception
-
Integrated antennas
-
Automatic frequency management and synchronization via remote channel for easy setup
-
Selectable UHF frequencies within a large bandwidth
-
Up to 10 compatible channels

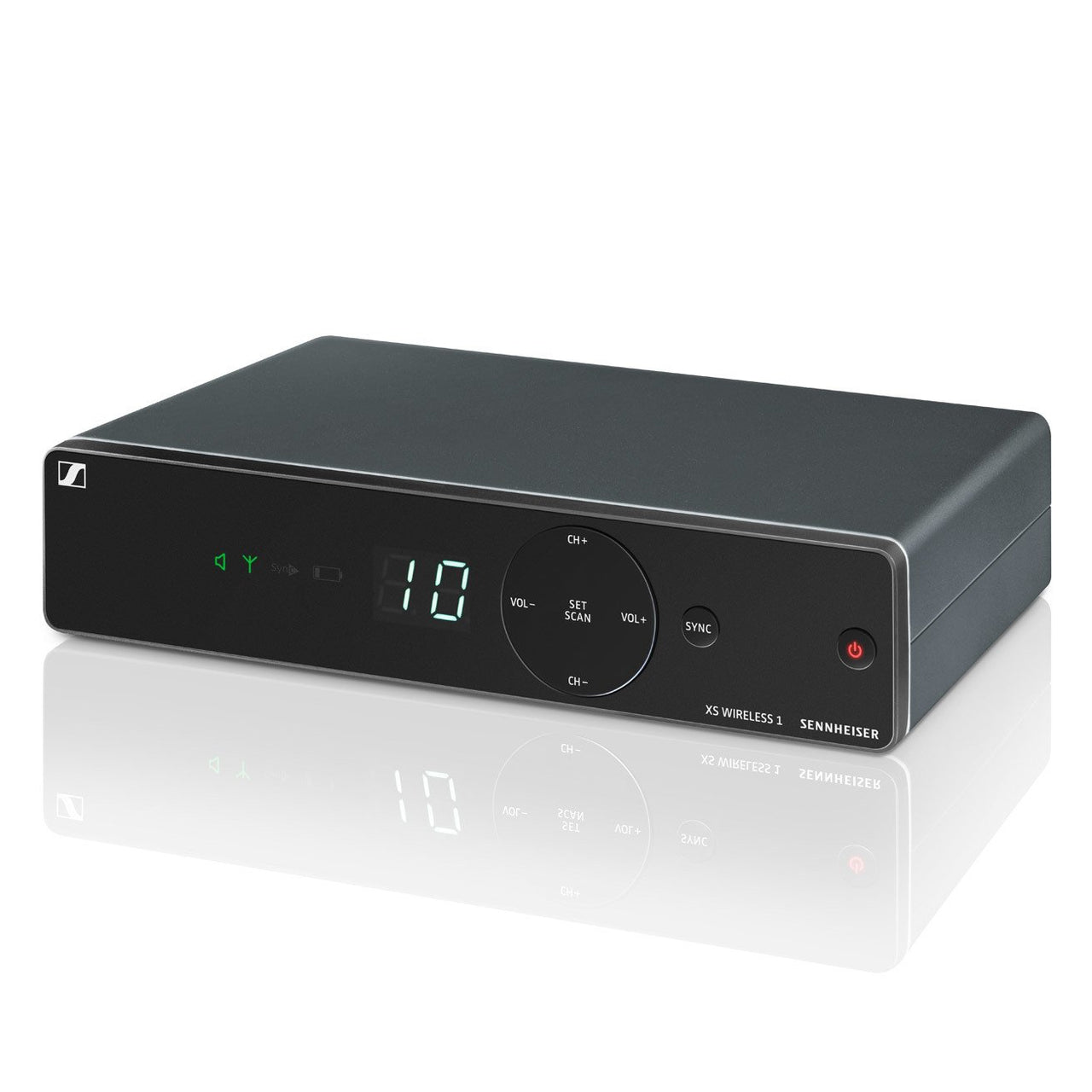

Receivers
-
- Dimensions approx. 200 x 42 x 127 mm
-
- Weight approx. 340g
-
- Power supply 12 V DC nom. / 300 mA
-
- AF frequency response 50 to 16,000 Hz (–3 dB)
Transmitter
-
- Dimensions approx. 71 x 96 x 28 mm
-
- Weight approx. 95g
-
- Power supply 2 AA size batteries, 1.5 V
-
- Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps
-
- Microphone condenser
-
- THD, total harmonic distortion ≤ 0.9%
-
- Pick-up pattern omni-directional
-
- Signal-to-noise ratio ≥ 103 dBA
-
- RF output power 10 mW
-
- Switching bandwidth up to 24 MHz
-
- Operating time approx. 10 hrs
-
- Modulation wideband FM
-
- Output voltage '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
-
- Housing rugged ABS housing
-
- Diversity reception antenna switching diversity via internal antennas
-
- Frequency 8 frequency banks, each with up to 10 factory-preset channels
-
- Frequency range
-
A: 548-572 MHz, GB: 606-630 MHz
B: 614-638 MHz, C: 766-790 MHz
E: 821-832 MHz, 863-865 MHz
-
- Sensitivity < 3 μV at 52 dB(A)rms S/N
-
- SPL for peak deviation 130 dB
-
- Squelch adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
-
- Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
-
- Input sensitivity 1.5 mV / Pa
-
- Audio adjustment range 45 dB, adjustable in 5-dB steps
-
- Line / Mic level 20 dB, switchable
-
- Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
-
- Receiver Principle double superheterodyne
What's in the Box
- 1 receiver EM-XSW 1
- 1 lavalier microphone ME 2-2
- 1 bodypack transmitter SK-XSW
- 1 power supply NT 12-5 CW
- 2 AA batteries
