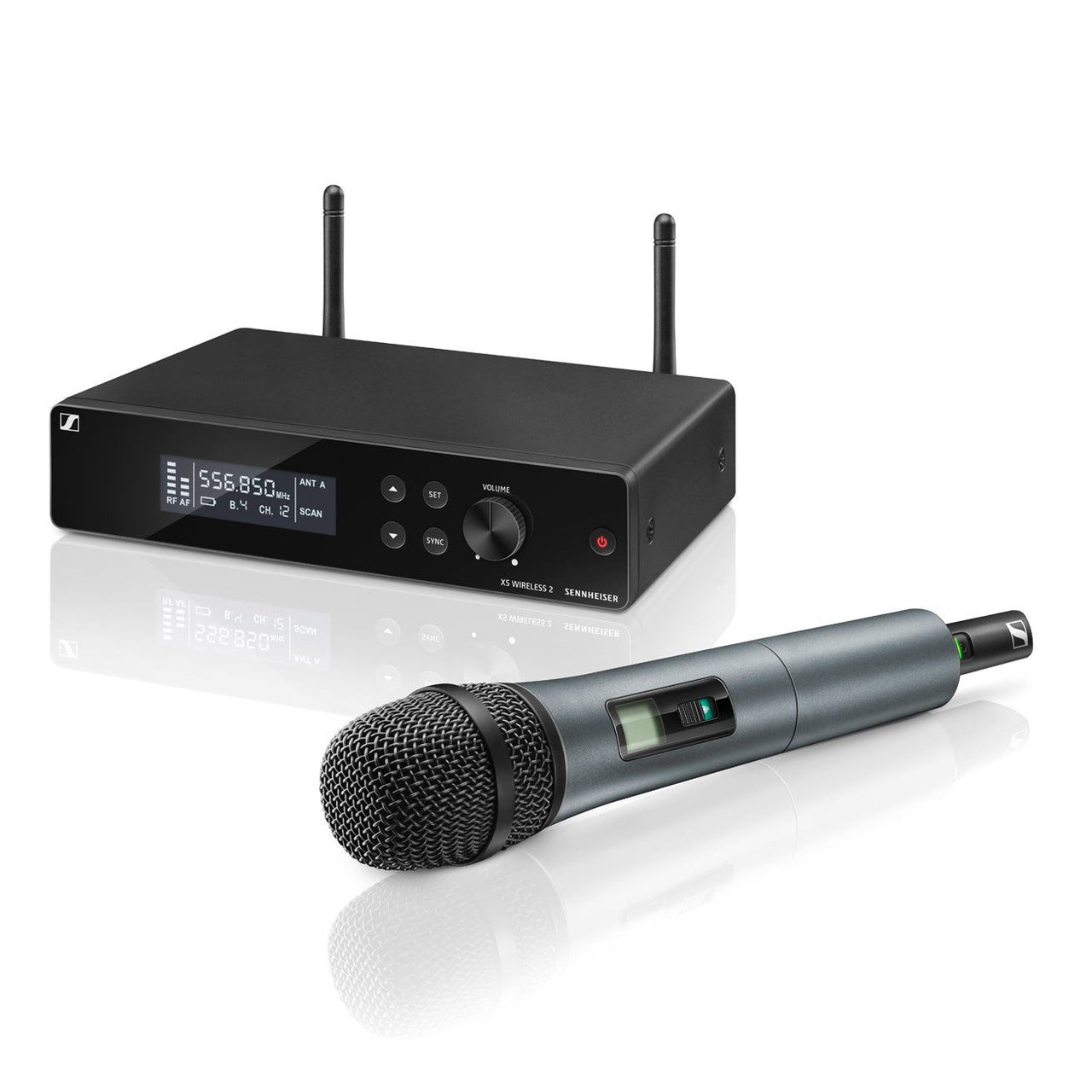

Sennheiser XSW 2-835-B

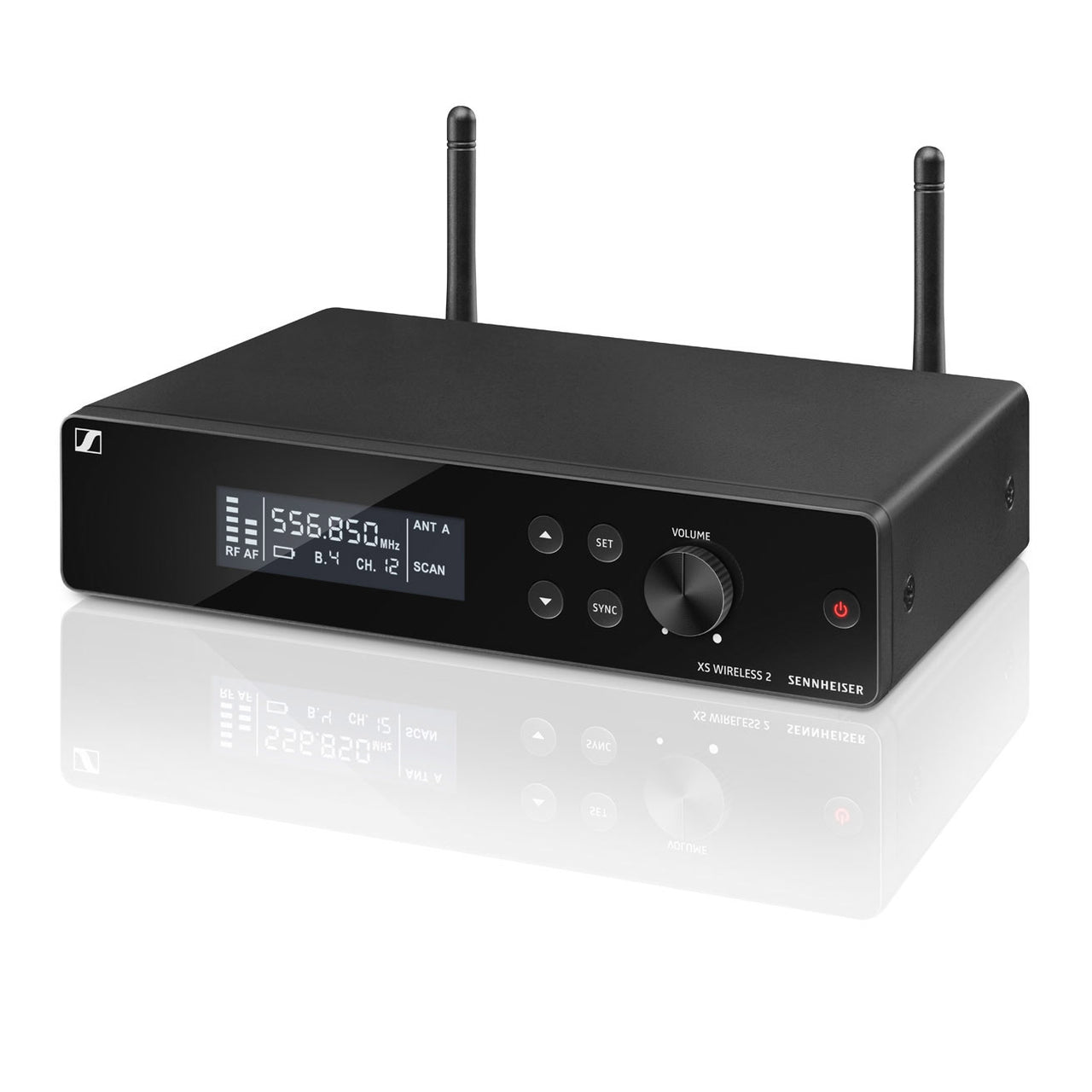

Receivers

• Dimensions approx. 200 x 42 x 127 mm, microphone: approx. 260 x 50 mm

• Weight approx. 680g

• Power supply 12 V DC nom. / 300 mA

• Housing Metal, microphone: robust ABS

• AF frequency response 50 to 16,000 Hz (–3 dB)

• Microphone dynamic

• Frequency response 50 to 16,000 Hz (–3 dB)

• THD, total harmonic distortion ≤ 0.9%

• Pick-up pattern cardioid

• Signal-to-noise ratio ≥ 103 dBA

• RF output power 10 mW

• Switching bandwidth up to 24 MHz

• Operating time approx. 10 hrs

• Modulation wideband FM

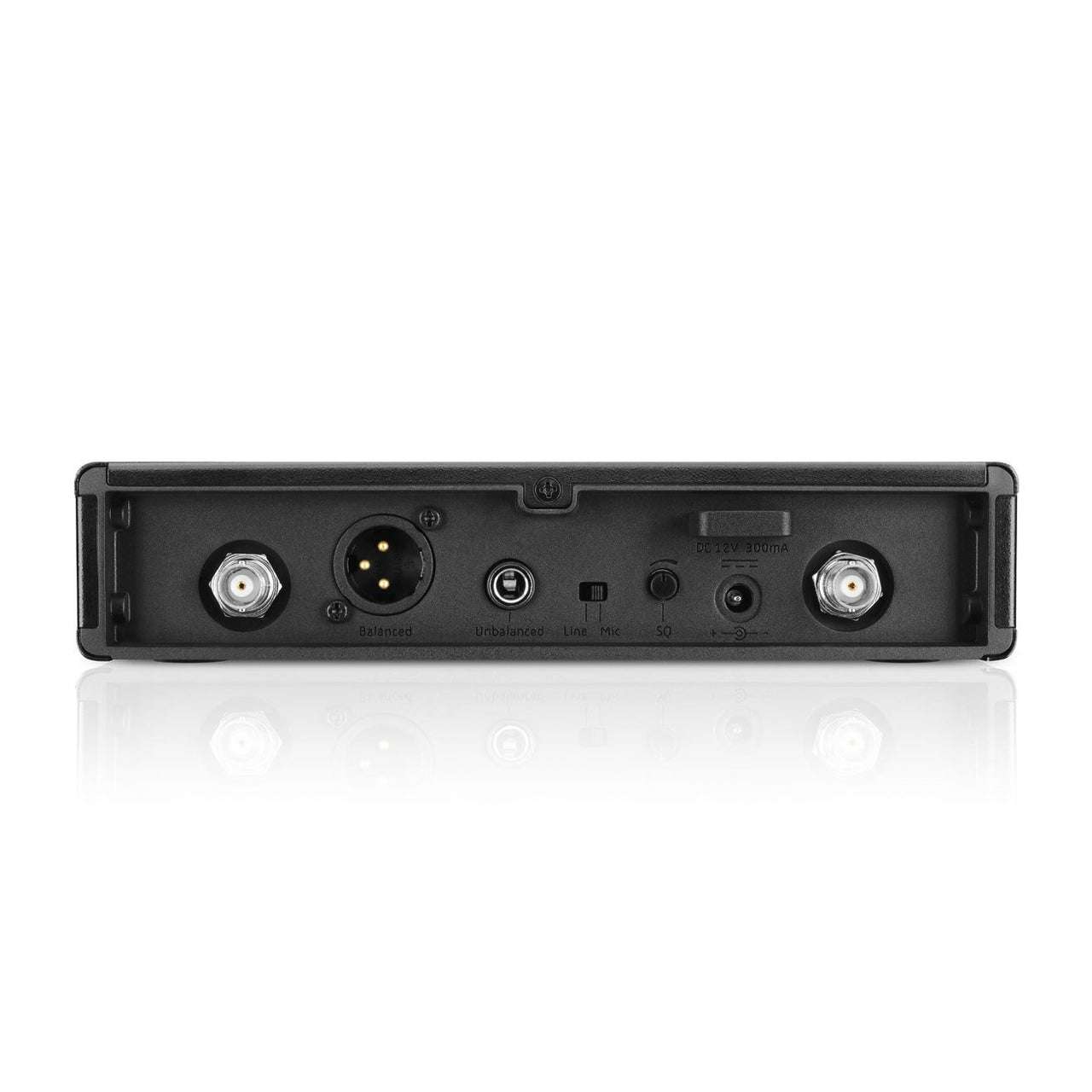

• Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

• Frequency 8 frequency banks, each with up to 12 factory-preset channels

• Frequency range

  A: 548-572 MHz

  GB: 606-630 MHz

  B: 614-638 MHz

  C: 766-790 MHz

  D: 794-806 MHz

  E: 821-832 MHz, 863-865 MHz

  K: 925-937.5 MHz

• Sensitivity < 3 μV at 52 dB(A)rms S/N

• Squelch switchable from 3 dBμV to 28 dBμV (via Pilot Tone)

• Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)

• Line 20 dB, switchable

• Input sensitivity 1.5 mV / Pa

• Adjustment Range Transmitter 0 to -30 dB, adjustable in 10 dB steps

• Audio adjustment range 40 dB, adjustable in 5-dB steps

• Temperature Range

  operation: 0°C to +40°C

  storage: –20°C to +70°C

• Receiver Principle double superheterodyne

• Diversity principle True Diversity

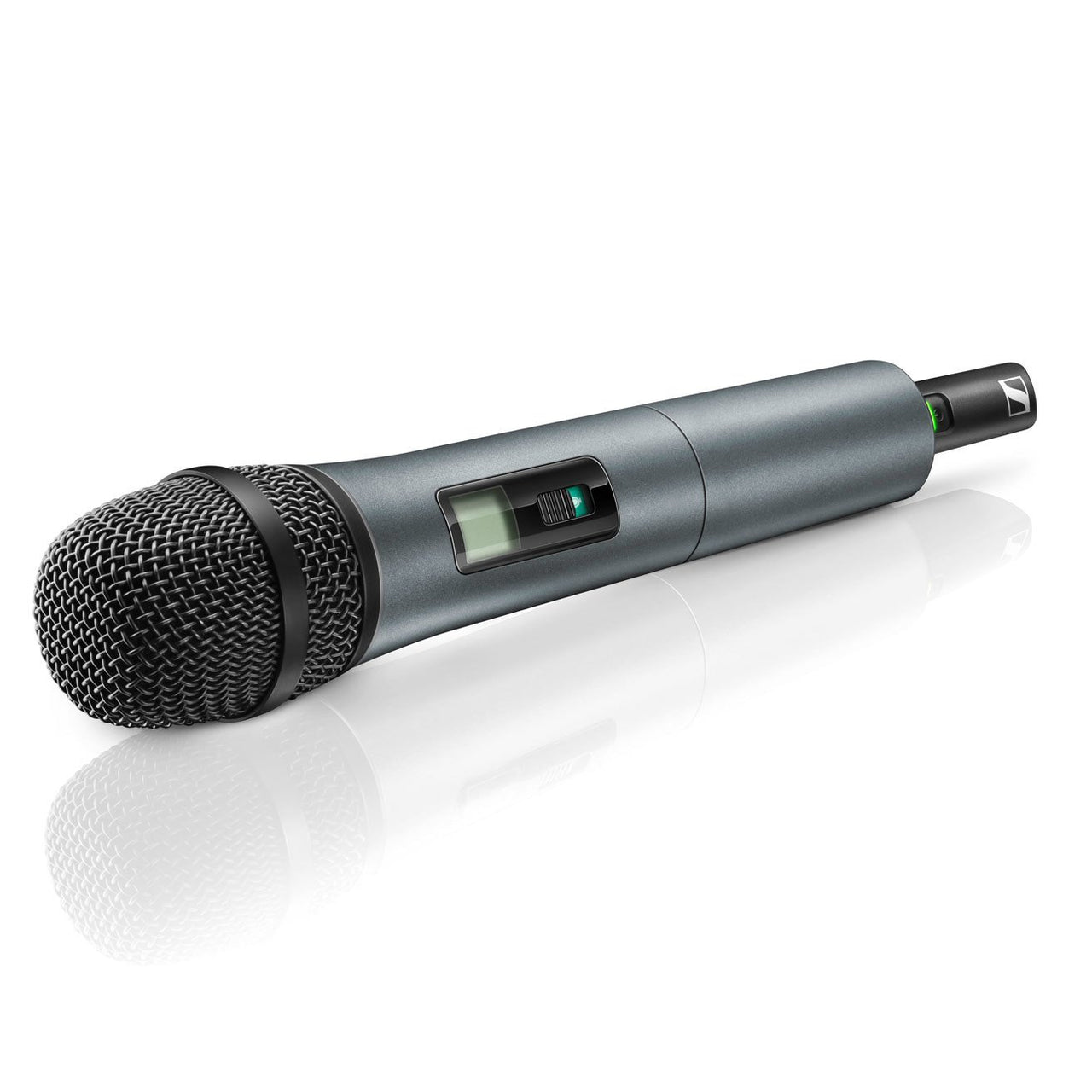

Microphone

• Weight approx. 245g

• Power supply 2 AA size batteries, 1.5 V

• AF frequency response 80-14,000 Hz
