Wireless Microphone
Raise Your Voice. Flexible, rugged, all-in-one wireless system for singers and presenters.
Raise your voice. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

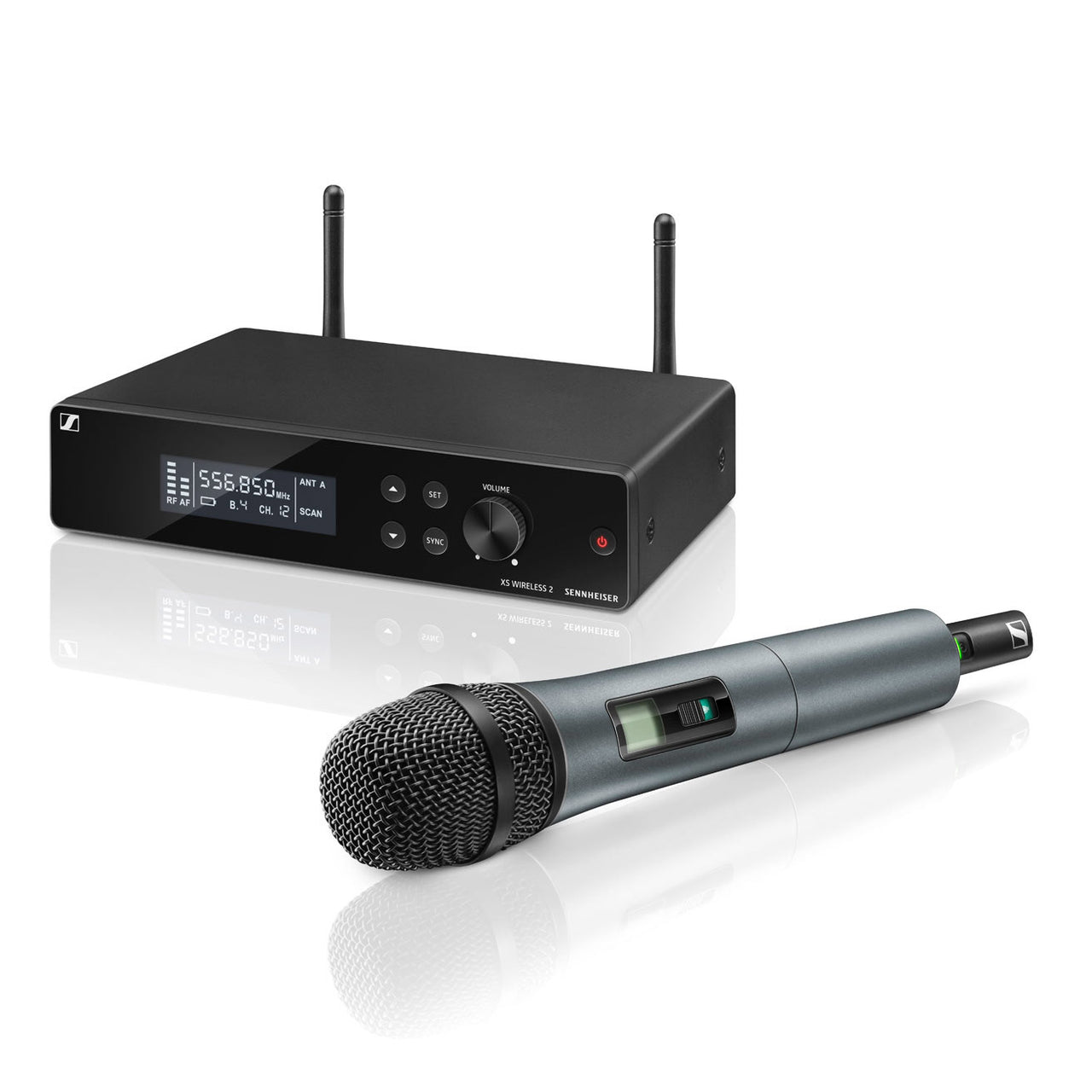

The XS WIRELESS 2 VOCAL SET is an easy to use all-in-one wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e865 (condenser, super-cardioid) to capture every detail. True Diversity receiver in a metal housing and rackmount kit included.
-
Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
-
True diversity receiver with metal housing
-
External antennas
-
Automatic frequency management and synchronization via
-
remote channel for easy setup
-
Fully tunable over a wide range of UHF frequencies
-
Rackmount kit included
-
Up to 12 compatible channels

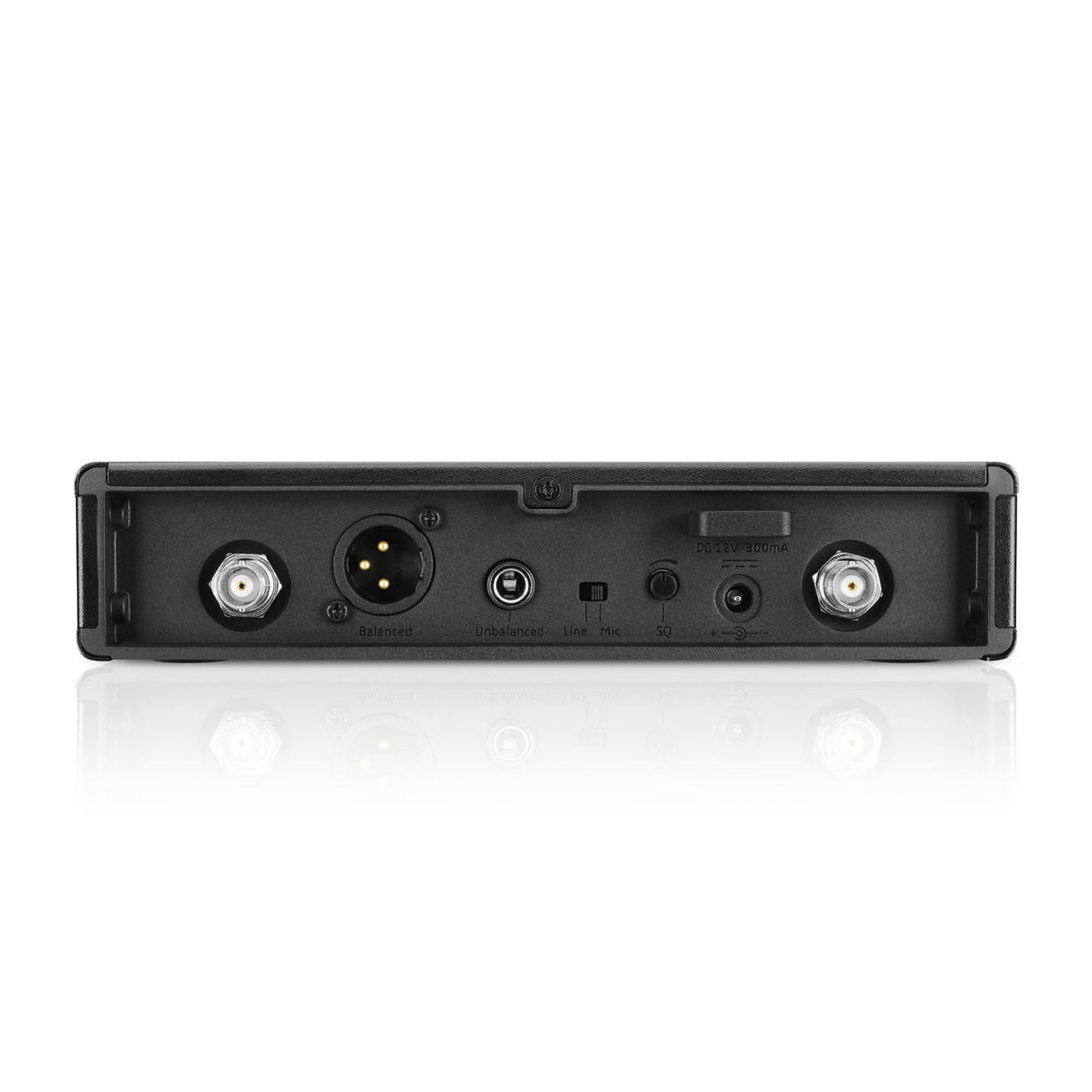

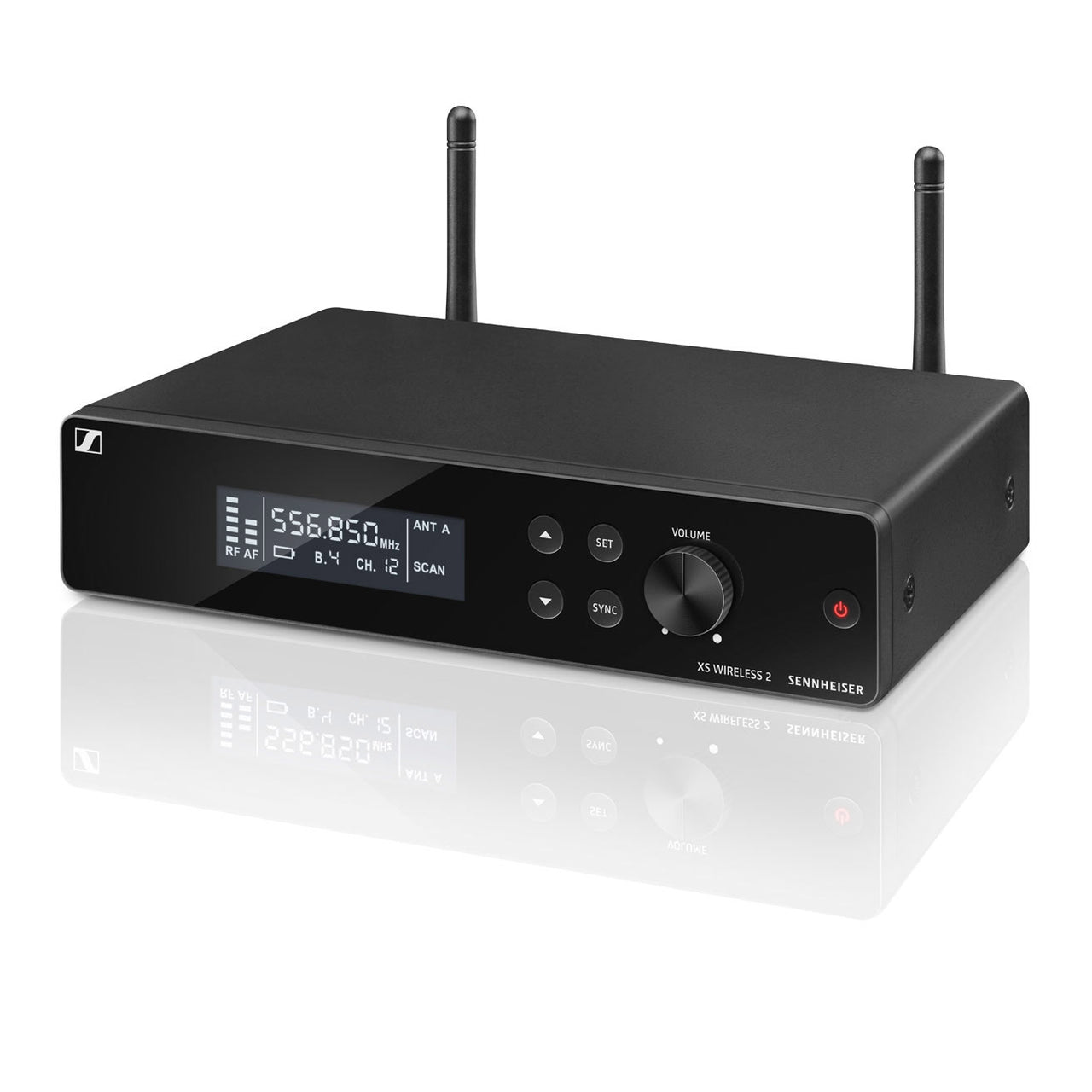

Receivers
-
- Dimensions approx. 200 x 42 x 127 mm
-
- Weight approx. 680g
-
- Power supply 12 V DC nom. / 300 mA
-
- Housing metal, microphone: robust ABS
-
- AF frequency response 50 to 16,000 Hz (–3 dB)

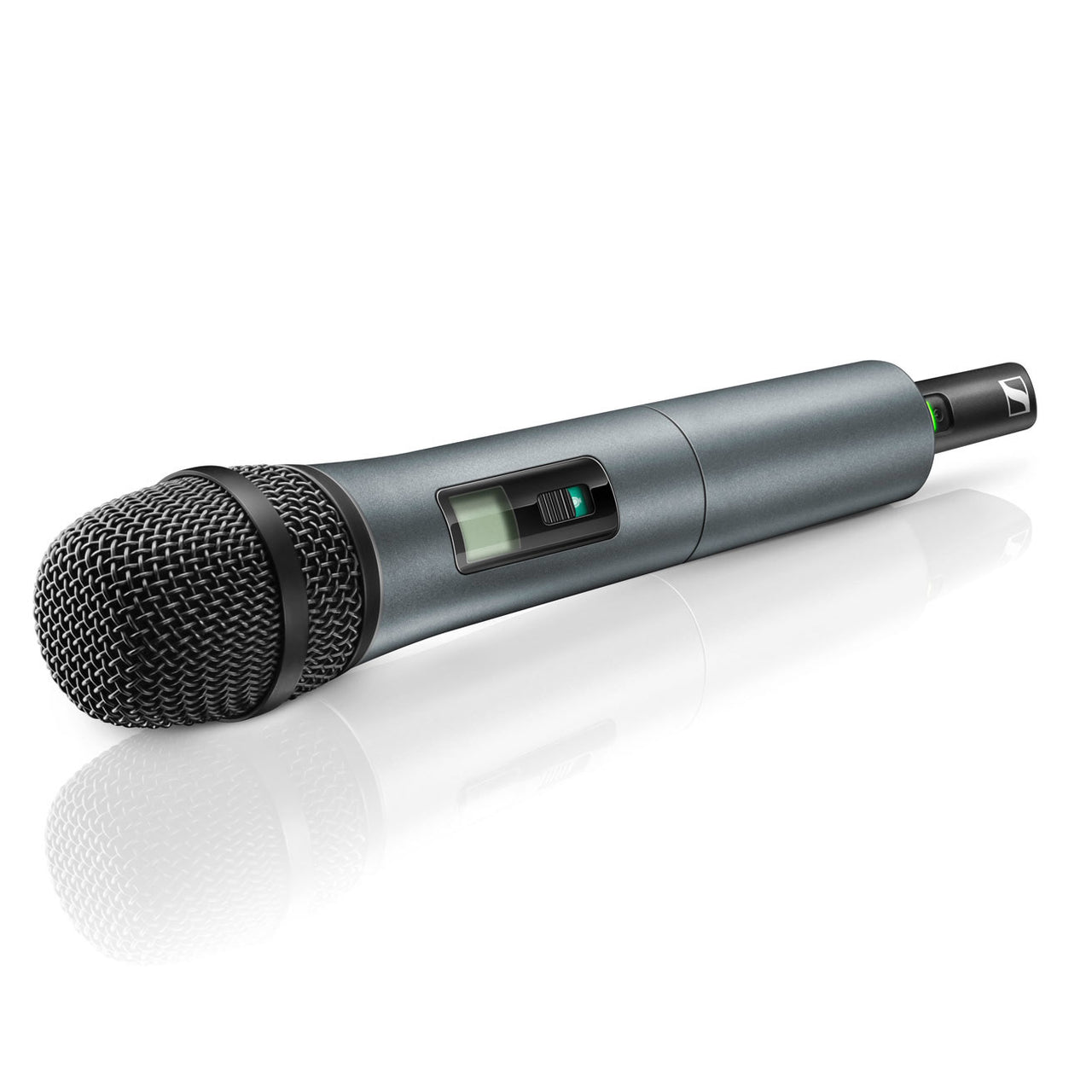

Microphone
-
- Dimensions approx. 260 x 50 mm
-
- Weight approx. 245g
-
- Operating time approx. 10 hrs
-
- Power supply 2 AA size batteries, 1.5 V
-
- AF frequency response 80-16,000 Hz
-
- Microphone condenser
-
- Frequency response 50 to 16,000 Hz (–3 dB)
-
- THD, total harmonic distortion ≤ 0.9%
-
- Pick-up pattern super-cardioid
-
- Signal-to-noise ratio ≥ 103 dBA
-
- RF output power 10 mW
-
- Switching bandwidth up to 24 MHz
-
- Modulation wideband FM
-
- Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
-
- Frequency 8 frequency banks, each with up to 12 factory-preset channels
-
- Frequency range
-
E: 821-832 MHz, 863-865 MHz
-
- Sensitivity < 3 μV at 52 dB(A)rms S/N
-
- Squelch switchable from 3 dBμV to 28 dBμV (via Pilot Tone)
-
- Synchronization 2.4 GHz, Low Power OQPSK (only active during synchronization)
-
- Input sensitivity 1.8 mV / Pa
-
- Adjustment Range Transmitter 0到-30分贝，以10分贝为步进调节
-
- Audio adjustment range 40 dB, adjustable in 5-dB steps
-
- Line / Mic level 20 dB, switchable
-
- Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
-
- Receiver Principle double superheterodyne
-
- Diversity principle True Diversity
What's in the Box
- 1 receiver EM-XSW 2
- 1 handheld transmitter SKM 865-XSW
- 1 microphone clamp MZQ 1
- 1 power supply NT 12-5 CW
- 2 AA batteries
- 1 rackmount kit
- 1 pouch
- user manual
