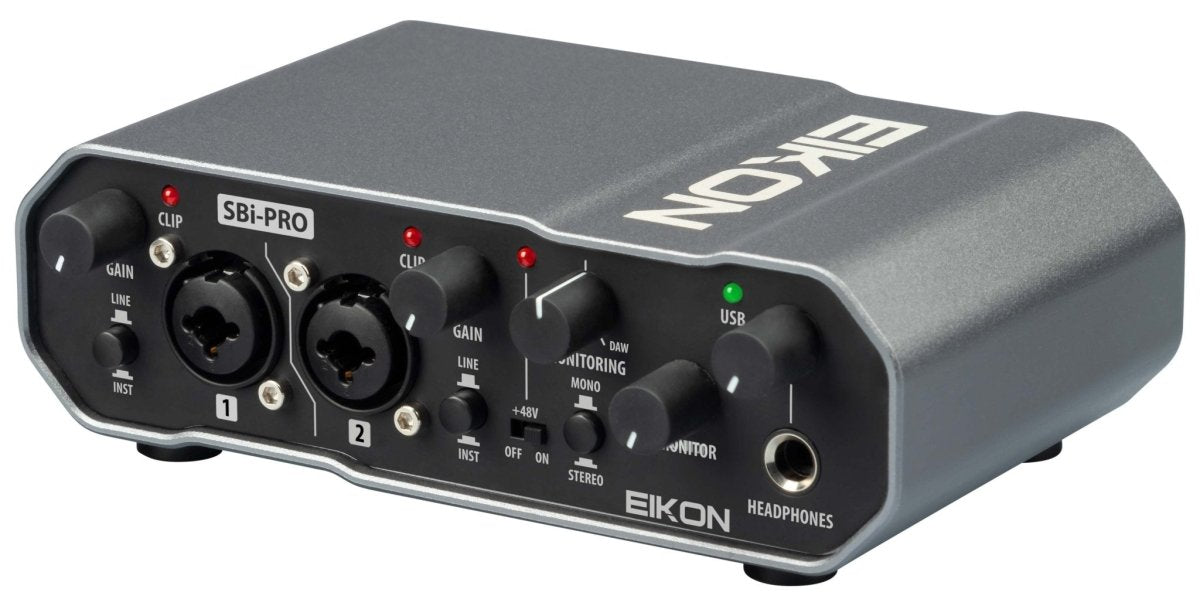

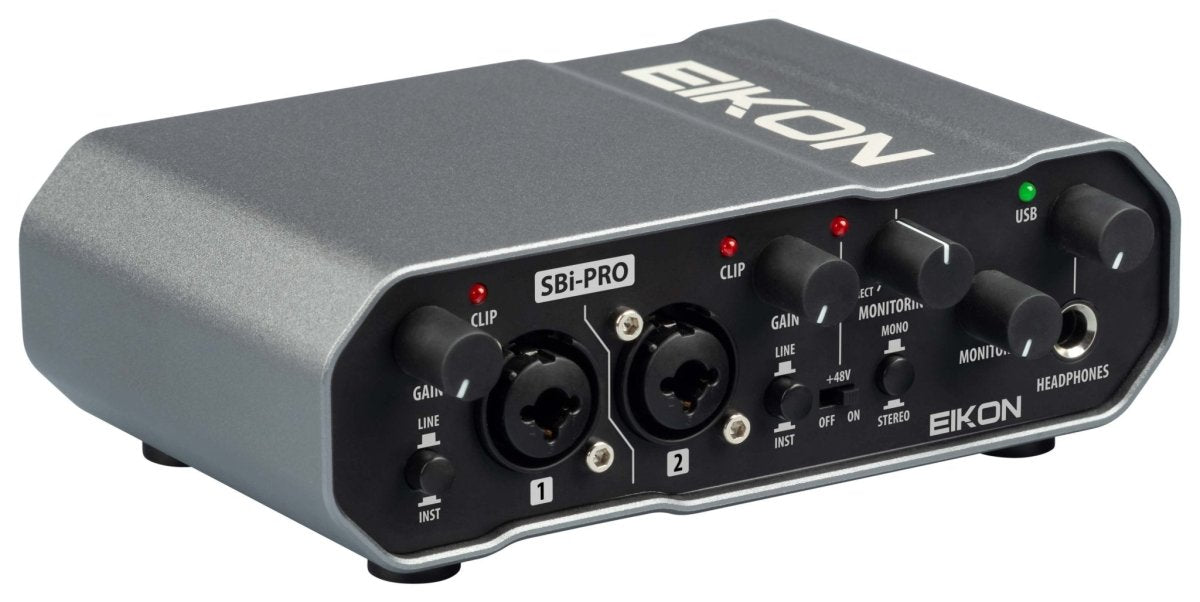

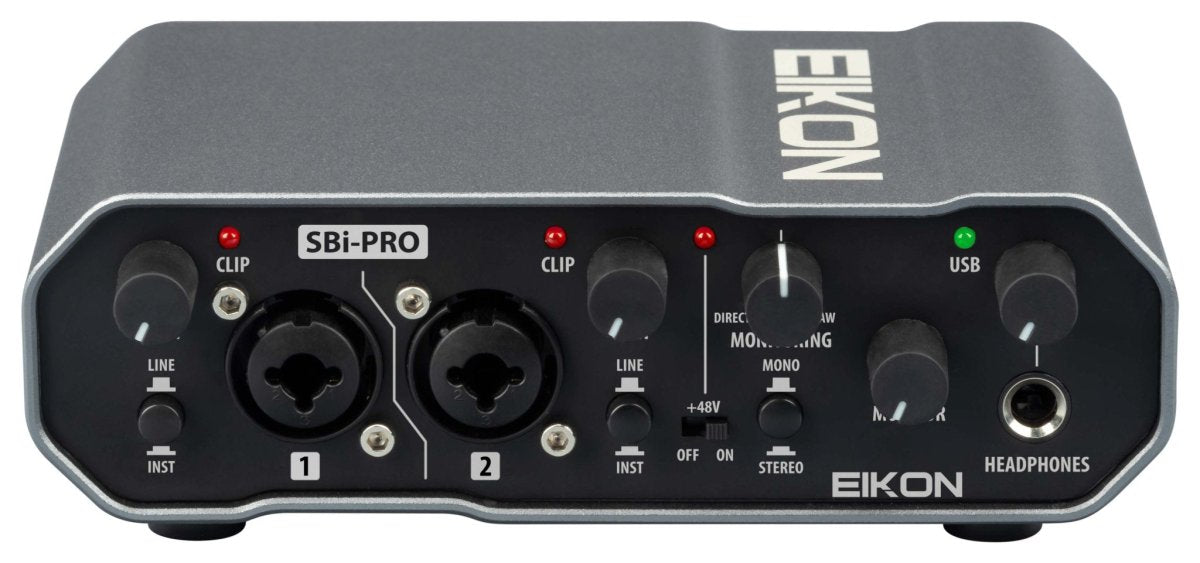

Studio Quality for Your Mobile Setup: EIKON EKSBIPRO
The EIKON EKSBIPRO is a professional USB audio interface designed to deliver studio-quality recordings for home, mobile, and live-streaming applications. Utilizing high-grade components and premium circuitry in a compact and rugged design, the EKSBIPRO provides a full set of features for top performance. It's the perfect solution for musicians, songwriters, content creators, and podcasters.
The EKSBIPRO features two high-definition microphone preamps with extended dynamic range and +48V phantom power, fed by versatile XLR/TRS combo inputs with a HI-Z switch. This allows you to record vocals and instruments simultaneously or capture stereo sources with pristine clarity. The 2-in/2-out, 24-bit/192kHz high-resolution interface ensures a flawless and professional audio quality.
Engineered for a seamless workflow, the EKSBIPRO offers zero-latency direct monitoring with a STEREO/MONO selector and a mix control to blend between your input signals and DAW playback. A minijack AUX input/output is also included for easy recording or podcasting directly with a tablet or smartphone. Housed in a rugged, road-proof aluminum chassis and powered by USB, the EKSBIPRO is ready to capture your creativity, wherever you are.
Key Features:
-
High-Resolution 24-bit/192kHz Audio: A professional 2-in/2-out USB 2.0 audio interface for flawless, studio-quality sound.
-
High-Definition Mic Preamps: Two XLR/TRS combo inputs with high-headroom preamps, extended dynamic range, and switchable +48V phantom power.
-
Zero-Latency Direct Monitoring: Features a direct monitoring function with a STEREO/MONO selector and a mix control for latency-free recording.
-

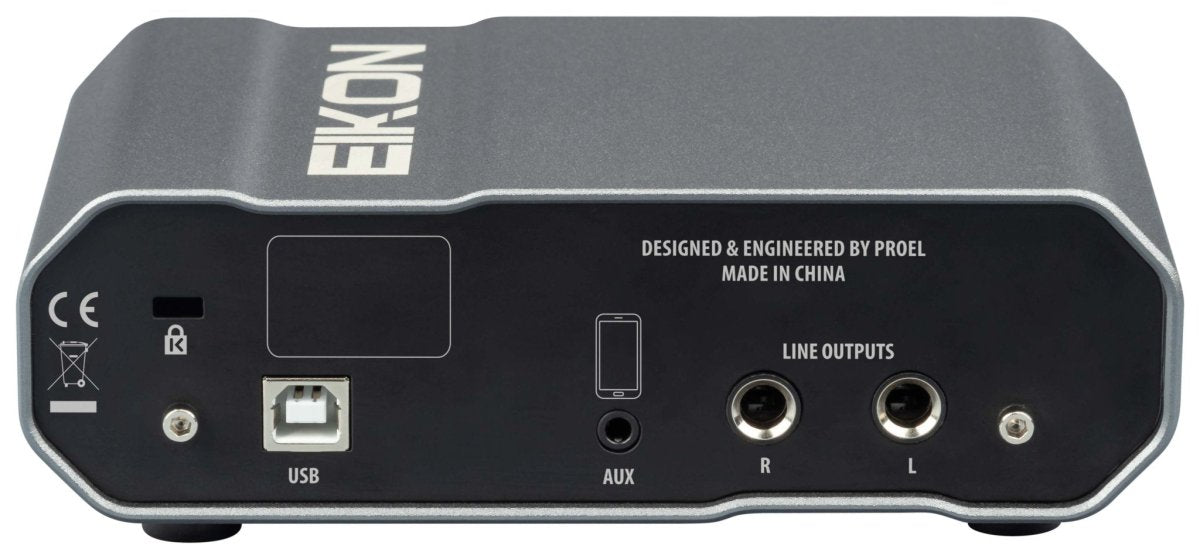

Versatile Connectivity: Includes balanced 1/4" line outputs for studio monitors and a headphone output with separate level control.
-
Mobile-Ready: A minijack AUX input/output allows for direct recording and podcasting with a tablet or smartphone.
-
Rugged and Portable: Housed in a road-proof aluminum chassis and is fully USB bus-powered for easy mobile recording.
-
Instrument Ready: Both main inputs feature a HI-Z switch for direct connection of guitars and basses.
-
Complete Control: Offers a full set of features for professional performance, including separate controls for all main functions.
Technical Specifications:
-
Digital Audio:
-
ADC Dynamic Range: 108 dB
-
DAC Dynamic Range: 109 dB
-
Bit Depth: 16 / 24 / 32
-
Sample Frequencies: 44.1, 48, 88.2, 96, 176.4, 192 kHz
-
-
Microphone Preamp:
-
Frequency Response: 10 Hz to 22 kHz (±3.0 dB)
-
Gain Control Range: 0 dB to 45 dB
-
-
Line Input:
-
Max Input Level: +22 dBu
-
-
Instrument Input:
-
Max Input Level: +22 dBu
-
-
Outputs:
-
Line Outputs: 1/4” TRS female, balanced
-
Headphone Output: 1/4” TRS active stereo, 50 mW/ch @ 32Ω Load
-
-
Power: USB bus-powered
-
Dimensions (W x D x H): 6.30" x 4.17" x 2.05" (160 x 106 x 52 mm)
-
Weight: 1.21 lbs (0.55 kg)
What's in the box:
-
EKSBIPRO USB Audio Interface
-
USB Cable
