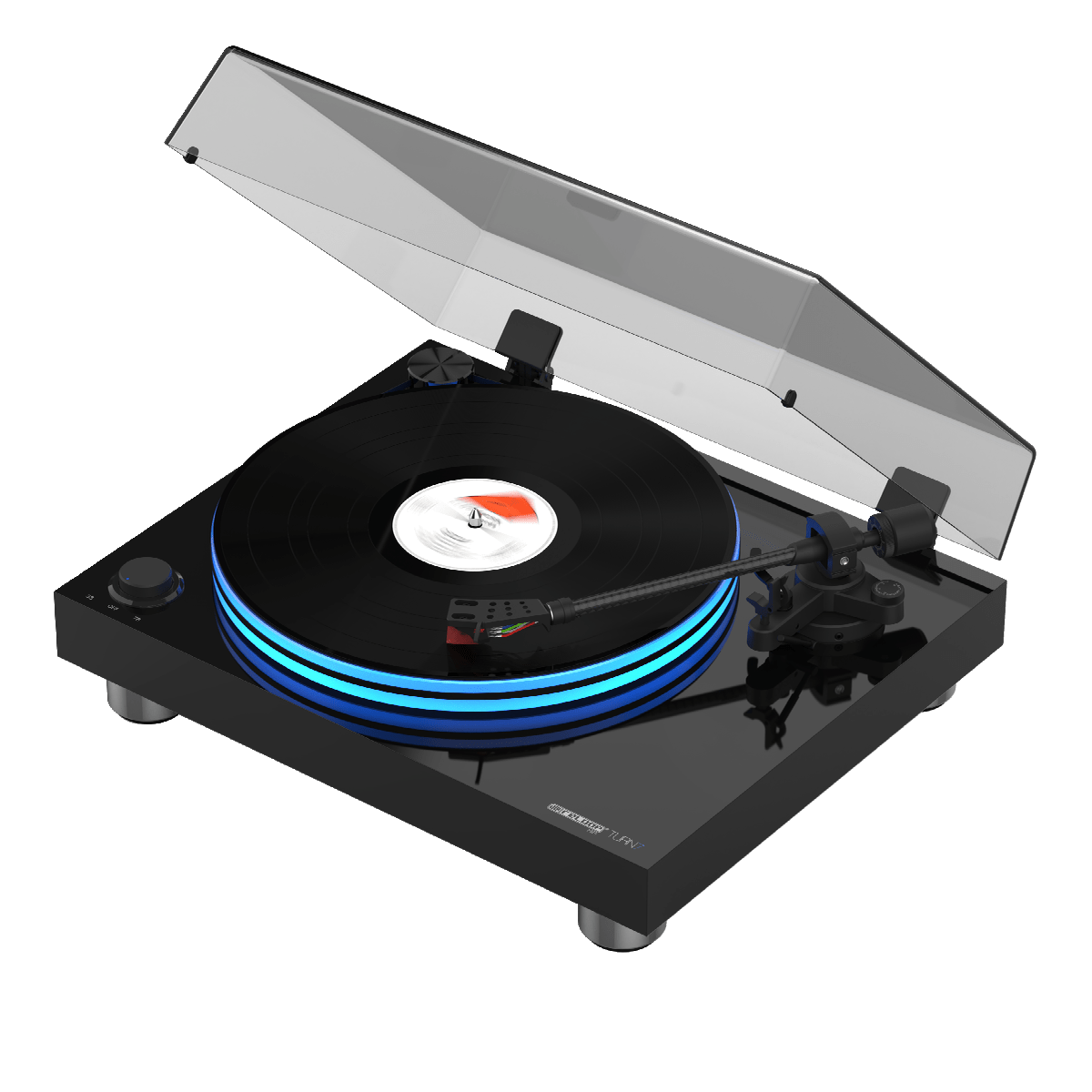

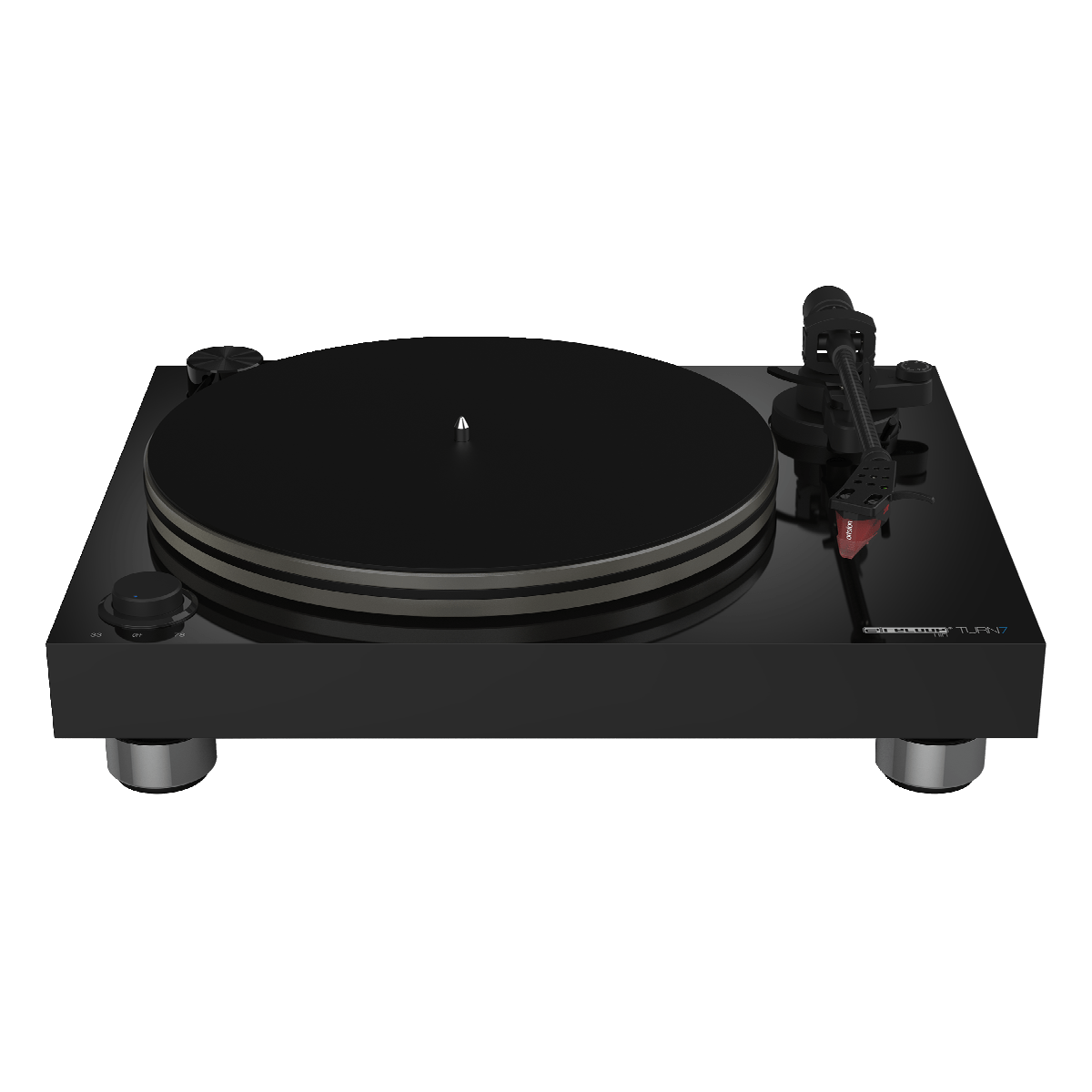

Premium Belt Drive USB Turntable System
Sound meets design
The Turn 7 bridges the gap between high-end HiFi turntables and uncompromising design. The belt-driven turntable meets the exacting demands of audiophile music fans thanks to precisely manufactured components. The acrylic platter with LED lighting and the external drive belt make the Turn 7 an absolute eye-catcher.
Powerful & steady drive

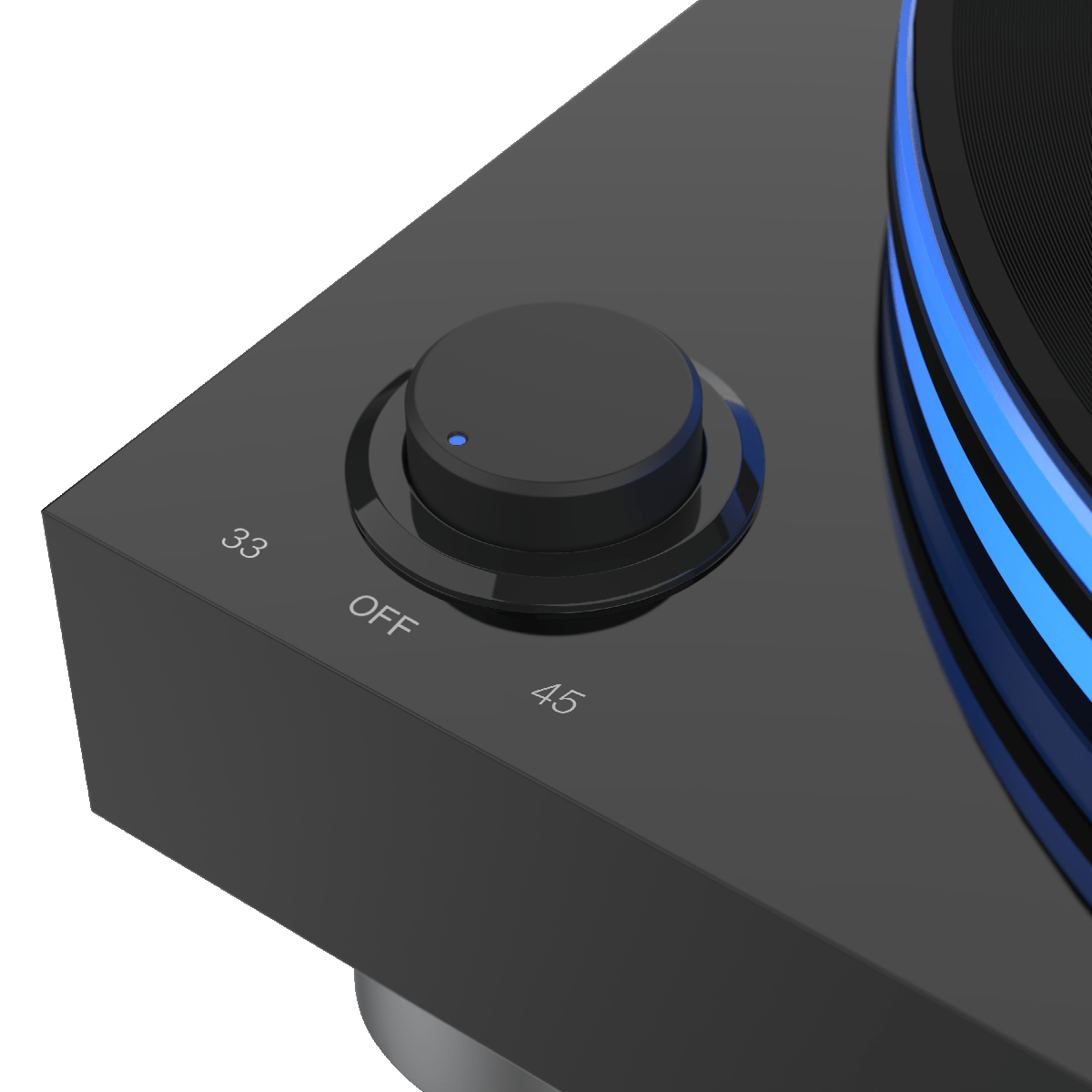

A decentralised, low-vibration DC motor drives the Turn 7. The integral flat belt runs gracefully along the turntable exterior, ensuring smooth operation and a sophisticated appearance. The start/stop rotary switch allows you to select between the turntable's two speeds (33 and 45 RPM).
Heart of acrylic: The turntable platter
The acrylic platter is 20 mm thick, weighs 1.7 kg, and has outstanding evenness thanks to precision manufacturing. It also has excellent antistatic characteristics. As a result, crystal-clear audio is possible without using a platter mat. The satin finish of the material creates a focal point and contrasts with the otherwise plain design of the belt-driven turntable.
Let there be light: LEDs inside
One of the unique features of the Turn 7 is the optional, blue platter illumination. Inconspicuously placed beneath the platter, multiple LEDs with a diffuser cover sets the mood and creates a warm and inviting ambience.

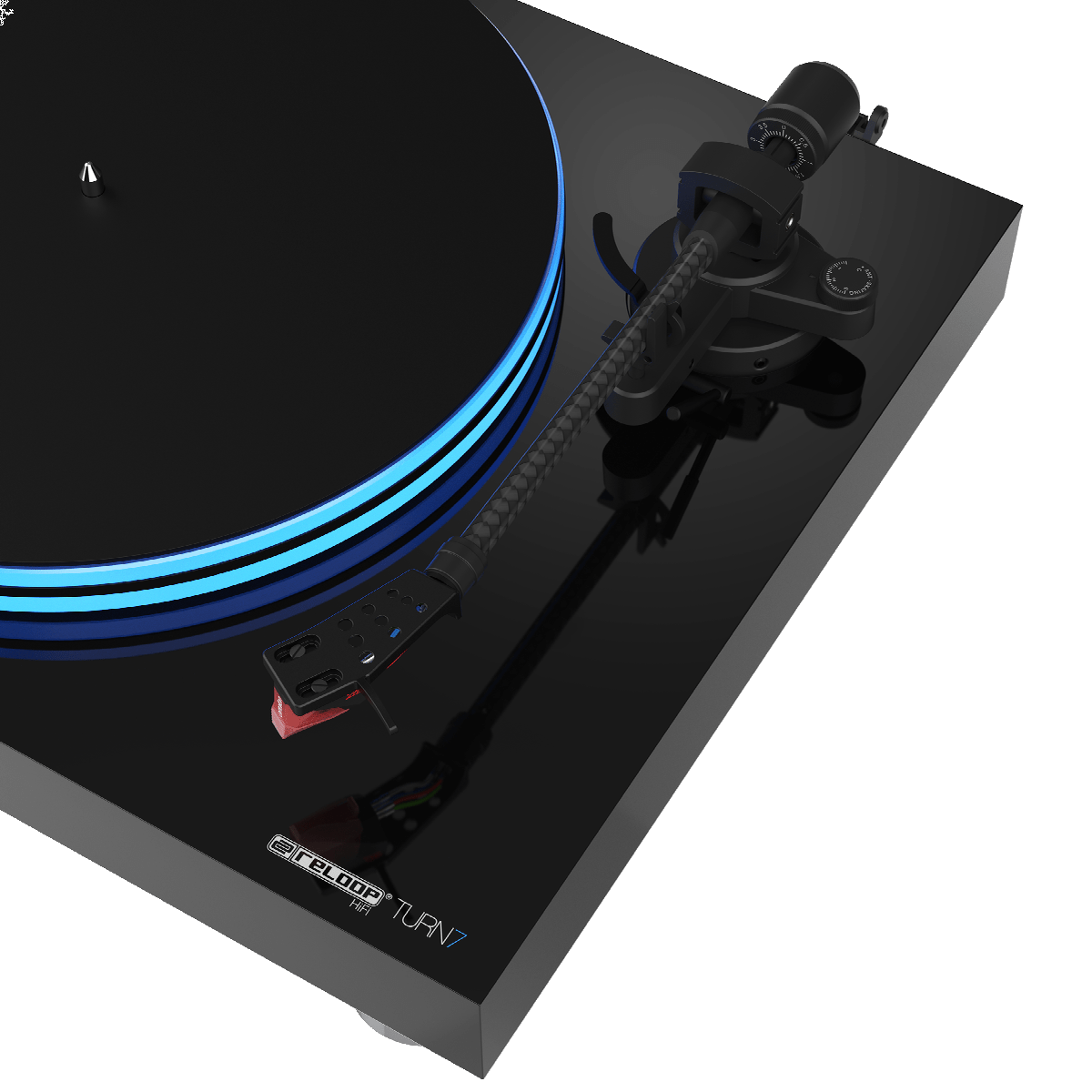

Top-class tone arm
The high-quality carbon tone arm has exceptional acoustic properties. The turntable's authentic sound is brought out to its full potential by effectively cancelling out vibrations. The ability to adjust the height (vertical tracking angle – VTA) and an anti-skating adjustment ensure maximum precision.

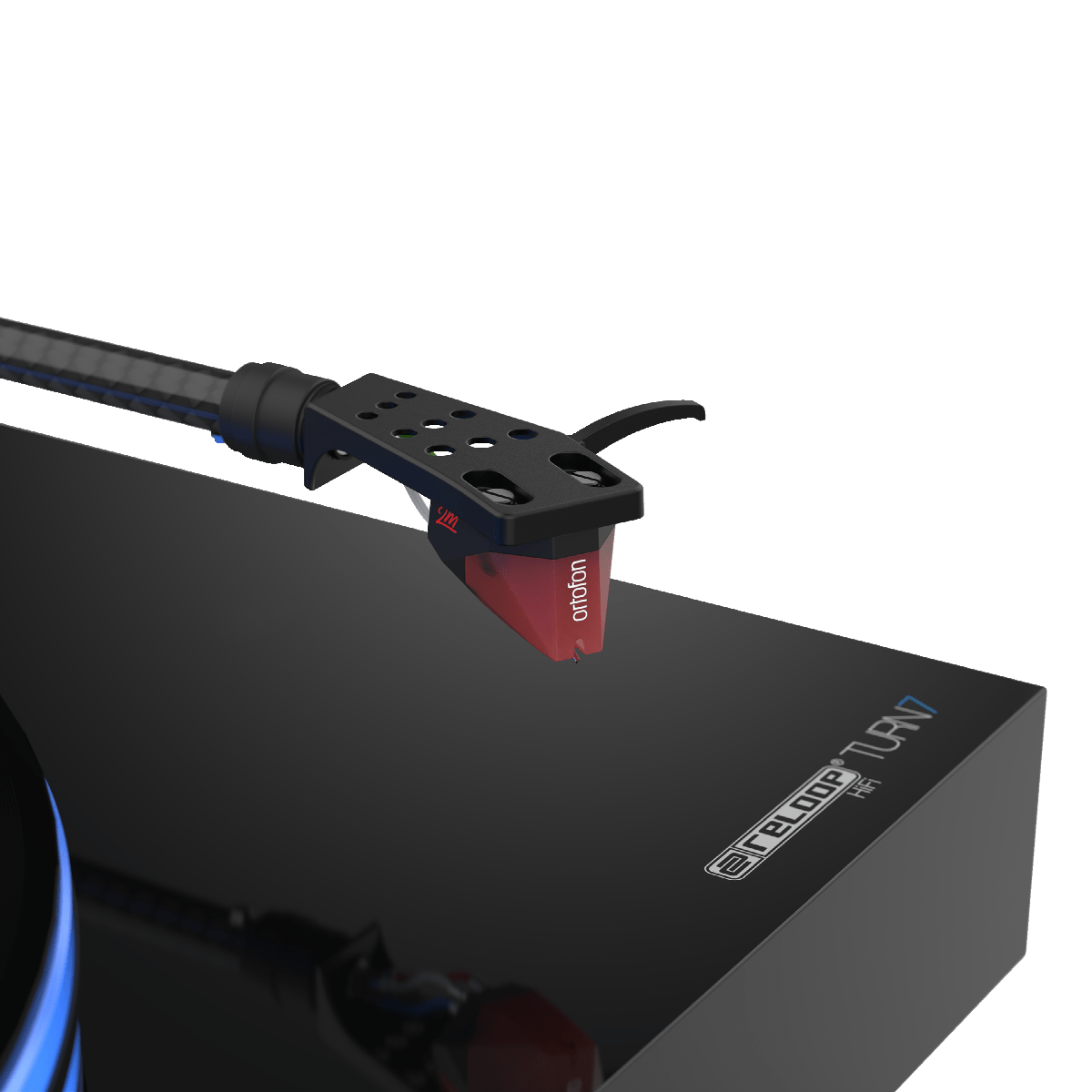

Ortofon 2M Red pre-installed
The turntable comes with the Ortofon 2M Red cartridge system pre-installed. The Ortofon 2M Red has an elliptical stylus tip and excellent sonic characteristics, including first-rate sound accuracy and reproduction. The Ortofon 2M Red is a highly versatile cartridge system with an open, dynamic sound and warm tones. The universal headshell connection (SME) adds more options for cartridge systems.
Meticulously perfected
In addition to its high-quality preamplifier, the Turn 7 also features versatile switching between line and phono signals. The gold-plated corrosion-resistant RCA connectors ensure the best possible signal transmission. The built-in USB output allows you to digitise vinyl records.
Simple design & pure functionality
The sturdy MDF wooden plinth and height-adjustable isolator feet with aluminium surround provide effective decoupling for the turntable. The high-gloss piano lacquer is a classy contrast to the timeless minimalism while emphasising the Turn 7's superior quality.
- Belt-driven HiFi turntable with Ortofon 2M Red
- 20-mm acrylic platter with LED lighting
- Decentralised drive motor with external belt guide
Features
- Premium belt-driven HiFi turntable
- Decentralised DC motor with external drive belt on the acrylic platter
- Fully manual operation with motor control switch for switching between speeds (33/45 RPM)
- Precision-machined, 20 mm thick solid acrylic platter (1.7 kg) with outstanding levelling and electrostatic properties for a crystal-clear sound
- Indirect blue LED lighting on the acrylic platter (can be switched on/off)
- Audiophile carbon tonearm with height adjustment (VTA) and anti-skating adjustment
- Pre-installed Ortofon 2M Red cartridge for optimised sound reproduction and fidelity
- Universal headshell connection (SME) for additional flexibility
- USB recording function: Recording and digitisation of vinyl via the simply USB connection for PC/Mac
- High-quality integrated preamp (switchable phono/line output)
- Gold-plated, corrosion-resistant audio connections (removable power and RCA cable)
- Height-adjustable, shockproof aluminium feet for effective decoupling
- Solid MDF plinth with piano finish and a timeless design
- Incl.: dust cover, 2x hinges, felt mat, international power supply (UK/EU/US), RCA cable, headshell with Ortofon 2M Red (pre-installed), 7" aluminium adapter, acrylic turntable platter, allen key, USB-cable, instruction manual & counterweight
Technical Data
Turntable Section:- Type of turntable: Belt-Driven manual Turntable System with USB Interface
- Drive: Belt drive
- Motor: DC Motor
- Rotation speeds: 33 1/3, 45 RPM
- Starting Torque: //
- Start-up time / rpm change: //
- Wow and Flutter: 0,2% WRMS
- S/N Ratio: >45dB or higher
- Breaking System: Manually
- Turntable Platter: Acrylic glass
- 300 mm diameter
- Weight About 1.7 kg
- Type: Straight Tonearm
- Effective Length: 223.6 mm
- Effective Tonearm Mass: 18.5g
- Overhang: 18.61 mm
- Tracking Error Angle: ±1.5°
- VTA Adjustment Range: - 2 ~ 4 mm
- Applicable Cartridge Weight: 7.2 ~ 11.2 g (incl. Headshell)
- Anti-Skating Range: 0 - 4 g
- Ortofon 2M Red
- Output voltage at 1000 Hz, 5 cm/sec.: 5.5 mV
- Channel balance at 1 kHz: 1.5 dB
- Channel separation at 1 kHz: 22 dB
- Channel separation at 15 kHz: 15 dB
- Frequency response: 20-20.000 Hz + 3 / - 1 dB
- Tracking ability at 315Hz at recommended tracking force: 70 µm
- Compliance, dynamic, lateral: 20 µm/mN
- Stylus type: Elliptical
- Stylus tip radius: r/R 8/18 µm
- Tracking force range: 1.6 - 2.0 g (16-20 mN)
- Tracking force, recommended: 1.8 g (18 mN)
- Tracking angle: 24.7°
- Internal impedance, DC resistance: 1.3 kOhm
- Internal inductance: 700 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 150-300 pF
- Cartridge colour, body/stylus: Black/Red
- Cartridge weight: 7.2 g
- Terminals: 1x PHONO/LINE Out, Build in Phono Stage (Pre Amp)
- Power Supply: 12 V 1A DC
- Power consumption: 12W
- Dimensions: 420(W) x 356(D) x 148(H) mm
- Weight: 8.2 kg

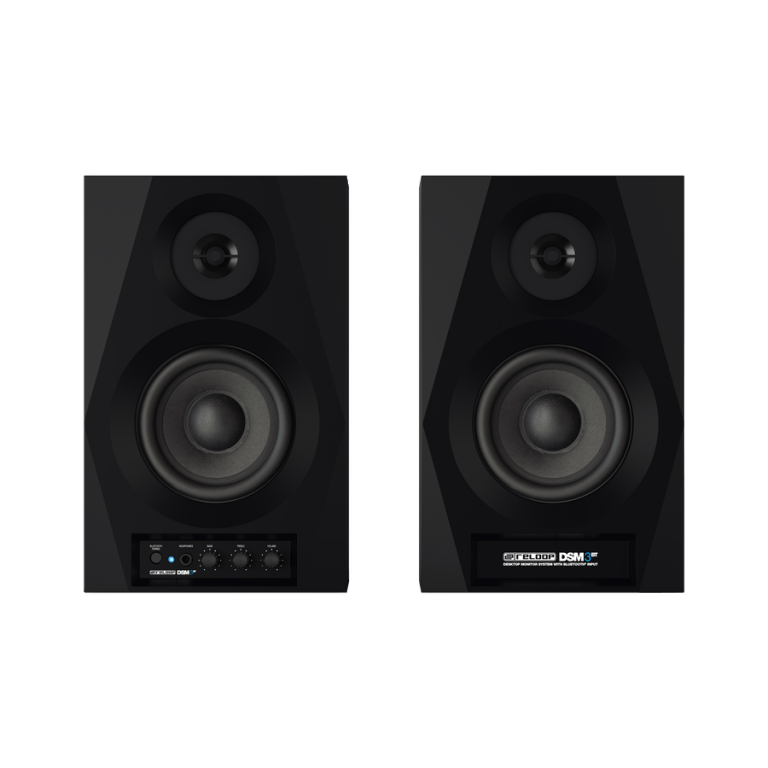

Reloop DSM-3BT
Smart Desktop Monitor System
Versatile monitor loudspeaker
The Reloop DSM-3 BT Smart Desktop Monitor system is the perfect solution for DJs and producers. Being so compact, it is ideal for small DJ setups and home studio environments. A powerful and balanced sound makes professional DJing and producing a real pleasure!
Wireless input
Developed especially for this purpose, the DSM-3 BT system can connect all your Bluetooth devices with clear audio quality and a rich sound. Regardless of whether you are using a tablet, smartphone, or computer – a foolproof connection means you can immediately enjoy listening to your productions and music in optimal quality.
Rich & powerful sound
The bass reflex design enables powerful bass and reduced air resistance. The optimised tweeters also provide a broad stereo sweet spot for producers. Last but not least, the built-in class A/B amplifiers deliver a clear, low-distortion and rich sound.
Connections & controls on the front
The sound of the DSM-3 BT can be perfectly adapted to every environment using the practical controls on the front. Controlling volume, bass/treble EQ, Bluetooth pairing or connecting headphones is all done with a single touch. As well as the RCA input on the rear providing further options for connecting DJ or production setups, there is also an additional mini jack for connecting an optional subwoofer.
Design
The DSM-3 BT fits seamlessly into any environment with its classic and timeless design. The magnetically shielded drivers also ensure interference-free operation, even in close proximity to other equipment. Maximum stability as well as a powerful, clear sound thanks to the rugged, matt black surface and the curved edge design round off the smart, flexible system for DJs and producers.
Professional 2-way active monitor system with wireless input
- Smart desktop monitor system for DJs and producers
- Wireless connection for streaming via smartphones and tablets
- Practical control unit and headphone output on the front
Features
- Professional 2-way active monitor system with wireless input
- Powerful, balanced sound for DJing and producing
- Smartphones and tablets can be connected wirelessly via Bluetooth®
- Bass reflex design for rich bass sound and reduced air resistance
- Optimised tweeter for a broad stereo sweet spot
- Class A/B amplifier for crisp sound with low distortion
- Front control unit to quickly control volume, bass/treble EQ, Bluetooth pairing, and for connecting headphones
- RCA inputs for connecting DJ gear or studio interfaces
- Output jack for connecting an optional subwoofer
- Magnetically shielded drivers allowing positioning near other equipment without any problems
- Rugged, matt black finish and the curved front edge design for stability and clean sound reproduction
Technical Data
- Type: 2-channel bass reflex, active monitor speaker system
- Tweeter: 0.5'' tweeter (1.30 cm)
- Woofer: 3.5'' bass (8.89 cm)
- Frequency range: 80-20,000 Hz
- Amplifier power: Class A/B amplifier: 2 x 20 W RMS
- Magnetic shielding
- Inputs: 1 x line (RCA), 1 x wireless Bluetooth®
- Outputs: 1 x headphone monitor (3.5 mm jack), 1 x subwoofer (3.5 mm jack)
- Dimensions: 140 x 222 x 152.5 mm
- Weight: 6 kg (pair)
- Incl. loudspeaker cable (to connect from the left/right channel), mains cable, operating instructions
