Crystal-Clear Wireless Performance: EIKON AETHERRM1MA
EIKON introduces the AETHER series, a professional wireless microphone system dedicated to users who demand crystal-clear sound quality and powerful, user-friendly control. The AETHER RM1 is a Professional UHF PLL controlled, true diversity system that provides reliable, high-quality signal transmission. It is the ideal choice for professional vocal applications, theaters, clubs, and any demanding venue.
The RM1 system features automatic channel scan and IR sync for quick and easy setup, ensuring a stable connection with up to 24 systems usable in the same location. With a range of up to 100 meters in open spaces, it offers incredible freedom on stage. The system consists of the RM1 true diversity receiver and can be paired with either the RM1HT handheld transmitter, featuring a dynamic hyper-cardioid capsule, or the RM1BT bodypack transmitter for use with lavalier or headset microphones.
Key Features:
-
Professional UHF Wireless System: A PLL-controlled, true diversity system ensures reliable and high-quality signal transmission.
-
True Diversity Receiver: Minimizes dropouts and ensures a stable connection by using two independent antenna systems.
-
Easy Setup: Features an automatic channel scan function to find the best available frequency and an IR Sync function for instant transmitter pairing.
-
Multi-Channel Capability: Up to 24 systems can be used simultaneously in the same location across 4 available UHF bands.
-
Long-Range Operation: Delivers a consistent and reliable signal up to 100 meters in open spaces.
-
Professional Audio Outputs: Includes both balanced XLR and unbalanced 1/4" jack outputs for flexible connection to any sound system.
-
Versatile Transmitters: Available with a handheld microphone transmitter (RM1HT)
-
Expandable System: Can be expanded with optional accessories like antenna splitters, boosters, and directional antennas.
Technical Specifications:

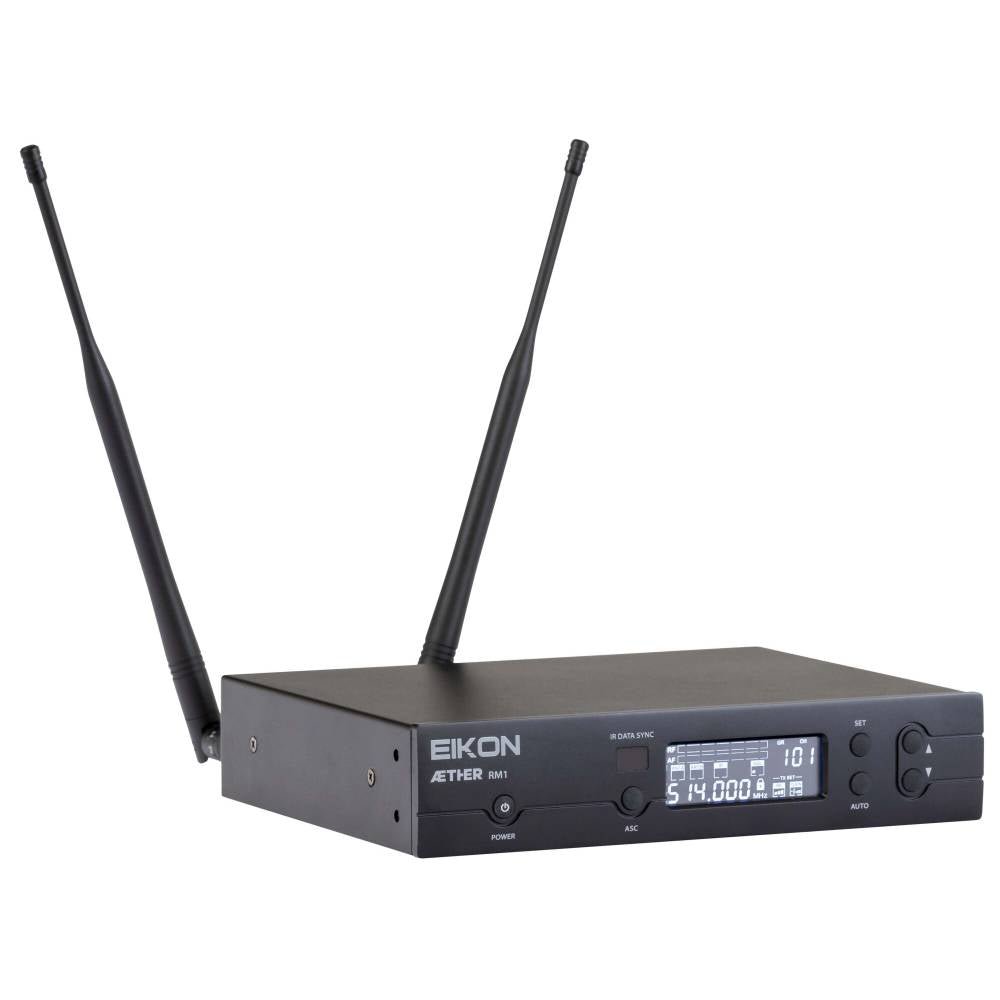

RM1 – UHF PLL Receiver
-
RF Frequency Band: 4 available bands (514 - 865 MHz)
-
RF Receiver Type: PLL UHF Synthesized, True Diversity
-
RF Sensitivity: -105 dBm / 12 dB SINAD
-
S/N Ratio: > 90 dB
-
Frequency Response: 60 Hz – 18,000 Hz (±3 dB)
-

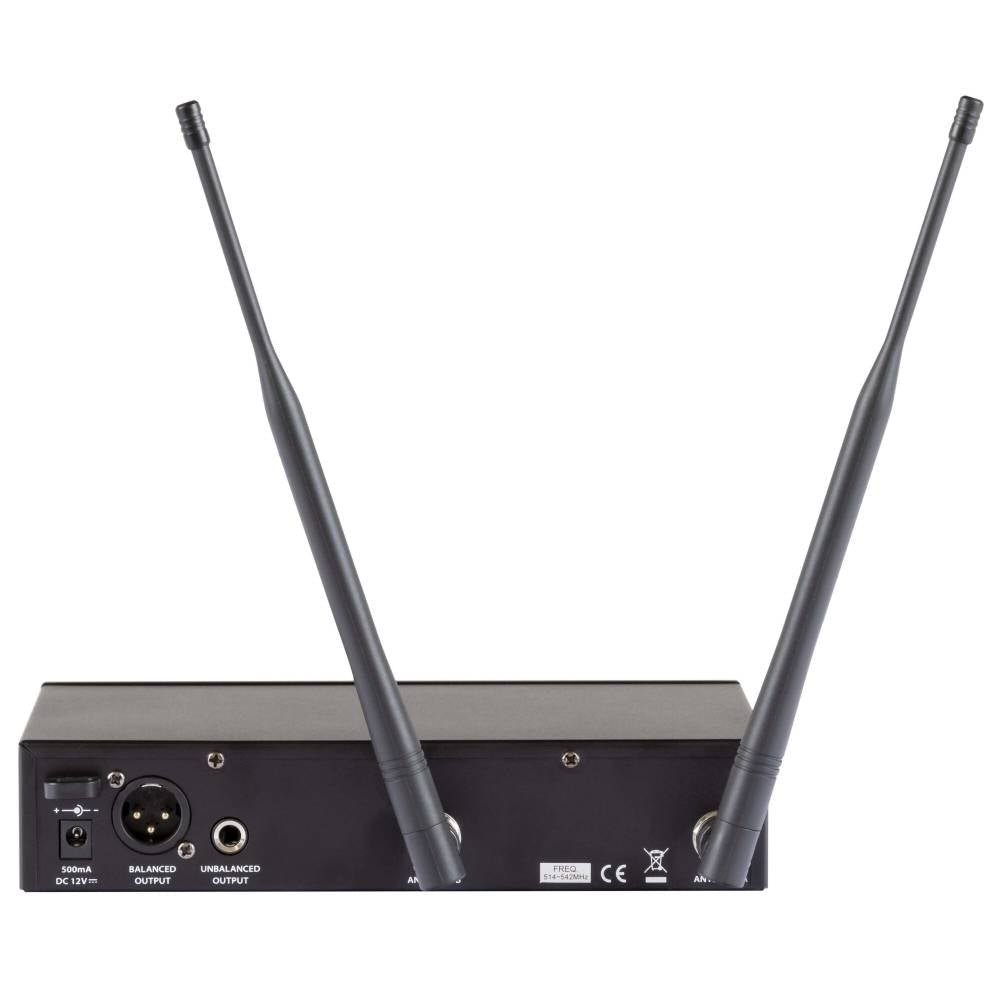

Outputs: XLR balanced, 1/4" Jack unbalanced
-
Power Supply: 12 V DC 500 mA
-
Dimensions (H x L x W): 43 x 213 x 173 mm
-
Weight: 880 g

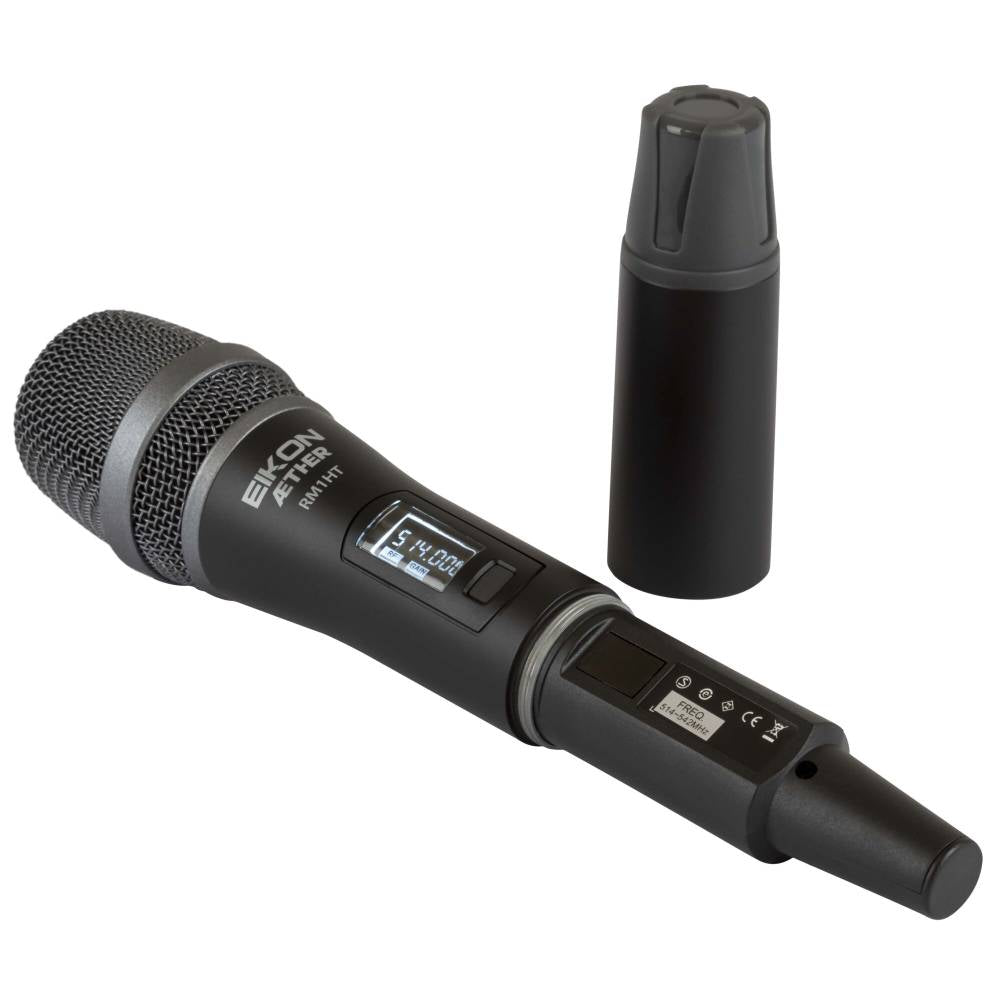

RM1HT – Handheld Transmitter
-
RF Power: max 10 mW
-
Microphone type: Dynamic Hyper-Cardioid
-
Frequency Response: 50 Hz – 15,000 Hz (±3 dB)
-
Power Supply: 2x 1.5V AA alkaline battery
-
Dimensions (DxH): 51 x 257 mm
-
Weight: 360 g
What's in the box:
-
RM1 Receiver
-
RM1HT Handheld Transmitter
-
Power Supply
-
ABS carrying case
