Harmony of Design and Playability: The Pioneer DJ OPUS-QUAD
The Pioneer DJ OPUS-QUAD is a professional all-in-one DJ system that introduces a completely fresh approach to DJ equipment, harmonizing design and playability. With a stunning, unique radiating shape and a sloping top plate, this standalone 4-deck powerhouse is not only beautiful to look at but also incredibly comfortable and intuitive to use. It’s designed to create an elegant musical experience for any audience, in any space.
Experience standalone 4-deck playback for the first time, allowing you to prepare tracks or leave a deck free for spontaneous requests, all from one unit. The large 10.1-inch touch screen and new smart rotary selector make finding your tracks faster and more accurate than ever. The OPUS-QUAD is loaded with evolved effects that are easy to control, adding texture and tension to your music, while Zone output gives you the flexibility to play different music in different spaces from a single device.
With its advanced features, including support for multiple media sources like USB drives, SSDs, and Wi-Fi® for connecting to PCs, Macs, and smartphones, the OPUS-QUAD offers supreme flexibility. High-quality sound, seamless track searching, and a performance-oriented layout make the OPUS-QUAD the ultimate tool for the modern, versatile DJ.
Key Features:
-
Standalone 4-Deck Playback: The first-ever standalone all-in-one DJ system to offer 4-deck playback for versatile DJ performances.
-
Elegant, User-Friendly Design: A unique, sophisticated design with a sloping top plate and radiating shape for both aesthetic appeal and comfortable operation.
-
10.1-Inch Touch Screen & Smart Rotary Selector: A large, high-resolution touch screen with a new smart rotary selector for rapid and accurate track browsing.
-
High-Quality Sound: A high-quality 32-bit D/A converter from ESS Technology ensures a rich and spatial sound experience.
-
Evolved, Easy-to-Use Effects: Features brand new Beat FX, including the new Smooth Echo, and an XY-Pad for intuitive, one-finger effect control.
-
Zone Output: The ability to output sound that is separate from the master audio, allowing you to play different music in different rooms from one unit.
-
Support for Multiple Media Sources: Play music from USB drives, SSDs, Wi-Fi connected devices (rekordbox CloudDirectPlay), and wirelessly via Bluetooth®.
-
rekordbox and Serato Compatibility: Plug-and-play support for rekordbox Performance mode and Serato DJ Pro (coming summer 2023).
Technical Specifications:
-
Compatible DJ Software: rekordbox, Serato DJ Pro (from summer 2023)
-
Frequency Response: 20 Hz – 20 kHz
-
S/N Ratio: 114 dB (USB-MASTER1)
-

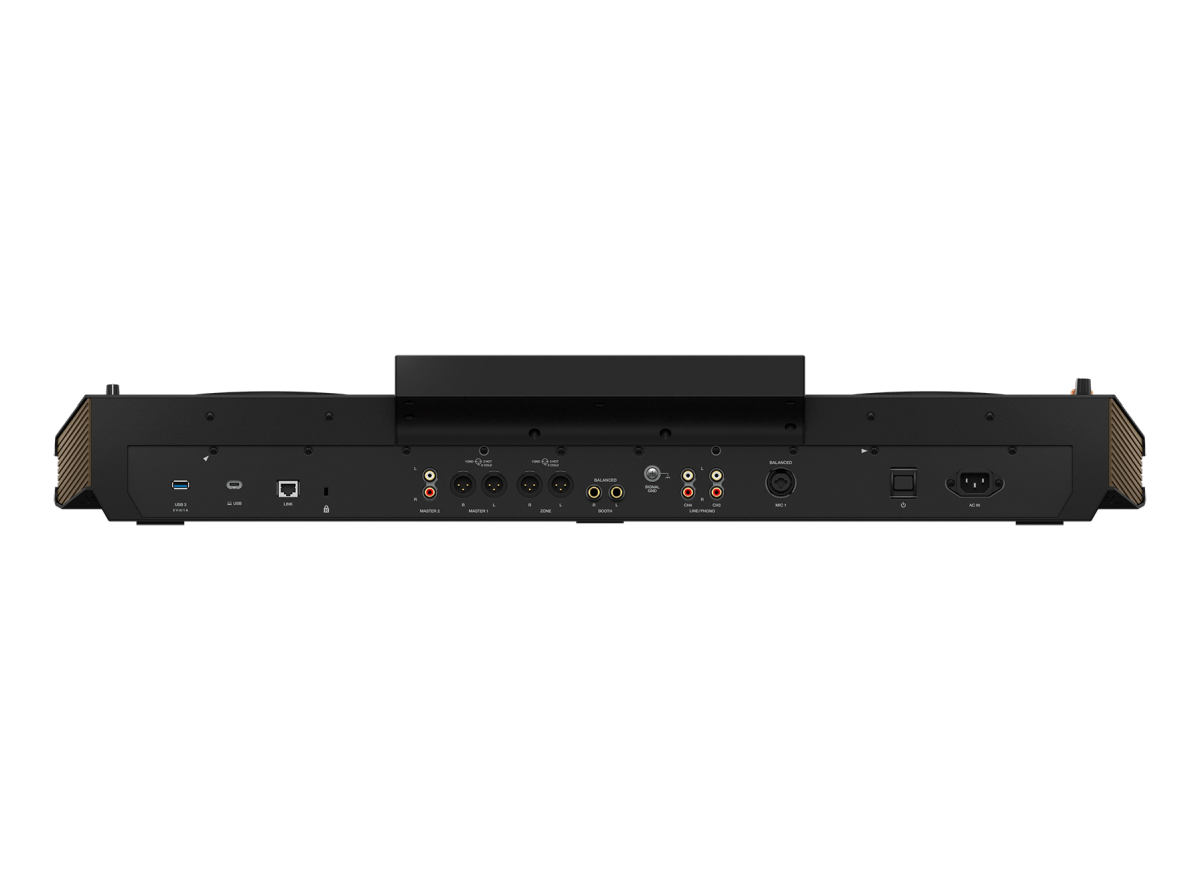

Inputs:
-
2x LINE / PHONO (RCA)
-
2x MIC (XLR & 1/4" TRS Jack)
-
-
Outputs:
-
1x MASTER (XLR)
-
1x MASTER (RCA)
-
1x ZONE (XLR)
-
1x BOOTH (1/4" TRS Jack)
-
2x PHONES (1/4" stereo phone Jack & 3.5 mm stereo mini jack)
-
-
USB: 3x USB Type-A, 1x USB Type-C
-
Wireless LAN: IEEE 802.11 a / b / g / n / ac, Bluetooth Ver. 4.2
-
Dimensions (W x D x H): 35.43" x 19.67" x 4.71" (900 x 499.7 x 119.7 mm)
-
Weight: 29.1 lbs (13.2 kg)
What's in the box:
-
OPUS-QUAD
-
Power cord
-
Warranty (for some regions)
-
Quick Start Guide
-
Precautions for use
