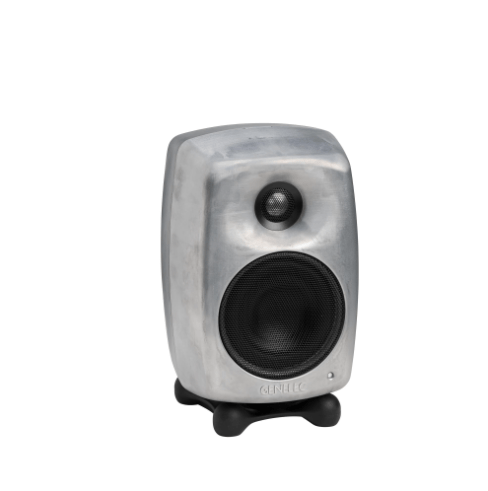

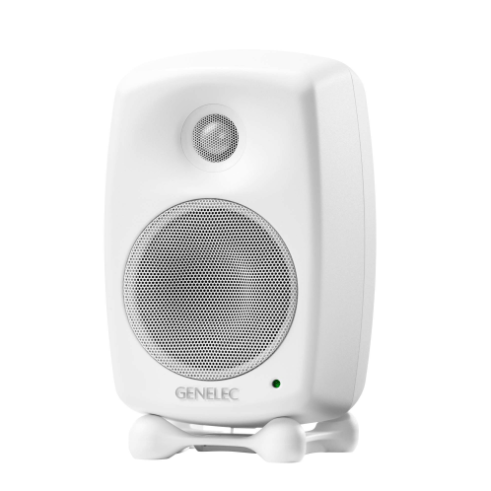

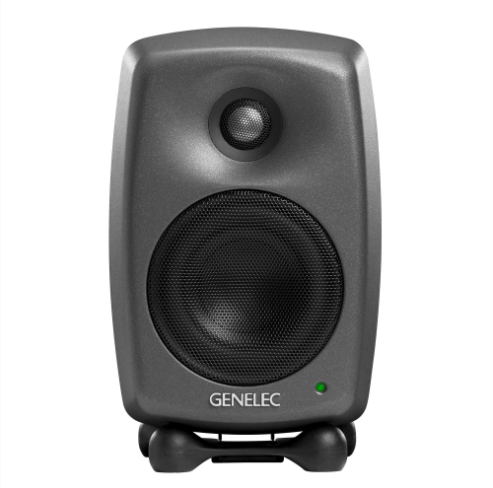

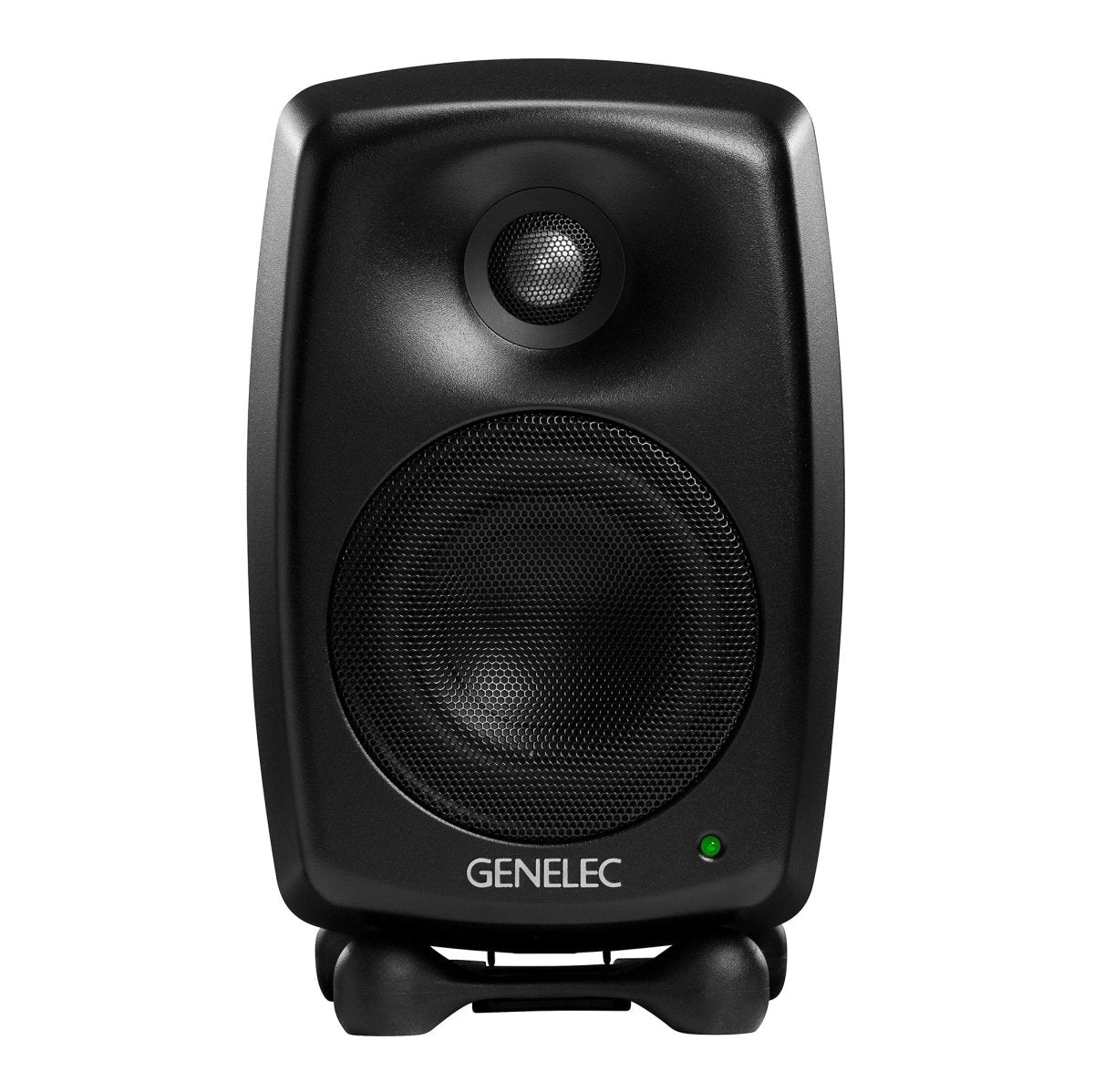

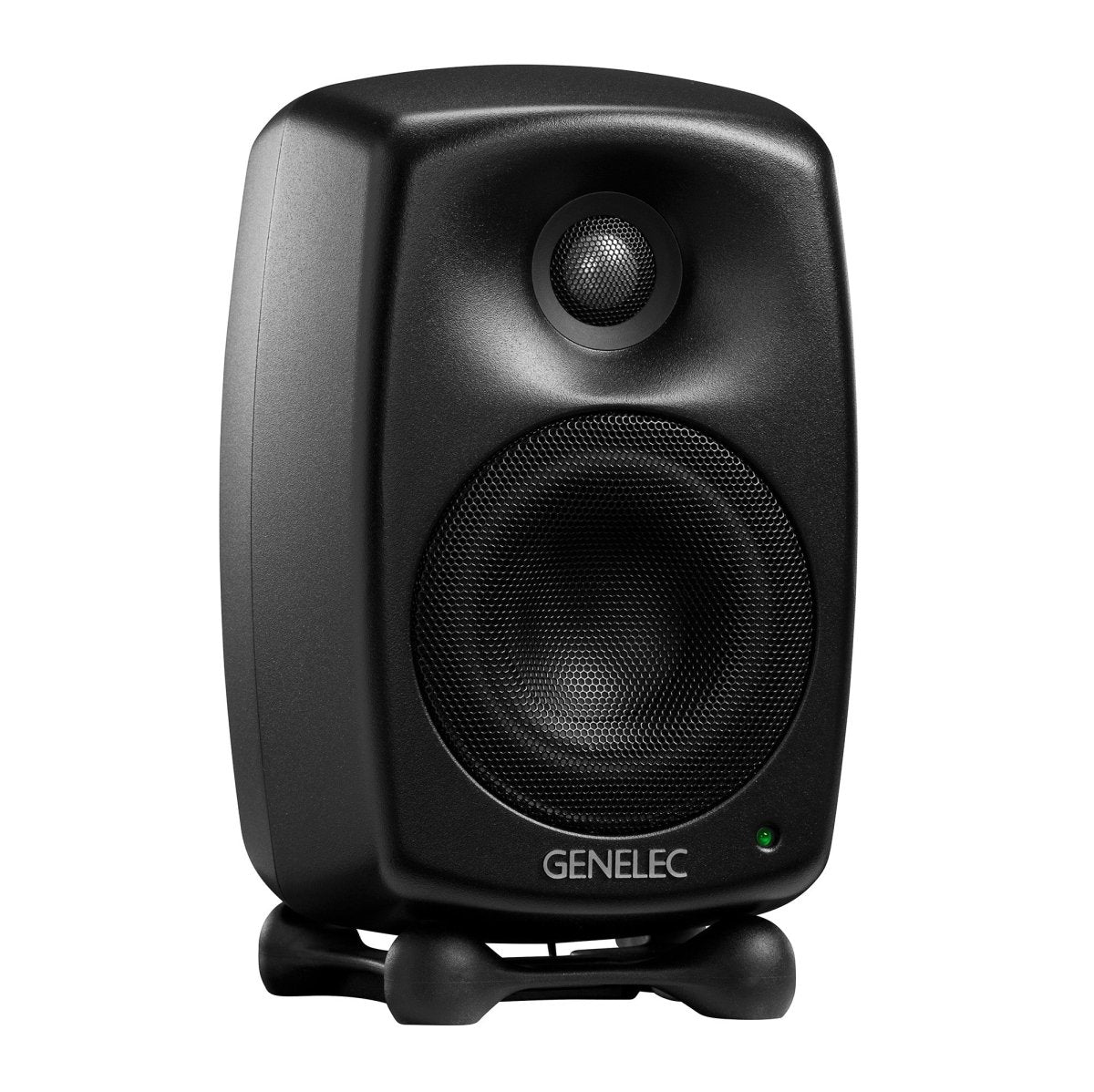

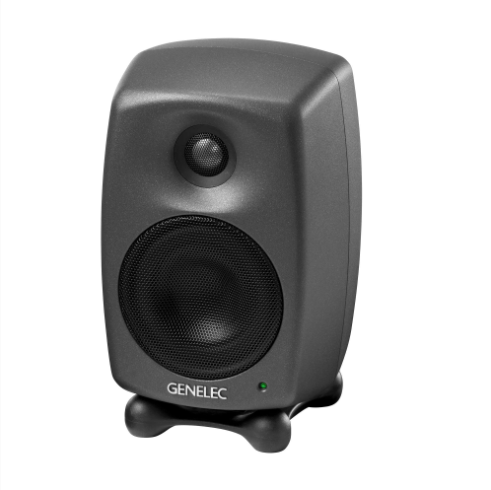

Big Sound from a Small Enclosure: The Genelec 8020D Studio Monitor
The Genelec 8020D active studio monitor demonstrates that great things truly come in small packages. This compact monitor is a staple in small studios, outside broadcast vans, and post-production suites worldwide, offering an exceptional combination of portability and powerful, precise performance. Despite its small footprint, the 8020D delivers a balanced frequency response and a surprisingly high SPL.
Engineered for critical listening, the 8020D features Genelec's renowned Minimum Diffraction Enclosure (MDE™) and Directivity Control Waveguide (DCW™) technologies. These work together to provide a flat frequency response, precise imaging, and a wide, uncoloured listening area. The included Iso-Pod™ stand decouples the monitor from its surface, reducing unwanted vibrations and allowing you to angle the speaker for perfect alignment.

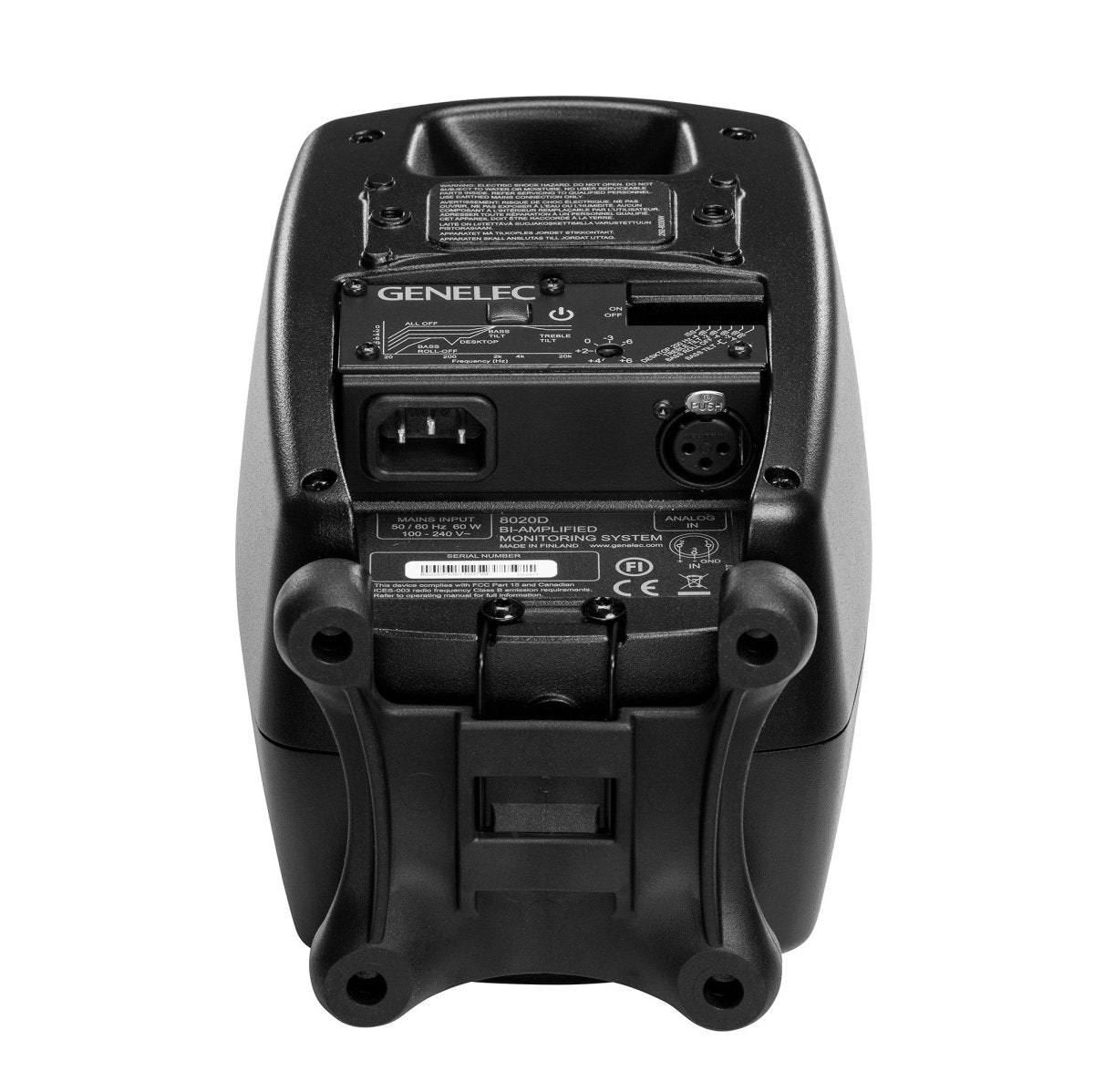

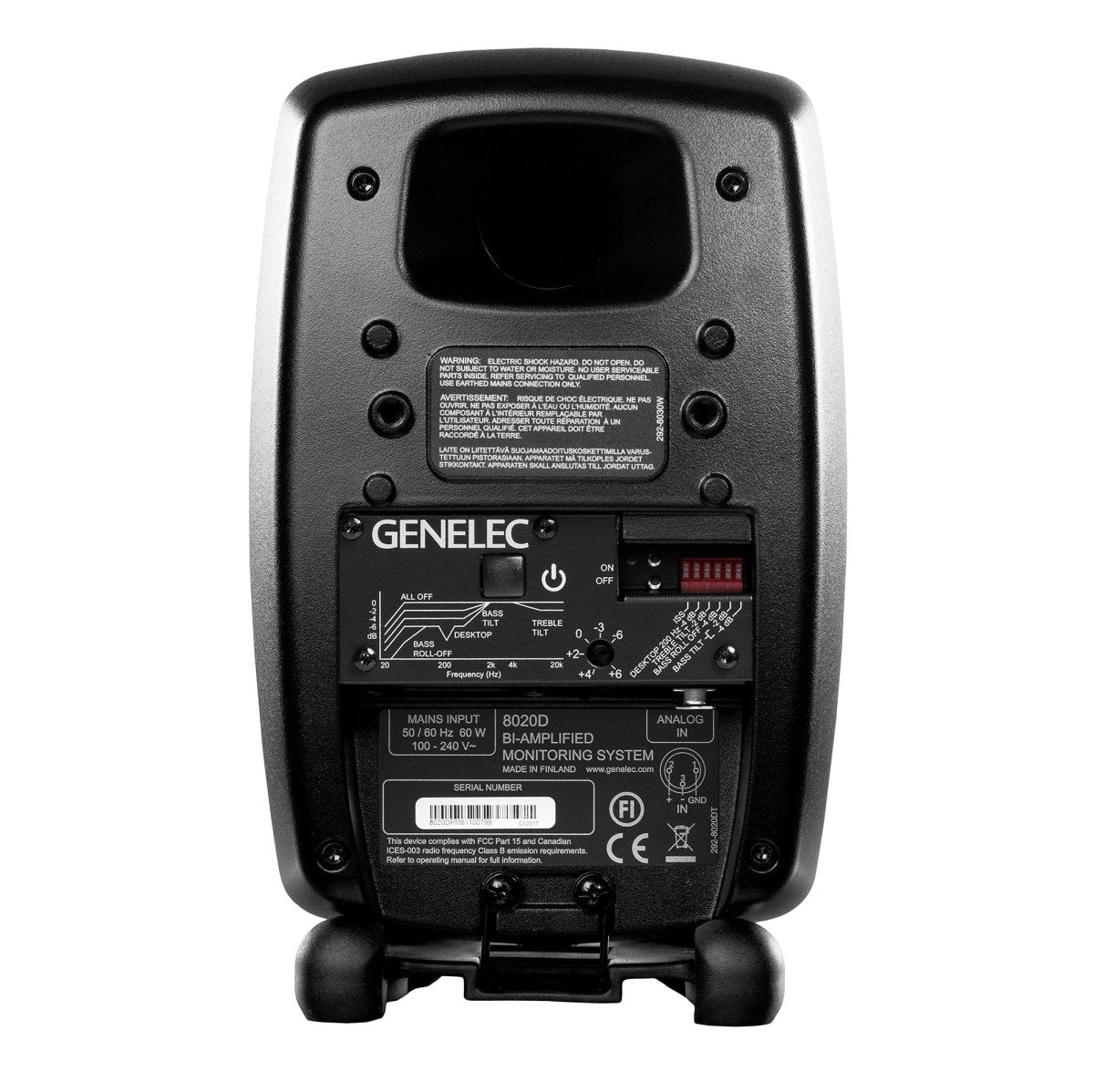

With its simple rear-panel room compensation switches, you can easily adapt the 8020D to any acoustic environment. It's a small but mighty monitoring solution that provides the portability of a nearfield monitor with the legendary accuracy you expect from Genelec.
Key Features:
-
Compact Powerhouse: Delivers a powerful and precise sound from a very small and portable enclosure.
-
Accurate, Uncoloured Sound: The perfect choice for critical listening in music, post-production, and broadcast studios.
-
Directivity Control Waveguide (DCW™): Provides a wide, flat frequency response both on and off-axis for a large and stable sweet spot.
-
Minimum Diffraction Enclosure (MDE™): A rounded cabinet design minimizes edge diffraction for superb sound stage imaging.
-
Iso-Pod™ Stand: Decouples the monitor from its surface to eliminate colouration from vibrations and allows for easy tilting.
-
Room Response Compensation: Simple rear-panel switches allow you to adjust the monitor's response to your specific room acoustics.
-
Optimized Amplifiers: Dedicated Class D amplifiers for each driver are perfectly matched for a clean and powerful performance.
-
Sustainable Design: Built to last with certified sustainable methods, providing years of reliable performance.
Technical Specifications:
-
SPL: 107 dB
-
Frequency Response: 56 Hz - 25 kHz (-6 dB)
-
Accuracy of Frequency Response: ± 2.5 dB (62 Hz - 20 kHz)
-
Driver Dimensions:
-
Woofer: 4 inch
-
Tweeter: 3/4 inch Metal Dome + DCW™
-
-
Amplifier Power: Woofer 50 W + Tweeter 50 W (both Class D)
-
Inputs: 1 x XLR Analog Input
-
Dimensions (H x W x D): 9 1/2" x 5 7/8" x 5 5/8" (242 x 148 x 142 mm) with Iso-Pod™
-
Weight: 7.1 lb (3.2 kg)
In the Box:
-
1 x 8020D studio monitor
-
1 x mains cable 1,8 m
-
1 x operating manual
- 1 x IsoPod kit
