The Legacy of Accuracy in a Compact Form: The Mackie HR624mk2

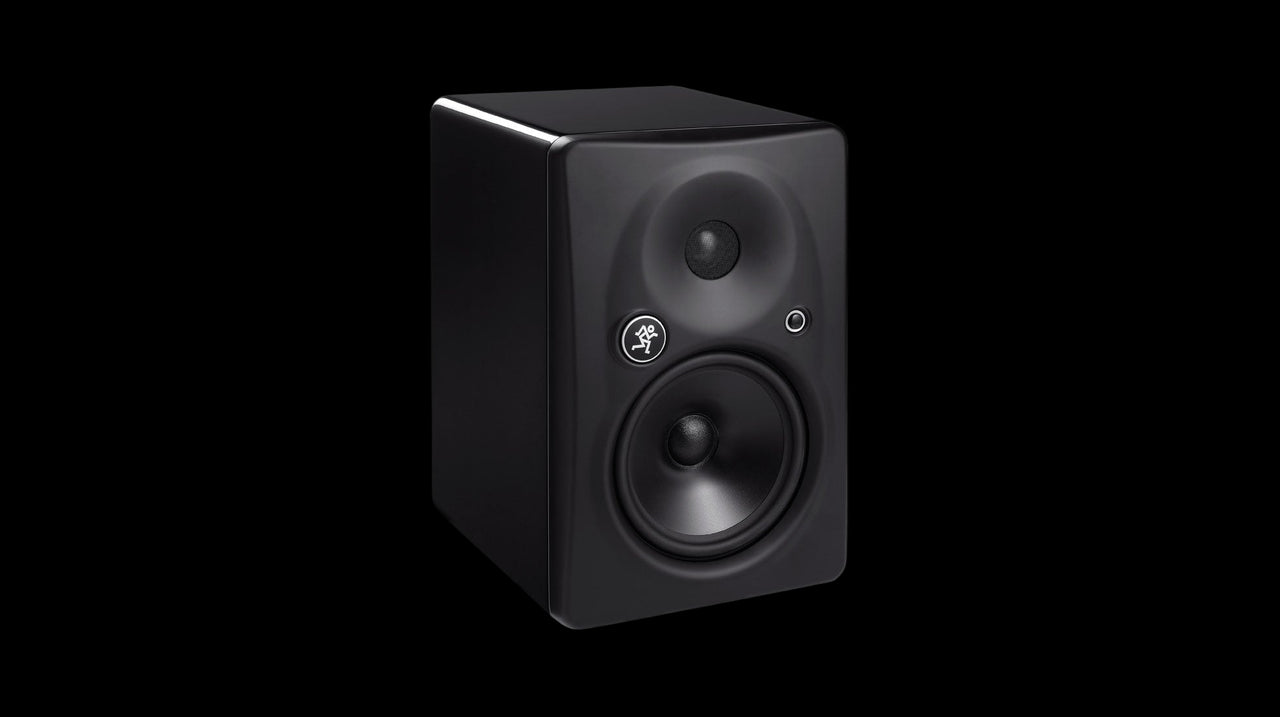

The Mackie HR624mk2 is a high-resolution active studio reference monitor that brings the legendary performance of the HR series to smaller studio spaces. Designed for professional recording, post-production, and critical listening, the HR624mk2 delivers an exceptionally accurate and transparent sound, ensuring your mixes translate perfectly to any system.
At its core, the HR624mk2 features a 6.7-inch high-precision, low-distortion LF transducer and a 1-inch titanium dome, ferrofluid-cooled tweeter. The patented Zero Edge Baffle™ minimizes diffraction for a crystal-clear image of your mix and a wide, even sweet spot. A key feature is the passive radiator on the rear, which provides a tight, articulate, and extended bass response, free from the port distortion found in other monitors.

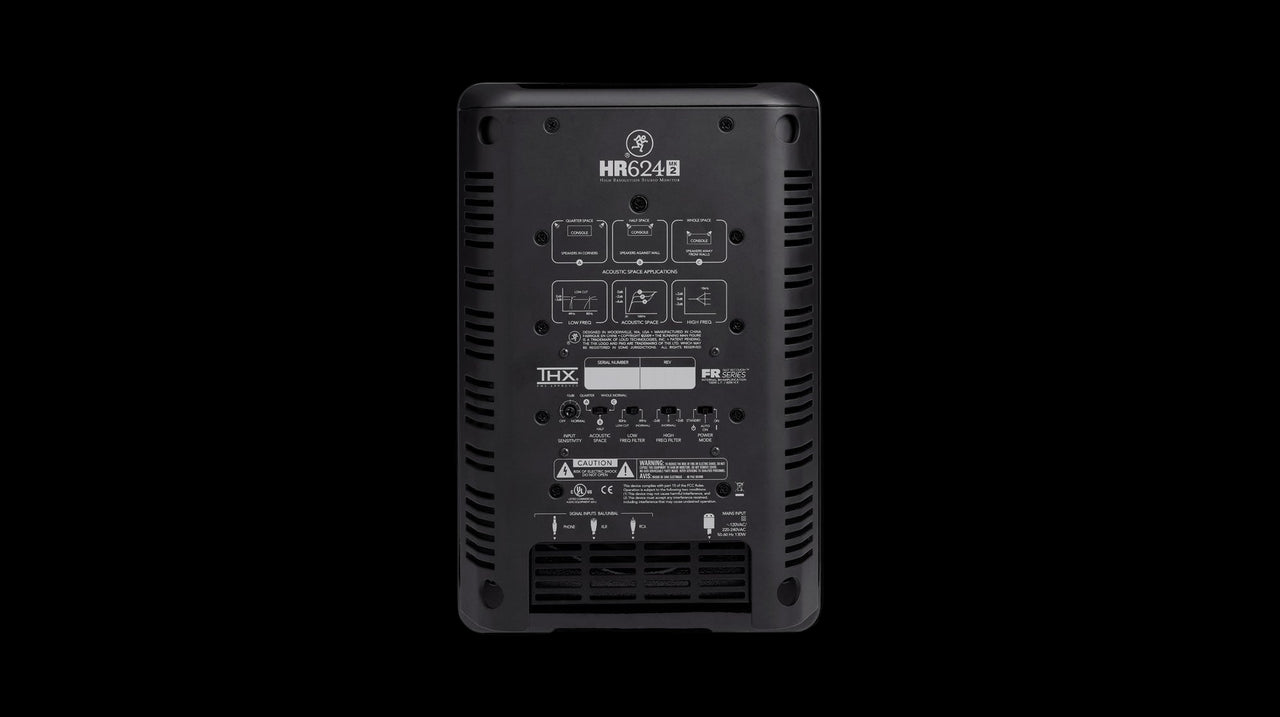

The HR624mk2 is equipped with a powerful FR (Fast Recovery) bi-amplification system (100W LF / 40W HF) and a suite of acoustic controls, including Acoustic Space, LF roll-off, and HF shelf, allowing you to precisely tune the monitor to your room. With its robust, internally braced MDF cabinet, the HR624mk2 is a professional tool for any serious audio engineer.
Key Features:
-
High-Resolution Active Studio Monitor: Delivers an ultra-linear frequency response for accurate and transparent mixing in smaller rooms.
-
6.7-inch High-Precision Woofer: A low-distortion LF transducer provides a tight and powerful bass response.
-
1-inch Titanium Dome Tweeter: A ferrofluid-cooled tweeter delivers a pristine and detailed high-frequency reproduction.
-
Zero Edge Baffle™: A cast-aluminum baffle design minimizes diffraction for a crystal-clear stereo image and a wide sweet spot.
-
Passive Radiator: Provides a tight, articulate, and extended low-end response without port noise or distortion.
-
FR Series Bi-amplification: A powerful 100W (LF) and 40W (HF) amplification system for a clean and dynamic performance.
-
Acoustic Space Control: A 3-position switch allows you to tailor the bass response to your specific room placement.
-
Professional and Durable Construction: An internally braced, 3/4-inch thick MDF cabinet with a high-gloss piano black finish.
Technical Specifications:
-
Frequency Response: 49 Hz – 20 kHz, ±1.5 dB
-
Low Frequency Cutoff: -3 dB @ 45 Hz
-
High Frequency Cutoff: -3 dB @ 22 kHz
-
SPL @ 1 meter, 7.5 dBu into Balanced Input: 100 dB SPL @ 1m
-
Maximum SPL Per Pair: 115 dB SPL @ 1m
-
LF Power: 100 watts
-
HF Power: 40 watts
-
LF Driver: 6.7-inch (170 mm)
-
HF Driver: 1-inch (25 mm)
-
Inputs: XLR, TRS, RCA
-
Cabinet: 3/4" (19 mm) thick MDF with 1" (25 mm) thick front baffle board
-
Dimensions (H x W x D): 12.8" x 8.5" x 13" (324 x 216 x 330 mm)
-
Weight: 23.4 lbs (10.6 kg)
What's in the box:
-
HR624mk2 Studio Monitor
-
Power Cord
-
Owner's Manual
