Proel DIGIPAD8

DIGIPAD8 – Power Meets Portability Step into the future of mixing with DIGIPAD8, the compact digital console that redefines what’s possible in its class. Designed by Proel to deliver professional performance in a portable format, DIGIPAD8 combines cutting-edge digital technology with effortless usability — the ideal companion for musicians, sound engineers, and creators who demand both power and flexibility.

Mixing, Made Effortless Take full control of your sound with 7 motorized faders that respond with speed and precision, giving you instant access to saved scenes and allowing seamless transitions. The large touchscreen display puts every parameter at your fingertips, offering an intuitive workflow that adapts to your style.

Connected to Your World For today’s hybrid world of performance and streaming, the 48 kHz USB audio interface ensures pristine recording and playback, while the dedicated Bluetooth channel lets you stream music wirelessly with a single touch.

Total Freedom, Anywhere Use DIGIPAD8 as a powerful stand-alone console or take full control from your smartphone, tablet or PC with the dedicated iOS, Android, MacOS and Windows app. Save and recall your favorite configurations in seconds, and enjoy a workflow that’s as flexible as your creativity.

Key Features:

• 7 Motorized Faders: Seven 60mm motor-faders for precise control and instant recall of scenes.

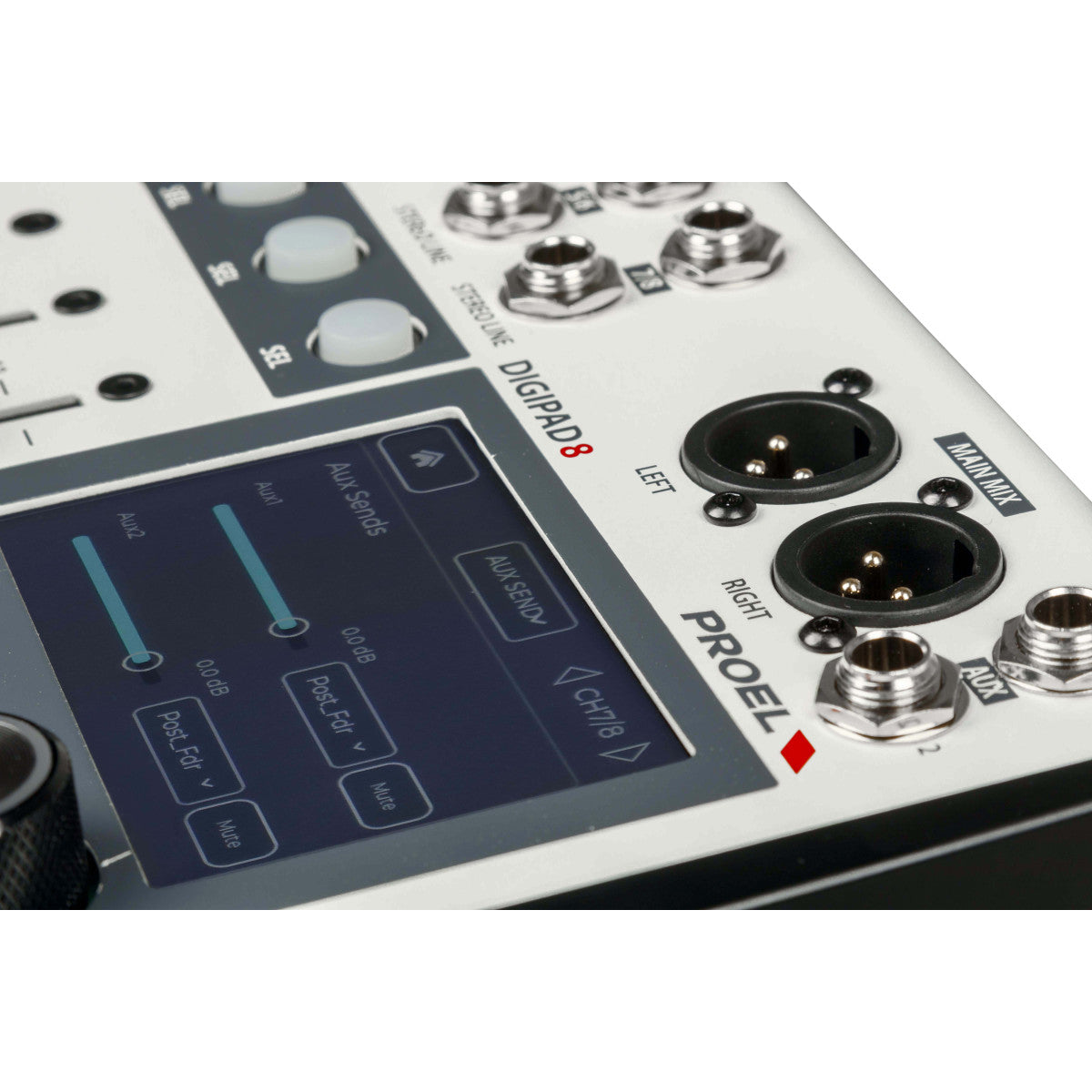

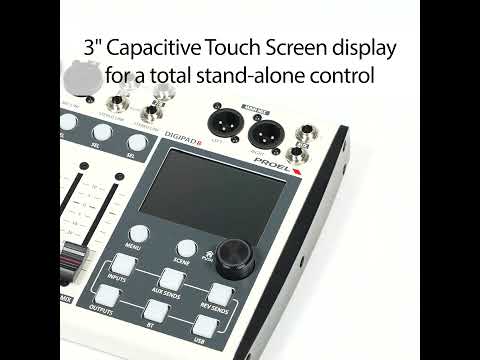

• 3" Capacitive Touch Display: An intuitive touchscreen for easy navigation and parameter adjustment.

• Complete Remote Control: An integrated Wi-Fi interface allows for full remote control via dedicated apps for iOS, Android, MacOS, and Windows.

• Professional DSP Engine: Each channel features a 4-band full parametric EQ, Compressor, and Gate for detailed sound shaping.

• USB & Bluetooth Interface: A 24-bit/48kHz USB-C audio interface for recording/playback and a Bluetooth 5.2 receiver for wireless audio streaming.

• Comprehensive Connectivity: Includes combo Mic/Line inputs, Hi-Z inputs, and stereo line inputs to connect all your gear.

Technical Specifications:

• INPUT CHANNELS:

  • Mic/Line Input 1-4: Balanced XLR-F / Balanced JACK, 10 kΩ impedance

  • Hi-Z input 3-4: Unbalanced JACK, 1 MΩ impedance

  • Stereo Line Input 5-8: Balanced JACK, 10 kΩ impedance

• CHANNEL PROCESSING: 4-band full parametric EQ, Compressor, Gate

• MASTER SECTION:

  • MAIN MIX: Balanced XLR-M

  • AUX 1-2 output: Balanced JACK

  • MAIN/AUX EQ: 4-band full parametric EQ

  • MAIN/AUX Limiter: Threshold/Attack/Release

  • HEADPHONES: 2 x Stereo MINIJACK (32 Ω min. impedance)

• INTERFACE:

  • Bluetooth: Version 5.2, Audio Streaming

  • PC USB interface: USB 2.0 / 3.0 Type C

  • A/D and D/A converters: 24 bit – 48 KHz

• USER INTERFACE:

  • Onboard controls: Seven 60mm motor-faders, 3″ Capacitive Touch Display, Seven DIRECT SELECTION keys, Eight direct access keys, Rotary dial

• GENERAL SPECIFICATIONS:

  • Maximum level all outputs: +18 dBu

  • THD + Noise: > 0.002%

  • Dimensions (WxHxD): 280 x 187 x 53.5 mm

  • Weight: 2.10 kg

• POWER REQUIREMENTS:

  • Supply: 5V / 3A USB Type C

  • Mains Supply Voltage: 100-240 VAC, 50 / 60 Hz (via USB power adapter)

In the Box:

• DIGIPAD8 Digital Mixer

• USB power adapter (with EU/US/UK plug options)
