Compact and Punchy Low-End Reinforcement: The Proel S12A Active Subwoofer

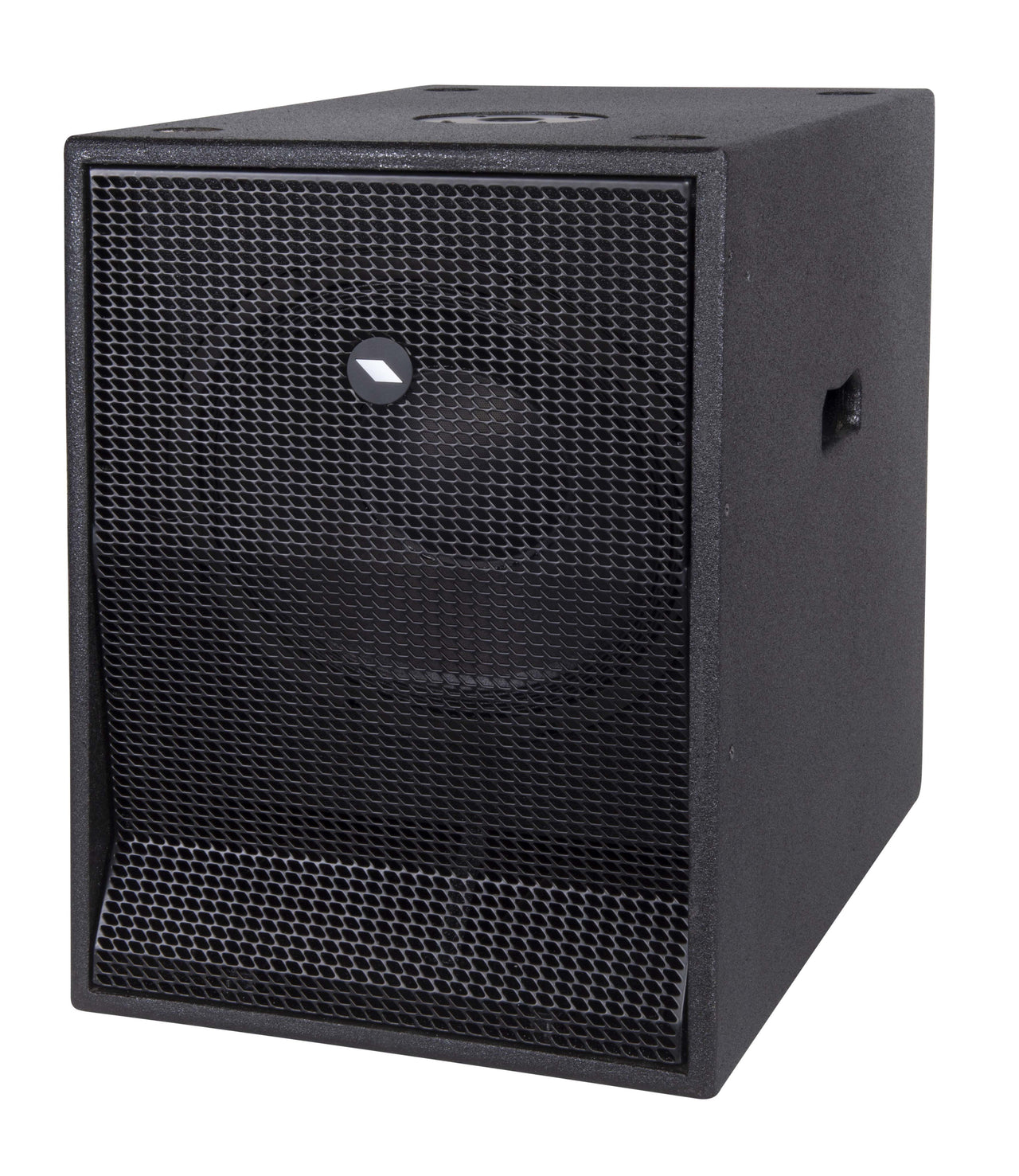

The Proel S12A is a high-performance active subwoofer designed to provide a powerful and precise low-frequency foundation for any PA system in a surprisingly compact package. Engineered to be the perfect companion for full-range speakers, the S12A delivers the deep, punchy bass needed for live music, DJ sets, and installations in clubs, bars, and event spaces where both performance and portability are key.
At the heart of the S12A is a powerful 1000W peak Class D amplifier paired with a high-excursion 12-inch woofer. This combination delivers an impressive sound pressure level and a tight, defined bass response. The subwoofer's integrated stereo crossover allows for easy integration into any sound system, providing filtered outputs for your main speakers and ensuring a perfectly balanced sound.
Built for the road, the S12A features a rugged yet lightweight plywood cabinet with a scratch-resistant finish. Two comfortable metal handles make it easy to transport, and the standard M20 pole socket allows for the convenient mounting of a full-range speaker on top. The S12A is a reliable and powerful solution for anyone looking to add a professional low-end foundation to their sound without sacrificing space.
Key Features:
-
1000W Active Subwoofer: A powerful Class D amplifier delivers 1000W of peak power for a deep and punchy bass response.
-
High-Excursion 12" Woofer: A custom-designed 12-inch woofer with a 2.5-inch voice coil provides an extended low-frequency response and high SPL.
-
Stereo Crossover: An integrated 24dB/oct. stereo electronic crossover with a selectable frequency allows for perfect integration with full-range speakers.
-

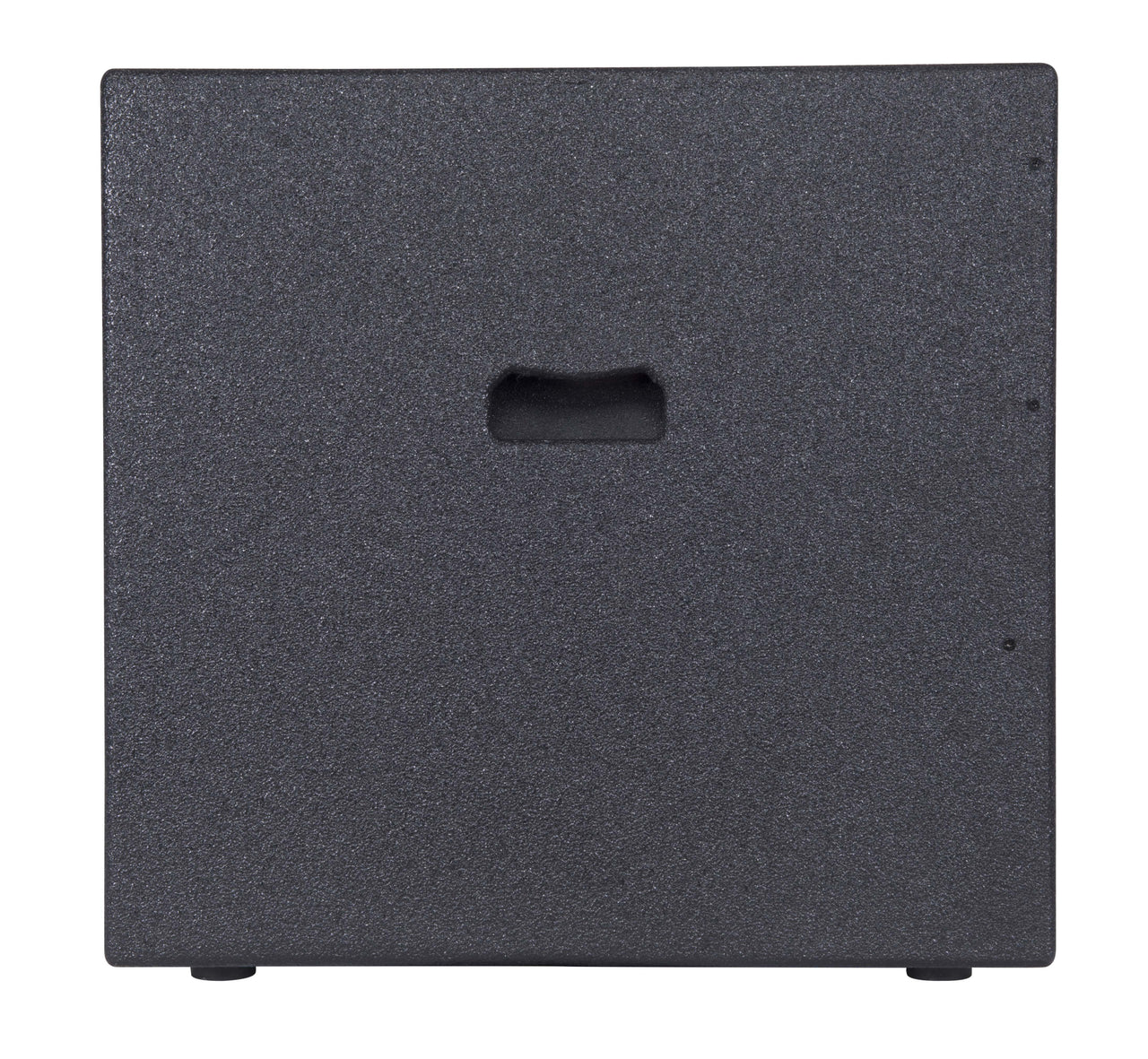

Durable and Lightweight Cabinet: A rugged plywood cabinet with a scratch-resistant finish and two metal handles for easy transport.
-
Phase Reverse Switch: A phase switch allows for perfect alignment with your main speakers, regardless of their position.
-

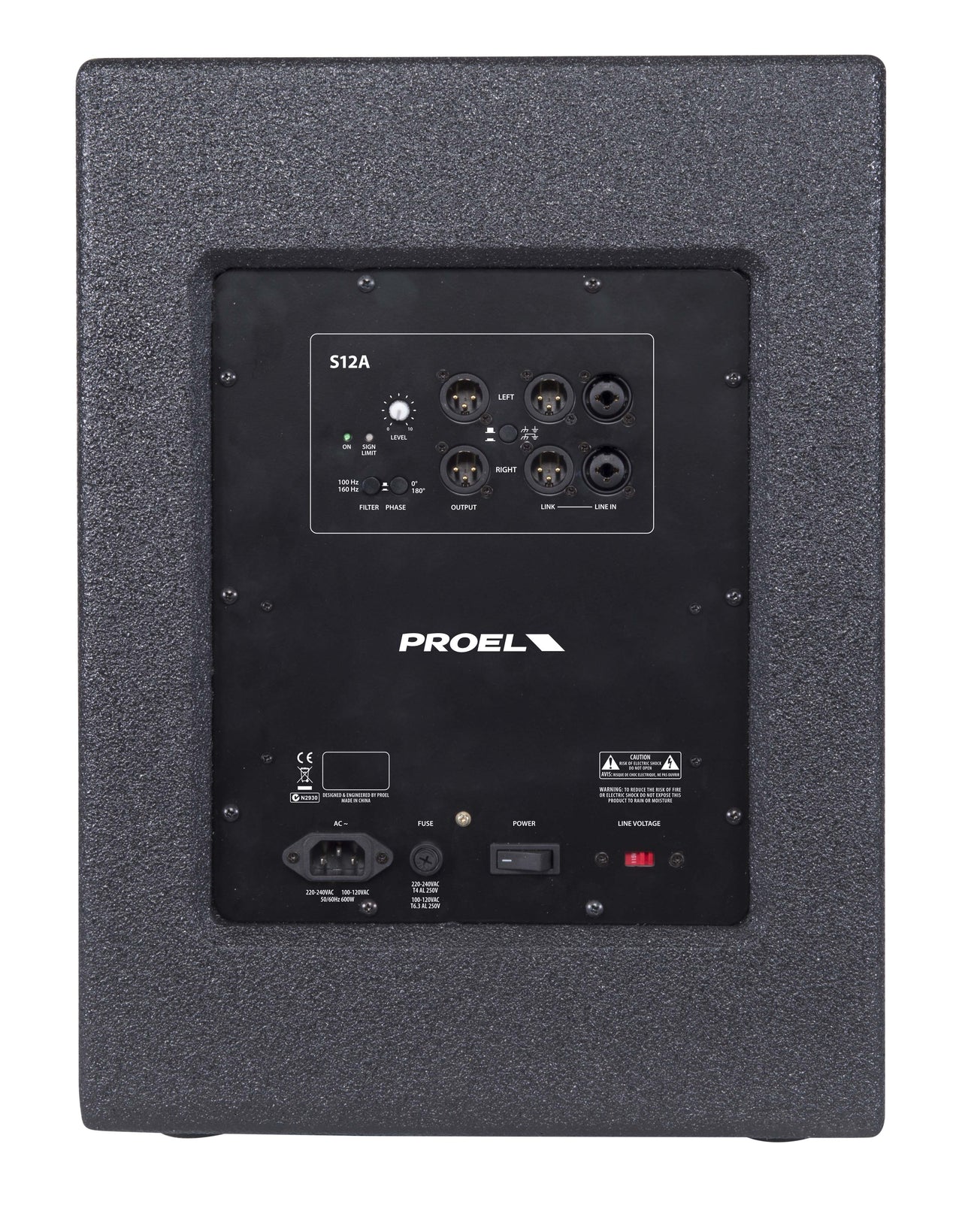

Flexible Connectivity: Features two combo XLR/Jack inputs and two XLR outputs for both linked and crossed-over signals.
-
Pole Mount Socket: A standard M20 pole mount socket on the top allows for the easy mounting of a satellite speaker.
-
SPLIT/LINKED Mode: A switchable mode allows for easy configuration in stereo or mono setups.
Technical Specifications:
-
System type: Vented enclosure subwoofer
-
Loudspeaker: 12” woofer with 2.5” VC
-
Amplifier Continuous Power: 500 W
-
Peak Power: 1000 W
-
Frequency response: 43 Hz - 160 Hz
-
Max SPL: 124 dB
-
Inputs: 2 x NEUTRIK COMBO
-
Outputs: 2 x NEUTRIK XLR-M
-
Controls: Volume, GND lift, X-over frequency, phase
-
Power Supply: 230 VAC or 120 VAC 50/60 Hz
-
Construction: Plywood with anti-scratch black paint
-
Pole holder: 1 x top M20
-
Dimensions (W x H x D): 16.9" x 18.5" x 23.6" (430 x 470 x 600 mm)
-
Weight: 52.9 lbs (24 kg)
What's in the box:
-
S12A Active Subwoofer
-
Power Cord
-
User Manual
