15” 2-Way Active Loudspeaker
The XPRS2 Series couples the versatility and mobility of the original XPRS Series with elevated sound-performance and audio intelligibility to deliver a high-caliber speaker system for mobile DJs, live sound, houses of worship, rental and fixed installations.
KEY FEATURES
Powerful Class D Amplification
The XPRS2 Series employs Class D Amplification with high output wattage for a powerful and premiere audio experience for performers and listeners alike. The XPRS82 and XPRS152 full-range speakers feature Class D 2000 W amplification, while the XPRS1152ST and XPRS1182ST subwoofers offer Class D 4000 W amplification.

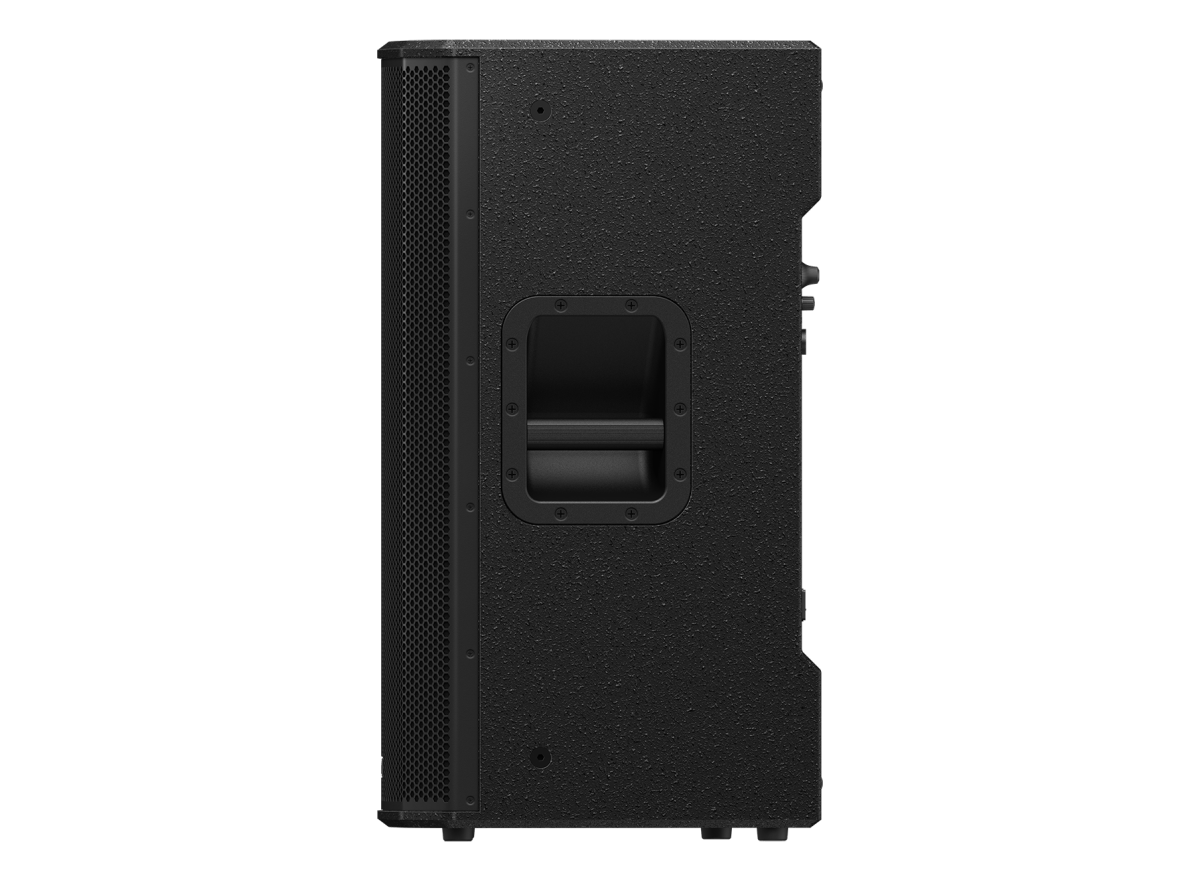

High Quality, Robust Build
Pioneer DJ’s all-new XPRS2 Series features a sleek all-black, protective plywood cabinet for performance in harsh outdoor and indoor environments. The series models all come with a durable handle to support system portability and handling during setup and take down. The XPRS2 Series also features rubber feet to create separation and shock absorption between surfaces.
Four DSP Modes
Both of the XPRS2 full-range speakers contain four different DSP preset modes—Live, Music, Speech and Studio Monitoring—to address the needs of different listening environments.
16 Customizable User DSP Modes
In addition to the four presets, each XPRS2 full-range speaker includes 16 custom user DSP modes - which can be saved with different names - to ensure the EQ settings are maximized for every scenario.
Full-Range Speaker Design
The larger of the new full-range speakers, the XPRS152, features a 15” woofer and 3” voice coil with a 1” exit compression driver and 1.75” voice coil for superb sound coverage across mid to large venues. With a frequency response of 45 Hz – 20 kHz and a maximum SPL of 133 dB, the XPRS152 is ideal for live DJ sets, concerts, and applications in difficult audio environments, such as venues with poor acoustics.
Specifications
Main Features
Type |
15 inch 2-way active loudspeaker |
|---|---|
Amplifier Output |
|
Accessories |
|
Specifications
Power supply |
110 V to 240 V (50 Hz/60 Hz) |
|---|---|
Power consumption |
800 W |
Width |
421 mm |
Height |
726 mm |
Depth |
410 mm |
Weight |
25.2 kg |
Frequency Range |
45 - 20000 Hz |
System characteristic
DSP modes |
|
|---|---|
DSP presets modes |
|
Maximum Sound Pressure |
133 dB |
Cross Over Frequency |
2 kHz |

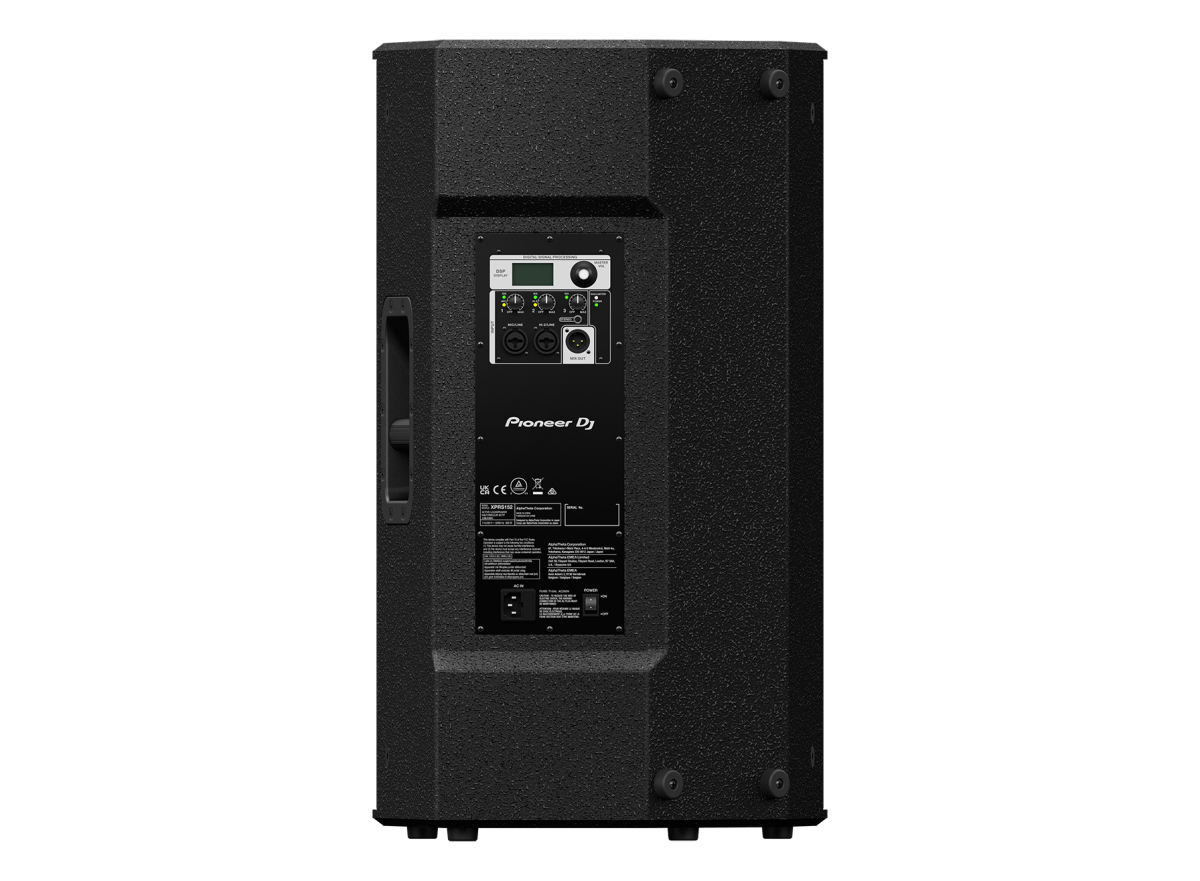

Terminals
Inputs |
|
|---|---|
Outputs |
MIX (XLR) |
Speaker
Driver |
|
|---|---|
Finish |
Black paint, Rubber feet |
Handle |
2 metal handles (on left side and top) |
Pole socket |
35 mm socket |
Rigging point |
10x M10 |
Enclosure |
Plywood (TSCA) |
Protection
Amplifier Protection |
|
|---|---|
Driver Protection |
Short circuit protection |
Power unit Protection |
|
