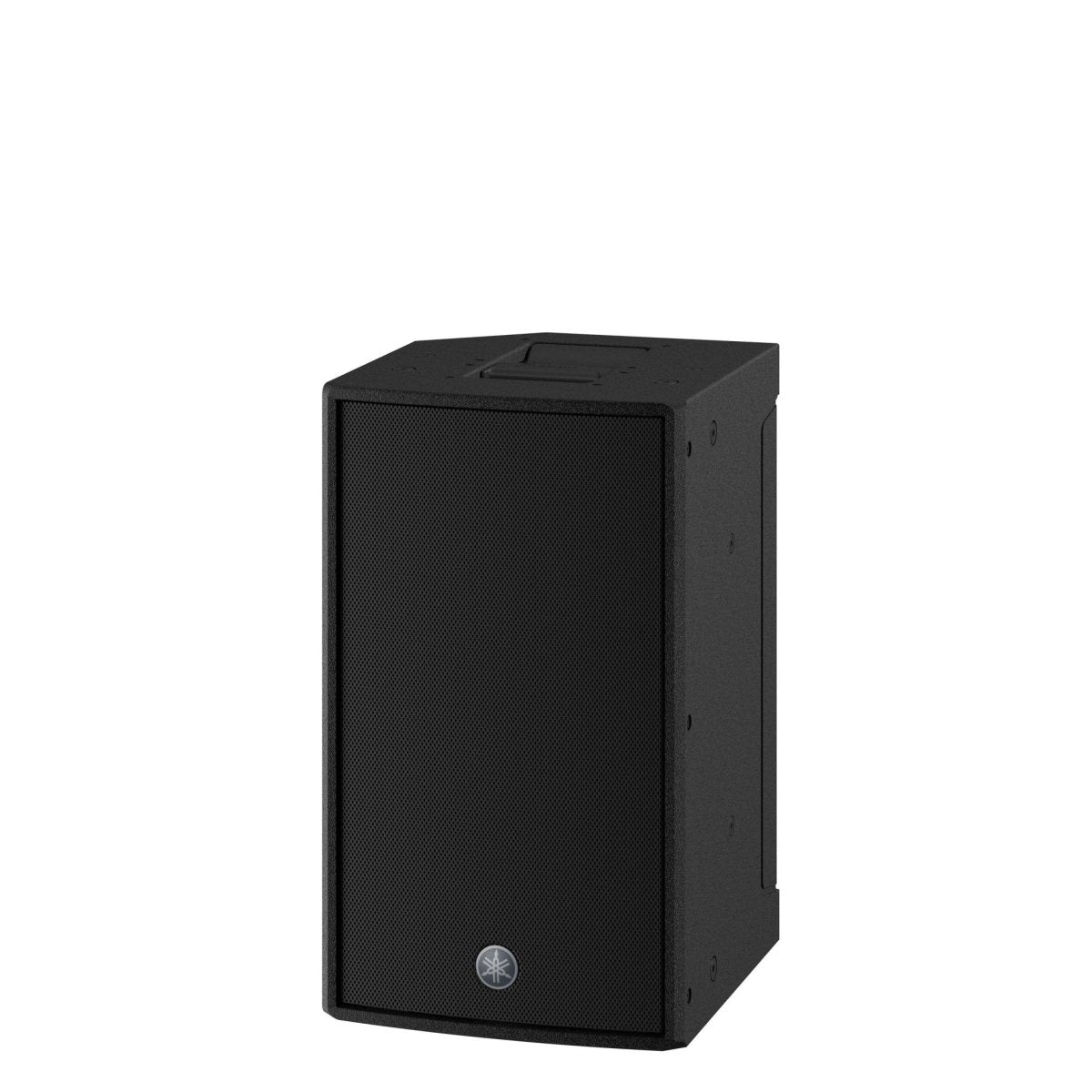

The DZR10 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 137dB SPL. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR10 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
- 2-way powered loudspeaker with a 2” HF and a 10" LF
- Maximum 137dB SPL and 44Hz-20kHz frequency range is ideal for today’s audio engineering demands
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
- Floor monitoring setting
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DZR10).
General Specifications
Speaker Type 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency Range (-10dB) 44Hz - 20kHz
Coverage Area H90° x V60° (Rotatable)

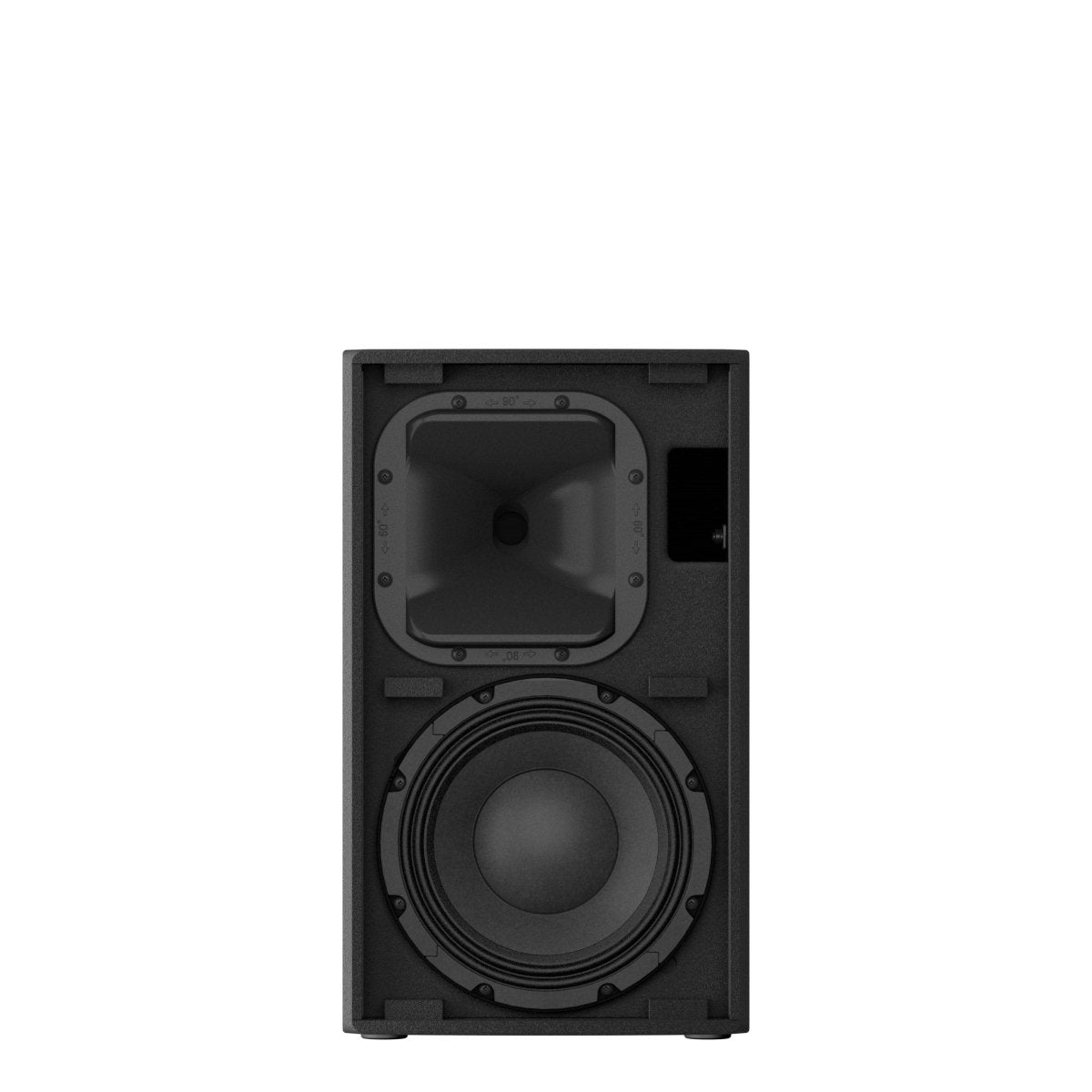

Components LF 10" Cone, 3" Voice Coil, Neodymium magnet
MF -
HF 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover 1.8kHz (FIR-X)
Sampling Frequency Rate Internal 96kHz and FIR Filter
A/D D/A Converters 96kHz AD/DA
Maximum Output Level (1m; on axis) 137dB SPL *1
Power Rating Dynamic 2000W (LF: 1000W, MF/HF: 1000W) *2
Burst (20ms) 1100W (LF: 1000W, MF/HF: 100W)
Continuous 950W (LF: 850W, MF/HF: 100W)

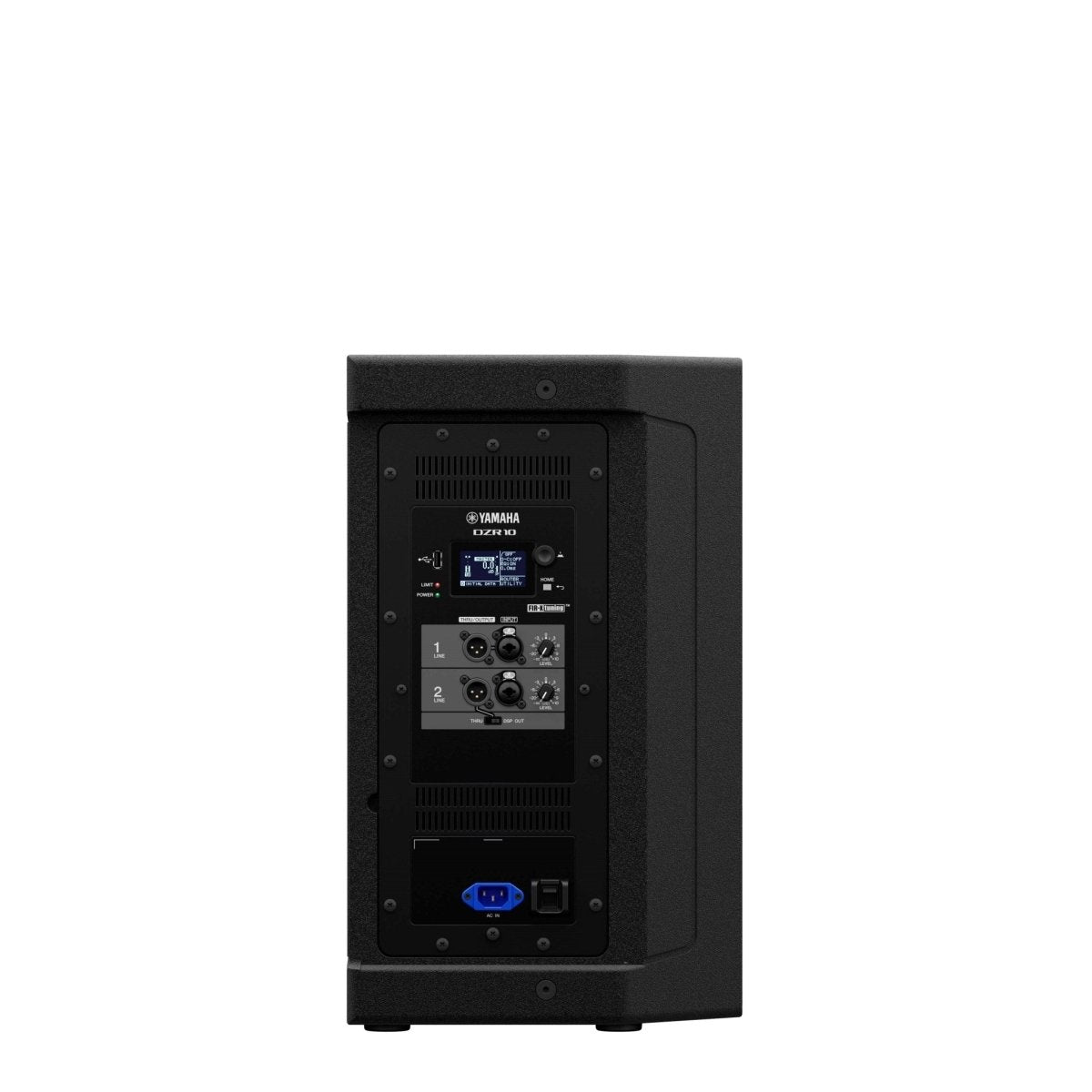

I/O Connectors Analog I/O Analog IN: Combo x 2, Line level (Maximum +24dBu), Input impedance 20kΩ,
Analog OUT: XLR3-32 x 2, CH1: THRU (fix), CH2: THRU or DSP OUT
Others USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC IEC AC inlet x 1 (V-Lock)
Amplifier Class Class-D
Cooling Fan cooling, Variable speeds
Power Consumption 45W (Idle), 150W (1/8)
Handle Aluminium die-cast, Top x 1, Side x 1
Rigging M10 x 8, M8 x 2
Dimensions (W x H x D) 315mm x 537mm (with rubber feet) x 345mm (12.4" x 21.1" x 13.6")
Net Weight 17.9kg (39.5lbs)
Options U-bracket: UB-DZR10H/V, Cover: SPCVR-DZR10
Others Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White
Floor Monitor Angle 50°
Pole Socket Ø35mm x 2 (0° or -7°)
*1 Measured peak SPL with pink noise @1m.
*2 Total peak power of individual outputs (AC 120V, 25°C). This value was measured at minimum load impedance, with protection released.
