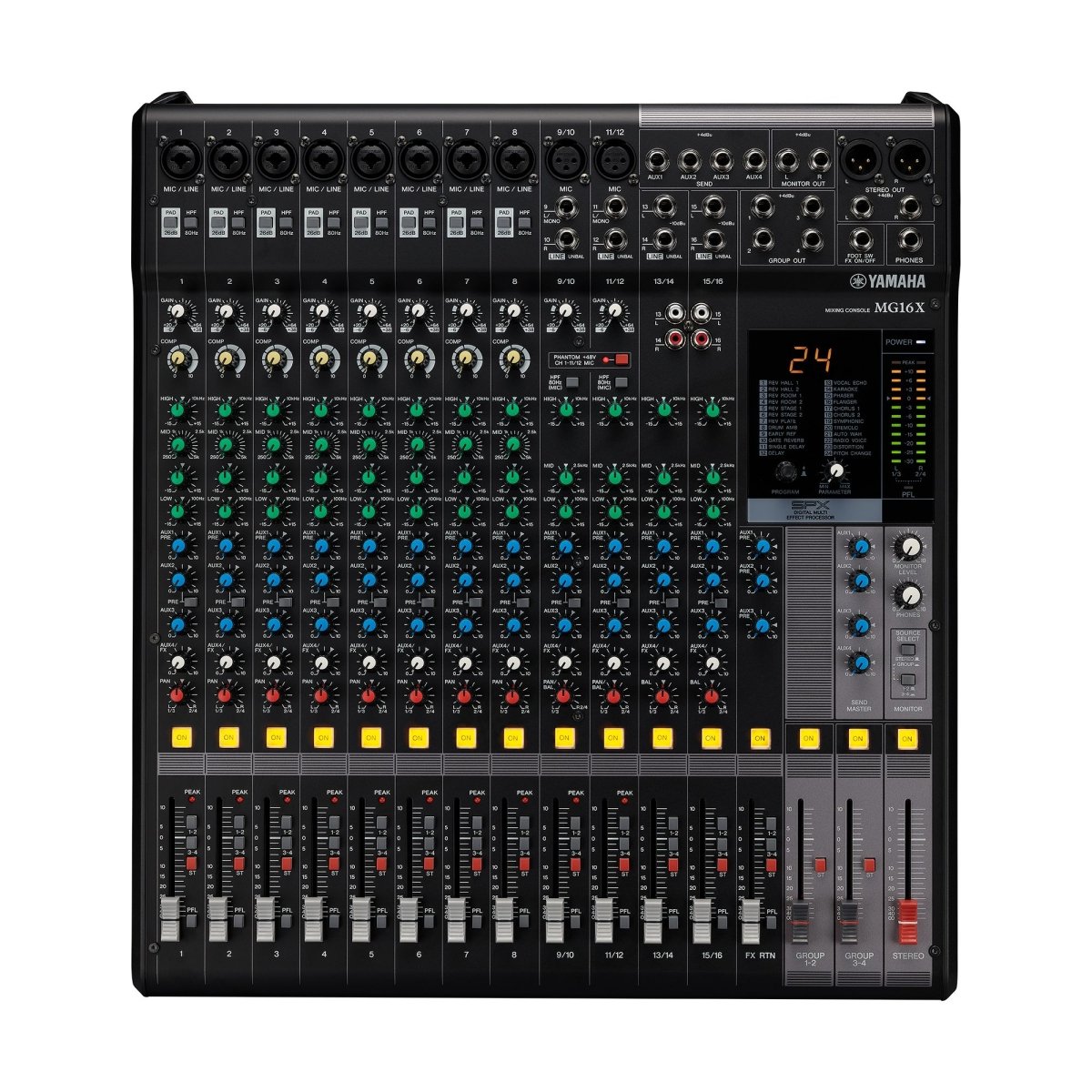

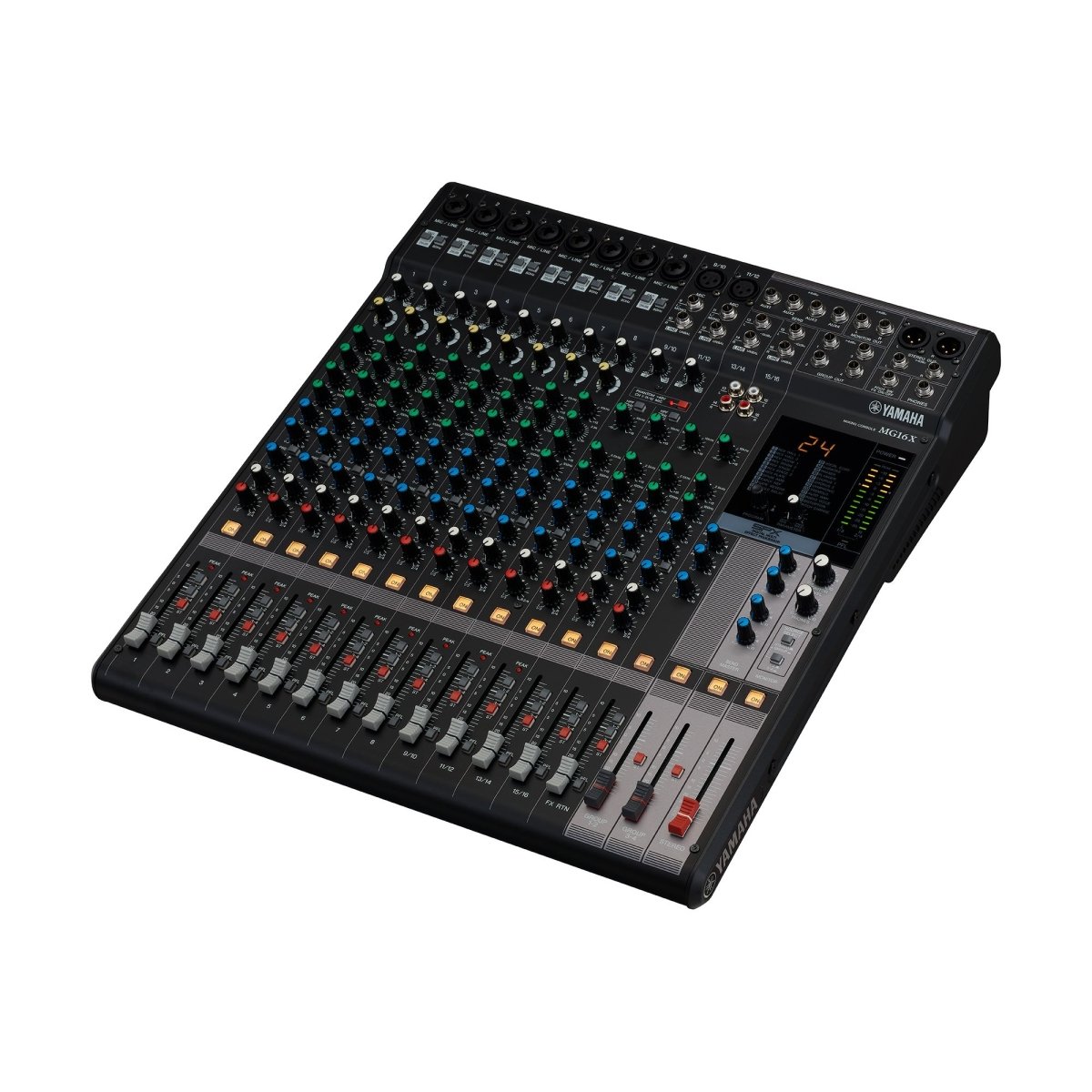

Professional Performance for Live Sound and Studio: The Yamaha MG16XCV
Building on a legacy of superior craftsmanship, the Yamaha MG16XCV is a 16-channel mixing console that offers professional performance and a rich feature set in a portable and robust package. This mixer is the perfect choice for a wide range of applications, including live band performances, houses of worship, and project studio recording where a higher channel count and professional effects are needed.
The MG16XCV is equipped with Yamaha's studio-grade, discrete Class-A "D-PRE" mic preamps, which deliver a natural, full-bodied bass and smooth, soaring highs with exceptionally low distortion. The mixer is built to last, with a rugged, powder-coated steel chassis that is ready for the rigors of the road.
This "X" model is equipped with Yamaha's acclaimed SPX digital effects processor, offering a comprehensive suite of 24 editable effects to add polish and professionalism to your mix. With its intuitive layout, 1-knob compressors, and flexible routing options, the MG16XCV provides the tools you need to create a high-quality, professional sound.
Key Features:
-
16-Channel Mixing Console: Features up to 10 mic / 16 line inputs (8 mono + 4 stereo) for handling a wide range of sources.
-
Studio-Grade "D-PRE" Mic Preamps: Discrete Class-A mic preamps with an inverted Darlington circuit deliver a clean, natural, and transparent sound.
-
High-Quality SPX Digital Effects: A suite of 24 editable digital effects, including reverbs, delays, and modulations, for professional sound processing.
-
1-Knob Compressors: Easy-to-use compressors on the first eight mono channels allow you to add punch and control to your sound with a single control.
-
3-Band Channel EQ and HPF: A 3-band EQ with a sweepable mid-range on mono channels and a high-pass filter provide effective sound shaping.
-
Rugged Metal Chassis: A powder-coated steel chassis is built for superior durability and a long service life.
-
Professional Outputs: Features balanced XLR main outputs and flexible stereo group buses for professional and reliable connections.
-
Rack Mountable: Comes with a rack mount kit included for easy installation in a standard 19" rack.
Technical Specifications:
-
Total Channels: 16
-
Mono/Stereo Inputs: 8 Mono, 4 Stereo
-
Mic Preamps: 10 x "D-PRE" with +48V phantom power
-
EQ: 3-band with sweepable mid (mono channels), 3-band (stereo channels)
-
Effects: SPX algorithm with 24 programs
-
Bus: 1 Stereo Bus, 4 GROUP Buses + 1 ST Bus
-
Aux Sends: 4 (incl. FX)
-
Compressor: 1-knob compressor on channels 1-8
-
Dimensions (W×H×D): 17.5" x 5.1" x 19.7" (444 mm x 130 mm x 500 mm)
-
Net Weight: 14.6 lbs. (6.6 kg)
What's in the box:
-
MG16XCV Analog Mixer
-
AC Power Cord
-
Owner’s Manual
-
Technical Specifications
-
Rack Mount Kit
