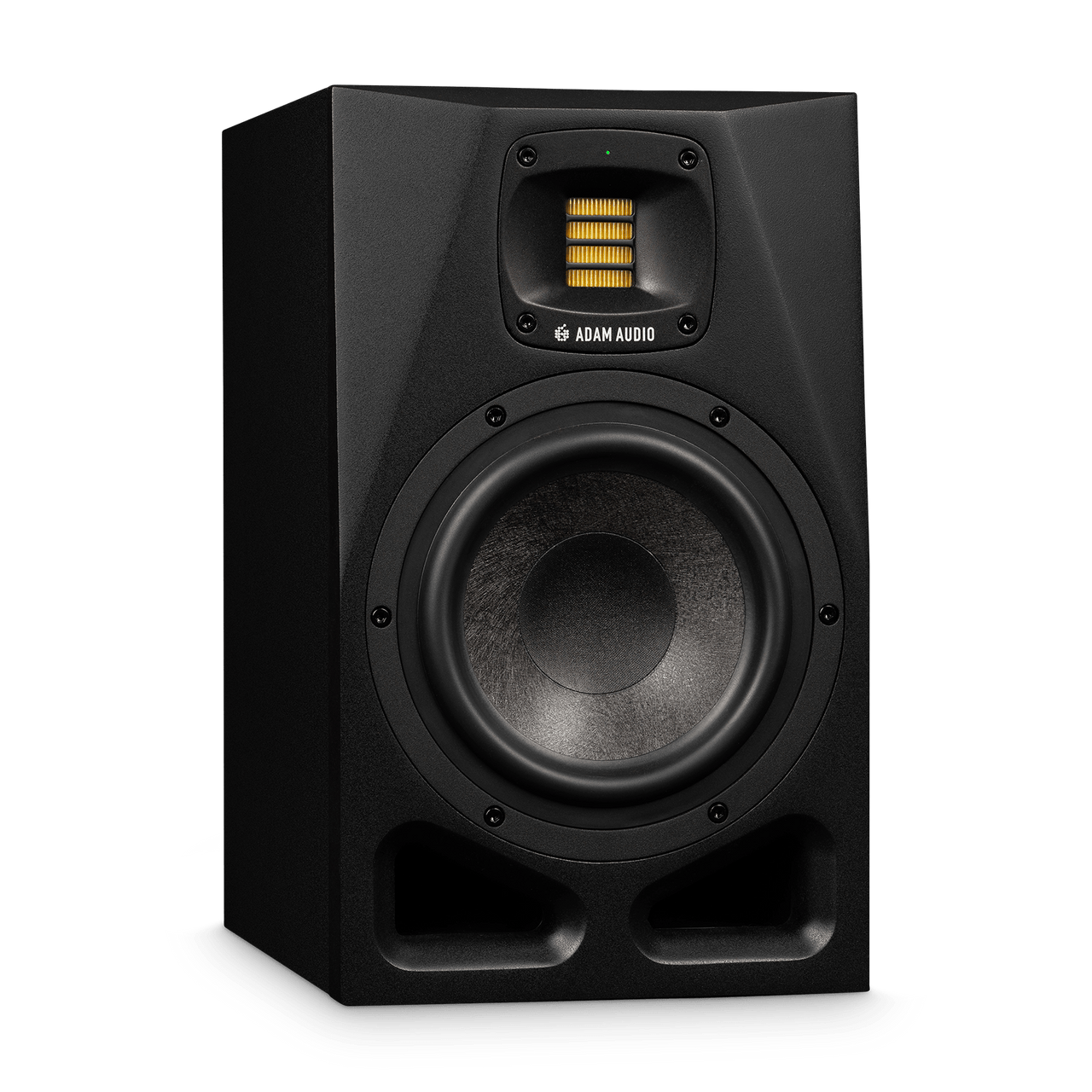

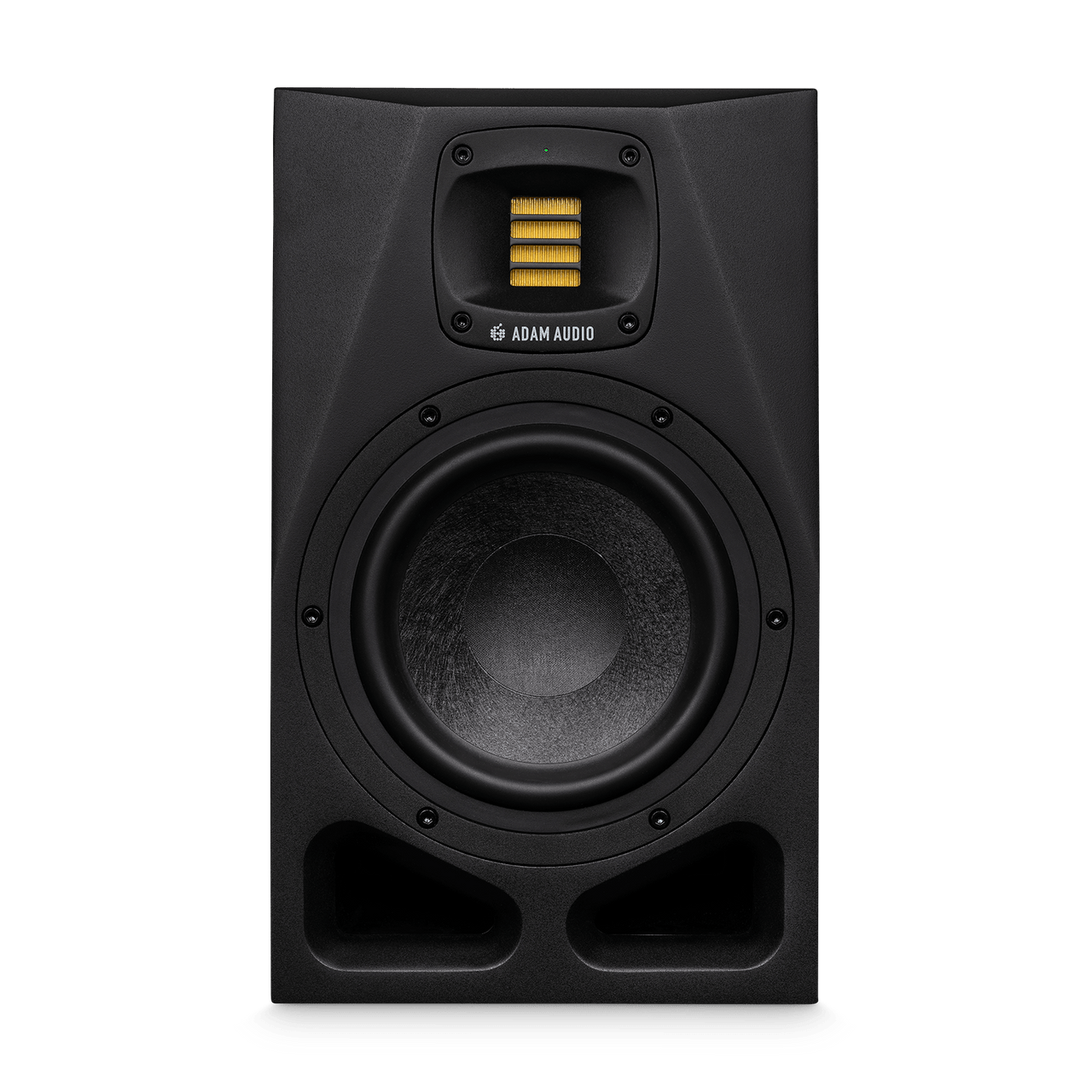

Adam Audio A7V

Nearfield Monitor, 2-way, 7" woofer

The evolution of an industry standard for use in an array of home, studio, and professional audio applications.

The A7V is a contemporary 2-way monitor that represents the evolution of ADAM Audio’s award winning A7X. It features a 7” Multi-Layer Mineral woofer and rotatable X-ART tweeter, which is made by hand in Berlin.

DSP-based voicing, equalization and room correction options can be controlled remotely and in real time via the free-to-download A Control software, and updatable firmware allows for new filters and tunings to be implemented over the lifetime of the monitor.

Max. peak SPL per speaker at 1 m: 105 dB SPL



EXPLORE THE TECHNOLOGY

ADAM Audio monitors have earned a worldwide reputation for the innovations that we have established in the field of loudspeaker technology. Here you can explore the technology of the A7V.

A CONTROL REMOTE SOFTWARE

The DSP-based functionality of all A Series monitors can be controlled remotely and in real time over ethernet using A Control.

ROTATABLE HPS WAVEGUIDE & X-ART TWEETER

Made from a new glass fiber polymer compound, the HPS waveguide enables the X-ART tweeter to disperse sound in space with controlled consistency.

BASS REFLEX SYSTEM, CABINETS AND MOUNTING

The new A Series cabinets build on the heritage of ADAM Audio and the AX Series in particular.

Display: Front panel multi-colour LED

Cabinet Design: Dual front ported

Cabinet Material: Vinyl wrapped MDF and painted MDF front panel

Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)

Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W

AC Input Voltage: 100 – 240 V, 50/60 Hz

Power Rating: 300 W max.

Operating Conditions:-10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing

Weight: 8.7 kg (19 lb 3 oz)

Dimensions (Height x Width x Depth): 337 mm x 200 mm x 280 mm (13 1/4″ x 7 7/8″ x 11″)

Warranty: 5 years (2 years warranty plus 3 years optional with product registration)

Delivery Contents: A7V loudspeaker, power cable, Quick Start Guide
