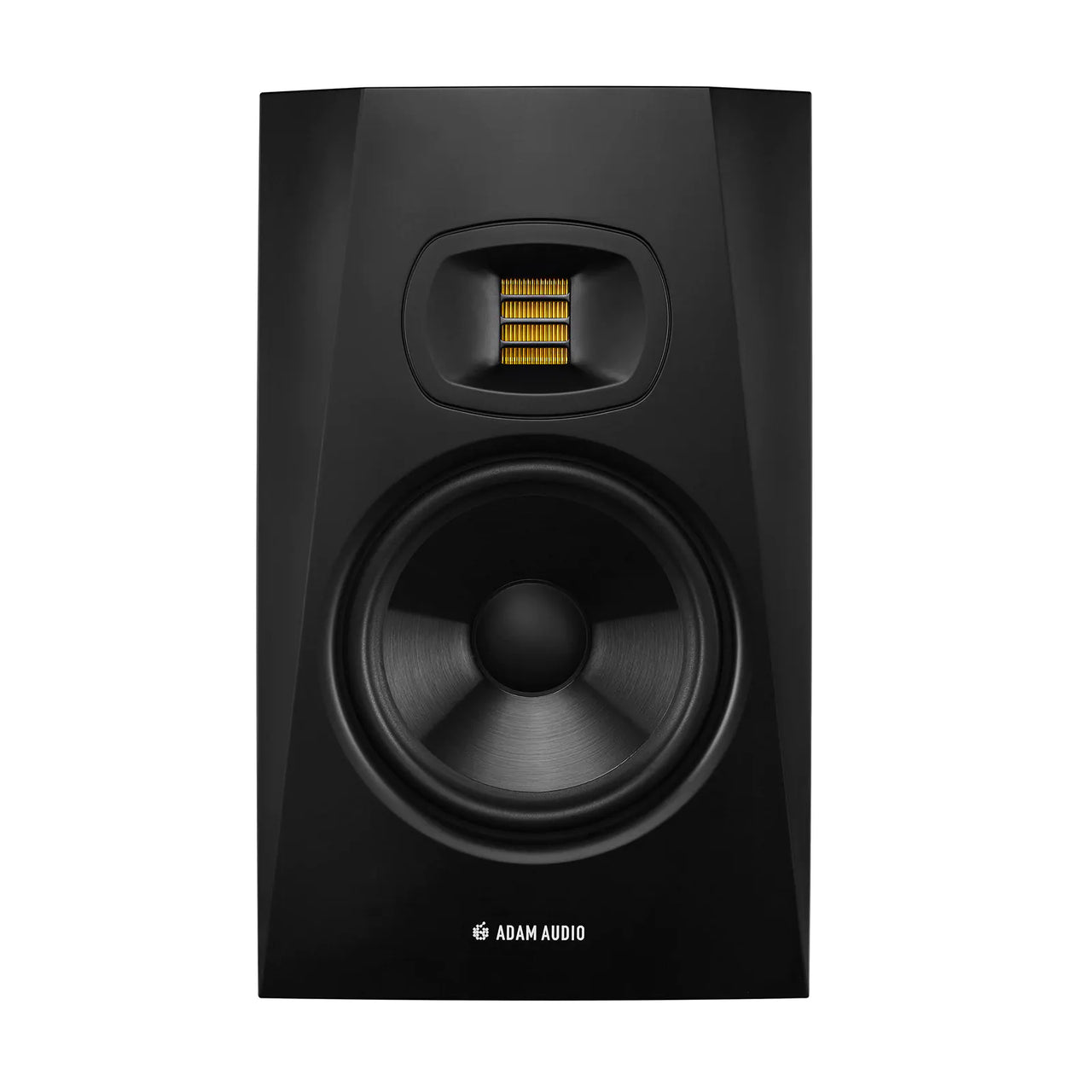

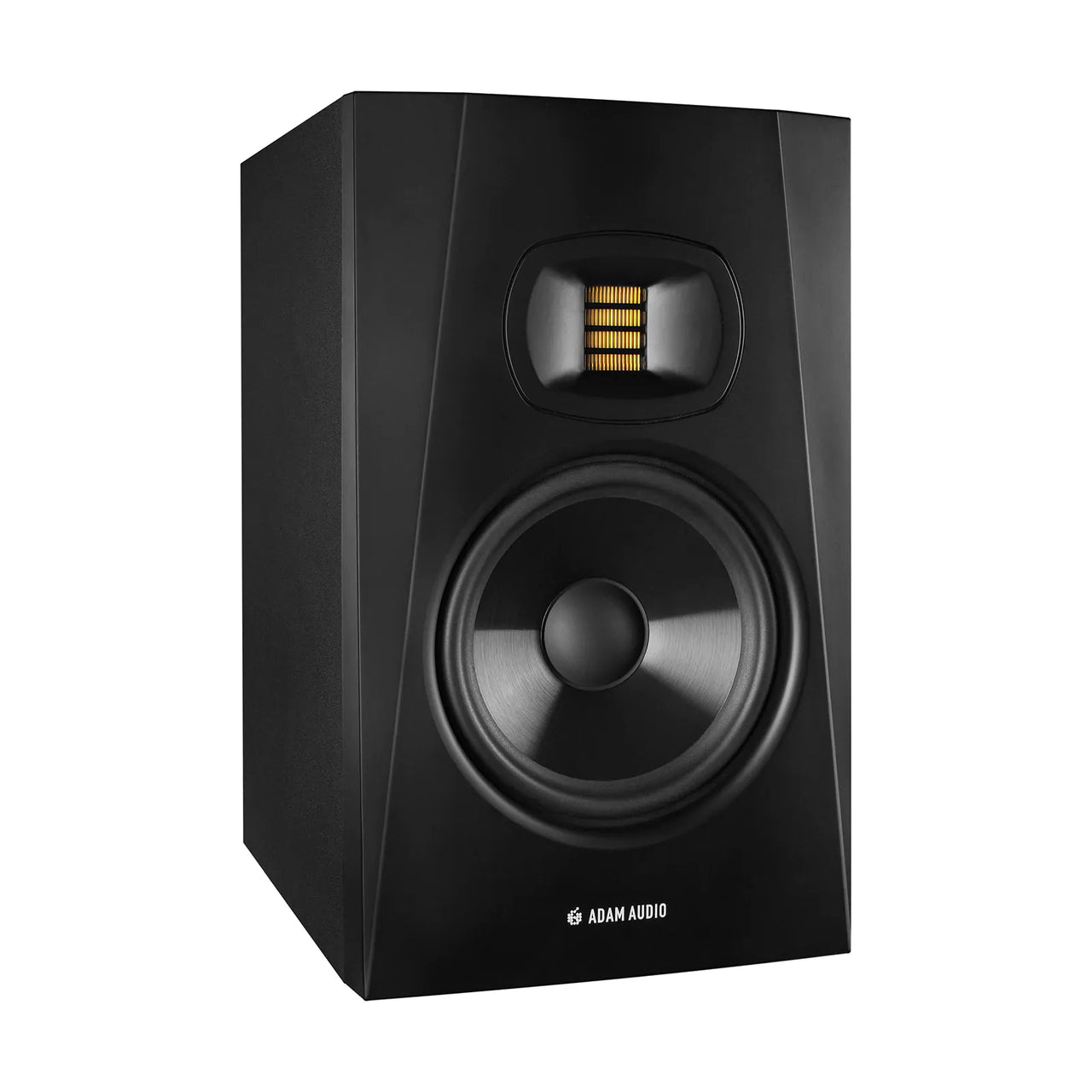

ADAM Audio T7V Active Studio Monitor
The ADAM Audio T7V is a high-performance two-way nearfield monitor designed for vertical use in small control rooms, music production, and broadcast environments. It provides an exceptionally wide sweet spot and extended frequency response at an affordable price point.
Product Description
The T7V features a 7” polypropylene woofer that delivers bass extension down to 39 Hz, paired with the U-ART accelerated ribbon tweeter for pristine high-frequency response up to 25 kHz. The tweeter is fitted to a precision HPS waveguide—the same technology used in ADAM Audio’s flagship S Series—which ensures highly uniform dispersion and stable imaging. Its beveled cabinet design minimizes diffraction, while the rear-firing bass reflex port provides accurate midrange and deep bass reproduction.
Technical Specifications:
-
Acoustics & Drivers:
-
Frequency Response: 39 Hz – 25 kHz (-6 dB).
-
Max. SPL per pair at 1 m: ≥110 dB.
-
Crossover Frequency: 2.6 kHz.
-
Woofer: 7" Polypropylene cone with 1" voice coil.
-
Tweeter: 1.9" U-ART Accelerated Ribbon Tweeter.
-
-
Amplification (Class-D):
-
Woofer Amp Power: 50 W RMS.
-
Tweeter Amp Power: 20 W RMS.
-
Total Power: 70 W RMS.
-
-
Inputs & Controls:
-
Analog Inputs: XLR (balanced) and RCA (unbalanced).
-
Input Sensitivity: Switchable +4 dBu / -10 dBV.
-
HF Shelf EQ (> 5 kHz): -2 dB, 0 dB, +2 dB.
-
LF Shelf EQ (< 300 Hz): -2 dB, 0 dB, +2 dB.
-
-
General Data:
-
Dimensions (H x W x D): 347 mm x 210 mm x 293 mm (13.7″ x 8.3″ x 11.5”).
-
Weight: 7.1 kg (15.7 lbs).
-
Power Consumption: Max 132 W.
-
What’s in the Box:
-
ADAM Audio T7V Active Studio Monitor.
-
Power cord.
-
Quick Start Guide.
