Whether you’re just getting into records, rediscovering a record collection long since buried away or simply adding a turntable to complete your system, the AT-LP60X fully automatic belt-drive turntable is an excellent choice. This affordable, easy-to-use turntable plays both 33-1/3 and 45 RPM records and, with its built-in switchable phono preamp, can be connected directly to your home stereo, powered speakers, computer and other components, whether they have a dedicated phono input or not.
An update of the popular AT-LP60, the ATLP60X features a redesigned tonearm base and headshell to improve tracking and reduce resonance. Noise is further reduced by the inclusion of an AC adapter that moves the AC/DC conversion outside of the chassis where its impact on the signal chain is limited.
Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the AT-LP60X’s Dual Magnet™ cartridge with replaceable stylus. The cartridge is integrated into the headshell for assured performance and ease of setup.

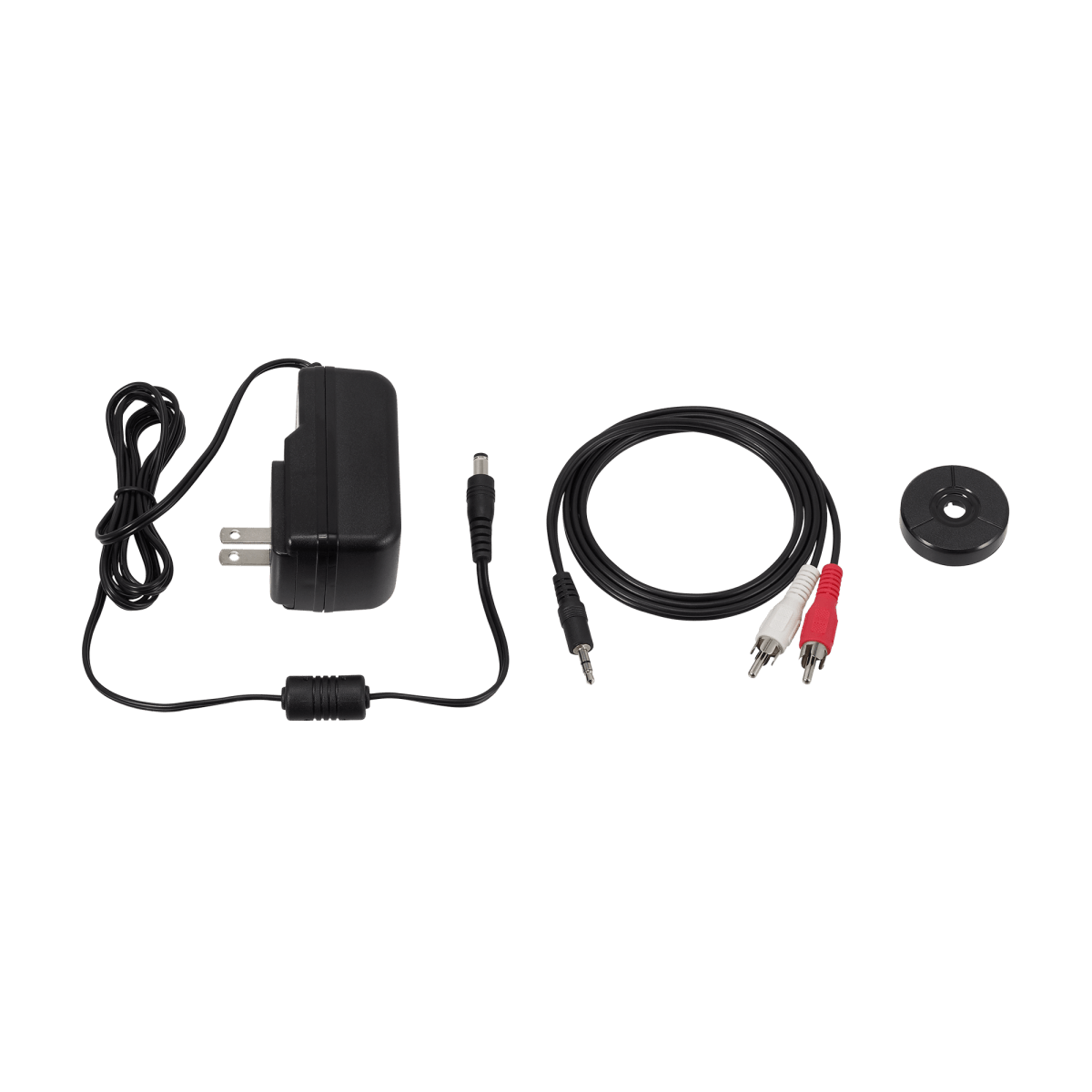

The turntable comes with a detachable RCA output cable (3.5 mm male to dual RCA male), 45 RPM adapter, and a removable hinged dust cover.
Your Entry Into the World of Vinyl
Venture into Vinyl
Discover (or rediscover) the wonder of vinyl records. This affordable, easy-to-use turntable is the perfect entry into the world of analog audio.
Cartridge Assembly Line Circa 1962
More than Five Decades of Analog Excellence
We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-century’s worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.
- Experience the high-fidelity audio of vinyl
- Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM
- Anti-resonance, die-cast aluminum platter

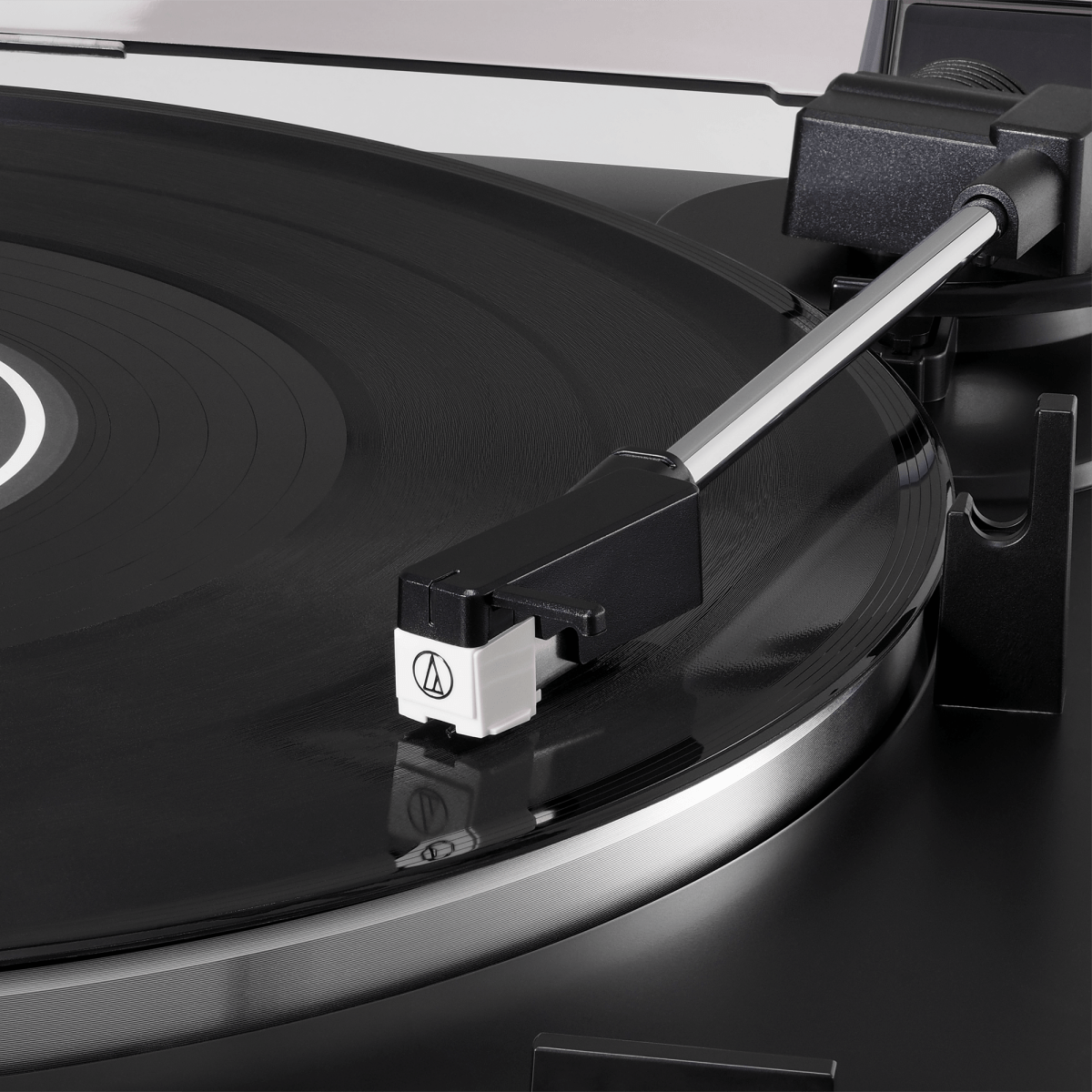

- Redesigned tonearm base and headshell for improved tracking and reduced resonance
- Integral Dual Magnet™ phono cartridge with replaceable diamond stylus (ATN3600L)
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
- Built-in switchable phono pre-amplifier for phono- or line-level output
- Includes: detachable RCA output cable (3.5 mm male to dual RCA male), 45 RPM adapter, and removable hinged dust cover
||Belt drive turntable, fully automatic
||33-1/3 RPM, 45 RPM
|Wow and Flutter
||Less than 0.25% (WTD) @ 3 kHz
||>50 dB (DIN-B)
||Pre-amp “PHONO”: 2.5 mV nominal at 1 kHz, 5 cm/sec
Pre-amp “LINE” 150 mV nominal at 1 kHz, 5 cm/sec
|Phono Pre-Amp Gain
||36 dB nominal, RIAA equalized
|Power Supply Requirements
||100 to 240 V, 50/60 Hz, 0.6 A Max.
||359.5 mm (14.15") W x 97.5 mm (3.84") H x 373.3 mm (14.70") D
||2.6 kg (5.73 lbs)
||Dust cover, Felt mat, Platter (with drive belt), 45 RPM adapter, RCA audio cable (approx. 1.2 m (3.9')), AC adapter (approx. 1.5 m (4.9'))
AC adapter: 12 V, 2 A
Replacement Stylus: ATN3600L
