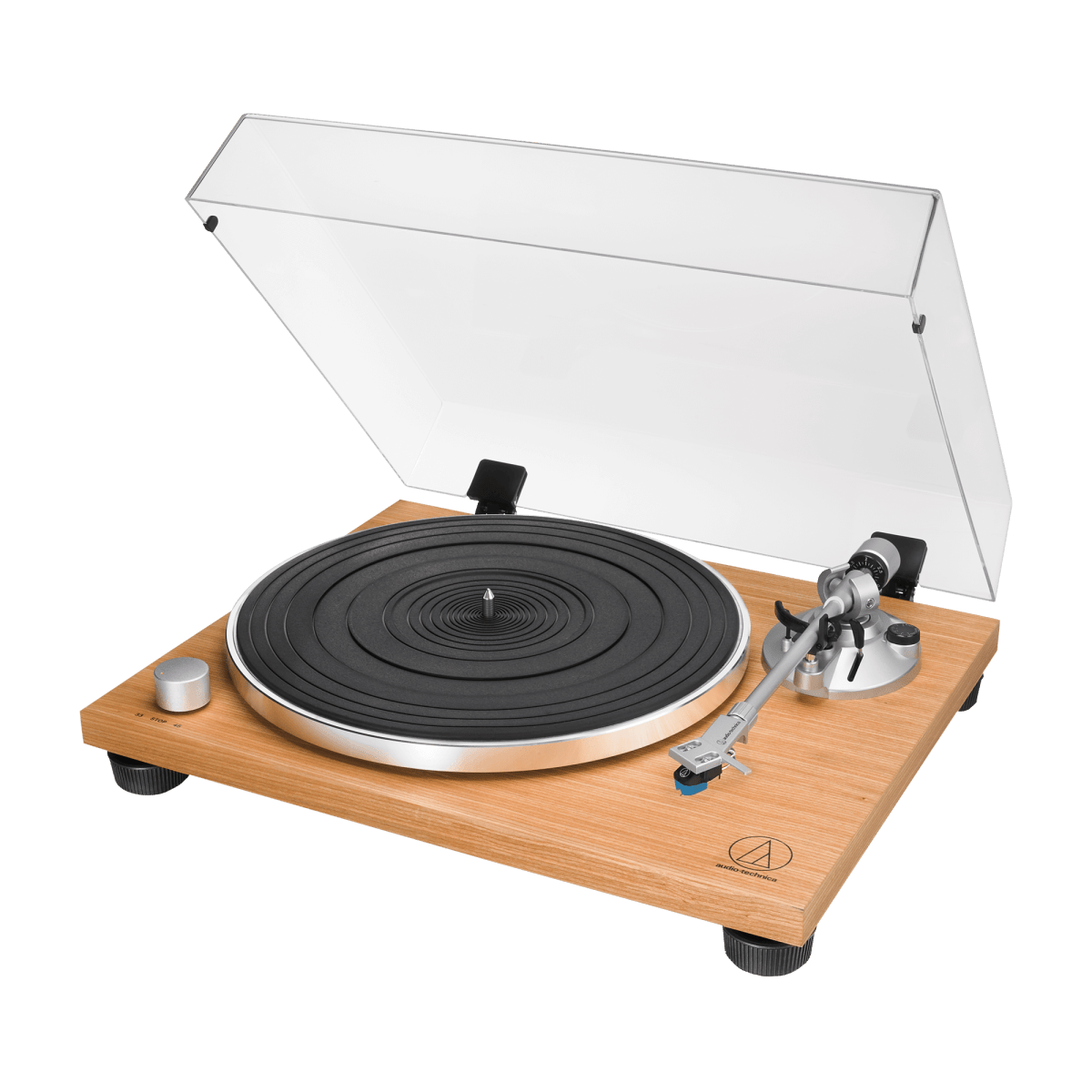

A stunning addition to any system, the AT-LPW30TK features an anti-resonance plinth with simulated teak wood veneer to limit low-frequency acoustic feedback.
The LPW30TK was designed to give you optimal high-fidelity audio reproduction from vinyl, with sophisticated styling.
Cartridge Assembly Line Circa 1962
Over 55 Years of Analog Excellence
We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-century’s worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.
- Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
- Fully manual operation
- Adjustable dynamic anti-skate control
- Professional anti-resonance, die-cast aluminum platter with rubber mat
- AT-HS4 universal ½"-mount headshell and AT-VM95C Dual Moving Magnet phono cartridge with 0.6 mil conical stylus
- AT-VM95C cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
- Straight tonearm with hydraulically damped lift control and lockable rest
- Anti-resonance MDF (medium density fiberboard) plinth with teak simulated wood veneer
- Built-in switchable phono pre-amplifier for phono or line-level output
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain

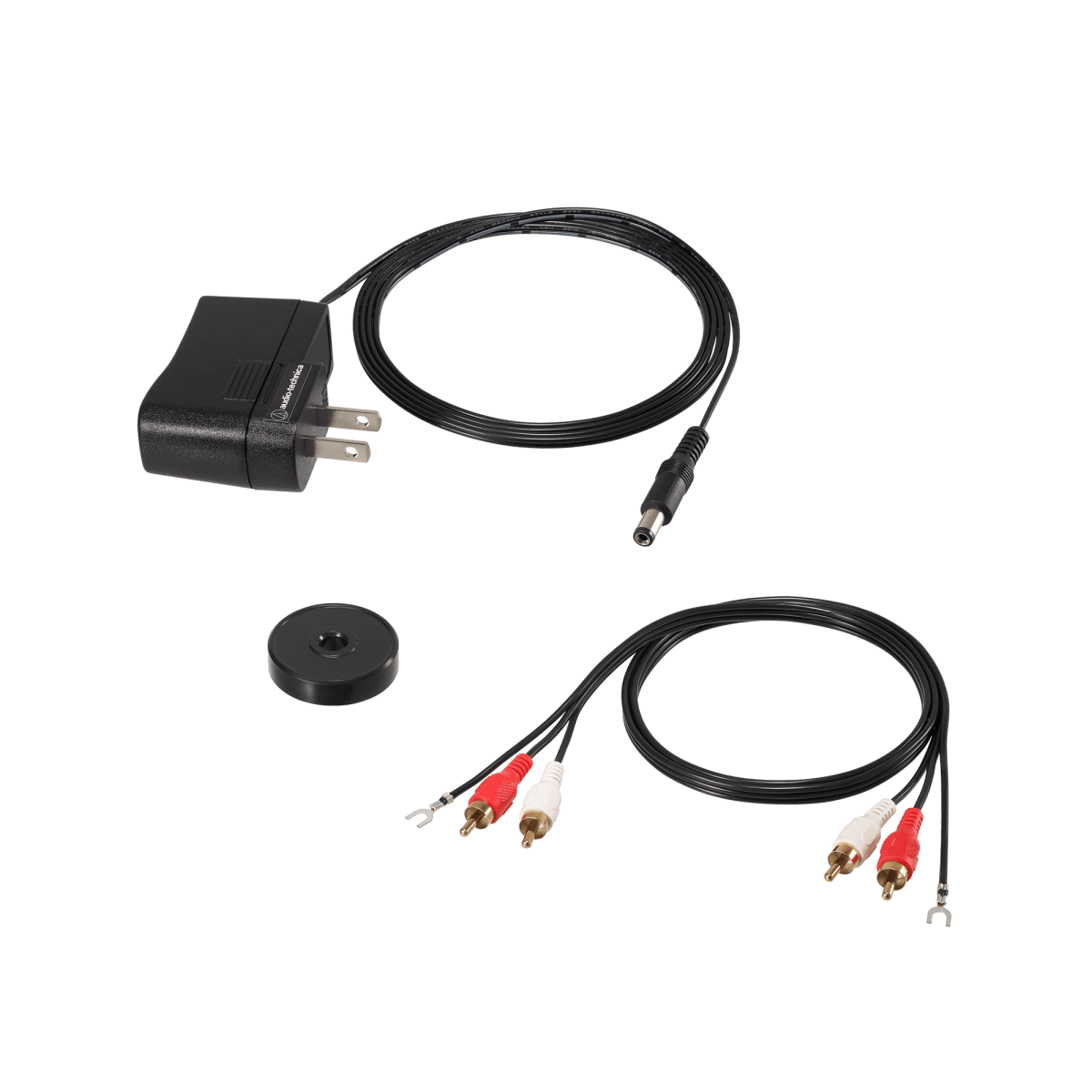

- Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover
| Turntable |
| Type |
Belt-drive manual turntable |
| Motor |
DC servo |
| Drive Method |
Belt drive |
| Speeds |
33-1/3 RPM, 45 RPM |
| Turntable Platter |
Die-cast aluminum |
| Wow and Flutter |
< 0.15% WRMS (33 RPM) at 3 kHz |
| Signal-to-Noise Ratio |
>60dB |
| Output Level |
Pre-amp “PHONO”: 4 mV nominal at 1 kHz, 5 cm/sec
Pre-amp “LINE”: 200 mV nominal at 1 kHz, 5 cm/sec |
| Phono Pre-Amp Gain |
35 dB nominal, RIAA equalized |
| Power Supply Requirements |
100-240V AC, 50/60 Hz, 0.5 A Max. |
| Dimensions |
420.0 mm (16.53") W x 340.0 mm (13.38") D x 116.9 mm (4.6") H |
| Weight |
3.90 kg (8.60 lbs.) without dust cover |
| Accessories Included |
Dust cover, Platter, Turntable mat, Drive belt, Counterweight, AT-HS4 headshell, AT-VM95C stereo cartridge, 45-RPM adapter, RCA audio cable (approx.. 1.0 m (3.3')), AC adapter (approx. 1.5 m (4.9')) (AD-SA1205WE), Dust cover hinges |
| Notes |
Tonearm type: Static balanced straight aluminum pipe tonearm
Effective arm length: 223.6 mm
Overhang: 18.6 mm
Tracking error angle: <2 degrees
Applicable cartridge weight: 12-17 g
Stylus pressure adjustment range: 0-3 g
AC adapter: 12 V, 0.5 A
Replacement Stylus: AT-VMN95C |
