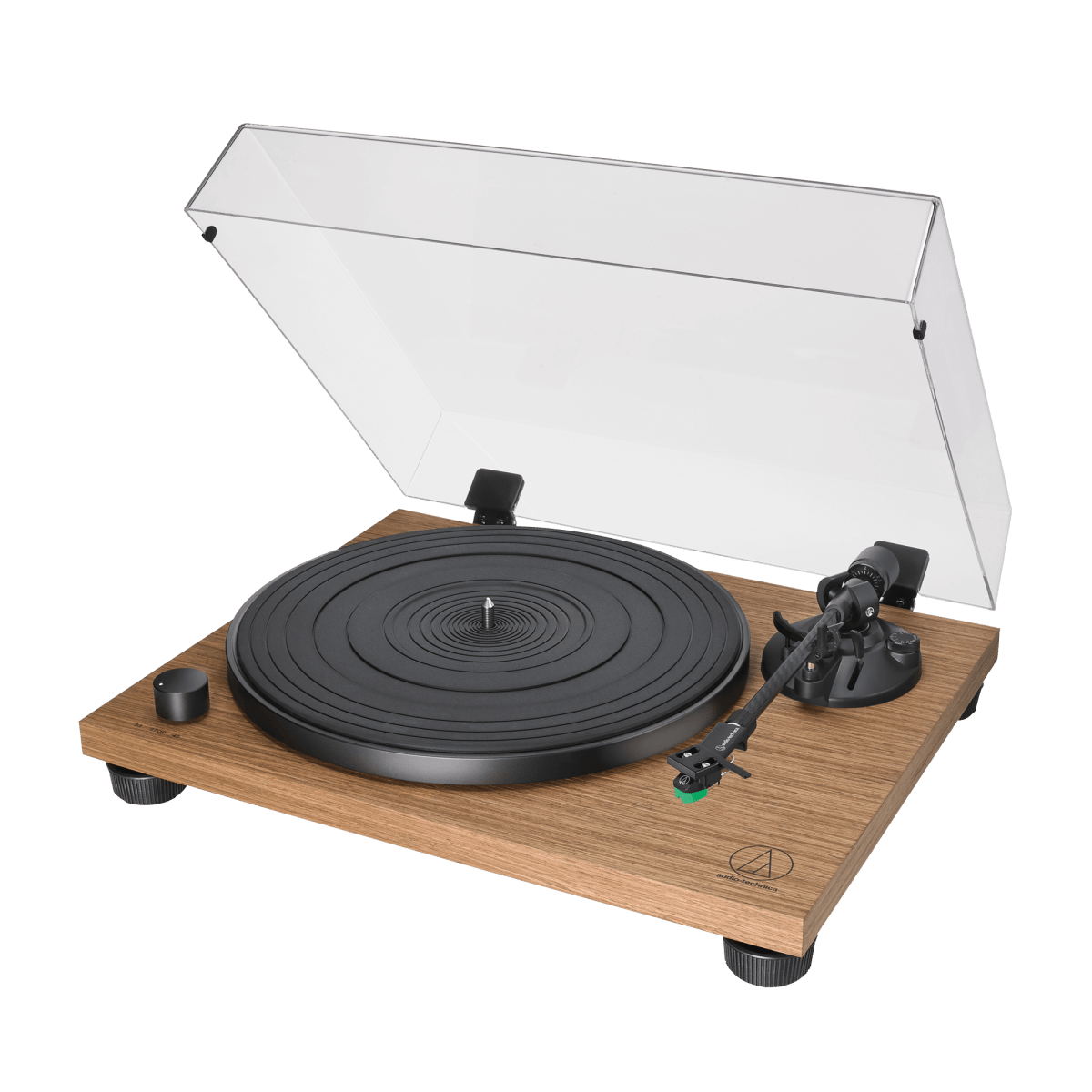

The LPW40WN was designed to give you optimal high-fidelity audio reproduction with smart styling.
A stunning addition to any system, the AT-LPW40WN features an anti-resonance plinth with simulated walnut wood veneer to limit low-frequency acoustic feedback.
Cartridge Assembly Line circa 1962
Over 55 Years of Analog Excellence
We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-century’s worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.
- Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
- Motor features a speed-sensor system to maintain accurate platter rotation speed
- Fully manual operation
- Adjustable dynamic anti-skate control
- Professional anti-resonance, die-cast aluminum platter with rubber mat
- AT-HS4 universal ½"-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
- AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application

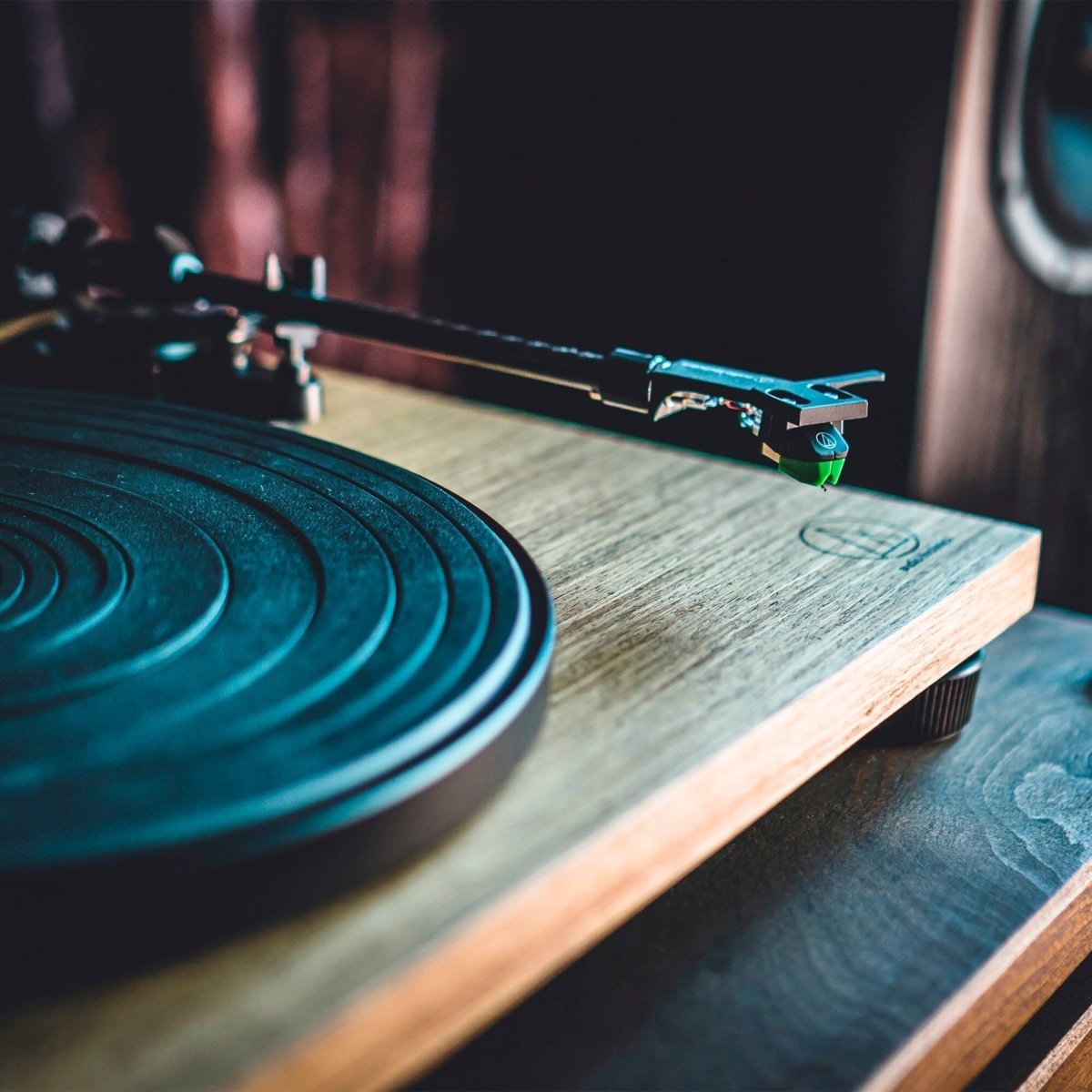

- Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest
- Anti-resonance MDF (medium density fiberboard) plinth with walnut simulated wood veneer
- Built-in switchable phono pre-amplifier for phono or line-level output
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
- Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover
| Turntable |
| Type |
Belt-drive manual turntable |
| Motor |
DC servo with Active Speed Stabilization |
| Drive Method |
Belt drive |
| Speeds |
33-1/3 RPM, 45 RPM |
| Turntable Platter |
Die-cast aluminum |
| Wow and Flutter |
< 0.15% WRMS (33 RPM) at 3 kHz |
| Signal-to-Noise Ratio |
>60dB |
| Output Level |
Pre-amp “PHONO”: 4.0 mV nominal at 1 kHz, 5 cm/sec
Pre-amp “LINE”: 200 mV nominal at 1 kHz, 5 cm/sec |
| Phono Pre-Amp Gain |
35 dB nominal, RIAA equalized |
| Power Supply Requirements |
100-240 V, 50/60 Hz, 0.5 A Max. |
| Dimensions |
420.0 mm (16.53") W x 340.0 mm (13.38") D x 116.9 mm (4.6") H |
| Weight |
4.72 kg (10.40 lbs.) without dust cover |
| Accessories Included |

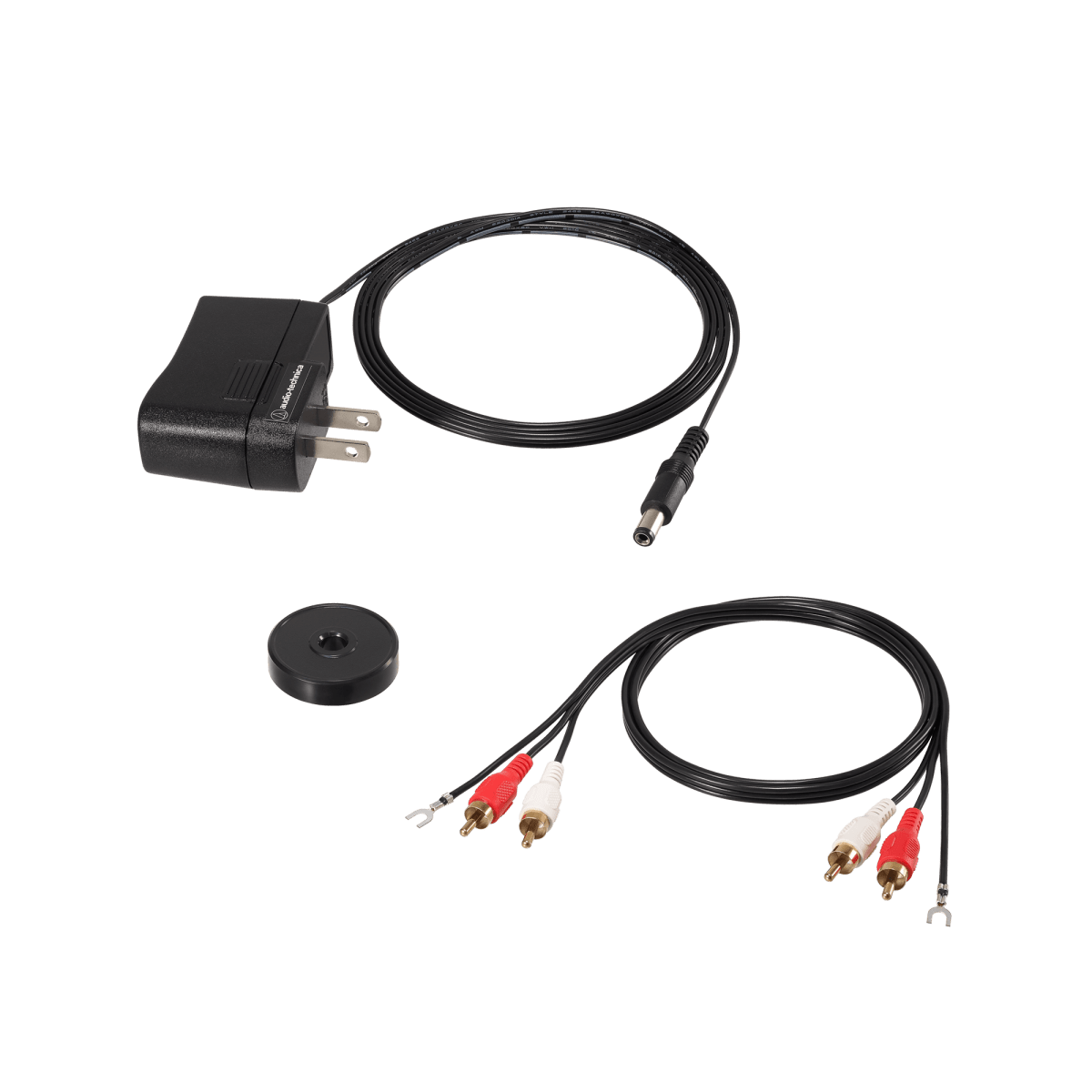

Dust cover, Platter, Turntable mat, Drive belt, Counterweight, AT-HS4 headshell, AT-VM95E stereo cartridge, 45-RPM adapter, RCA audio cable (approx. 1.0 m (3.3')), AC adapter (approx. 1.5 m (4.9')) (AD-SA1205WE), Dust cover hinges |
| Notes |
Tonearm type: Static balanced straight carbon tonearm
Effective arm length: 223.6 mm
Overhang: 18.6 mm
Tracking error angle: <2 degrees
Applicable cartridge weight: 12-17 g
Stylus pressure adjustment range: 0-3 g
AC Adapter: 12 V, 0.5 A
Replacement Stylus: AT-VMN95E |
