Powerful full-range loudspeaker with 132 dB max SPL and low-frequency performance down to 43 Hz (-10 dB)
F1 Model 812 Flex Array Loudspeaker

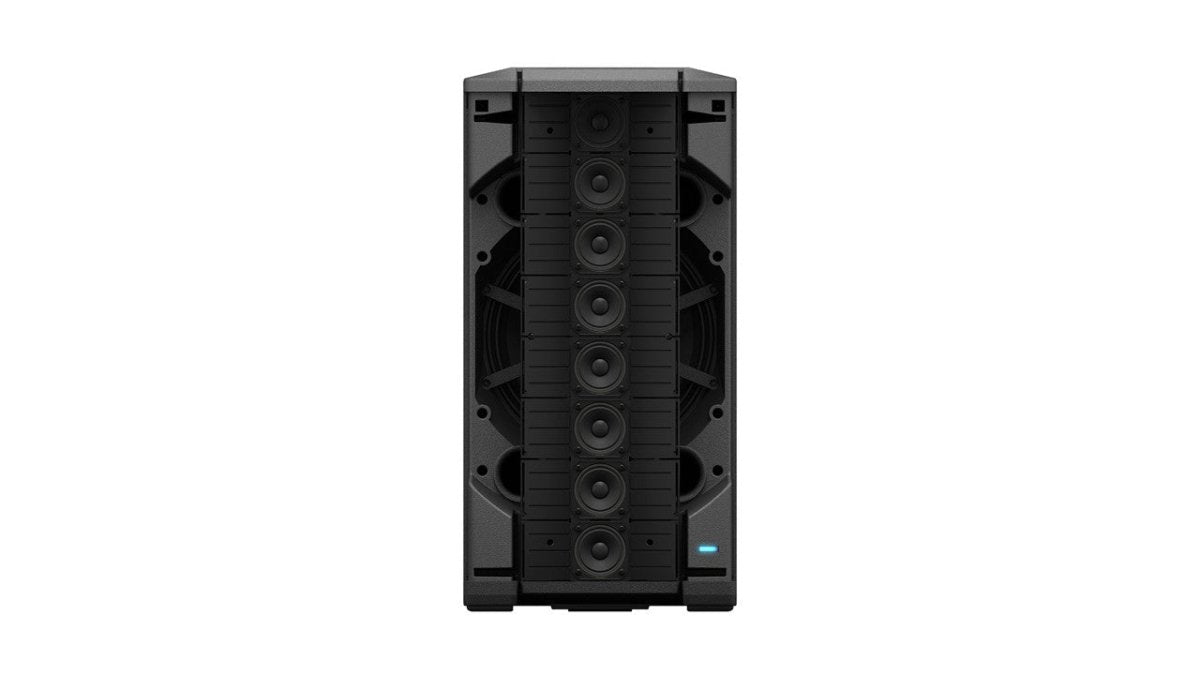

Powerful, standalone sound that flexes to meet your coverage needs — the Bose F1 Model 812 is a 1000-watt, full-range loudspeaker featuring Bose Flexible Array technology. At the heart of the F1 is a 12-inch woofer nested behind an array of eight high-output drivers. These nine speakers are supported by a lower crossover point than conventional loudspeakers — to give full voice to your sound and deliver clearer, more natural vocals and midrange clarity, even at high volumes. And you control the vertical coverage pattern. So, wherever you’re playing, you can adapt the PA to match the room. With the Bose F1 Model 812, your sound stands alone.
Features
Portable, standalone design with built-in 1000-watt amplifier and nine transducers: eight high-output drivers and a 12” high-power woofer
Lower crossover point than conventional loudspeakers for clear and natural vocals even at high volumes

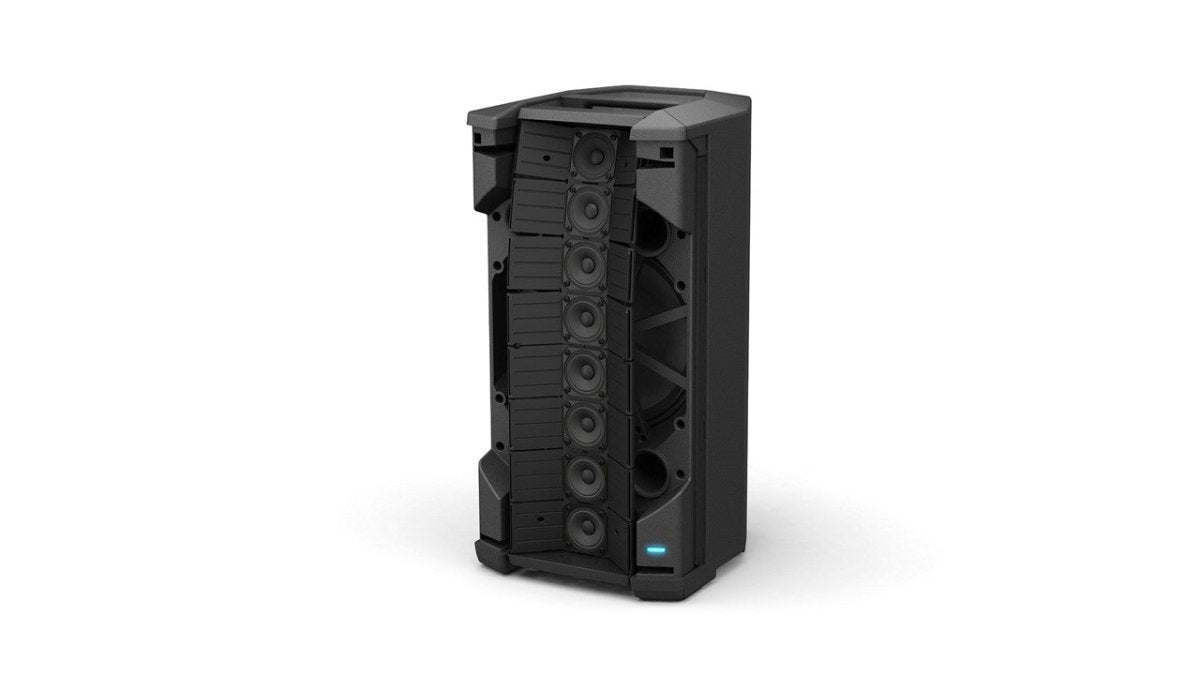

Flexible Array technology: easily adjust coverage pattern — Straight, C, J, or Reverse J — to optimize sound for different spaces: floor level, on stage, for raked seats or bleachers, and more
Automatic EQ adjusts to maintain optimum tonal balance for each coverage pattern
Built-in handles for easy transport and compatible with standard 35 mm speaker stands (sold separately)
Optional Bose F1 Subwoofer (sold separately) for even more low-frequency response
- Integrated speaker stand for F1 Model 812
- Built-in 1000-watt amplifier
- Hidden cable channels for clean appearance
- Built-in handles for easy transport
Applications
- Live music performances
- Bands of all styles
- Solo musicians
- Mobile DJs
- Houses of worship
- Schools and universities
- Resorts and hospitality venues
- Business presentations
Technical Specifications
System Performance
System Type Self powered, two-way
Frequency Response (-3 dB) 52 Hz - 15.5 kHz
Frequency Range (-10 dB) 43 Hz - 20 kHz
Nominal Dispersion 100° H x 40° V (C-position)
Maximum SPL @ 1 m 126 dB SPL (132 dB SPL peak)
Crossover Frequency 600 Hz 4th order Butterworth
Amplification
System Power 1000 W
Distortion at Rated Power 0.1% Max (30 Hz - 15 kHz)
System Limiter Dynamic limiter
Tranducers
Driver Compliment 8 x 2.25” mid-high drivers; 1 x 12” LF driver
Channels Channel 1 Channel 2
Front Power Indictaor Blue LED: system on Blue LED: system on

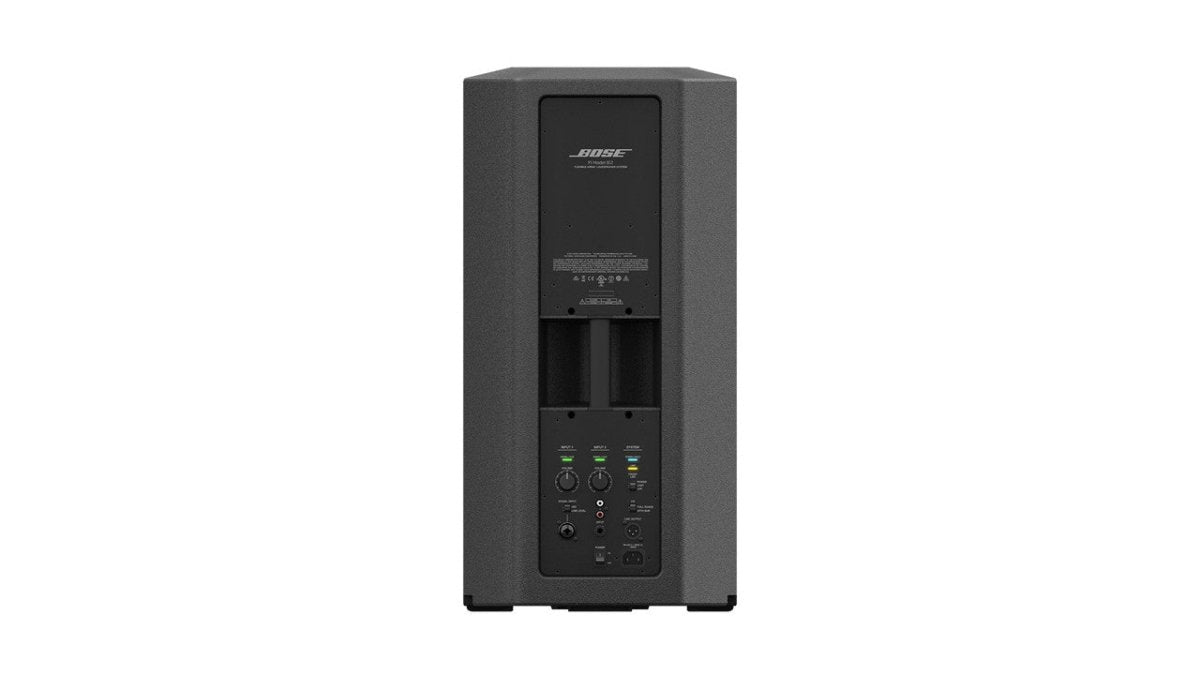

Rear Indicators POWER/FAULT, LIMIT, FRONT LED, SIGNAL INPUT POWER/FAULT, LIMIT, FRONT LED, SIGNAL INPUT
Input Connections XLR /1/4” XLR: Pin 1 (GND), Pin 2 (+), Pin 3 (-) 1/4” TS/TRS, (2) RCA
Channel Gain -Infinity to +34 dB (Line), -Infinity to +54 (MIC) -Infinity to +26 dB (RCA), -Infinity to +20 dB (1/4”)
Maximum Input Signal +24 dBu (Line), +18 dBu (MIC) +10 dBu (RCA), +20 dBu (1/4” Unbalanced), +24 dBu (1/4”)
Input Impedance 2.2 kΩ (MIC), 10 kΩ (Line) 10 kΩ (1/4”), 10 kΩ (RCA)
Controls Volume level, Signal input select, Front LED function select, EQ Volume level, Signal input select, Front LED function select, EQ
Additional Connections
Line Output XLR balanced
AC Mains IEC Connector
Physical
Enclosure High impact composite materials
Grille Powder-coated perforated steel grille
Dimensions (H x W x D) 664.66 mm x 334.3 mm x 372.5 mm (26.1” x 13.1” x 14.6”)
Net Weight 20.18 kg (44.5 lbs)
Power Supply Voltages
Universal AC power rating: 100-240 V, 50 / 60 Hz +/- 20 %, 200 W max
