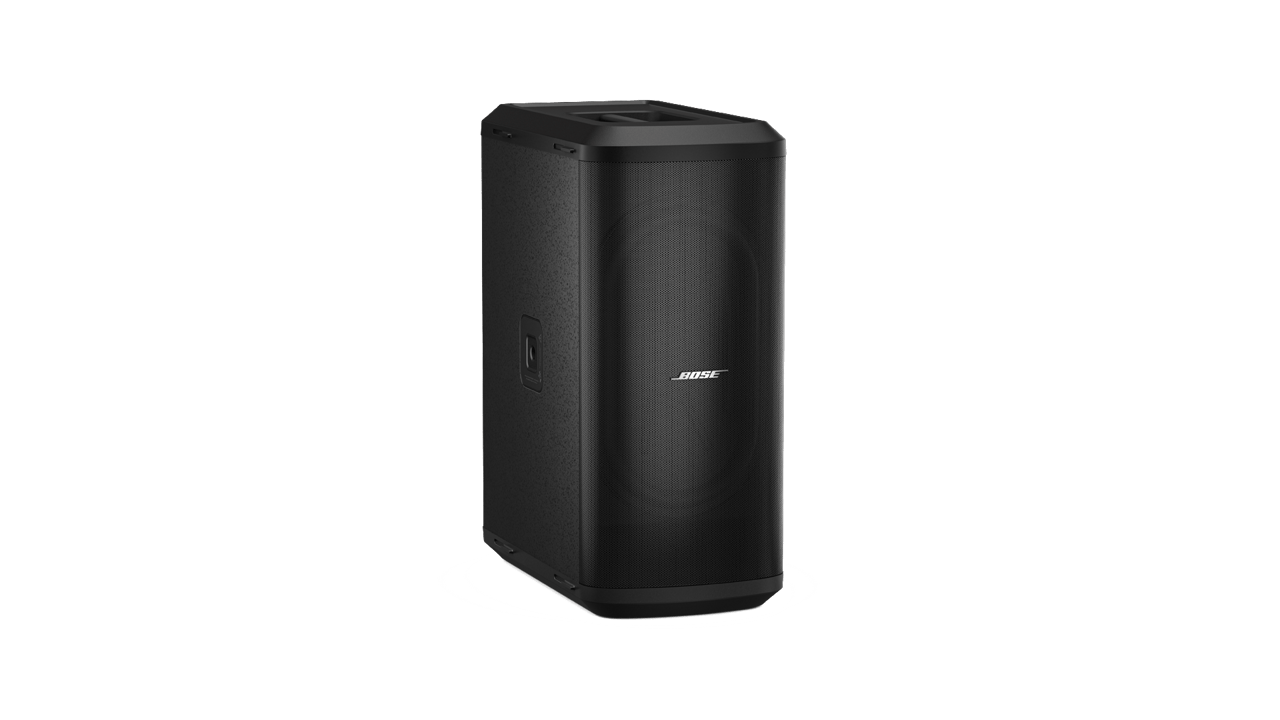

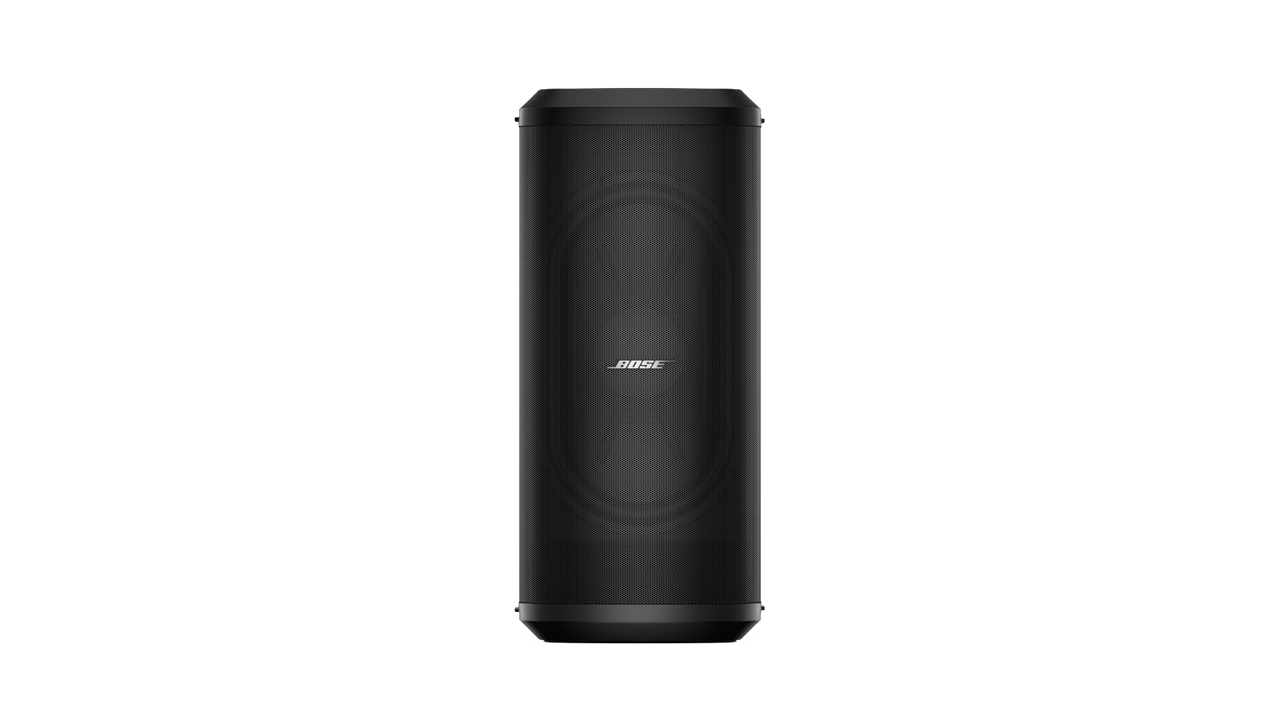

SUB2 - 1000-Watt Powered Subwoofer for Portable PA Systems
A powered, portable bass module, the Sub2 subwoofer combines with virtually any portable PA and delivers low-end performance down to 37 Hz. Its unique 10” × 18” high-excursion neodymium RaceTrack driver allows for an ultra-slim enclosure, delivering performance that rivals traditional round drivers without the cumbersome size, freeing up room in your vehicle and on the stage. Compared to the Sub1 subwoofer, Sub2 is the more powerful subwoofer option for the Bose L1 Pro32 system, combining seamlessly via single-cable SubMatch connectivity. You can stack multiple Sub2 subwoofers for even more low end — or to unleash Cardioid Mode for directional bass. With a Sub2, you get a subwoofer that easily fits onstage — and effortlessly fills up the dance floor.
Features
Pair with other powered loudspeakers via line input and output with selectable crossover modes, plus integrated threaded pole mount for use with Bose S1 Pro PA and more.
Technical Specifications
System Performance
Model Name Sub2
System Type Self-powered bass module
Frequency Response (–3 dB) 1 37 Hz to 180 Hz
Frequency Range (–10 dB) 29 Hz to 260 Hz
Nominal Vertical Coverage Pattern 0°
Nominal Horizontal Coverage Pattern Omnidirectional (with –10 dB rear rejection in Cardioid mode)
Calculated Maximum SPL @ 1 m, continuous 2 123.8 dB
Calculated Maximum SPL @ 1 m, peak 2 129.8 dB
Crossover 200 Hz
Transducers
Low Frequency 1 × RaceTrack low-frequency driver 10" × 18"
Low Frequency Voice Coil Size 3"
Driver Protection Dynamic limiting
Amplification
Type Class D
Low Frequency Amplifier Channel 1000 W
Cooling Convection cooling

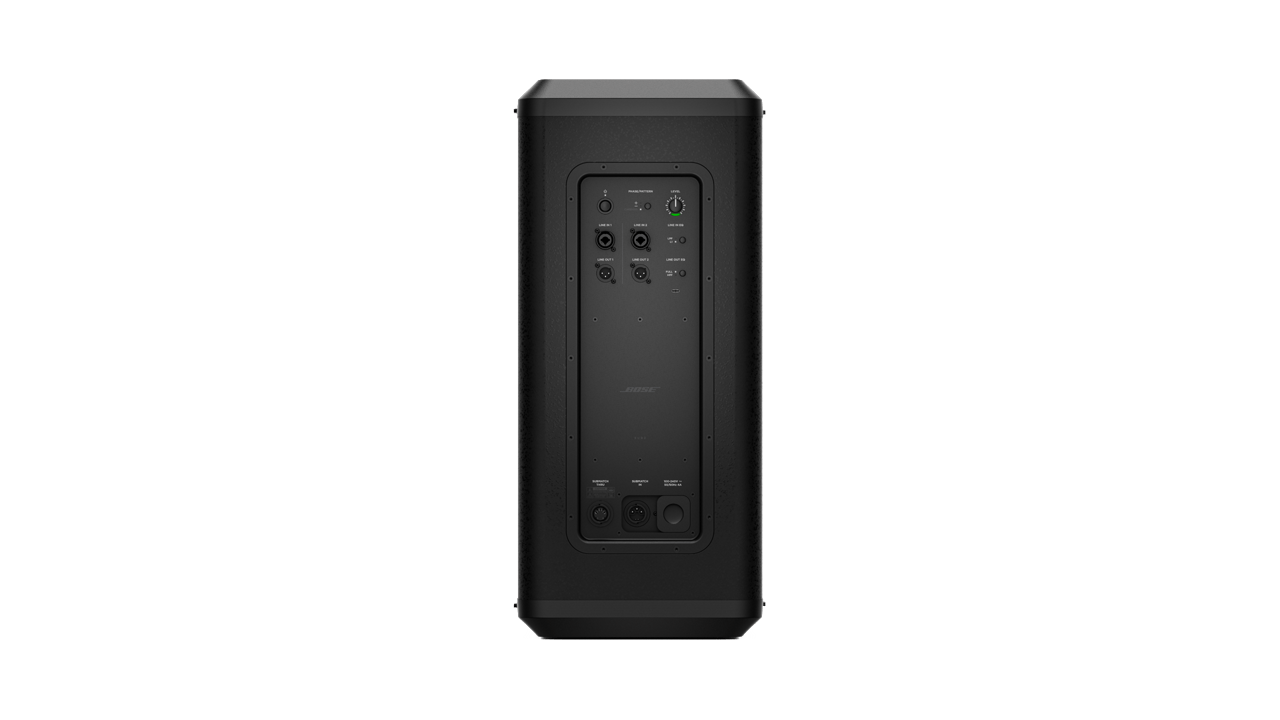

Onboard Mixer
Channels Two
Channel 1 & 2 Input: Audio Type Combination XLR or 1/4" TRS connector (mic/instrument/line)
Channel 1 & 2 Input: Impedance 100 KΩ
Channel 1 & 2 Input: Channel Gain +10 dB to +45 dB; from input to driver, controlled by volume control
Channel 1 & 2 Input: Max Input Signal +24 dBu
Channel 1 & 2 Output: Audio Type XLR connector, line-level, full-frequency bandwidth
SubMatch Input: Audio Type Bose proprietary multi-pin cable
SubMatch Thruput: Audio Type Bose proprietary multi-pin cable
LED Indicators Standby, Phase/Pattern selection, Input EQ selection, Output EQ selection, Sig-
nal/Clip Indicator
AC Power
AC Power Input 100–240 VAC (±20%, 50/60 Hz)
Input: Electrical Type IEC, SubMatch
Initial turn on inrush current 15.2 A at 120 V; 28.6 A at 230 V
Inrush current after AC mains interruption of 5 s 2.6 A at 120 V; 6.1 A at 230 V
PRO.BOSE.COM/L1 3 OF 6Technical Specifications
Enclosure
Color Black
Enclosures Material High-impact polypropylene, birch plywood
Grille Material Powder-coated perforated steel
Product Dimensions (H × W × D) 694 × 317 × 551 mm (27.3 × 12.5 × 21.7 in)
Shipping Dimensions (H × W × D) 660 × 385 × 790 mm (25.98 × 15.16 × 31.10 in)
Net Weight 3 23.0 kg (50.7 lbs)
Shipping Weight 27.7 kg (61.0 lbs)
