Bose 840920-4100

L1 Pro16 Portable Line Array System
AED 7,718
AED 7,718
Tax included. Shipping calculated at checkout.
Title
Notify Me

Free shipping on orders over 500 AED

Money back guarantee within 7 Days

AED 7,718
AED 7,718
Tax included. Shipping calculated at checkout.

L1 Pro16 Portable Line Array System

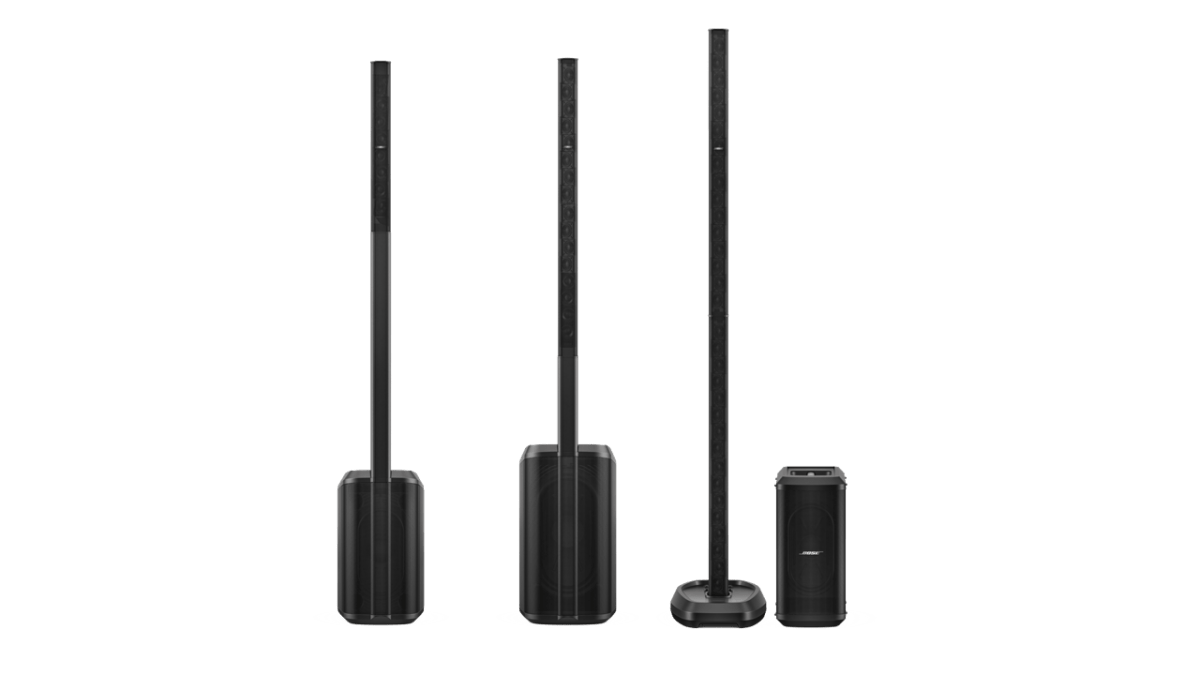

A balance of power and portability, the L1 Pro16 portable line array is a streamlined system with high output and extended low frequency range. With a 16-driver articulated J-shape line array, the L1 Pro16 delivers 180-degree horizontal sound coverage, great for small-to-medium sized clubs, bars, and other venues. An integrated subwoofer with a RaceTrack driver delivers powerful bass without the bulk; a built-in multi-channel mixer offers EQ, reverb, and phantom power, plus Bluetooth® streaming and access to the full library of ToneMatch presets; and the intuitive L1 Mix app places wireless control in your hands from your smartphone. For DJs, singer-songwriters, and small ensembles, the L1 Pro16 gives you expanded bandwidth and supreme clarity — the power to sound your best and simply perform.

Features

Balance power and portability with the L1 Pro system optimized for both on-the-go simplicity and expanded bandwidth, ideal for small-to-medium sized clubs, bars, and other venues

J-shaped line array featuring 16 articulated 2” neodymium drivers; 180-degree horizontal coverage, tight vertical control on top, wide dispersion on the bottom to cover audiences whether set up on the floor or an elevated stage, even off to the extreme sides in medium to large venues

Deliver premium full-range sound with consistent tonal balance for singer-songwriters, mobile DJs, small ensembles, and more

Maintain supreme vocal and instrument clarity with a J-shape extended-frequency line array featuring 16 articulated 2” neodymium drivers and wide 180-degree horizontal coverage

Bring more bass with less bulk with an integrated 10” × 18” high-excursion neodymium RaceTrack woofer; performance that rivals traditional round drivers with a smaller footprint

Go from vehicle to venue easily with a modular three-piece system that’s easier to pack, carry, and set up

Select between optimized system EQ presets for live music, recorded music, and more

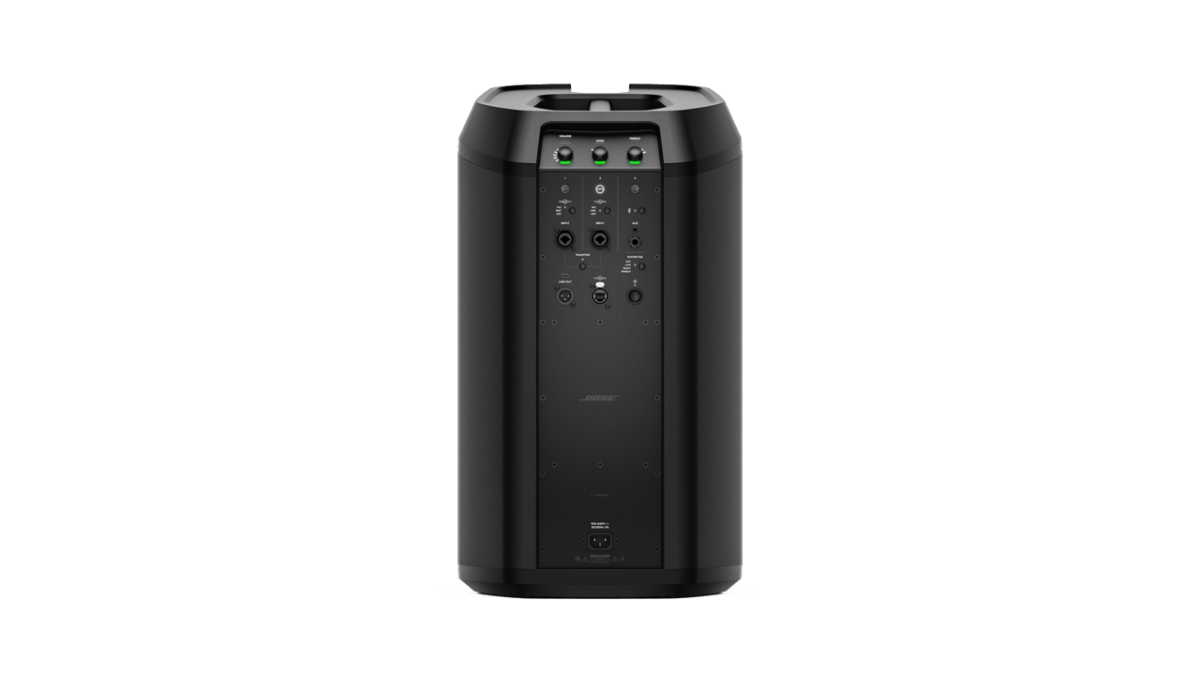

Connect various audio sources easily via built-in mixer with two combo XLR-1/4” phantom-powered inputs, 1/4" and 1/8" (3.5 mm) aux input, plus Bluetooth® streaming — and access system EQ and ToneMatch presets, volume, tone, and reverb via illuminated controls

Add in even more instruments and other audio sources via dedicated ToneMatch port; one cable provides both power and digital audio between the system and a Bose T4S or T8S mixer (optional)

Take wireless control with the L1 Mix app on your smartphone to adjust settings instantly from your phone, roam the room and fine-tune, and access the ToneMatch library of custom EQ presets

Stream high-quality Bluetooth® audio from compatible devices

 Technical Specifications
System Performance

Model Name
L1 Pro16
System Type
Self-powered line array with integrated bass module and onboard three-channel digital
mixer

Frequency Response (–3 dB)
1 42 Hz to 16 kHz
Frequency Range (–10 dB)
31 Hz to 18 kHz
Nominal Vertical Coverage Pattern
0°/30°
Vertical Beam Type
J-shape
Nominal Horizontal Coverage Pattern
180°
Calculated Maximum SPL @ 1 m,

continuous
2 118 dB
Calculated Maximum SPL @ 1 m, peak
2 124 dB
Crossover
200 Hz
Transducers

Low Frequency
1 × RaceTrack low-frequency driver 10" x 18"
Low Frequency Voice Coil Size
3"
High / Mid Frequency
16 × Articulated 2" drivers
High / Mid Frequency Voice Coil Size
3/4"
Driver Protection
Dynamic limiting
Amplification

Type
Two-channel, Class D
Low Frequency Amp Channel
1000 W
High / Mid Frequency Amp Channel
250 W
Cooling
Convection cooling
Onboard Mixer

Channels
Three
Channel 1 & 2 Input: Audio Type
Combination XLR or 1/4" TRS connector (mic/instrument/line)
Channel 1 & 2 Input: Input Impedance
10 KΩ (XLR); 2 MΩ (TRS)
Channel 1 & 2 Input: Trim
0 dB, 12 dB, 24 dB, 36 dB, and 45 dB analog gain steps automatically selected and com-
pensated by DSP

Channel 1 & 2 Input: Channel Gain
–100 dB to +75 dB (XLR); –115 dB to +60 dB (TRS); from input to driver, controlled by
volume knob

Channel 1 & 2 Input: Max Input Signal
+10 dBu (XLR); +24 dBu (TRS)
Channel 3 Input: Audio Type
1/8" TRS (stereo-summed, line), 1/4" TRS (line), Bluetooth® audio streaming
Channel 3 Input: Input Impedance
40 KΩ (3.5 mm); 200 KΩ (TRS)
Channel 3 Input: Channel Gain
–105 dB to +50 dB (3.5 mm); –115 dB to +40 dB (TRS); from input to driver, controlled
by volume knob

Channel 3 Input: Max Input Signal
+11.7 dBu (3.5 mm); +24 dBu (TRS)
ToneMatch: Audio Type
RJ-45 connector for ToneMatch cable connection, providing digital audio and power
connection for the optional T4S/T8S ToneMatch Mixer

Output: Audio Type
XLR connector, line level, full-frequency bandwidth
Bluetooth
Enabled Yes
Bluetooth
Types AAC or SBC for audio streaming, LE for system control
Channel Controls
3 digital rotary encoders
Phantom Power
Channel 1 & 2
LED Indicators
Standby, Channel Parameters, Signal/Clip, Mute, Phantom Power, ToneMatch, Bluetooth
LED, System EQ

Technical Specifications
AC Power

AC Power Input
100–240 VAC (±20%, 50/60 Hz)
Input: Electrical Type
IEC
Initial turn on inrush current
15.7 A at 120 V; 28.4 A at 230 V
Inrush current after AC mains interruption

of 5 s
2.4 A at 120 V; 8.1 A at 230 V
Physical

Color
Black
Enclosures Material
Power stand: High-impact polypropylene
Extension & Array: High-impact ABS

Grille Material
Powder-coated perforated steel
Product Dimensions (H × W × D)
2011 × 355 × 456 mm (79.2 × 14.0 × 18 in)
Shipping Dimensions (H × W × D)
1118 × 460 × 650 mm (44.02 × 18.11 × 25.59 in)
Net Weight
3 23.0 kg (50.6 lbs)
Shipping Weight
28.4 kg (62.6 lbs)
Included Accessories
Carry bag for arrays, IEC power cord
