KL 15 is a 2-way active speaker equipped a 15” woofer and 1” compression driver (1.35 voice coil).
The system is driven by a powerful and efficient 800 W amplifier featuring dBTechnologies’ advanced DSP processing where linear phase FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.
Moreover, users are enabled to enhance lower and upper frequencies with the convenient DSP preset function.

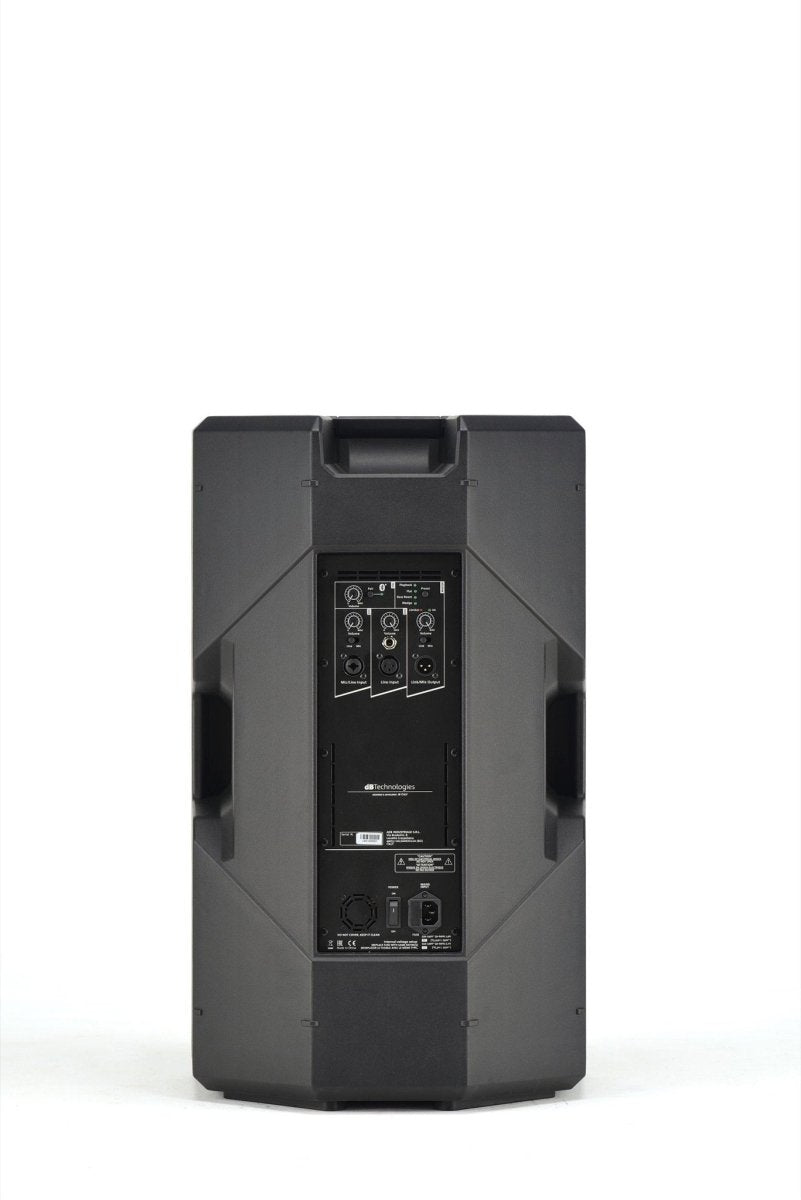

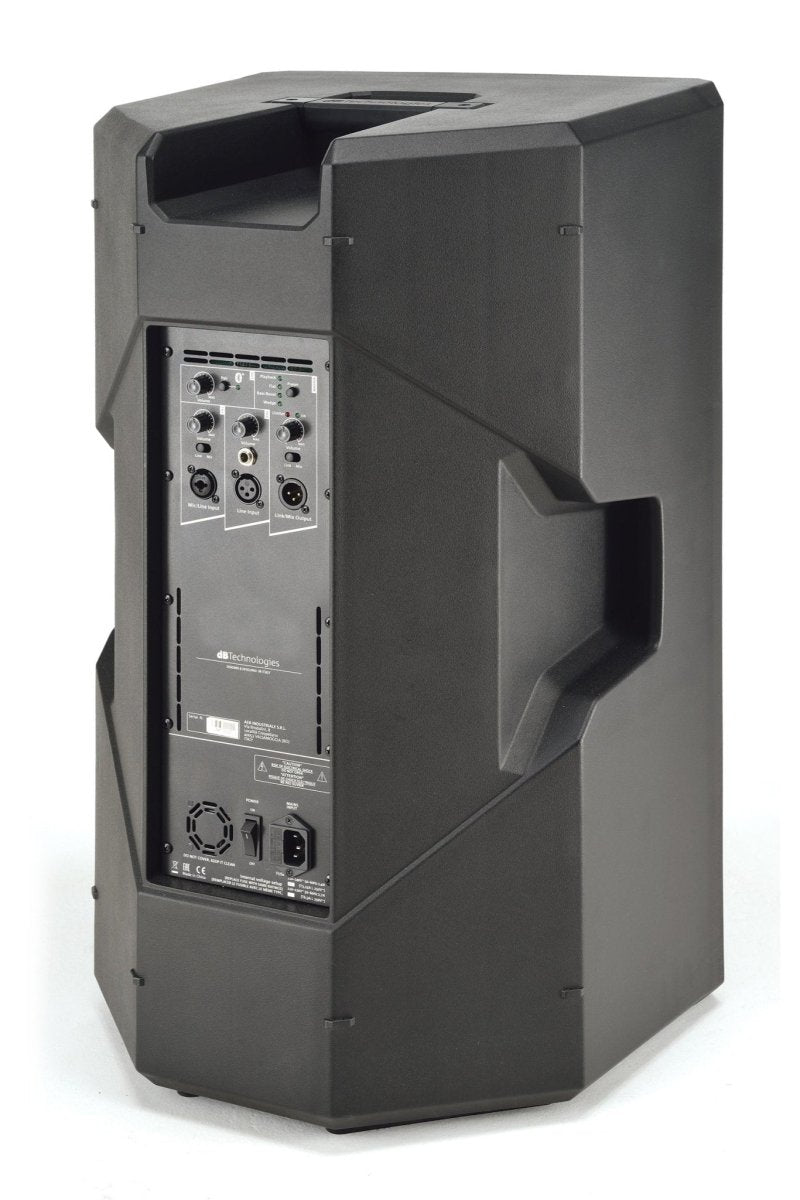

All cabinets feature 3 INPUT channels with independent level management: CH 1 is a balanced combo XLR/6.3 mm Jack line/mic INPUT with a switch to select source; Ch 2 is a balanced XLR and TRS jack IN; CH 3 allows to connect any device via Bluetooth® connection.
A balanced link XLR-M Output allows connection to a second loudspeaker or a mixer. A slide switch allow to select which signal is sent to the main output: LINK (the signal is taken before any level control) MIX (the signal is determined by the level control of each channel and Main).

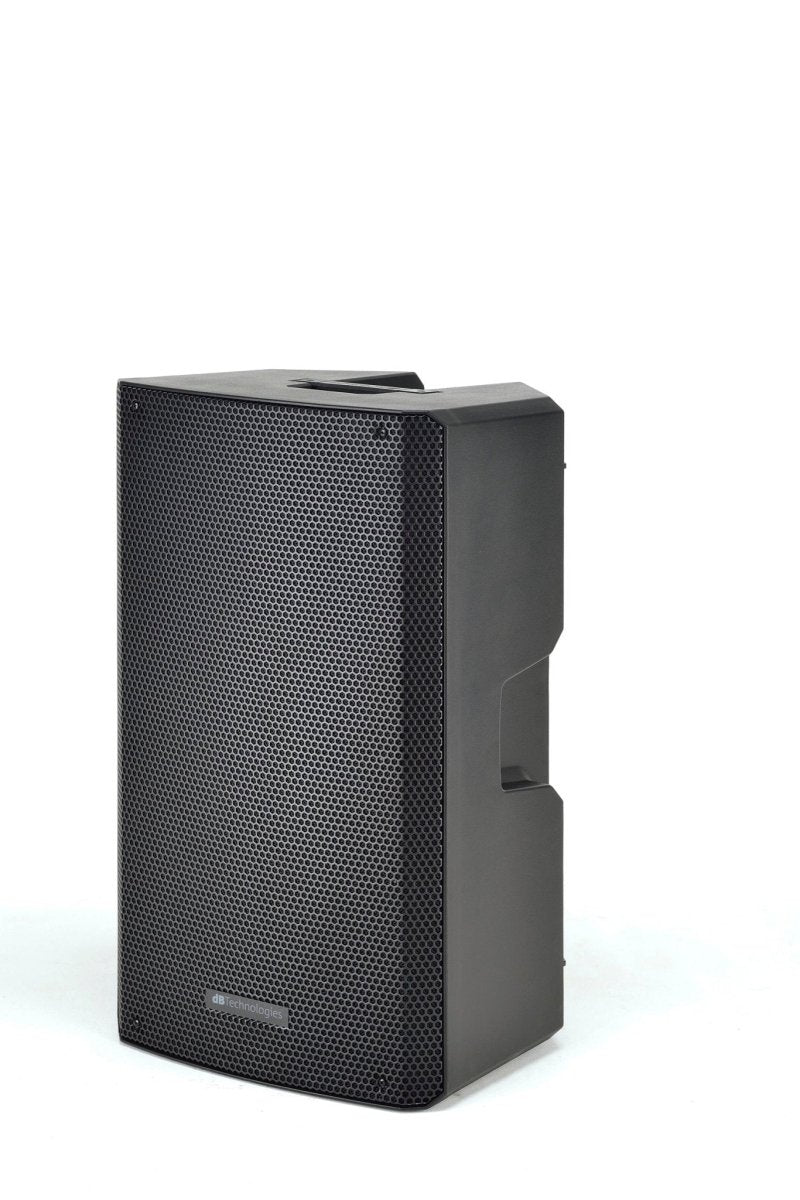

The solid and versatile cabinets come with a clean and contemporary full grille design, enhancing both portability thanks to 3 integrated 3 handles (1xside and 1 on top) and multifuncionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup with 2 tilt angle options (0° and 7.5°) to use KL on tripods or stacked on dBTechnologies Subs.
KL comes with its soft cover equipped with a pocket specially designed for cable storage.
Technical Data
Speaker Type 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB] 48 - 18.000 Hz
Max SPL 128 dB
HF 1" CD, 1.35"v.c
LF 15", 2.5" v.c.
Dispersion 90°x60°
Crossover Frequency 1800 Hz (24 dB/oct.)
Amplifier
Amp Technology Class D(LF)+Class AB (HF)
Power Peak (LF+HF) 800 W
Processor
Controls 1xVolume, 1xslide switch mic/line
Indicators power on/signal/limiter LEDs
Controller DSP 20/56 bit
AD/DA Converter 24 bit/ 48 Hz
Systems Presets Playback, Flat, Bass Boost, Wedge
Limiter Peak, RMS, Thermal
Advanced DSP Functions Linear Phase FIR Filters
Input
Signal Input 1x Combo(XLR/Jack)
Mic/Line 1xXLR/TRS
Bluetooth Input 1xBluetooth receiver
SIGNAL Output 1xXLR Male (LINK/MIX)
Mechanics
Housing Polypropylene
Handles 3 (2 on side 1 on top)
Angles Up Monitor Use 45°
Pole Mount 36 mm, double positioning
Width 430 mm (16.92 in)
Height 722 mm (28.44 in)
Depth 402 mm (15.82 in)
Weight 19.3 kg (42.54 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
