EIKON WM700M

PLL UHF Wireless Handheld Microphone System
AED 529
AED 529
Tax included. Shipping calculated at checkout.
Title
Notify Me

Free shipping on orders over 500 AED

Money back guarantee within 7 Days

AED 529
AED 529
Tax included. Shipping calculated at checkout.

PLL UHF Wireless Handheld Microphone System

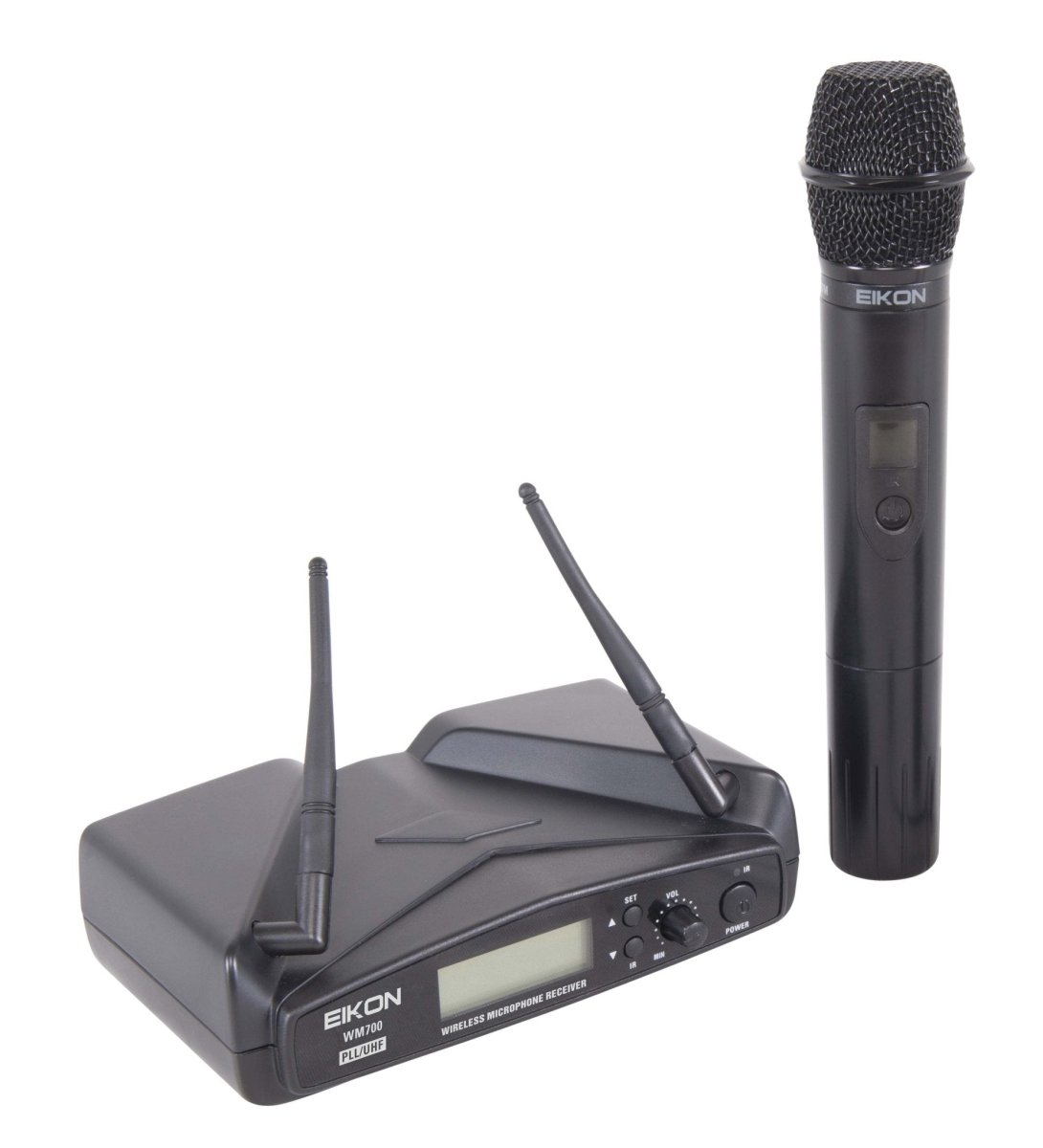

The WM700 wireless microphone system is a PLL controlled UHF variable frequency device, which provides reliable and high quality signal transmission, thanks also to the Digital Tone Pilot.

The WM700 wireless microphone system offers 5 different combinations with single channel receiver, dual channel receiver, handheld transmitter and bodypack transmitter with headset microphone.

The system is available in 2 different bands with groups of 16 or 32 pre-set frequencies to be used also simultaneously.

Each configuration includes an ABS case.

  • PLL –16 CH Selectable frequency wireless microphone system
  • 32 Khz Digital Tone Pilot
  • New durable Painting Finishing
  • Universal USB Power Adapter
  • 823 – 832 Mhz or 512 – 562 Mhz (WM700MA) frequency range
  • 30 meter/ 100 feet range
  • 50 Hz -15 KHz frequency response
  • 105 dB signal/ noise ratio
  • Cardioid dynamic capsule
  • Up to 4 frequency usable in the same location for each Frequency band.
  • ABS carrying and storage case



TECHNICAL SPECIFICATIONS

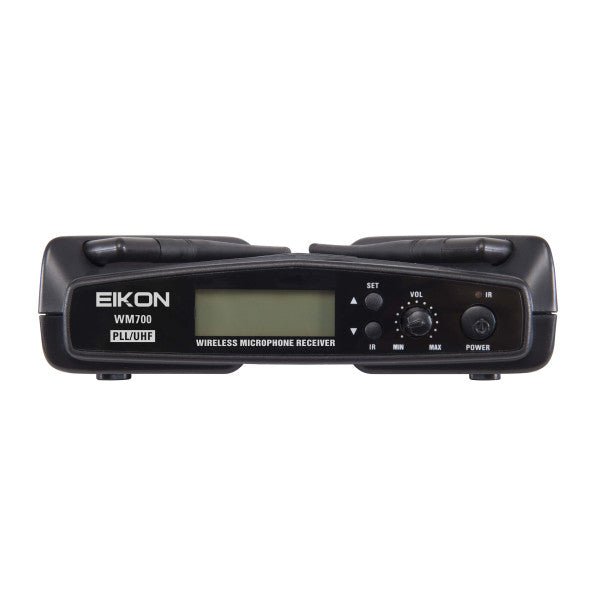

RECEIVER
Frequency Band UHF: 823-832 MHz or 512-562 Mhz (WM700MA)
RF Sensibility -105 dBm
RF Image/Spurious Rej. >70 dB
RF Interference Reject. >70 dB
RF Frequency Stability ±0.002%
THD Distortion <1%
S/N Ratio >105 dB
Frequency Response 50 Hz – 15 KHz (±3 dB)
Power Supply 5 V DC 500 mA
Dimensions (mm) 175 x 135 x 45

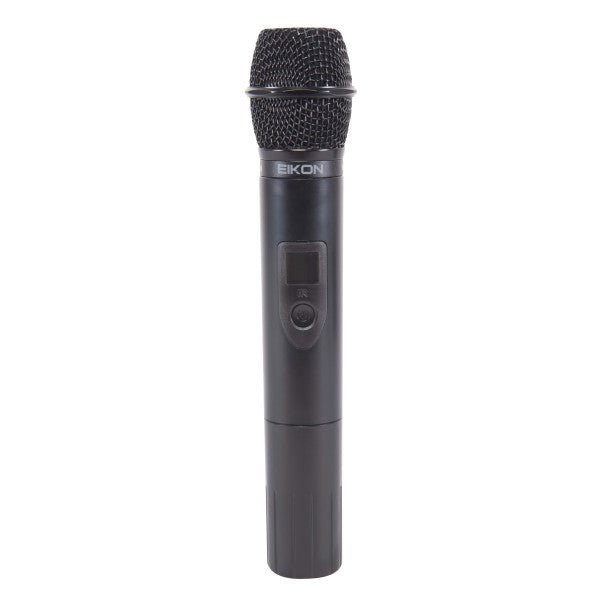

HANDHELD TRANSMITTER
RF Frequency Band UHF: 823-832 MHz or 512-562 Mhz (WM700MA)
RF Power <10 dBm
Modulation method FM (F3E)
RF Max deviation ±40 KHz
RF Frequency Stability ±0.002%
Spurious Emission under limits EN 300422
Frequency Response 50 Hz – 15 KHz (±3 dB)
Power Supply 2x1.5V AA alkaline bat
Dimensions (mm) 235 x 50 x 50
