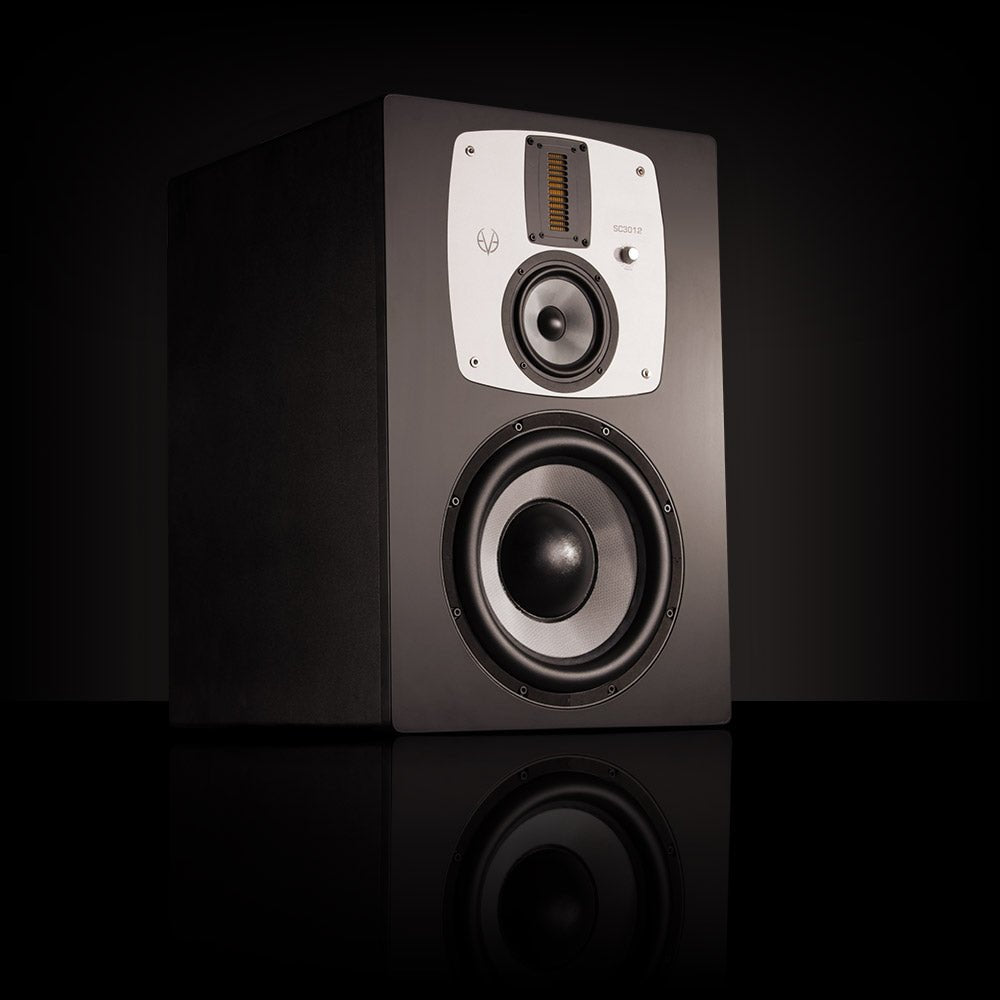

3-Way 12" Reference Monitor
Main reference monitoring system – the ultimate solution ensuring a full-range listening experience with perfect frequency balance, outstanding dynamic response and unbeatable sound imaging
For large recording and mastering studios, film and television post-production facilities, cinema applications and in-wall installations, nothing beats our main monitors SC3010 and SC3012.

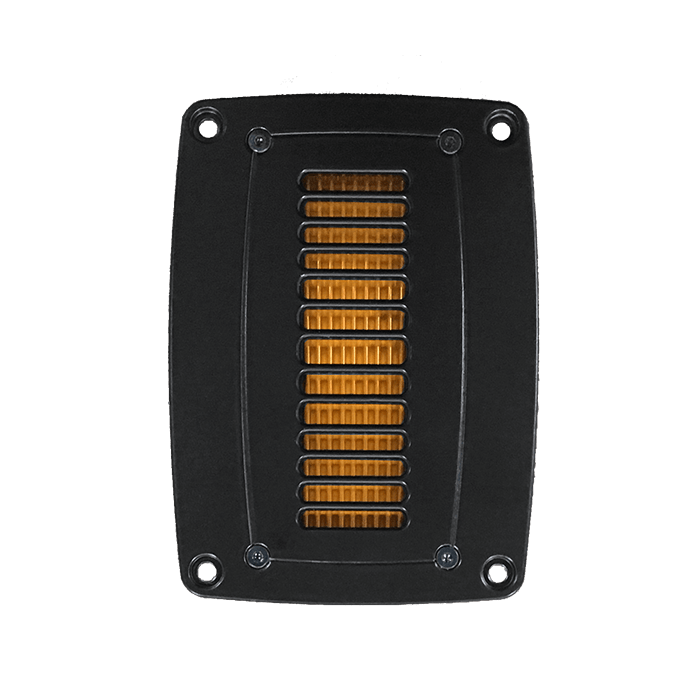

The SC3010/SC3012 systems feature a very powerful amplifier array, with one amplifier per driver. All drivers, and especially our proprietary AMT RS6 tweeter, are developed to deliver high sound pressure levels, extremely low distortion and an optimised directivity. Together with the ultra-stiff plywood front plate and a special inner construction to lower resonances, they offer a smooth directivity, highly defined mids, pristine high frequencies and a powerful and tight low end.
The SC3010/SC3012 systems are also built with in-wall installations in mind. In this case, simply adjust the filter controls to "inwall". A set of high-density foam is provided to close the backfiring bass ports.
The silver module housing the midrange driver and our AMT RS6 tweeter can be rotated by 90 degrees allowing you to set up the speakers either horizontally or vertically.
| Description | Main Reference Monitor |
|---|---|
| Dimensions (WxHxD) [mm] | 435 x 650 x 490 |
| Dimensions (WxHxD) ["] | 17.13 x 25.59 x 19.29 |
| Free-field frequency range (-3dB) | 25Hz - 21kHz |
| Tweeter | AMT RS6 |
| Midrange | 130mm/5" |
| Woofer | 300mm/12" |
| Cross-over frequency | 220Hz/1800Hz |
| Max SPL per pair | 130dBspl |
| Number of amplifiers | 3 |
| Output power (woofer) | 800W |
| Output power (mid-driver) | 250W |
| Output power (tweeter) | 250W |
| Protection limiter |  |
| Settings | |
| Volume | -inf. - +6dB |
| High-shelf filter (-5dB - +3dB) | > 3kHz |
| Mid EQ (-3dB - +3dB) | 1kHz |
| Desk filter boost (0dB - +3dB) | 80Hz |
| Desk filter cut (-5dB - 0dB) | 160Hz |
| Low-shelf filter (-5dB - +3dB) | < 300Hz |
| LED brightness setting | |
| Level-lock dip switch | |
| Filter-lock dip switch | |
| Input level dip switch | +7dBu/+22dBu |
| Connectors | |
| XLR in (impedance) |
(10k) |
| RCA in (impedance) |
(10k) |
| Power consumption | |
| Standby | < 1W |
| Full output | 1000VA |
| Misc. | |
| Weight [kg/lb.] | 44 / 97 |
