The Legacy of Accuracy: The Mackie HR824mk2 Studio Monitor
The Mackie HR824mk2 is a high-resolution active studio reference monitor that builds upon the legendary performance of the classic HR series. Designed for professional recording studios, post-production houses, and critical listening environments, the HR824mk2 delivers an incredibly accurate and transparent sound, ensuring your mixes translate perfectly to any system.
At its core, the HR824mk2 features an 8.75-inch high-precision, low-distortion LF transducer and a 1-inch titanium dome, ferrofluid-cooled tweeter. The patented Zero Edge Baffle™ minimizes diffraction for a crystal-clear image of your mix and a wide, even sweet spot. A key feature is the passive radiator on the rear, which provides a tight, articulate, and extended bass response, free from the port distortion found in many other monitors.
The HR824mk2 is equipped with a powerful FR (Fast Recovery) bi-amplification system (150W LF / 100W HF) and a suite of acoustic controls, including Acoustic Space, LF roll-off, and HF shelf, allowing you to precisely tune the monitor to your room. With its robust, internally braced MDF cabinet, the HR824mk2 is a true professional tool for any serious audio engineer.
Key Features:
-
High-Resolution Active Studio Monitor: Delivers an ultra-linear frequency response for accurate and transparent mixing and mastering.
-
8.75-inch High-Precision Woofer: A low-distortion LF transducer provides a tight and powerful bass response.
-
1-inch Titanium Dome Tweeter: A ferrofluid-cooled tweeter delivers a pristine and detailed high-frequency reproduction.
-
Zero Edge Baffle™: A cast-aluminum baffle design minimizes diffraction for a crystal-clear stereo image and a wide sweet spot.
-
Passive Radiator: Provides a tight, articulate, and extended low-end response without port noise or distortion.
-
FR Series Bi-amplification: A powerful 150W (LF) and 100W (HF) amplification system for a clean and dynamic performance.
-

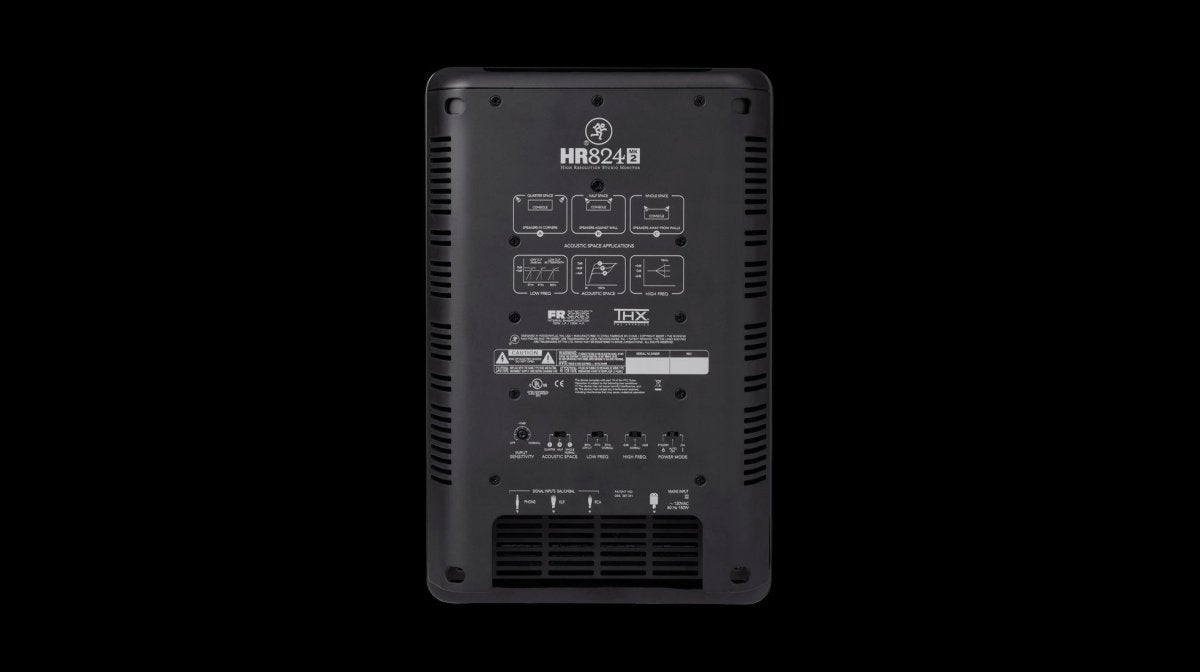

Acoustic Space Control: A 3-position switch allows you to tailor the bass response to your specific room placement.
-
Professional and Durable Construction: An internally braced, 3/4-inch thick MDF cabinet with a high-gloss piano black finish.
Technical Specifications:
-
Frequency Response: 37 Hz – 20 kHz, ±1.5 dB
-
Low Frequency Cutoff: -3 dB @ 35 Hz
-
High Frequency Cutoff: -3 dB @ 22 kHz
-
SPL @ 1 meter, 7.5 dBu into Balanced Input: 100 dB SPL @ 1m
-
Maximum SPL Per Pair: 121 dB SPL @ 1m
-
LF Power: 150 watts
-
HF Power: 100 watts
-
LF Driver: 8.75-inch (222 mm)
-
HF Driver: 1-inch (25 mm)
-
Inputs: XLR, TRS, RCA
-
Cabinet: 3/4" (19 mm) thick MDF with 1" (25 mm) thick front baffle board
-
Dimensions (H x W x D): 16.8" x 10.8" x 13.8" (427 x 273 x 351 mm)
-
Weight: 34.6 lbs (15.7 kg)
What's in the box:
-
HR824mk2 Studio Monitor
-
Power Cord
-
Owner's Manual
