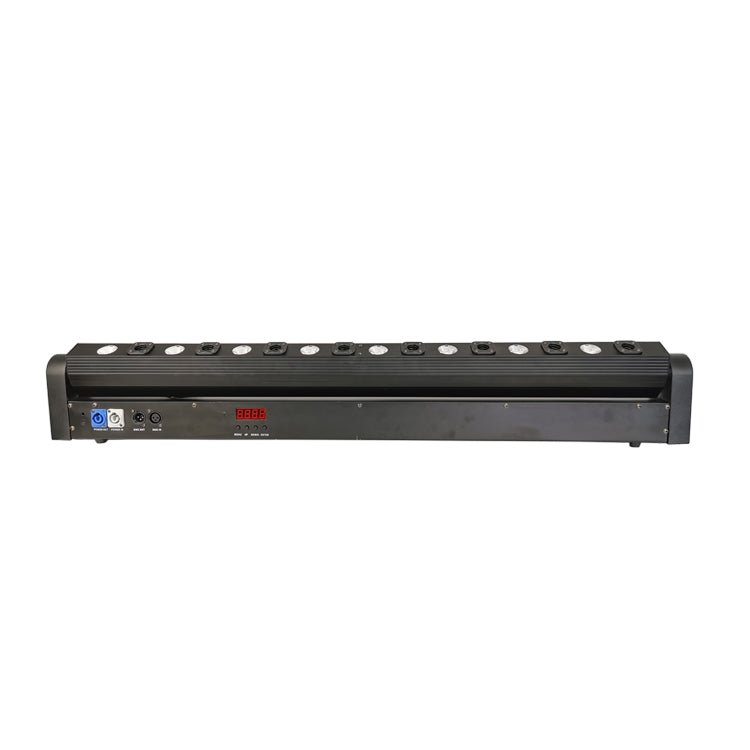

Mega Prolites MJ-3X18AR RGB

Laser beam 8RGB + 8LED
AED 2,128
AED 2,128
Tax included. Shipping calculated at checkout.

Free shipping on orders over 500 AED

Money back guarantee within 7 Days

AED 2,128
AED 2,128
Tax included. Shipping calculated at checkout.



8+8 LED Lattice laser lamp


Product Notes:
1. In order to ensure the service life of the product, the product should not be placed
in a wet or leaky place, not to mention.
1 can work in an environment with temperature over 60 degrees
2. Do not place the product in a place that is easy to loosen or shake.
3. In order to avoid the danger of electric shock, the maintenance request of this
product helps professional maintenance.
4. When the bulb is used, the change of power supply voltage should not exceed
(+10%). If the voltage is too high, the life of the bulb will be shortened. If the voltage
is too low, the light color of the bulb will be affected.
5. After power failure, it takes 5-10 minutes for the lamp to be fully cooled before it
can be re-energized.
6. To ensure the normal use of this product, please read the instructions carefully.
Product and Functional Effect Introduction:
·Using those that meet the international standards for using laser generators
Semiconductor laser generator, laser source has long service life and high stability.
Operation is very simple, humanized design, dimming without flicker, jitter and so on.
It can be used in photography, photography, television and other places where lighting
requirements are strict.
Classic effects: three-dimensional laser effects such as beam network, vast sea of
clouds, 10,000 Zhang light, amplification and reduction, space-time tunnel, etc.Menu
function:

Installation instructions for lamps:
The lamp can be placed horizontally, hanging diagonally and upside down, and you
must pay attention to the installation method when hanging diagonally and upside
down.
Fixing installation of lamps and lanterns: Before positioning the lamps and lanterns,
ensure the stability of the installation site. When reversing the hanging installation,
make sure that the lamps do not fall down on the support frame, and use safety ropes
to pass through the support frame and the lamp handle. Carry out auxiliary hanging;
to ensure safety. Prevent the lamp from falling and sliding. When the lamp is installed
and debugged, pedestrians are prohibited from passing underneath. Regularly check
whether the safety rope is worn and the hook screw is loose. If the hanging
installation is unstable, the lamp will be caused The manufacturer does not bear any
responsibility for all the consequences of the fall.

8+8 LED Lattice laser lamp

safety warning!
In order to ensure that you use the lamp safely and correctly, please read the following
safety tips carefully before use to avoid unnecessary failures and injuries.
1.Non-professionals, do not disassemble the lamps and the accessories in the lamps
without authorization.
2. AC power supply: Check whether the local power supply meets the product's rated
voltage requirements.
3. This lamp is designed according to the type of electric shock protection. The lamp
must be connected to a fully grounded power supply system, and the ground wire of
the lamp must be connected to the ground wire of the power supply system. Do not
use a power cord with a damaged insulation layer, and do not The power cord is
connected to other wires.
4. When the lamp is installed and positioned, the minimum distance between any
point on the surface of the lamp and any combustible and explosive objects is 10
meters, and the distance from the irradiated object is 2.5 meters. Please do not install
the lamp directly on the surface of burnable materials.
5. The ambient temperature of the lamp: (-10 degrees + 40 degrees), the maximum
temperature of the surface of the lamp is 80 degrees, and the lamp should be kept
away from liquid substances and humid environments.
6.Before using the lamp, make sure that the lamp is well grounded, and do not install
and remove any parts of the lamp with power.
7.When installing the lamp, the fixing screws must be tightened, with safety cables,
and regular inspections.
8. It is recommended that the continuous working time of the lamp should not exceed
10 hours, and the interval between continuous starting of the lamp should not be less
than 10 minutes. Otherwise, the lamp will not be triggered normally due to the
overheating protection of the lamp.
9.During use, if the lamp is abnormal, stop using the lamp in time.
10.When the bulb reaches the rated service life, it should be replaced in time,
otherwise there will be a dangerous accident of bubble explosion.
11.The rotating parts of the lamp and the pasted accessories must be checked regularly,
and if there is looseness, the shaking should be reinforced in time to prevent
accidents.
12.The lamp adopts strong wind cooling, which is easy to accumulate dust. It must be
cleaned once a month, especially the heat dissipation vent, otherwise it will be
blocked by the accumulation of dust, resulting in poor heat dissipation and
abnormalities in the lamp.

8+8 LED Lattice laser lamp

Menu function:
ADDR A001-A512 Address Code
CHND 23CH,25CH channel selection
SLND MAST, SLAV
SHND soud, auto sound control, self-propelled selection
MANU laser1-laser6, led7-led12, STROBE, manual test
SENS Sound Control Sensitivity (0 Off, 100 Most Sensitive)
LED ON, OFF backlight switch
TEST automatic test
VER V100 software version number

DMX channel function
23CH
1.Motor stroke: 0-255 0-540
2. Motor speed: 0-255 from fast to slow
3. Main switch: 0-127 off 128-255 on
4. Stroboscopic: 0-15 light, 16-255 slow to fast stroboscopic
5. Laser 1: 0-127 Off 128-255 On
6. Laser 2: 0-127 Off 128-255 On
7. Laser 3: 0-127 Off 128-255 On
8. Laser 4: 0-127 Off 128-255 On
9. Laser 5: 0-127 Off 128-255 On
10. Laser6: 0---127 Off 128---255 On
11. Laser7: 0---127 Off 128---255 On
12. Laser8: 0---127 Off 128---255 On
13. LED1: 0---127 Off 128---255 On
14. LED2: 0---127 Off 128---255 On
15. LED3: 0---127 Off 128---255 On
16. LED4: 0---127 Off 128---255 On
17. LED5: 0---127 Off 128---255 On

8+8 LED Lattice laser lamp
18. LED6: 0---127 Off 128---255 On
19. LED7: 0---127 Off 128---255 On
20. LED8: 0---127 Off 128---255 On
21. Effect: 0-15 No Function 16-255 Self-propelled Effect (128-255 Motor Controlled
by CH1 and CH2)
22. Effect speed: 0-255 from slow to fast
23. Reset: 0-249 no function, 250-255 complete machine reset (value stays for 5
seconds)

25CH
1.Motor stroke: 0-255 0-540
2. Motor speed: 0-255 from fast to slow
3. Main switch: 0-127 off 128-255 on
4. Stroboscopic: 0-15 light, 16-255 slow to fast stroboscopic
5. Laser 1: 0---127 Off 128---255 On
6. Laser 2: 0---127 Off 128---255 On
7. Laser 3: 0---127 Off 128---255 On
8. Laser 4: 0---127 Off 128---255 On
9. Laser 5: 0---127 Off 128---255 On
10. Laser 6: 0---127 Off 128---255 On
11. Laser 7: 0---127 Off 128---255 On
12. Laser 8: 0---127 Off 128---255 On
13. LED1: 0---127 Off 128---255 On
14. LED2: 0---127 Off 128---255 On
15. LED3: 0---127 Off 128---255 On
16. LED4: 0---127 Off 128---255 On
17. LED5: 0---127 Off 128---255 On
18. LED6: 0---127 Off 128---255 On
19. LED7: 0---127 Off 128---255 On
20. LED8: 0---127 Off 128---255 On

8+8 LED Lattice laser lamp

21. Laser Effect: 0-15 No Function
16---21 Effect1, 22---26Effect2, 27---31Effect3,
32---36Effect4, 37---41Effect5, 42---46Effect6,
47---51Effect7, 52---56Effect8, 57---61Effect9,
62---67Effect10, 68---72Effect11, 73---77Effect12,
78---82Effect13, 83---87Effect14, 88---92Effect15,
93---97Effect16, 98---102Effect17,103---107Effect18,
108---113Effect19,114---118Effect20,119---123Effect21,
124---128Effect22,129---133Effect23,134---138Effect24,
139---143Effect25,144---148Effect26,149---153Effect27,
154---158Effect28,159---164Effect29,165---169Effect30,
170---174Effect31,175---179Effect32,180---184Effect33,
185---189Effect34,190---194Effect35,195---199Effect36,
200---204Effect37,205---210Effect38,211---215Effect39,
216---220Effect40,221---225Effect41,226---230Effect42,
231---235Effect43,236---240Effect44,241---245Effect45,
22. Laser effect speed: 0-255 from slow to fast
23. Motor Effect: 0-15 No Function
16---50 Effect1
51---84 Effect2
85---118 Effect3
119---153Effect4
154---187Effect5
188---221Effect6
222---255Effect7
24. Motor effect speed: 0-255 from slow to fast
25. Reset: 0-249 no function, 250-255 complete machine reset (value stays for 5
seconds)

8+8 LED Lattice laser lamp

Maintenance:
1. Eliminate the artificial laying of dust, dirt and fume into the lamp body as far as
possible, and keep the laser performer clean as possible in the environment.
2. Please use professional glass cleaner regularly every month and wash the mirror
with flannel cloth to ensure maximum laser brightness output and prolong the service
life of the light source.
