DJ Cartridges

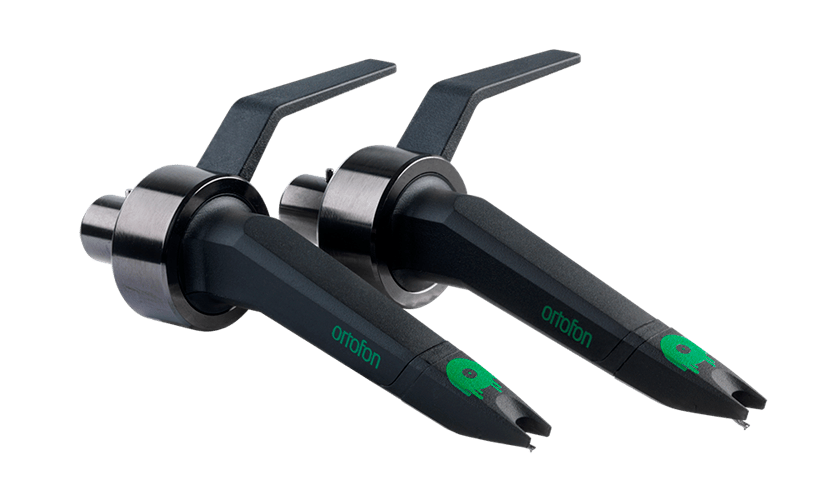

The MIX is a general-purpose model for scratch and back-cueing
• Provides great performance and durability. It has a good quality spherical stylus, a solid cantilever, and serves general purposes well.
• It offers both reasonable output, high sound quality and a good tracking ability for virtually any style of music.
• With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges.
Excellent price-to-performance ratio.
Concorde MIX technical data
- Stylus Type Spherical
- Tracking Force 3.0 g
- Output Voltage 6 mV
- Frequency Range 20-20.000 Hz
Output voltage at 1000Hz, 5cm/sec. - 6 mV
Channel balance at 1kHz - 1,5 dB
Channel separation at 1kHz - 20 dB
Channel separation at 15 kHz - 15 dB
Tracking ability at 315 Hz at recommended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical R 18 μm
Tracking force range - 2 - 4 g
Tracking force recommended - 3 g
Internal impedance, DC resistance - 700 Ohm
Internal inductance - 450 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Cartridge weight - 18,5 g
Replacement stylus unit - MIX
