Ultra-affordable, Compact 2x2 USB Audio Interface
Create right away!
Ultra-affordable, surprisingly powerful, and small enough to fit in your pocket, AudioBox GO™ gives you all the connections you need to record on the move or in your home studio. Whether you’re recording a guitar riff at rehearsal or a full-length solo album in your bedroom, you’ll have all the tools you need to create like a pro, right from the start. Compatible with both computers and mobile devices, the AudioBox GO is perfect for anyone who wants to get started recording fast.
Studio One® Prime and the Studio Magic software bundle for Mac® and Windows® are also included, so your new recording studio will be up and running right out of the box. With AudioBox GO , you can record wherever sound takes you and make recording the adventure that it should be.
AudioBox GO Features
- Ultra-affordable, ultra-compact, versatile USB-C® compatible audio interface for home and mobile recording with professional sound quality
- Recording Software included: Get started right away with Studio One® Prime DAW recording software and Studio Magic software bundle including music tutorials, tons of sound samples and virtual instruments.
- Bus-Powered: AudioBox GO is powered by your connected USB-C® device so no need for an additional power supply – works great with both Apple® and Android™ devices.

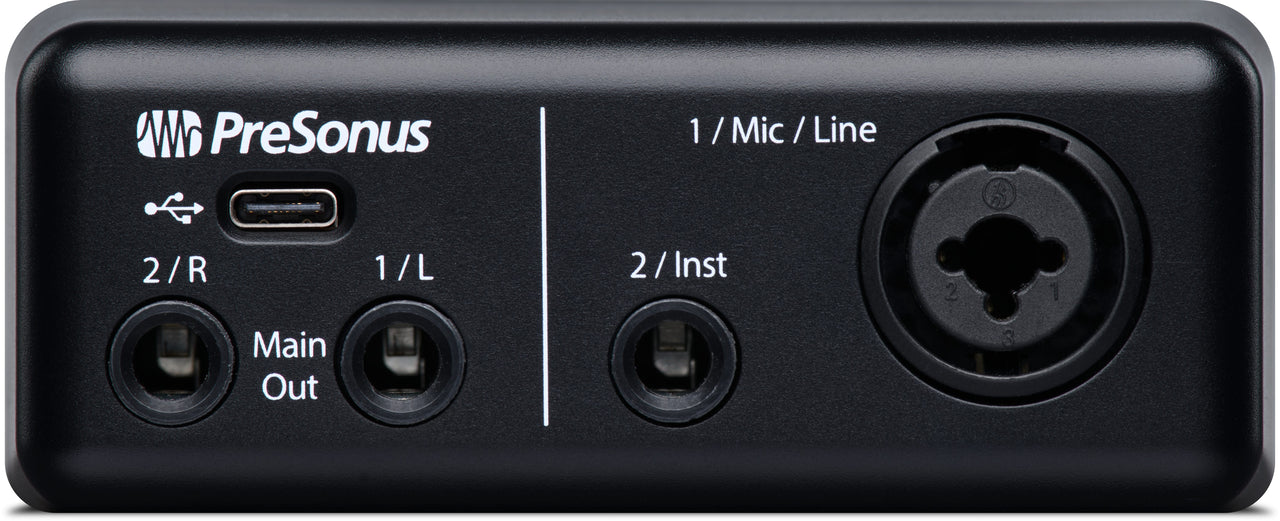

- Connect an instrument and a microphone at the same time: 1 TS instrument input to record guitar or bass and 1 XLR mic/line combo input to record vocals or a keyboard, drum machine, or other line-level instrument.
- Headphone Connection: 1 TRS 1/4” stereo headphone output with mix control lets you create a custom blend between your inputs and playback so you can monitor your recording with zero latency.
- Speaker Connections: 2 balanced TRS 1/4” main outputs for studio monitors or speakers.
- Professional Audio Quality: Studio-grade converters allow for up to 24-bit/96 kHz recording and playback assuring the highest quality possible.
- Professional XMAX-L Mic Preamp: Your microphone will sound its best thanks to this custom low-noise, high-headroom design with 50 dB of adjustable gain and switchable +48V phantom power for professional XLR condenser mics
Technical Specifications
Microphone Preamp
|
|
| Type |
XLR female, balanced (via Combo connector Input 1) |
| Frequency Response (±3.0 dB) |
20 Hz to 20 kHz |
| Input Impedance (Balanced) |
1.4kΩ |
| THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) |
< 0.004% |
| Gain Control Range (± 1 dB) |
50 dB (0 dB to +50 dB) |
| Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N) |
+10 dBu (± 0.5 dBu, min gain) |
| Phantom Power (±2 VDC) |
+48 VDC (±2 VDC) |
Line Input
|
|
| Type |
¼" TS female, balanced (via Combo connector Input 1) |
| Input Impedance |
750 kΩ |
| Max Input Level |
+19 dB |
| Gain Control Range |
50 dB (-20 dB to +30 dB) |
Instrument Input
|
|
| Type |
¼" TS female, unbalanced (Input 2) |
| Input Impedance |
750 kΩ |
| Max Input Level |
+13 dB |
| Gain Control Range |
50 dB (0 dB to +50 dB) |
Line Outputs
|
|
| Type |
¼" TRS female, impedance balanced |
| Frequency Response |
20 Hz to 20 kHz, +/-0.2 dB |
| Output Impedance |
51Ω |
| THD+N (1 kHz, 20 kHz BW, A-wtd) |
<0.007% |
Headphone Output
|
|
| Type |
¼" TRS active stereo |
| Maximum Output |
30 mW/ch. @ 60Ω Load |
| Frequency Response (±1.0 dB) |
20 Hz - 20 kHz, +- 0.5 dB |
| THD+N (1 kHz, max gain, 20 kHz BW, A-wtd) |
<0.08% |
| S/N Ratio (1 kHz, max gain, 20 kHz BW, A-wtd) |
90 dB |
Digital Audio
|
|
| Connection Type |
USB 2.0 over USB-C® compatible connection |
| ADC Dynamic Range (A-wtd, 48 kHz Sample Rate) |
90 dB |
| DAC Dynamic Range (A-wtd, 48 kHz Sample Rate) |
102 dB |
| Bit Depth |
24 |
| Reference Level for 0 dBFS |
+10 dBu |
| Supported Sample Rates (kHz) |
44.1, 48, 88.2, 96 |
Physical
|
|
| Height |
1.73” (44 mm) |
| Depth |
3.3" (84 mm) |
| Width |
4.25" (108 mm) |
| Weight |
0.51 lb (0.24 kg) |
