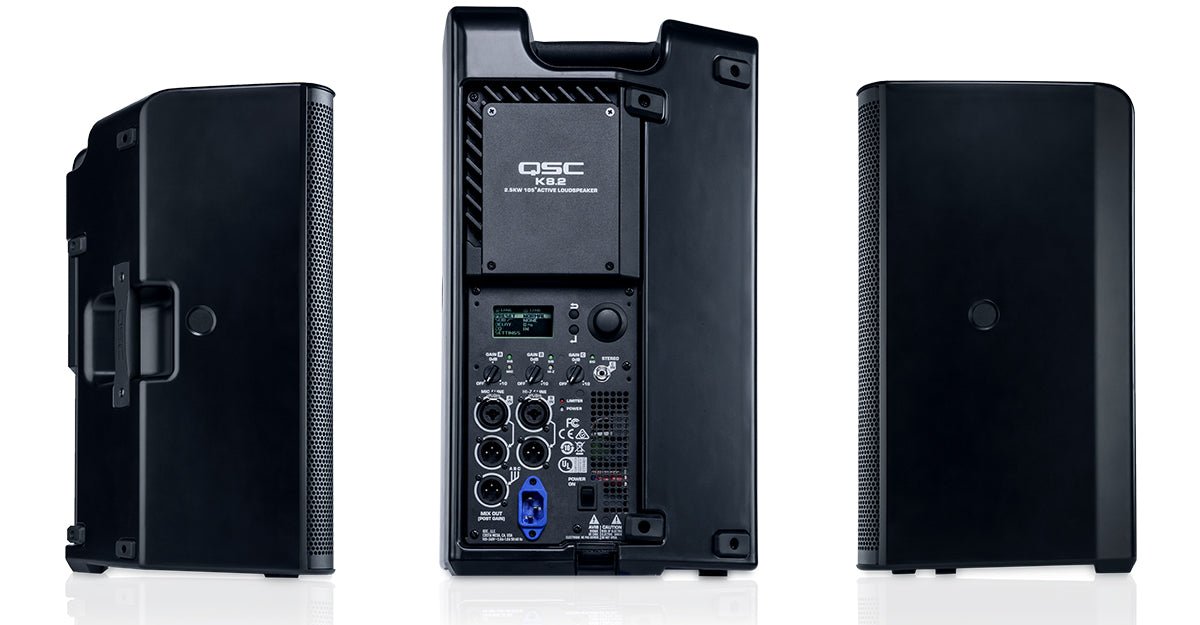

Powered 8-inch 2-way
The QSC K.2 Series™ represents the best-inclass loudspeaker for today’s demanding audio professionals. The perfect combination of elegant design, superior audio performance, high functionality, simple and intuitive operation, and genuine QSC reliability, K.2 delivers extraordinary results for users in both portable and installed applications.
Features
- Best in class audio performance
- 2000 Watt Class-D amplifier module
- Intrinsic Correction™ tuning and loudspeaker management
- Directivity Matched Transition® (DMT) design provides excellent power response and consistent performance across the listening area
- Refined, professional appearance looks great in any application
- Rugged ABS enclosure for long life and lasting durability
- Deployment in either main PA or floor monitor position
- Factory Presets and savable/recallable Scenes for commonly-used application
- Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour
- Dual pole cup mounts (standard and 7.5 degree down-tilt)
- M10 fittings for flown applications
- Optional security panel prevents unauthorized tampering of controls
- Complete EASE and CAD information available online
- 6-Year Warranty (with product registration)
| Model | K8.2 |
| Configuration | Multi-purpose, 2-way active loudspeaker |
| LF Transducer | 203 mm (8-inch), cone |
| HF Transducer | 35.6 mm (1.4-inch) titanium diaphragm compression driver |
| Frequency Response (-6 dB) | 59 Hz - 20 kHz |
| Frequency Range (-10 dB) | 55 Hz - 20 kHz |
| Nominal Coverage Angle | 105° Axisymetric |
| Maximum Rated SPL1 Amplifier Cooling |
128 dB @1 M, peak 122 dB @ 1 M, continuous Class D Peak: 1800 W (LF), 225 W (HF) Low-noise, variable speed fan |
| Controls | Power 3 × Level Rotary encoder (push) 2 ×x selection buttons |
| Indicators | Monochrome LCD Display 45 mm × 25.4 mm (1.75-inch × 1-inch) 2 × Power LED (front and rear) 3 × Input Signal LED Input A Mic selected LED Input B Hi-Z selected LED Limiter active LED |
| Connectors | 2 × locking XLR/F ¼⁻ᶦⁿᶜʰ combo (Mic/Line Input and Hi-Z/Line Input 1 × 3.5 mm TRS (Stereo Input) 2 × XLR/M (Loop-thru Output) 1 × XLR/M (Mix Output) 1 × locking IEC power connector |
| AC Power Input | Universal power supply 100 – 240 VAC, 50 – 60 Hz |
| AC Power Consumption 1/8th Power2 | 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A |
| AC Power Consumption - Standby | 0.2 A at any voltage |
| Enclosure Details | |
| Enclosure | Impact Resistant ABS |
| Attachment Points | 2 × M10 threaded inserts plus Pull-Back |
| Color | Black (RAL 9011) |
| Grille | 18 Gauge powered coated steel, internal cloth lining |
| Speaker Dimensions (H×W×D) | 449 × 280 × 269 mm 17.7 × 11 × 10.6 in |
| Carton Dimensions (H×W×D) | 500 × 380 × 368 mm 19.7 × 15 × 14.5 in |
| Net Weight | 12.2 kg / 27 lb |
| Shipping Weight | 14.4 kg / 31.7 lb |
| Regulatory | CE, WEEE, UL, China RoHS, RoHS II, FCC Class B |
| Optional Accessories | K8 Tote, K8 Outdoor Cover M10 Kit-C, K.2-LOC Lock Out Cover K8.2 Yoke |
1 Calculated for 1 m, based on sensitivity (full-space for full range systems and half-space for LF-only and subwoofer systems) and peak power capability of amplifier.
2 1/8 power is representative of current draw with typical music program material with occasional clipping.
All specifications are subject to change without notice.
Due to unprecedented demand, this product may currently be out of stock at some retailers. We continue to replenish supply regularly and are working to fulfill all orders as rapidly as possible. Please check with your dealer for the latest delivery updates.
* QSC K8.2 is sold as Single Speaker.
