QSC K12.2

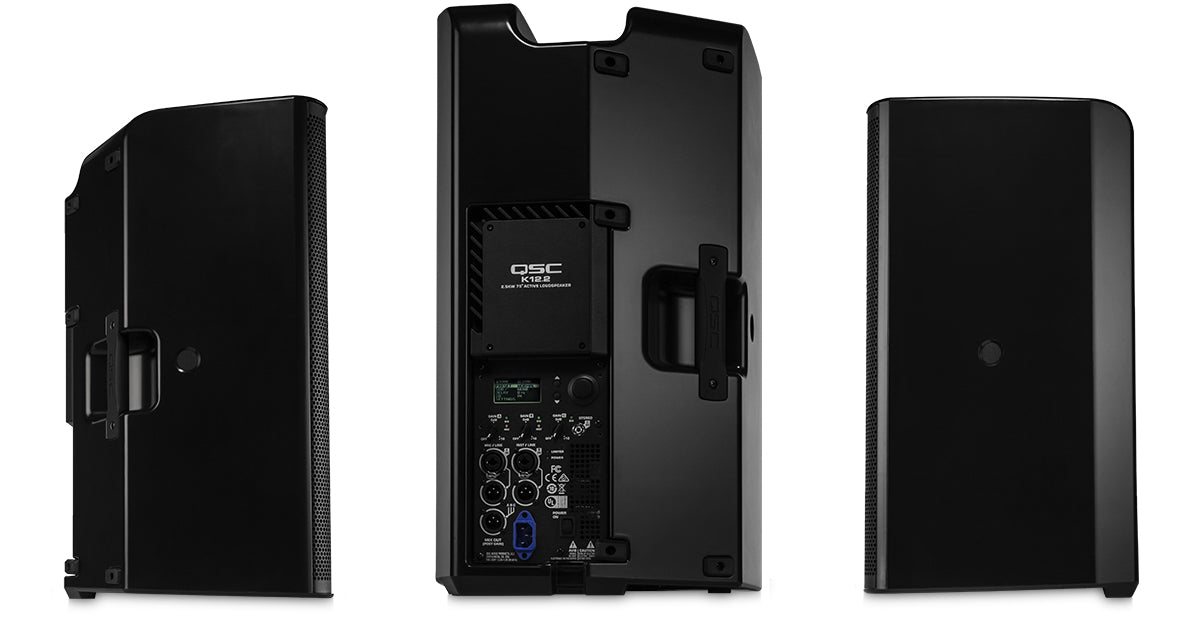

The Ultimate Powerhouse Loudspeaker: The QSC K12.2

The QSC K12.2 sets the benchmark for powered loudspeakers, delivering extraordinary audio performance for the most demanding applications. This professional active loudspeaker is the perfect choice for mobile DJs, live bands, and production companies, as well as for high-end fixed installations. With its immensely powerful 2000-watt Class-D amplifier module and advanced on-board DSP, the K12.2 provides a clean, powerful, and incredibly reliable sound that stands in a class of its own.

At its core, the K12.2 features a 12-inch woofer and a 1.4-inch titanium compression driver, meticulously matched with QSC's proprietary Directivity-Matched Transition® (DMT) for smooth, consistent coverage across the entire listening area. The advanced DSP provides a library of preset EQ contours for common applications and allows you to save and recall your own custom Scenes.

Built for the rigors of professional use, the K12.2 is housed in a rugged ABS enclosure. Its versatile design allows for use as a main PA, a high-performance floor monitor, or in a flown or pole-mounted configuration. Combining immense power, advanced features, and legendary QSC reliability, the K12.2 is the ultimate workhorse for any audio professional who refuses to compromise on sound.

Key Features:

• Best-in-Class Audio Performance: A 2000-watt Class-D amplifier module delivers powerful and pristine sound with ample headroom.

• Advanced DSP: An extensive factory preset library and savable/recallable Scenes for common applications, plus user-adjustable parameters like EQ, delay, and crossover.

• Directivity-Matched Transition® (DMT): QSC's proprietary DMT design ensures smooth, consistent coverage and a uniform frequency response across the entire listening area.

• Rugged and Versatile Enclosure: A robust ABS enclosure that can be used as a main PA, a stage monitor, or in a flown configuration using M10 fittings.

• Flexible Connectivity: Two combo XLR/F + 1/4" TRS inputs with independent gain control, plus a 3.5mm TRS input for portable music players.

• Multi-Function Digital Display: A bright display for control and selection of loudspeaker functions including crossover, EQ, delay, and frequency contours.

• Dual Pole Cup Mounts: Allows for a 0-degree or 7.5-degree down-tilt for optimal audience coverage when pole-mounted.

• Energy Efficient: An automatic standby mode conserves energy after 5 minutes of inactivity.

Technical Specifications:

• Configuration: Multi-purpose, 2-way active loudspeaker

• LF Transducer: 12 in (305 mm), cone

• HF Transducer: 1.4 in (35.6 mm) titanium diaphragm compression driver

• Frequency Response (-6 dB): 50 Hz - 20 kHz

• Frequency Range (-10 dB): 45 Hz - 20 kHz

• Nominal Coverage Angle: 75° Axisymetric

• Maximum Rated SPL: 132 dB @ 1 M, peak

• Amplifier: Class D, Peak: 1800 W (LF), 225 W (HF)

• Controls: Power, 3 x Level, Rotary encoder (push), 2 x selection buttons

• Display: Monochrome LCD Display 1.75 in x 1 in (45 mm x 25.4 mm)

• Inputs: 2 x locking XLR/F ¼" combo (Mic/Line Input and Hi-Z/Line Input), 1 x 3.5 mm TRS (Stereo Input)

• Outputs: 2 x XLR/M (Loop-thru Output), 1 x XLR/M (Mix Output)

• Enclosure: Impact Resistant ABS

• Dimensions (H×W×D): 23.7 x 14 x 13.8 in (602 x 356 x 350 mm)

• Weight: 39 lb (17.7 kg)

What's in the box:

• K12.2 Powered Loudspeaker

• Power Cord

• User Manual
