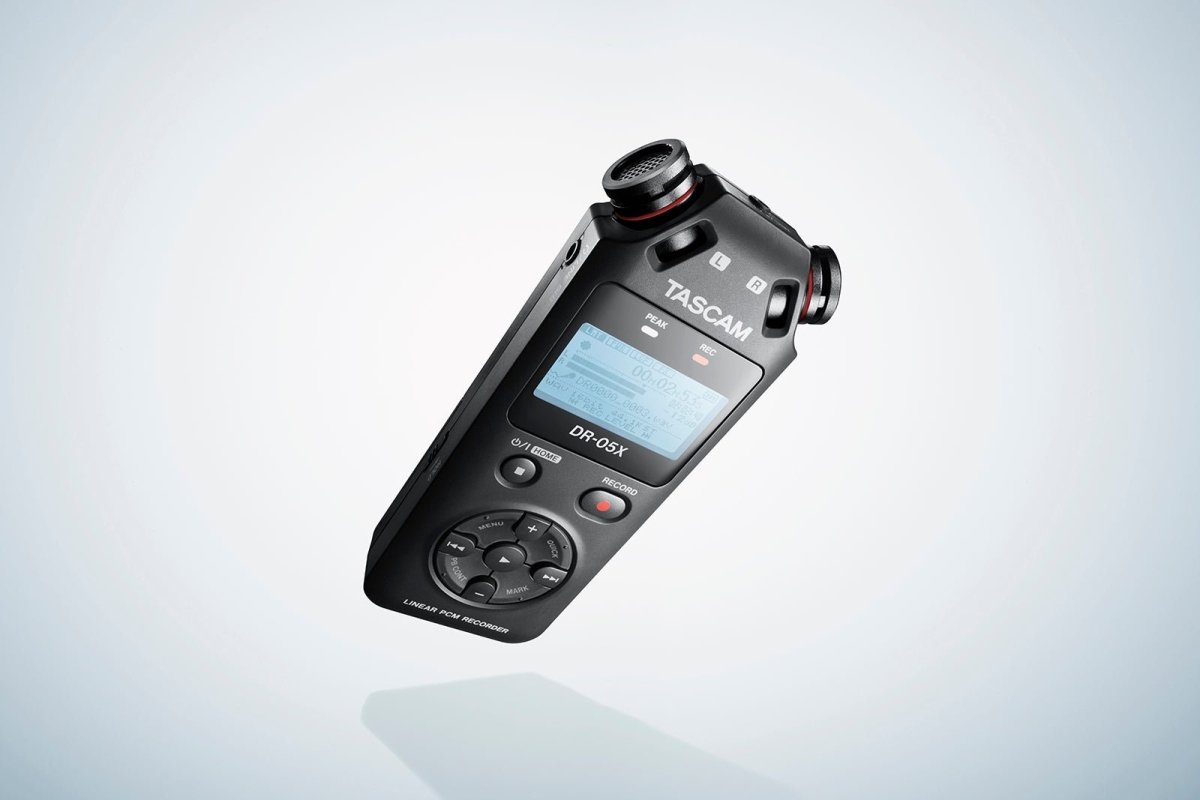

Tascam DR-05X

Stereo Handheld Digital Audio Recorder & USB Audio Interface
AED 671
AED 671
Tax included. Shipping calculated at checkout.
Title
Notify Me

Free shipping on orders over 500 AED

Money back guarantee within 7 Days

AED 671
AED 671
Tax included. Shipping calculated at checkout.

Stereo Handheld Digital Audio Recorder and USB Audio Interface

Record clean and clear audio anywhere
DR-05X

DR-05X allows high-quality recording utilizing an easy-to-use interface, and is portable and powerful but with a size and price that anyone can handle.  Dual internal condenser microphones can handle anything from subtle to loud to 125dB SPL, with sensitivity to capture every detail.

Simple to operate.
DR-05X

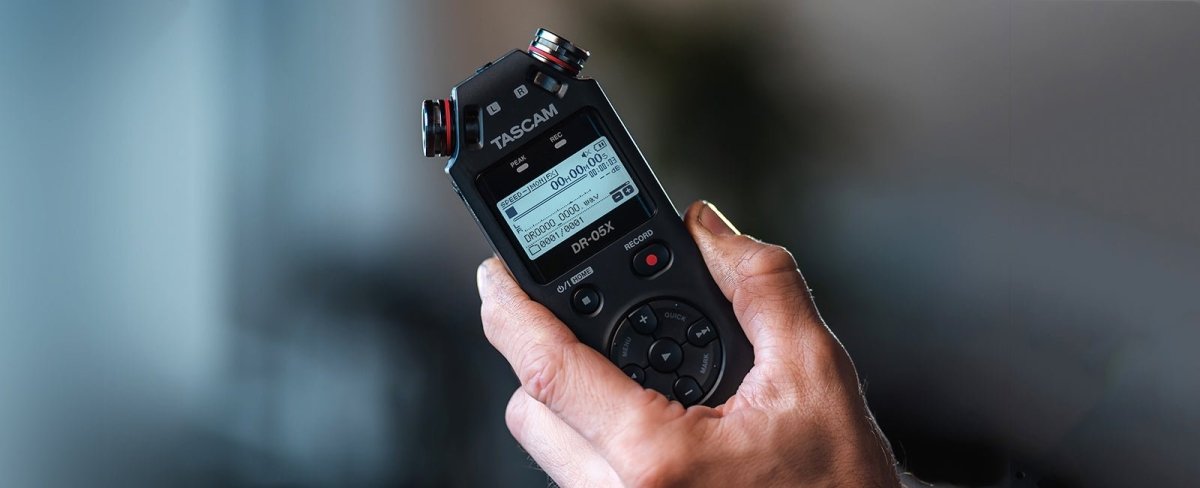

The layout of the DR-05X has been revamped to be quick and easy to work with one thumb. Operations like recording, adjusting levels, deleting bad takes and adding markers are just a button press away.

DR-05X
Choose your language

Menu display of DR-05X supports 10 languages:
English/ Spanish/ French/ Italian/ German/ Russian/ Chinese/ Korean/ Japanese/ Portuguese

DR-05X
Extended battery life

DR-05X uses only two AA batteries and has ultra-long battery capability. When using built-in microphones, recording lasts 17.5 hours when recording with standard 2ch WAV, 44.1kHz/ 16bit format using alkaline batteries.
Also DR-05X can be powered by a USB mobile battery as well for super long extended use.

DR-05X
Turning your room into a studio – in a minute.
DR-05X

Connect to a PC using USB Audio interface mode, and DR-X becomes a tool for voiceover work, live streaming, podcasting and songwriting with studio-quality audio.
Built-in microphones work as USB microphones without complicated driver installs.

Upgrade your movie
DR-05X* The wind screen shown in this picture is not the one included in AK-DR11C.

Auto tone function provides easy-adjustments for on-site movie editing, ideal for DSLR filmmaking. The internal slate tone generator produces various tones for easy track making and recognition. Please use the dedicated accessory kit (AK-DR11C) for connecting.

Back up your transcription work: record and play with one unit
DR-05X

Writing down what you hear – easier said than done, but it is actually easy with DR-X. In addition to its capability to capture crisp voice recording, DR-X can help you with its Jump back function, variable Speed function and equalizer preset for human voice.

Never miss the timing
DR-05X
DR-05X

Auto recording function can detect the sound input signal level and automatically start recording. Also, Pre-recording function with up to 2 seconds pre-record provides fail-safe protection even when you are a bit late to hit the record button

Still safe if it is louder than you thought.

Peak Reduction works in rehearsal mode or in record. Even if the sound or performance is louder than the sound check you’re safe. Combined with Auto level and Limiter for preventing distortion, you never have to worry.

DR-05X
DR-05X
No need to go through “take 2” all over again

If you don’t like the last part of a phrase you just recorded with your guitar, or if you change your mind and want to rephrase narration, the “Overwrite mode” is exactly what you need. Overwrite mode allows punch-in recording from a desired point. It is destructive editing with one level of undo.

Nondestructive Overdubbing

The overdubbing function allows for Overdub Recording while playing a previously recorded file. This allows you to record other parts such as a guitar solo over a recording previously made such as at a rehearsal studio. Overdubbing creates a new file, leaving the original file unaffected, making it easy to re-record.

DR-05X
DR-05X
192 Hours. This is how long you can record CD-quality sound with one single microSDXC card.

DR-05X supports a microSDXC card, which can record longer with larger data capacity. If you record a stereo file at 44.1kHz/ 16bit CD quality, a128GB card holds 192 hours maximum. In MP3/ 320kbps mode, it can record up to 896 hours.

Features at a glance

  • Stereo omni directional condenser microphones
  • Support multiple menu languages (ENG/FRA/DEU/ITA/ESP/RUS/PRT/JPN/CHI/KOR)
  • Overwrite function for Punch-In recording with one level of Undo
  • Functions as a 2in/ 2out USB Audio Interface for Mac, PC or iOS recording
  • Dictation mode designed for human voice recording and transcription
  • Reverb effect for vocal and instrument resonance
  • Auto recording function that can detect the sound input signal level and automatically start recording
  • Proven high sound pressure design for capturing loud sounds of up to 125dB SPL
  • Peak reduction function
  • Self timer recording function
  • Seamless gain control
  • Three low cut filter levels (40/80/120Hz)
  • Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
  • Level align feature that prevents uneven volume levels
  • Equalizer setting for adjusting playback sound quality
  • Divide/delete functions
  • Loop/repeat playback function
  • Resume function that retains the last stop position and starts playback from that position when power is turned back ON
  • Jump back and play (1 to 10 sec in 1 sec increments, 10 sec, 20 sec, 30 sec)
  • QUICK menu button for easy access to various functions
  • High-quality 96kHz/24-bit WAV/BWF linear PCM recording and long recordings as MP3 files possible
  • microSD/microSDHC/microSDXC (up to 128GB) cards can be used as recording media
  • Mark function that can set up to 99 points for a single track Mark information can be utilized by BWF compatible software
  • Audio files created on computers can be played (Only in formats compatible with this product)
  • Built-in monaural speaker with an output of 0.3W
  • Pre-recording buffer that can record up to 2 seconds prior to starting recording
  • When a predetermined maximum file size is reached, a new file is created to continue recording
  • Track increment creates new files at arbitrary locations during recording
  • File name format can be set to use a user-defined word or the date
  • The first six characters of the file name for recording can be set freely
  • Playlist function
  • A chromatic tuner is equipped which is helpful for practicing musical instruments
  • Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
  • Stereo mini line output / Headphone output connector
  • 128×64 pixel graphic LCD with backlight
  • High-speed file transfer to a computer is possible using USB 2.0
  • Powered by 2 AA batteries, USB bus power, or optional AC adapter (PS-P520E)
  • Tripod attachment screw-hole built in to the unit

    Spec description

    Recording Media microSD card (64MB to 3GB), microSDHC card (4GB to 32GB), microSDXC card (up to 128GB)
    File System FAT16/32 , exFAT
    Recording File Format
    WAV / BWF
    Sampling Frequency 44.1k / 48k / 96k Hz
    Bit-depth 16 / 24-bit
    MP3
    Sampling Frequency 44.1k / 48k Hz
    Recording Bit-rate 32k / 64k / 96k / 128k / 192k / 256k / 320k bps
    Playback Bit-rate 32k to 320k bps, VBR, ID3TAG Ver. 2.4
    Number of Channels 2-channel (Stereo) / 1-channel (Mono)
    Playback speed control 0.5 to 2.0 times (in 0.1 increments) * 44.1k/48kHz only
    Built-in Microphone Omnidirectional, Stereo
    MIC/EXT IN
    Connector 1/8" (3.5mm) Stereo Mini jack (Unbalanced, Plug-in Power)
    Nominal Input Level -20dBV
    Maximum Input Level -4dBV
    Input Impedance 18kΩ or more (PLUG IN PWR: OFF)
    2kΩ or more (PLUG IN PWR: ON)
    PHONES/LINE OUT
    Connector 1/8" (3.5mm) Stereo Mini jack (Unbalanced)
    for LINE connection
    Nominal Output Level -14dBV (10kΩ load)
    Maximum Output Level +2dBV (10kΩ load)
    Output Impedance 12Ω
    for Headphones connection
    Maximum Output Power 20mW + 20mW (32Ω load)
    USB
    Connector USB Micro B-type
    Format USB2.0 HIGH SPEED
    Built-in Speaker 0.3W, Mono
    Low-cut Filter 40 / 80 / 120Hz
    Chromatic Tuner C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments)
    Effector 6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2)
    Tripod attachment screw-hole 1/4" Tripod attachment screw-hole
    Power 2 AA Batteries, USB bus power, AC 100 to 240V (optional AC Adapter)
    Power Consumption 1.7 W (Max)
    Battery Operation Time (Recording)
    Alkaline (EVOLTA) approx. 17.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
    Ni-MH (eneloop) approx. 15.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
    Dimensions (W×H×D) 61 × 141 × 26 mm
    Weight 116 g



    Audio Performance

    Frequency Response
    Fs 44.1kHz 20Hz to 20kHz, +0/-1dB (EXT IN to LINE OUT, JEITA)
    Fs 48kHz 20Hz to 22kHz, +0/-1dB (EXT IN to LINE OUT, JEITA)
    Fs 96kHz 20Hz to 40kHz, +0/-1.5dB (EXT IN to LINE OUT, JEITA)
    Total Harmonic Distortion 0.01% or less (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA)
    Signal-to-Noise Ratio 94 dB or higher (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA)




    Supported OS' (PC)

    Windows

    Windows 11 , Windows 10 (November 2021 Update) , Windows 10 (May 2021 Update) , Windows 10 (October 2020 Update) , Windows 10 (May 2020 Update) , Windows 8.1 , Windows 7

    Mac

    macOS Monterey , macOS Big Sur , macOS Catalina , macOS Mojave , macOS High Sierra (10.13) , macOS Sierra‎ (10.12)

    iOS

    iOS 15 , iPadOS 15 , iPadOS 14 , iOS 14 , iPadOS 13 , iOS 13 , iOS 12 , iOS 11


    *1: The performance of the media may be degraded significantly if it will be used repeatedly. ERASE FORMAT by DR-05X is recommended before use.
