Yamaha DXR10MKII

Portable Powerhouse, Unmatched Performance: The Yamaha DXR10mkII

The Yamaha DXR10mkII is a high-performance active loudspeaker that delivers a powerful and clear sound in a compact and lightweight package. This updated model is even more powerful than its predecessor, boasting a larger 1.75” compression driver for incredibly clear voice reproduction and musicality. It’s the perfect solution for a wide range of applications, including live sound reinforcement, stage monitoring, and fixed installations.

The DXR10mkII is driven by a highly efficient 1100W Class-D amplifier, capable of producing an impressive 132dB SPL. Yamaha's advanced FIR-X tuning™ and D-CONTOUR intelligent multi-band compressor ensure that the sound is detailed, powerful, and consistent at any output level. The on-board 3-channel mixer provides flexible input options, making it easy to connect microphones and line-level sources directly.

Built for the rigors of professional use, the DXR10mkII is housed in a rugged and durable ABS enclosure. Its versatile design allows it to be used as a main PA speaker on a stand or as a floor monitor in a symmetrical configuration. With its combination of raw power, sophisticated DSP, and legendary Yamaha reliability, the DXR10mkII is a true workhorse for any audio professional.

Key Features:

• 1100W of High-Performance Power: A highly efficient Class-D amplifier delivers 1100W of dynamic power for a maximum SPL of 132dB.

• Upgraded Transducers: A high-output 10-inch woofer and a larger, more powerful 1.75-inch precision compression driver deliver a clear and articulate sound.

• Advanced DSP Processing: Yamaha's proprietary FIR-X tuning™ and D-CONTOUR processing ensure a high-resolution sound with a powerful and consistent output.

• On-Board 3-Channel Mixer: A versatile 3-channel mixer with a variety of input options, including XLR, TRS, and RCA, allows for easy connection of multiple sources.

• Rugged and Portable Design: A lightweight yet durable ABS cabinet with ergonomic aluminum handles for easy transport and setup.

• Versatile Mounting Options: Can be used as a main PA, a floor monitor (with a symmetrical enclosure design for mirroring), or in a rigged installation using M10 rigging points.

• Smart Protection Features: The DSP-controlled multi-band compressor provides consistent, clear sound at any output level, while protecting the amplifier and speaker components.

• Flexible HPF Control: A selectable high-pass filter allows for seamless integration with subwoofers.

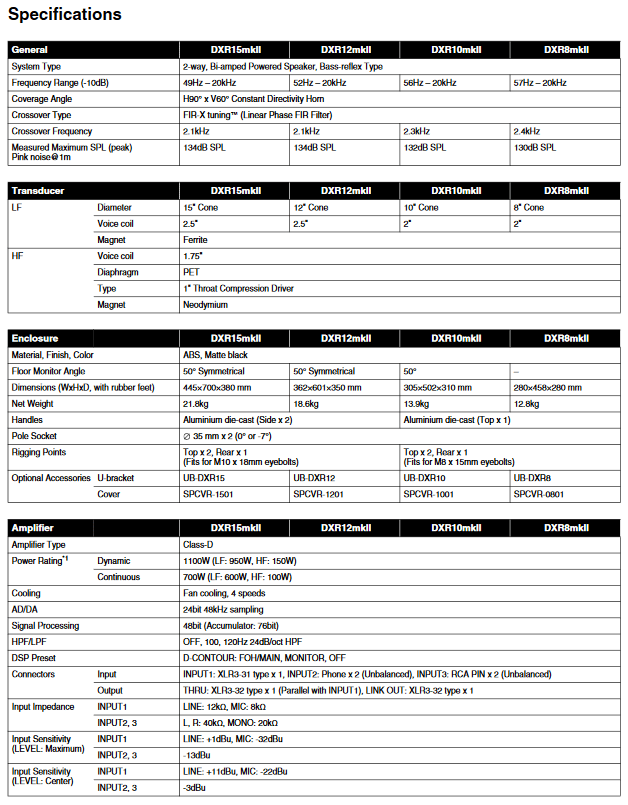

Technical Specifications:

• Speaker type: 10" 2-way, Bi-amp powered speaker, Bass-reflex type

• Frequency range (-10dB): 56Hz - 20kHz

• Nominal coverage (H x V): 90° x 60°

• Components:

  • LF: 10" cone, 2" voice coil, Ferrite magnet

  • HF: 1.75" compression driver, 1" throat, Neodymium magnet

• Crossover: 2.3kHz (FIR-X tuning)

• Output power: Dynamic: 1100 W (LF: 950 W, HF: 150 W) / Continuous: 700 W (LF: 600 W, HF: 100 W)

• Maximum output level (1m; on axis): 132 dB SPL

• I/O connectors: INPUT1: Combo x1, INPUT2: Combo x1 + RCA pin x 2, INPUT3: RCA pin x 2, THRU: XLR3-32 x 1, LINK OUT: XLR x 1

• Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF

• Power consumption: 90W

• Cabinet material: ABS (Matte Finish, Black)

• Pole socket: 35mm with 2-way features (0 or 7 degrees)

• Rigging: Top x2, Rear x1 (Fit for M10 x 18 mm eyebolts)

• Dimensions (W x H x D): 12.0" x 19.8" x 12.2" (305 x 502 x 310 mm)

• Net weight: 30.2 lbs (13.7 kg)

What's in the box:

• DXR10mkII Active Loudspeaker

• AC power cord

• Owner's manual
