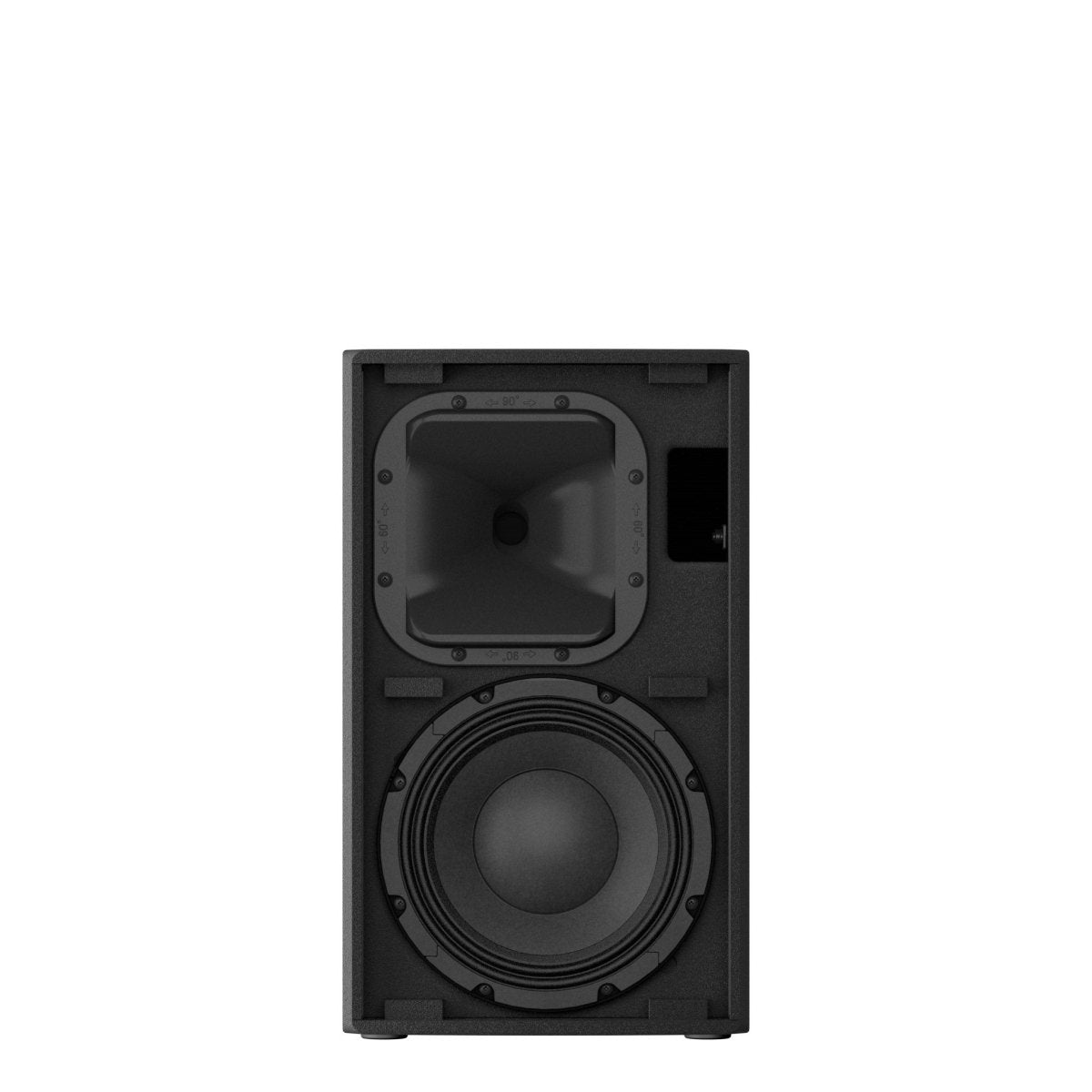

Best-in-Class Performance and Professional Power: The Yamaha DZR10
The Yamaha DZR10 is a 2-way bi-amped active loudspeaker that delivers a truly professional sound with a best-in-class SPL performance. This compact and lightweight speaker is part of the flagship DZR series, integrating the latest in Yamaha's audio technology to provide a powerful and sophisticated sound for a wide range of live sound and installation applications.
At its core, the DZR10 is powered by a high-performance 2000W Class-D amplifier module, delivering a massive 137dB SPL with remarkable clarity. The sophisticated 96kHz DSP processing and advanced FIR-X tuning provide a high-resolution sound with a smooth and accurate frequency response. The on-board 2-channel mixer provides flexible input options, while the advanced DSP presets and control make it easy to tailor the speaker's sound to any environment.
The DZR10 is housed in a lightweight yet durable natural wood cabinet finished with a premium, damage-resistant Polyurea coating. Its rotatable horn and versatile mounting options, including M10 rigging points and a dual-angle pole socket, allow for flexible placement as a main PA, floor monitor, or in a flown configuration.
Key Features:
-
2000W of High-Performance Power: A highly efficient Class-D amplifier delivers a massive 2000W of power for a best-in-class maximum SPL of 137dB.
-
Advanced 96kHz DSP and FIR-X Tuning: High-resolution digital signal processing and advanced FIR filters for a pristine, high-definition sound with minimal latency.
-
D-CONTOUR Multi-band Compressor: An intelligent multi-band compressor that constantly monitors the output and adjusts the frequency response for a clear and powerful sound at any volume.
-
On-Board 2-Channel Mixer: A convenient 2-channel mixer with both XLR/TRS combo and RCA inputs allows for easy connection of a variety of sources.
-
Rotatable Horn and Versatile Design: A 90°x60° constant directivity horn can be rotated for vertical or horizontal mounting, making it perfect for a variety of applications.
-
Rugged and Portable Enclosure: A lightweight yet durable natural wood cabinet with a premium, damage-resistant Polyurea coating.
-
Advanced Protection: Comprehensive DSP protection functions for the amplifier, power supply, and transducers ensure a reliable performance.
-
Flexible Mounting Options: Features a dual-angle pole socket (0° or -7°) and multiple M10 rigging points for a wide range of setup possibilities.
Technical Specifications:
-
Speaker type: 2-way, Bi-amped Speaker, Bass-reflex
-
Frequency range (-10dB): 44Hz - 20kHz
-
Nominal coverage (H x V): 90° x 60°
-
Components:
-
LF: 10" Cone, 3" Voice Coil, Neodymium magnet
-
HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
-
-
Crossover: 1.8kHz (FIR-X)
-
Power rating: Dynamic: 2000 W (LF: 1000 W, HF: 1000 W) / Continuous: 1300 W (LF: 920 W, HF: 380 W)
-
Maximum output level (1m; on axis): 137 dB SPL
-
I/O connectors: INPUT: Combo x2, RCA pin x 2, OUTPUT: XLR3-32 x2, USB2.0 Host 5V 500mA
-
Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
-
Power consumption: 45W (Idle), 150W (1/8 Power)
-
Cabinet material: Plywood, Durable Polyurea Painting
-
Pole socket: 35mm (Bottom x2)
-
Rigging: Top x2, Rear x1 (Fit for M10 x 30 mm eyebolts)
-
Dimensions (W x H x D): 12.4" x 21.3" x 13.7" (315 x 540 x 345 mm)
-
Net weight: 41.9 lbs (19.0 kg)
What's in the box:
-
DZR10 Active Loudspeaker
-
AC power cord
-
Owner's manual
