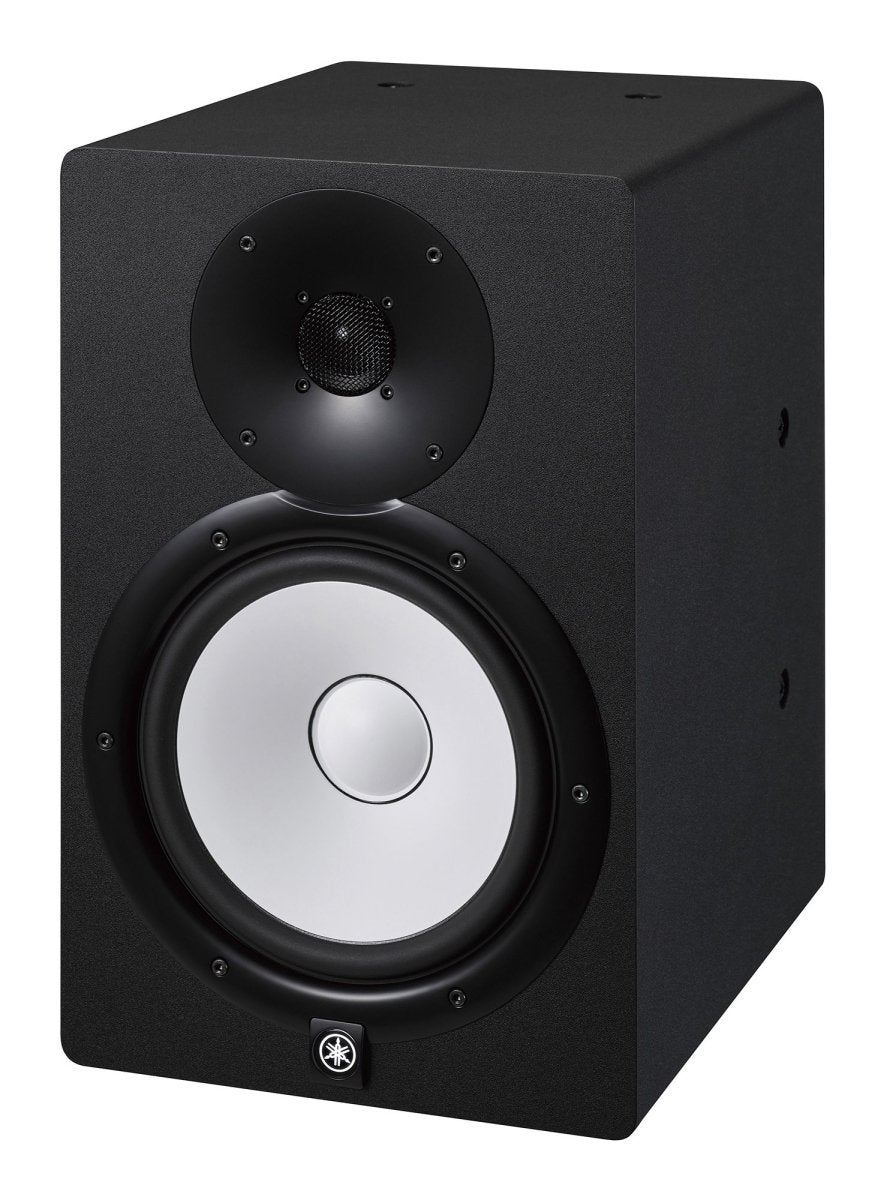

The Industry Standard, Ready for Installation: Yamaha HS8I
The Yamaha HS8I brings the legendary accuracy and signature sound of the HS Series to installation environments. This 2-way bass-reflex, bi-amplified nearfield studio monitor is designed to give you the most honest and precise reference possible, and now with integrated mounting points, it's perfect for professional studios, broadcast facilities, and commercial installations.
Like its predecessor, the HS8I features an 8" cone woofer and a 1" dome tweeter, driven by a powerful 120W bi-amp system. This combination delivers an exceptionally flat and accurate response from 38Hz up to 30kHz. The HS8I is built to eliminate unwanted resonance with its dense MDF enclosure, while Yamaha's advanced noise reduction technology in the speaker port ensures a clean and clear sound.
What sets the HS8I apart is its flexible mounting options. With mounting points on 4 surfaces, it is compatible with a variety of optional wall, ceiling, and baton brackets. This, combined with the ROOM CONTROL and HIGH TRIM response controls, allows you to optimize the monitor's performance for any acoustic space, ensuring your mix translates accurately everywhere.
Key Features:
-
2-Way Bi-Amped Powered Studio Monitor: A high-performance monitor with an 8" cone woofer and a 1" dome tweeter, now with mounting points for installation.
-
120W of High-Performance Amplification: A 75W LF and 45W HF bi-amp system is perfectly matched to the woofer and tweeter for a consistently high-resolution sound.
-
Wide Frequency Response: Delivers an impressive frequency range of 38Hz to 30kHz for detailed monitoring across the entire audio spectrum.
-
Flexible Mounting Options: Integrated mounting points on 4 surfaces are compatible with a range of wall, ceiling, and baton brackets.
-
Low Resonance Enclosure Design: A dense MDF cabinet is designed to kill unwanted resonances that can influence sound.
-

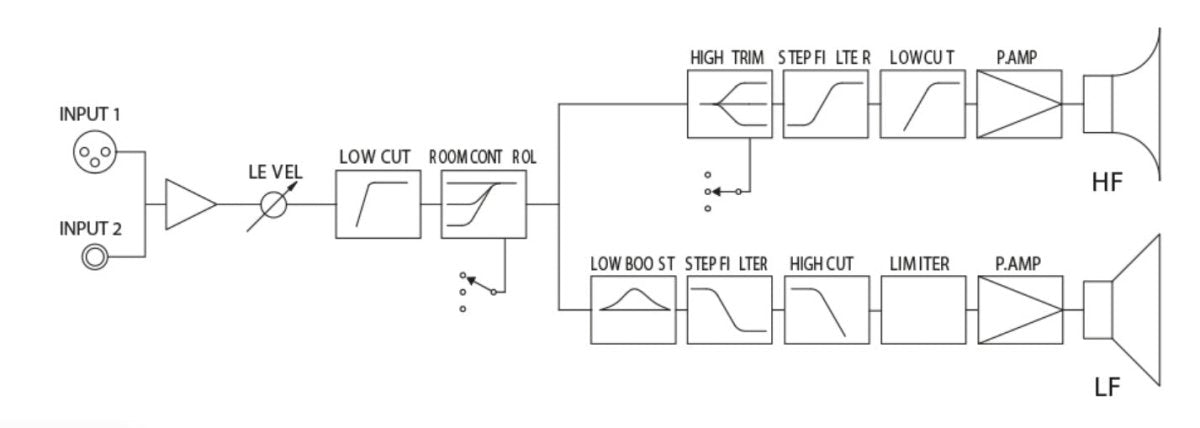

Room Control and High Trim: Response controls allow you to tailor the monitor's output for optimal response in any room.
-
Versatile Connectivity: XLR and TRS phone jack inputs accept both balanced and unbalanced signals for easy integration into any setup.
-
Iconic Design: The signature white-coned woofer is an instantly recognizable symbol of industry-standard monitoring quality.
Technical Specifications:
-
Speaker Type: 2-way bi-amp powered studio monitor
-
Frequency Range (-10dB): 38Hz - 30kHz
-
Components:
-
LF: 8" cone
-
HF: 1" dome
-
-
Crossover: 2kHz
-
Output Power: 120W (LF:75W, HF:45W)
-
I/O Connectors: XLR3-31 type (balanced), PHONE (balanced)
-
Power Consumption: 60W
-
Cabinet Material: MDF
-

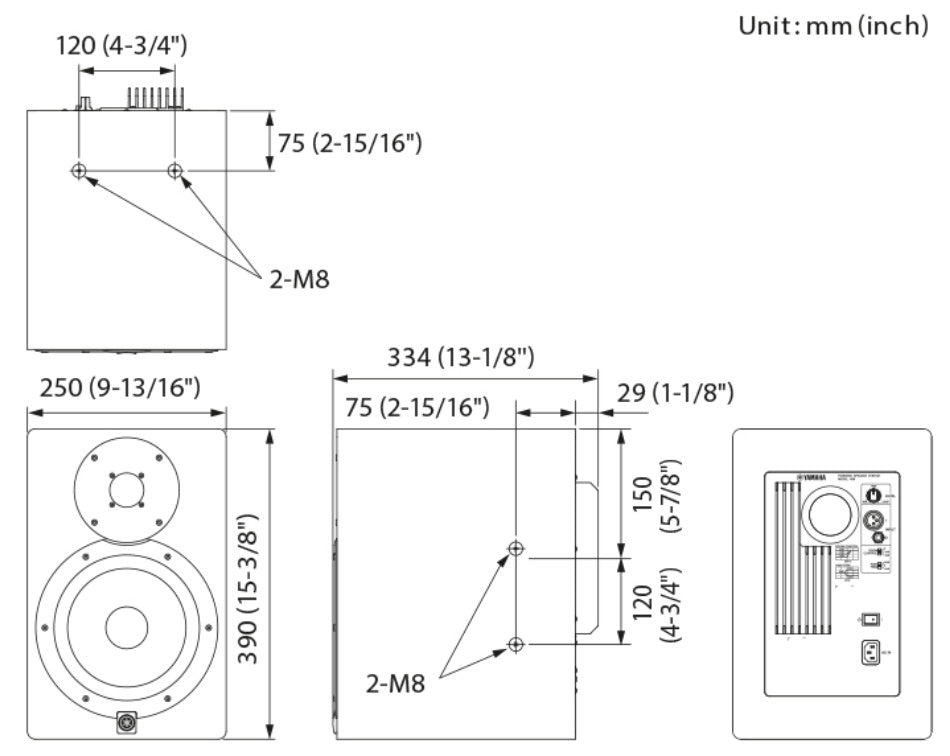

Flying and mounting hardware: Four surfaces x 2 x M8 (120 mm pitch)
-
Dimensions (W x H x D): 9.8" x 15.4" x 13.1" (250 x 390 x 334 mm)
-
Net Weight: 23.6 lbs (10.7 kg)
What's in the box:
-
HS8I Powered Studio Monitor
-
Power cord
-
Owner's Manual
-
Screws for installing brackets x 2
