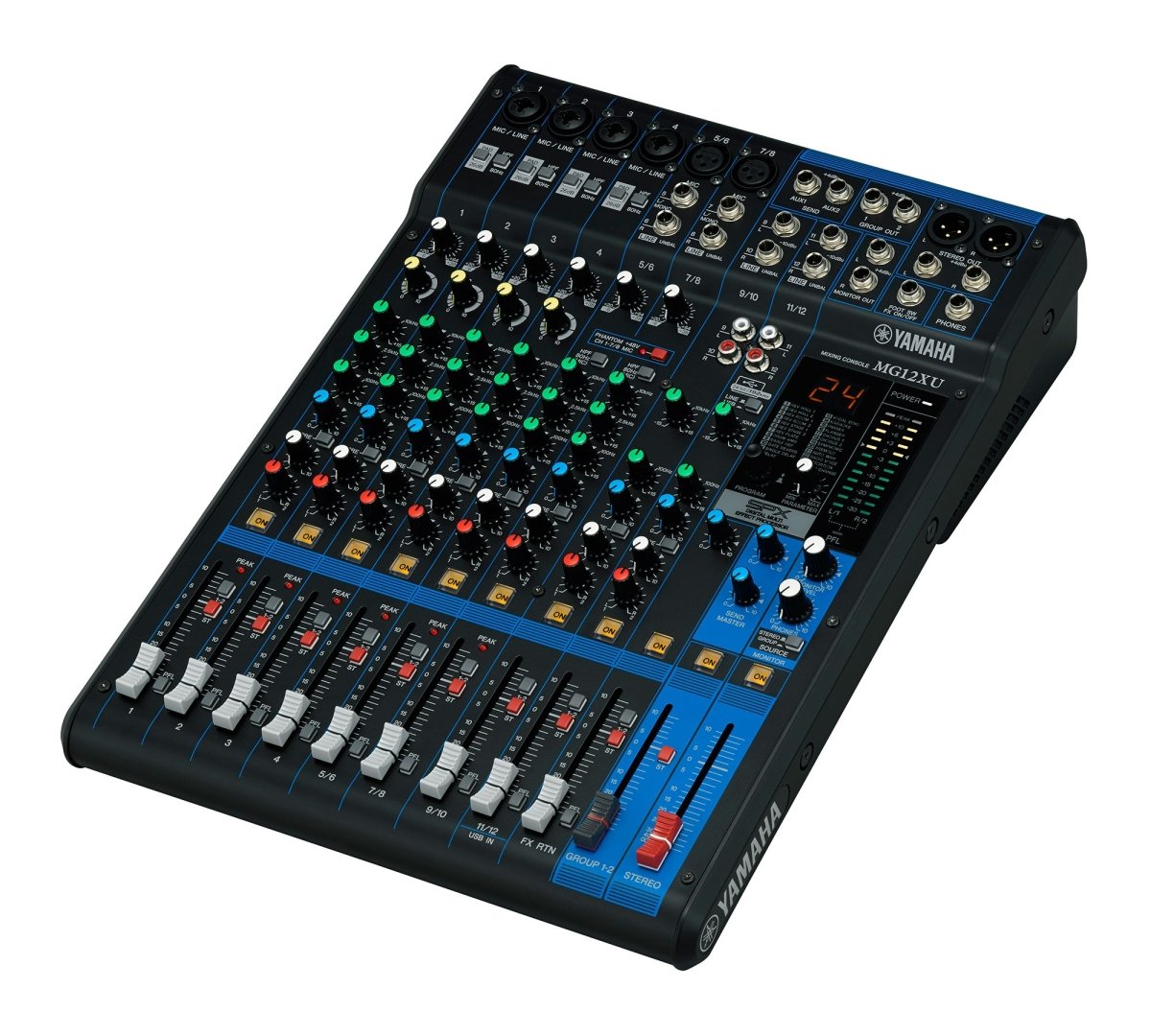

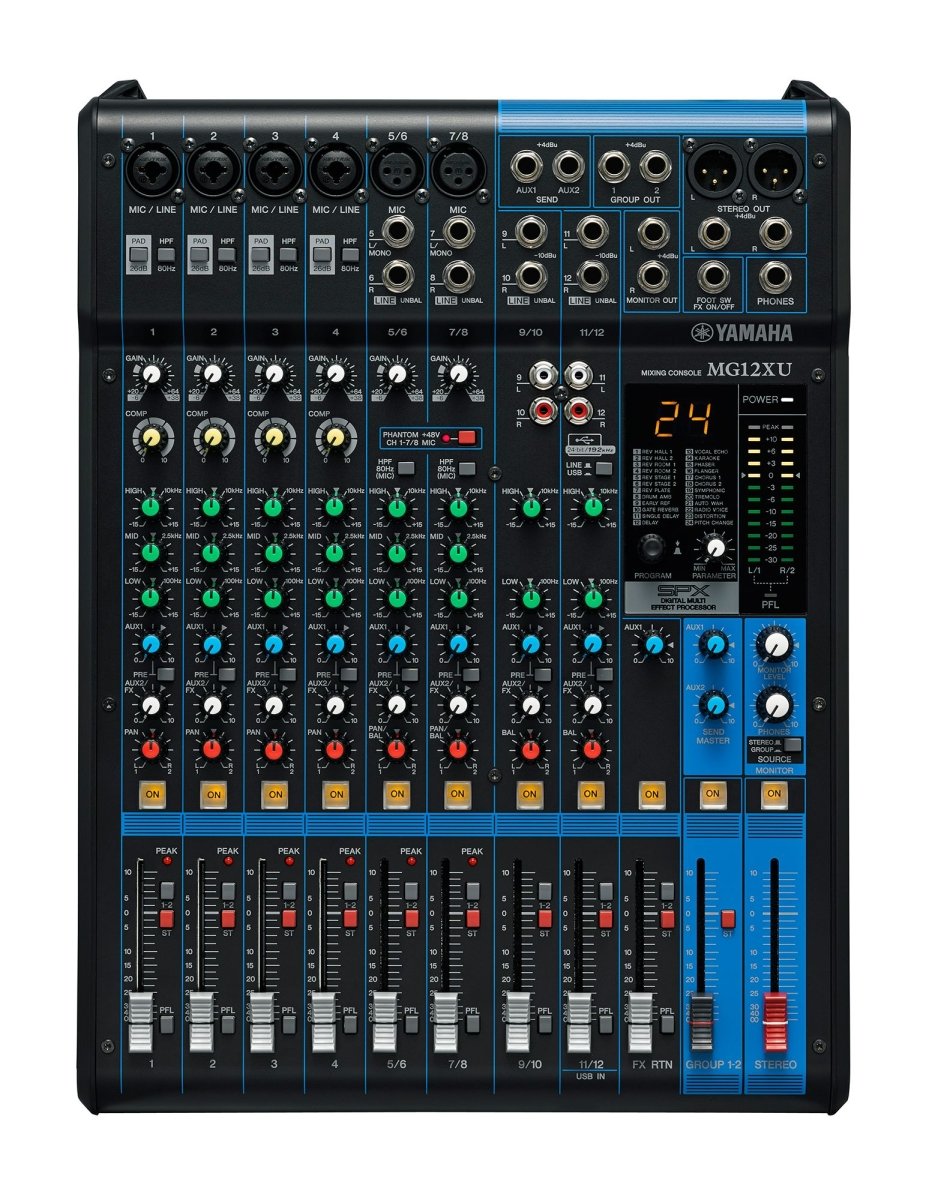

Professional Features, Compact Design: The Yamaha MG12XU
Building on a legacy of superior craftsmanship, the Yamaha MG12XU is a 12-channel mixing console that offers professional performance and a rich feature set in a portable and robust package. This mixer is the perfect choice for a wide range of applications, including small to medium-sized live performances, lectures, and home recording studios.
The MG12XU is equipped with Yamaha's studio-grade, discrete Class-A "D-PRE" mic preamps, which deliver a natural, full-bodied bass and smooth, soaring highs with exceptionally low distortion. The mixer is built to last, with a rugged, powder-coated steel chassis that is ready for the rigors of the road.
This "XU" model is equipped with Yamaha's acclaimed SPX digital effects processor, offering a comprehensive suite of 24 editable effects to add polish and professionalism to your mix. It also features a high-quality 2-in/2-out 24-bit/192kHz USB audio interface, making it an excellent tool for both live performance and high-resolution recording with a PC, Mac, or even an iPad.
Key Features:
-
12-Channel Mixing Console: Features up to 6 mic / 12 line inputs (4 mono + 4 stereo) for a versatile setup.
-
Studio-Grade "D-PRE" Mic Preamps: Discrete Class-A mic preamps with an inverted Darlington circuit deliver a clean, natural sound.
-
High-Quality SPX Digital Effects: A suite of 24 editable digital effects, including reverbs, delays, and modulations, for professional sound processing.
-
24-bit/192kHz 2-in/2-out USB Audio Interface: Provides high-resolution playback and recording capabilities with a PC, Mac, and iPad (with Apple Camera Connection Kit).
-
1-Knob Compressors: Easy-to-use compressors on the first four mono channels allow you to add punch and control to your sound with a single control.
-
3-Band Channel EQ and HPF: A 3-band EQ and a high-pass filter on mono channels provide effective sound shaping.
-
Rugged Metal Chassis: A powder-coated steel chassis is built for superior durability and a long service life.
-
Includes Cubase AI DAW Software: Comes with a download version of Steinberg's Cubase AI software to start your recording projects right away.
Technical Specifications:
-
Total Channels: 12
-
Mono/Stereo Inputs: 4 Mono, 4 Stereo
-
Mic Preamps: 6 x "D-PRE" with +48V phantom power
-
EQ: 3-band with sweepable mid (mono channels), 3-band (stereo channels)
-
Effects: SPX algorithm with 24 programs
-
USB Audio Interface: 2-in/2-out, 24-bit/192kHz
-
Bus: 1 Stereo Bus, 2 GROUP Buses + 1 ST Bus
-
Aux Sends: 2 (incl. FX)
-
Compressor: 1-knob compressor on channels 1-4
-
Dimensions (W×H×D): 12.1" x 4.6" x 16.2" (308 mm x 118 mm x 422 mm)
-
Net Weight: 9.3 lbs. (4.2 kg)
What's in the box:
-
MG12XU Analog Mixer
-
AC Power Adapter
-
Cubase AI Download Information
-
Owner’s Manual
-
Technical Specifications
